Good Quality Phono Solutions Phono Pre-amplifier PS1
$145.00
Forty decibels of gain with RIAA accuracy held to ±0.5 dB from 20 Hz to 20 kHz, from a board carrying twenty extra components and 1% tolerance resistors over the standard design. A 7 Hz subsonic filter, gold-plated RCA jacks, 80 dBA signal-to-noise, and an external AC/DC adapter that keeps the supply away from the signal. Five inches wide, in matte black steel.
1 in stock

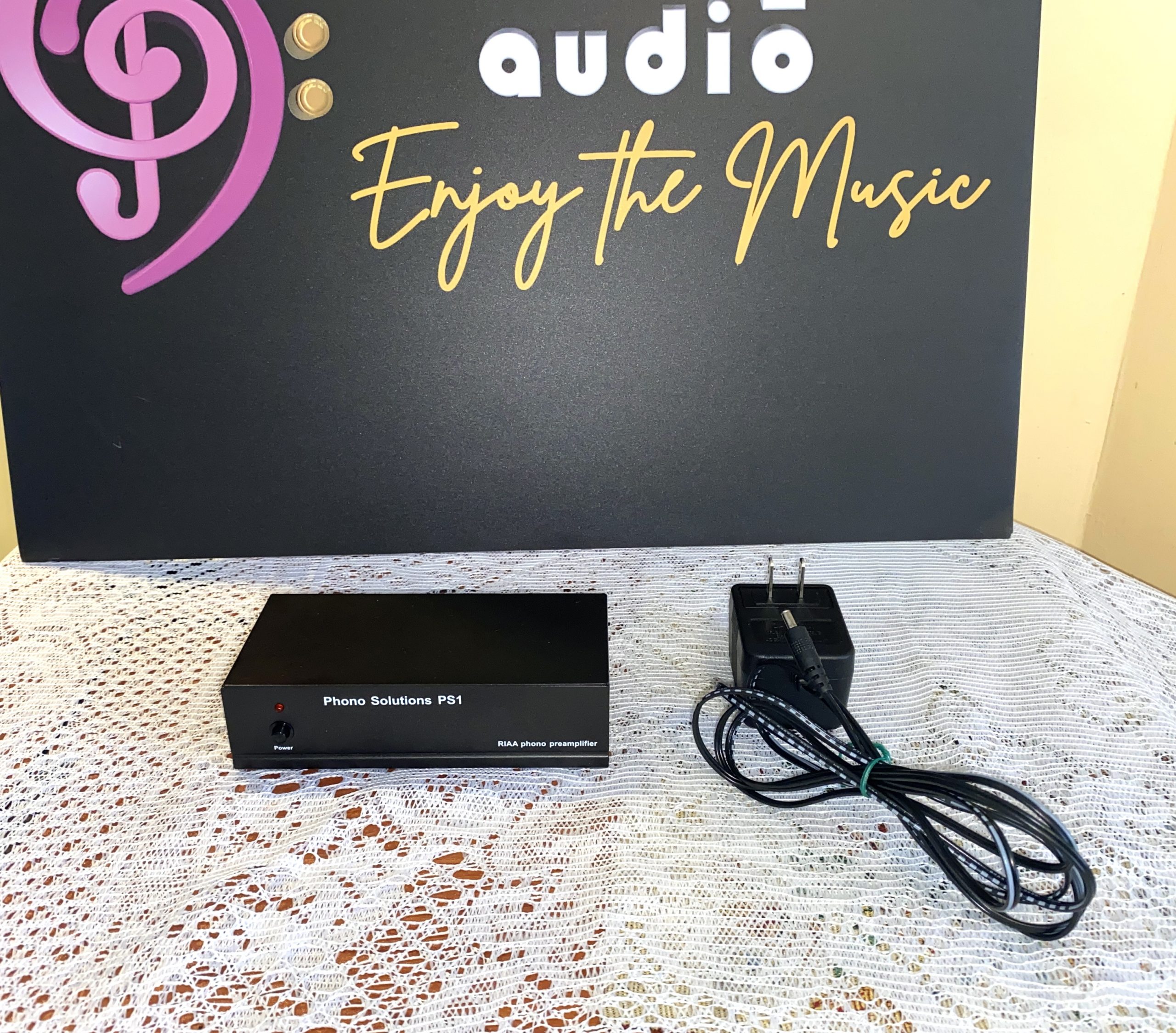

The Phono Solutions PS-1 is a high-performance phono preamp, custom-designed by Technolink, that delivers exceptional sound quality and value, making it an excellent choice for vinyl enthusiasts.
This compact yet powerful unit features a redesigned circuit board with 20 additional components and 1% tolerance resistors, ensuring superior RIAA accuracy of ±0.5 dB and improved gain performance. It offers 2 dB more gain than comparable units, allowing your amplifier to operate at its ideal level. The PS-1 is housed in an understated black matte steel case with gold-plated RCA jacks for secure connections and includes a subsonic filter to eliminate unwanted low-frequency noise. Its external AC/DC power adapter minimizes hum for a cleaner sound.
Specifications:
RIAA Frequency Response: 20 Hz–20 kHz, ±0.5 dB
Gain: 40 dB
Signal-to-Noise Ratio: 80 dBA
Total Harmonic Distortion: 0.06%
Input Impedance: 47 kOhms/220 pF
Output Impedance: 600 Ohms
Rated Output: 310 mV
Maximum Output: 3.1 Volts
Overload: 30 mV (20 dB)
Subsonic Filter: 7 Hz
Dimensions: (Width x Height x Depth) 127 x 48 x 80 mm (5 x 1.9 x 3.1 inches)
Weight: Approx. 0.7 kg (1.5 lbs)
With its robust construction, accurate performance, and thoughtful design, the Phono Solutions PS-1 is the perfect addition to any vinyl setup. Don’t miss the chance to elevate your analog listening experience!

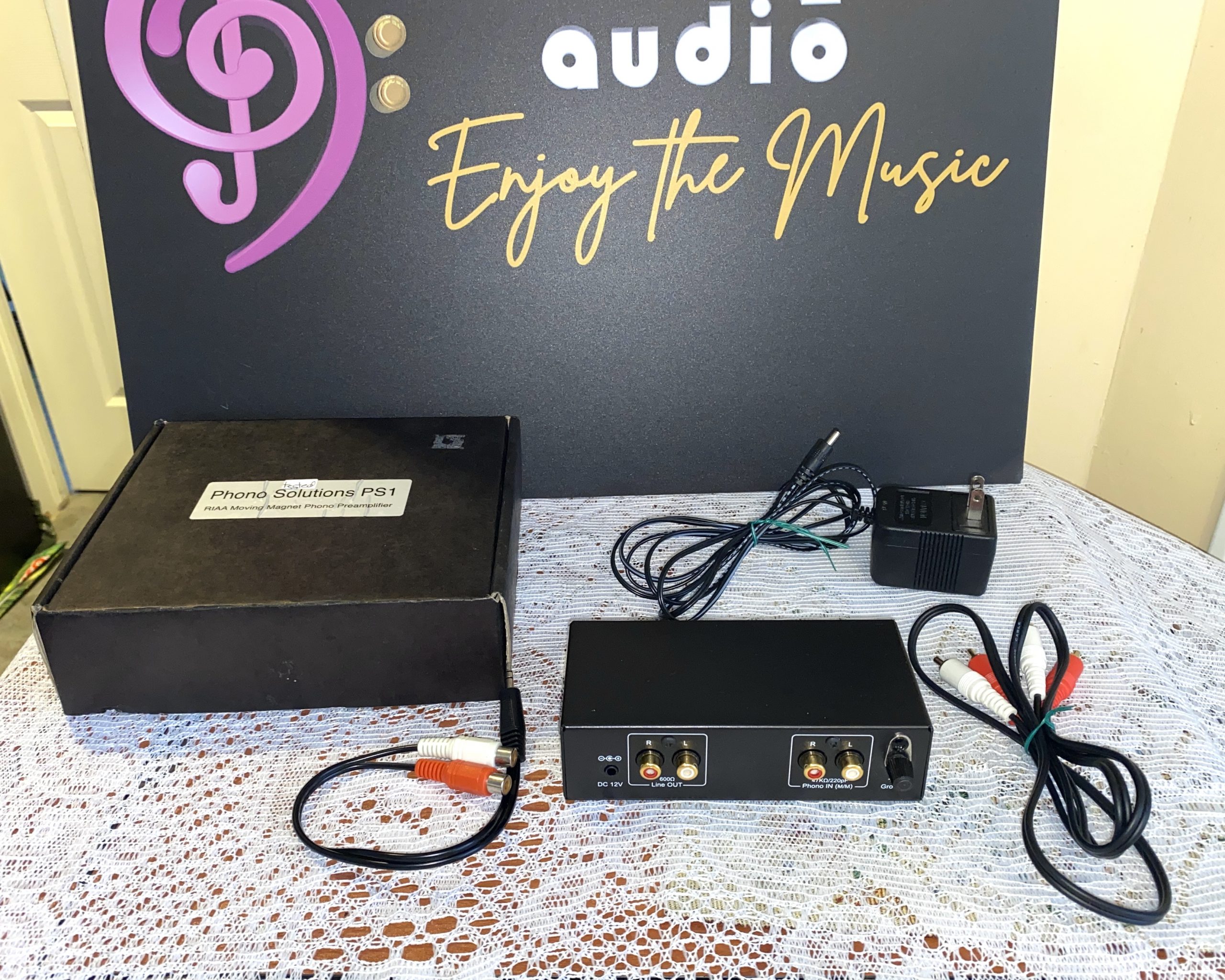

Includes original packaging. Asking $145.
| Weight | 3 lbs |
|---|---|
| Dimensions | 7.1 × 9 × 6 in |
You may also like…
NAD PP 3 Digital Phono/USB Preamp – MM & MC, Power Supply
A proper moving-magnet and moving-coil phono stage that also digitises your records, with its original NAD power supply.
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Related Products
Marantz 1070 Vintage Integrated Amplifier – 35 WPC, Serviced
A slim mid-seventies Marantz integrated amplifier, through our Level 1 service, in very good condition, with a phono stage, a three-band tone section and a microphone input on the front panel.
✔️ Very good condition — free of significant marks
✔️ Through our Level 1 service on our own bench
✔️ MM phono stage, three-band tone sliders and a front-panel mic input
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Denon DRA-835R Vintage Stereo Receiver – 100 WPC, Made in Japan
The second-from-the-top model in Denon's early-nineties stereo receiver range, made in Japan and in very good condition, with 100 watts per channel, a phono stage, motorized volume and its original remote.
✔️ Very good condition — free of significant marks
✔️ 100 WPC, MM phono and motorized volume — made in Japan
✔️ Original Denon remote included
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
NAD T 757 7.1 AV Receiver – 7 x 60W, 7 Digital Inputs, Remote
A 7.1-channel NAD surround receiver in very good condition, rated at 60 watts per channel with all seven channels driven, with seven digital audio inputs, NAD's modular design and a remote.
✔️ Very good condition — free of significant marks; remote included
✔️ 7 x 60 W, all channels driven — Dolby TrueHD and DTS-HD Master Audio
✔️ Seven digital audio inputs and four HDMI inputs (1080p and 3D)
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Pioneer VSX-9900S Stereo Receiver – 125 WPC, Phono, 110–240V
A big, heavy early-nineties Pioneer receiver, made in Japan, with 125 watts per channel and selectable mains voltage from 110 to 240 volts, so it runs on household power almost anywhere in the world. It comes with a phono stage for your turntable and its original remote, through our Level 1 service and in good condition.
✔️ Good condition, with the original Pioneer remote
✔️ 125 watts per channel, MM phono and selectable 110–240 V mains
✔️ Radique Level 1 service, bench-tested twice before listing
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Pyle PP999 Phono Preamp — Turntable to Line Level, New in Box
Puts a turntable back into a system that has no phono input. Turntable in, receiver out, on ordinary RCA cables — the signal arrives at line level ready for any AUX or CD socket on a modern amplifier.
Rear ground terminal for the turntable's ground wire, and the 12 volt power adapter is included. Metal alloy housing, 70 dB signal-to-noise, 20 Hz to 20 kHz ±2 dB. New and unopened in retail packaging.

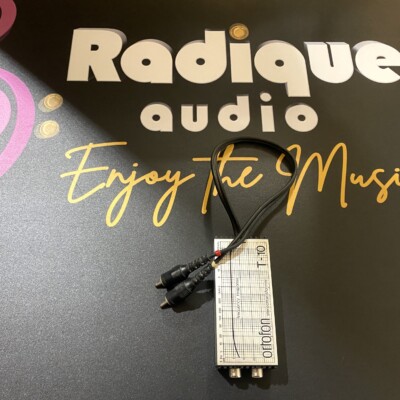

Ortofon Phono MC Pre-Amplifier T-10; Passive 32dB gain, 1:40
