Pioneer Vintage AM/FM Stereo Tuner in Cherry TX-6700
$395.00
Out of stock
This one has sold. Looking for one?
We take these in regularly. Leave your name and we’ll email you the moment one arrives, before it goes up for sale.
Email me when one arrives
Give your next receiver Bluetooth. RA-Twin II, $39.00 →
Other tuners we have in stock now
3 in stock · $395.00 · all ship
Marantz Model 104 AM/FM Tuner – Made in Japan, Walnut Case$395.00Ships
Marantz Model 104 AM/FM Tuner — Made in Japan, Excellent$395.00Ships
Sansui TU-5900 AM/FM Stereo Tuner — Dolby FM, Made in Japan$395.00Ships
Give your next receiver Bluetooth.
The RA-Twin II adds Bluetooth streaming to any vintage receiver or amp with a spare input. Phone to stereo in about a minute, and nothing on the receiver is modified.

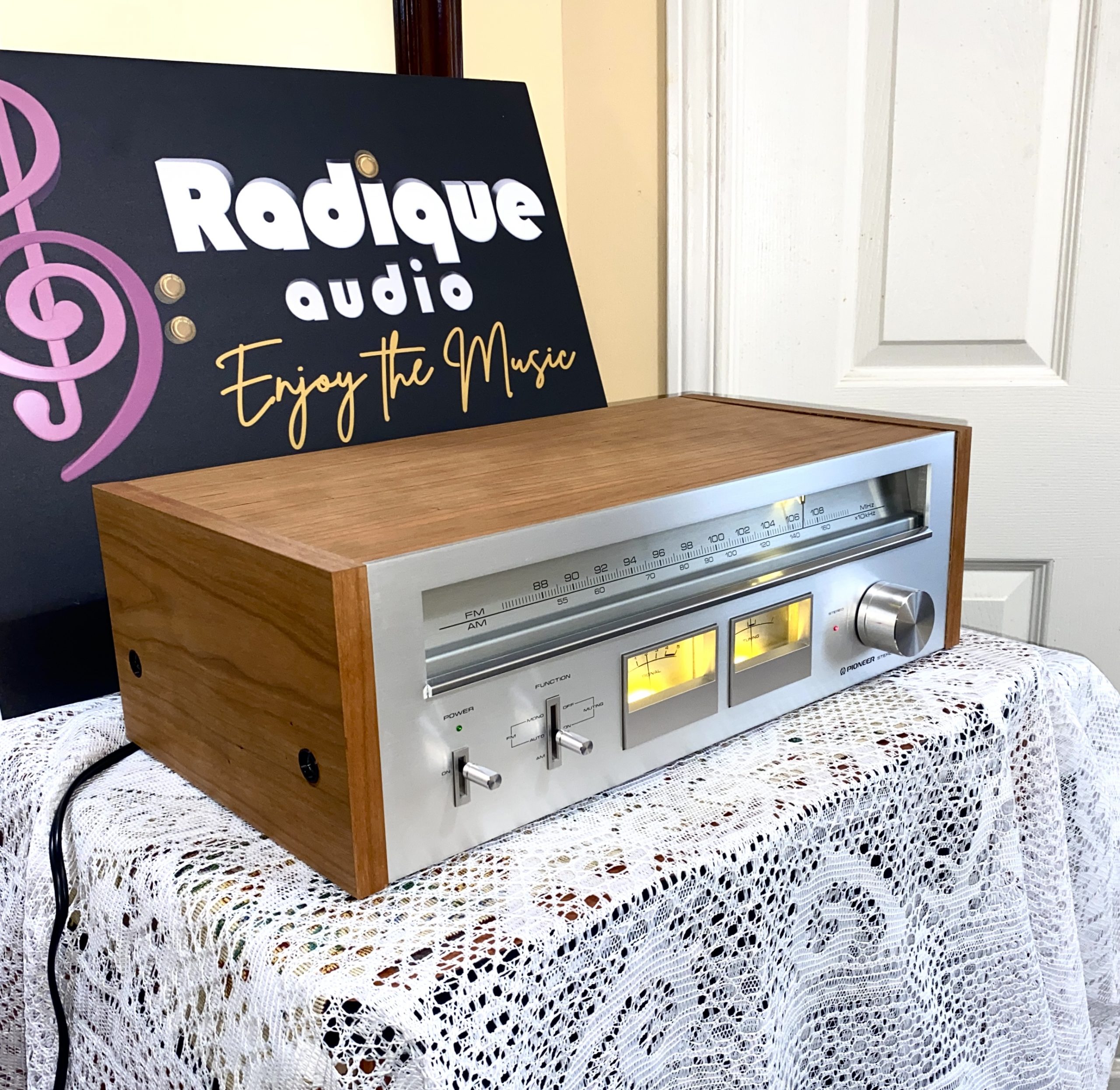

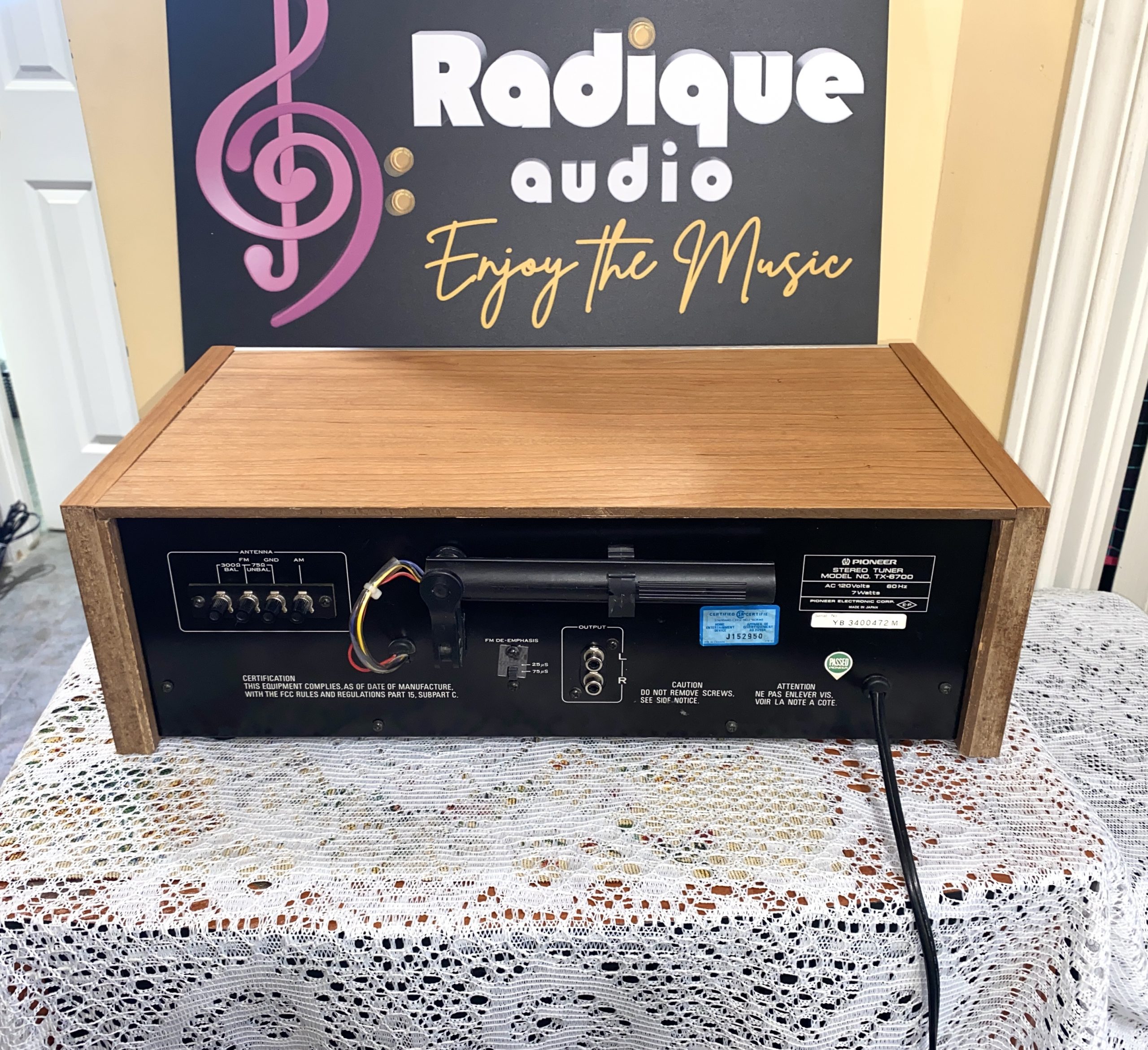

RA-Twin II, $39.00 →Pioneer Vintage TX-6700 AM/FM Stereo Tuner in beautiful upgraded Cherry Veneer Cabinet.
This exceptional Japanese-made Pioneer TX-6700 is a sophisticated AM/FM stereo tuner from the golden era of audio equipment, featuring outstanding build quality and impressive sound reproduction capabilities. Manufactured during Pioneer’s prime years in the mid-to-late 1970s, this component delivers the warm, clear sound quality that vintage Pioneer equipment is renowned for.
The TX-6700 showcases Pioneer’s engineering excellence with its high-quality FM front-end section utilizing a high-frequency amplification single-stage circuit that combines an FET with a low noise figure and a frequency linear 3-row varicon. The tuner’s IF section employs a dedicated high-integration IC developed by Pioneer, consolidating over 200 elements into a single IC for superior performance.
Sound quality is enhanced by the 5-stage limiter that virtually eliminates AM noise, while the IC PLL circuit in the MPX section improves the stability of separation characteristics. The muting circuit effectively eliminates inter-station noise during channel selection, automatically engaging for FM-auto reception and turning off for FM-mono.
The elegant front panel features a multi-function meter that serves as both a center tuning meter when receiving FM and as a signal meter when receiving AM to indicate signal strength. The intuitive controls allow for precise tuning and optimal reception under various conditions.
Circuit system: FET RF 1-stage, 3-series varicon, 5-stage limiter, quadrature detection PLL MPX
FM Practical sensitivity: Mono 1.9 μV (IHF), Stereo 50 μV (S/N 50dB)
Signal-to-noise ratio: FM Mono 70dB, Stereo 68dB
Capture ratio: 1.0dB
Stereo separation: 35 dB or more (1 kHz)
Frequency response: 50 Hz to 10 kHz +0.2/-0.5 dB
Output level/impedance: 650mV/4.3kΩ
Semiconductor configuration: Transistors 18, FET 2, IC 3, Diodes 14
Dimensions: Width 420 x Height 147 x Depth 264 mm (16.5 x 5.8 x 10.4 inches) Weight: 4.6 kg (10.1 lbs)
This Japanese-crafted Pioneer TX-6700 represents a perfect blend of vintage audio excellence and reliability. With its impressive technical specifications and classic aesthetic, this tuner would make an outstanding addition to any quality stereo system. Experience the warm, detailed sound that made Pioneer a legendary name in audio equipment.
Asking $395 for this impressive vintage Pioneer Tuner with gorgeous upgraded Cherry wood cabinet; buy with confidence and benefit from Radique’s “Bumper to Bumper” warranty and Perpetual trade back policy.
| Weight | 13 lbs |
|---|---|
| Dimensions | 14.4 × 20.5 × 9.8 in |
Related Products
Sony ST-2950 SD AM/FM Stereo Tuner – Walnut Side Panels
Two microvolts IHF sensitivity and 73 dB signal-to-noise, with FM distortion at 0.5% mono and 0.7% stereo — enough front end to hold a weak station cleanly. Silver faceplate, illuminated dial, and the original faux walnut side panels. Made in Japan between 1976 and 1979. Tested and verified working; good cosmetic condition.

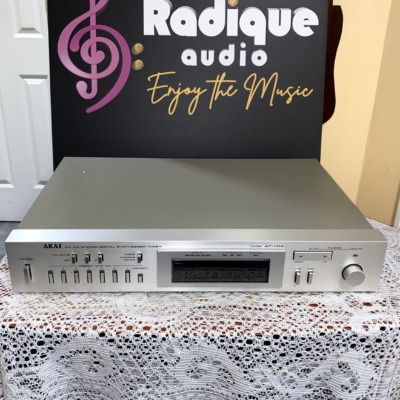

Akai AT-V04 FM/AM Tuner | Digital Synthesizer | Made in Japan
A digital synthesiser tuner with a traditional analog knob, stepping in 0.05 MHz on FM and 1 kHz on AM — fine enough that it works as an AM DX receiver and not only an FM tuner. Seven presets for each band, separate local/distance switches for FM and AM, 300 and 75 ohm antenna inputs, and a rear output level trim. Built in Japan, 1980 to 1981; tested here.
Marantz Model 104 AM/FM Tuner — Made in Japan, Excellent
We sold this tuner ourselves and it came back through our Perpetual Trade-Back Program — so we know what it was when it left, and it has been through our bench again since. A 1976 Model 104 in excellent cosmetic condition: silver face, blue dial lighting, made in Japan.
Braun Atelier T1 Slim AM/FM Tuner — 9 Presets, Quartz, Japan
An analogue tuner given a quartz-referenced five-digit readout — the precision of a synthesised design with a real analogue front end behind it, which tends to hold a weak signal more gracefully. The nine presets are not memories: each station button carries its own tuning adjustment, set by hand with a small screwdriver through the panel, so it is effectively nine little tuners in one chassis. Made in Japan, 445 mm wide and 70 mm tall to match the Atelier deck. Good condition.
Sansui TU-5900 AM/FM Stereo Tuner — Dolby FM, Made in Japan
An analogue AM/FM stereo tuner from Sansui's strongest years, built in Japan in the mid-seventies as the matching partner to the AU-series integrated amplifiers, and a good deal more serious inside than its modest size suggests.
✔️ Condition: Very Good
✔️ Level One — named in the copy
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
AKAI AT-A1 AM/FM Stereo Tuner – Ultra Slim Profile
An analog tuner from 1980 in a chassis 50mm tall — two inches, which is about as thin as a full-width component gets. Needle-pointer dial with a printed scale, an AM/FM selector, a single RCA output, and nothing else. Tuning engages smoothly across both bands and the output is clean. Condition good, with a clean front bezel and honest age on a 45-year-old component.

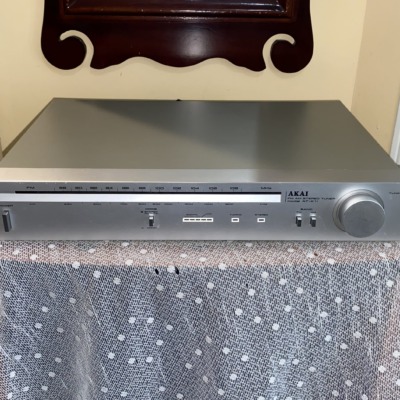

AKAI AT-K11 AM/FM Stereo Tuner – Professional Build Grade
