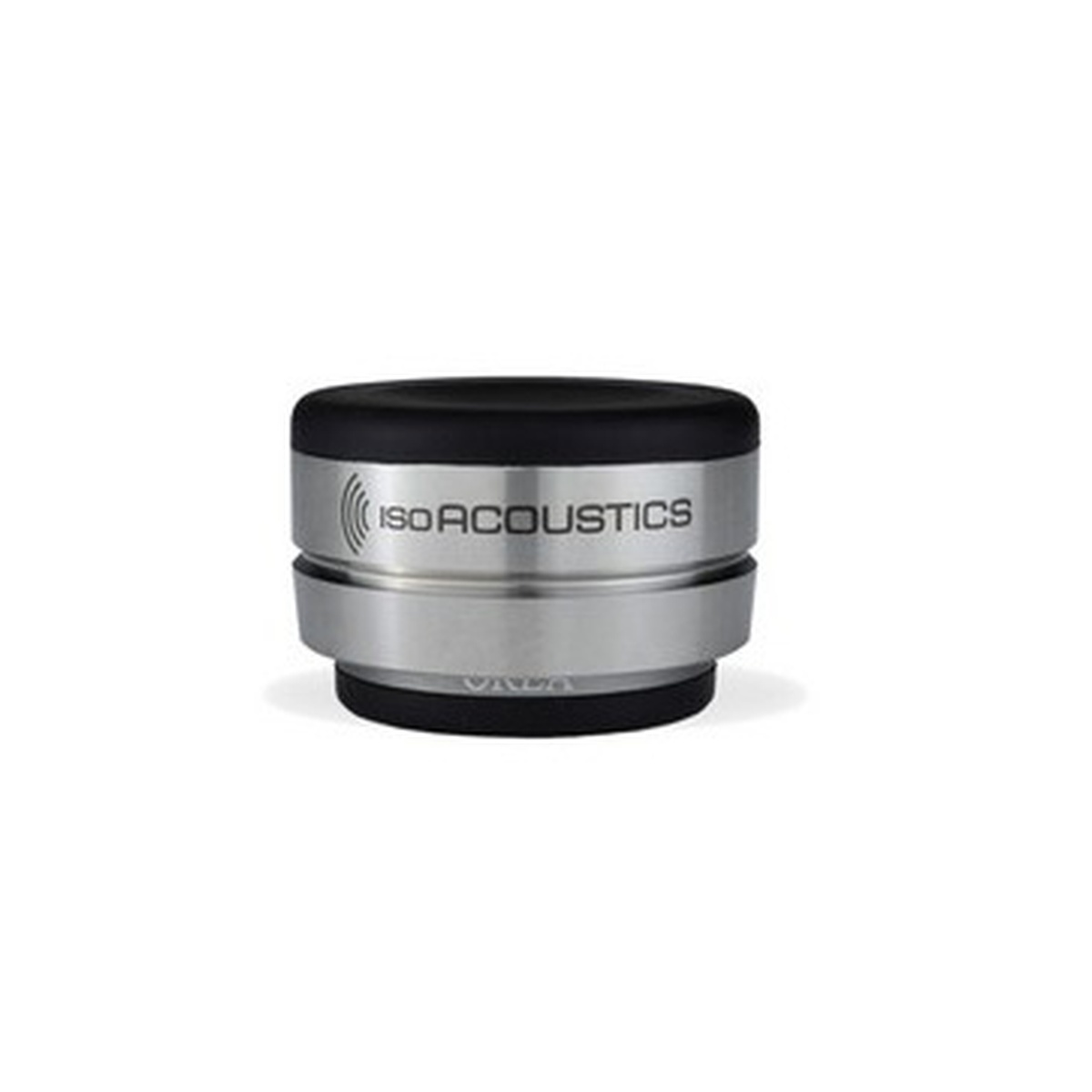

IsoAcoustics OREA Graphite Audio Isolation Foot (Single)
$54.99
- ✔️ Genuine IsoAcoustics, brand new, from an authorized Canadian dealer
- ✔️ One isolation foot, rated 4 lb (1.8 kg); use three or more per component
- ✔️ Three carry 12 lb (5.4 kg), four carry 16 lb (7.2 kg)
- ✔️ Machined stainless steel, 1.6 in wide and 1.1 in tall (40 × 27 mm)
- ✔️ Pick up in Kanata by appointment, or shipped across Canada and internationally
OREA Graphite: the OREA for small components
The smallest, lightest-rated OREA. Three of them under a DAC, a streamer or a phono stage give it IsoAcoustics isolation in a footprint barely bigger than its own feet.
The short answer
IsoAcoustics OREA Graphite is a single isolation foot, rated 4 lb (1.8 kg), that goes under a small component such as a DAC, streamer or phono stage. You use at least three under each component, so three carry 12 lb (5.4 kg) and four carry 16 lb (7.2 kg). It’s machined stainless steel, 1.6 in wide and 1.1 in tall (40 × 27 mm), with a graphite ring that marks the model.
Pick your OREA by weight
OREA is sold one foot at a time, and the ratings add up. Weigh the component, then pick the model and count whose total sits above it. IsoAcoustics asks for at least three feet per component.
| Model | Per foot | Three feet | Four feet | Size (W × H) |
|---|---|---|---|---|
| OREA Graphite (this one) | 4 lb (1.8 kg) | 12 lb (5.4 kg) | 16 lb (7.2 kg) | 1.6 × 1.1 in (40 × 27 mm) |
| OREA Bronze | 8 lb (3.6 kg) | 24 lb (10.8 kg) | 32 lb (14.4 kg) | 2 × 1.1 in (50 × 29 mm) |
| OREA Indigo | 16 lb (7.2 kg) | 48 lb (21.6 kg) | 64 lb (28.8 kg) | 2.3 × 1.3 in (58 × 33 mm) |
| OREA Bordeaux | 32 lb (14.5 kg) | 96 lb (43.5 kg) | 128 lb (58 kg) | 2.6 × 1.4 in (67 × 36 mm) |
What OREA Graphite does
Isolation in a small foot
IsoAcoustics’ isolation in a low-profile machined stainless foot. It decouples the component from the shelf, which IsoAcoustics says brings out clarity and detail.
Three or more, and they add up
Each foot carries 4 lb (1.8 kg). IsoAcoustics asks for at least three under a component; three or four is typical, and the total rating is the per-foot figure times the number of feet.
Award-winning
OREA took Stereophile’s 2019 accessory Product of the Year and a 2020 Absolute Sound Golden Ear, and shared Hong Kong HiFi Review’s 2021 Product of the Year.
Specifications
From IsoAcoustics’ published data.
| IsoAcoustics OREA Graphite | |
|---|---|
| Rated load | 4 lb (1.8 kg) per foot |
| Three feet | 12 lb (5.4 kg) |
| Four feet | 16 lb (7.2 kg) |
| Five feet | 20 lb (9 kg) |
| Six feet | 24 lb (10.8 kg) |
| Size | 1.6 in wide and 1.1 in tall (40 × 27 mm), W × H |
| Construction | Machined stainless steel; graphite ring marks the model |
| For | DACs, streamers, phono stages and other small components |
| Sold as | A single foot (order three or more) |
| Warranty | 2 years, IsoAcoustics manufacturer’s warranty in Canada |
Why buy IsoAcoustics from Radique
Genuine, from an authorized dealer
Radique is an authorized Canadian IsoAcoustics dealer, so this is the real thing, brand new in IsoAcoustics’ retail box, with the manufacturer’s warranty intact.
Sized for your gear
Tell us what it is going under and roughly what it weighs, and we’ll point you to the right model, or tell you when you don’t need one at all.
Pick up in Kanata, or have it shipped
Collect your order free in Kanata by appointment, or have it shipped across Canada and internationally: enter your city and postal code on the cart page to see live carrier rates before you commit. Buying it with one of our pre-owned speakers or components? It rides along in the same order at no extra shipping cost.
A Canadian company, like us
IsoAcoustics is based in Markham, Ontario. We like selling gear from people who answer the phone in the same time zone.
IsoAcoustics at Radique, on video
Our IsoAcoustics launch
Filmed the day we hit 500 subscribers: Mark and La-Donna unbox and talk through the IsoAcoustics line we carry, from the GAIA III to the Aperta Sub.
How we pack every order
Every order ships in our 275 lb-test double-wall packaging, engineered to protect your gear in transit. Here it is, start to finish.
Questions we get about this one
How many do you need?
At least three per component. Three OREA Graphite feet carry 12 lb (5.4 kg) and four carry 16 lb (7.2 kg). Weigh the component and choose the count, or the model, that rates above it.
Graphite or Bronze?
Where do the feet go?
With four, one near each corner. With three, IsoAcoustics suggests two at the back corners and one at the front center, which suits components that are heavier at the back.
Do the component’s own feet have to come off?
No. You can remove them, or set the OREAs beside them so the OREAs touch the chassis and carry the weight.
Is this one foot or a set?
One foot. Set the quantity to three or four before you add it to your cart.
What warranty does it have?
Brand new in IsoAcoustics’ retail box, with IsoAcoustics’ 2-year manufacturer’s warranty in Canada against defects in materials and workmanship. If anything is wrong, contact us and we’ll handle it with IsoAcoustics. More in our warranty FAQ.
What does shipping cost? Is pickup possible?
Pickup in Kanata is free, by appointment. To have it shipped, add it to your cart and enter your city and postal code on the cart page: you’ll see live carrier rates before you commit. We ship across Canada and internationally. Buying it with one of our pre-owned speakers or components? Then it rides along in the same order at no extra shipping cost.
Not sure which OREA, or how many?
Tell us what the component is and roughly what it weighs, and we’ll tell you the model and the count.
| Weight | 0.26 lbs |
|---|---|
| Dimensions | 3.0 × 2.6 × 1.3 in |
