Paradigm 5-Driver, 3-Way surround Dipole Speakers ADP-390 v6
$495.00
Out of stock
This one has sold. Looking for one?
We take these in regularly. Leave your name and we’ll email you the moment one arrives, before it goes up for sale.
Email me when one arrives
Whatever you end up with, it needs cable. Build a set to length →
Other dipole speakers we have in stock now
3 in stock · $125.00–$445.00 · all ship
Single Paradigm 4-Driver, 2-Way Dipole Speaker ADP-170 v4$125.00Ships
Polk Audio f/x 500i Bipole/Dipole Surrounds — Made in USA, Pair$445.00Ships
Polk FXi A4 Dipole Bipole Surround Speakers, Pair$395.00Ships
Whatever you end up with, it needs cable.
We hand-build speaker cable to your exact length and terminate it however you like: banana, spade, pin or bare wire. Tell us the run and the ends, and it ships ready to plug in.

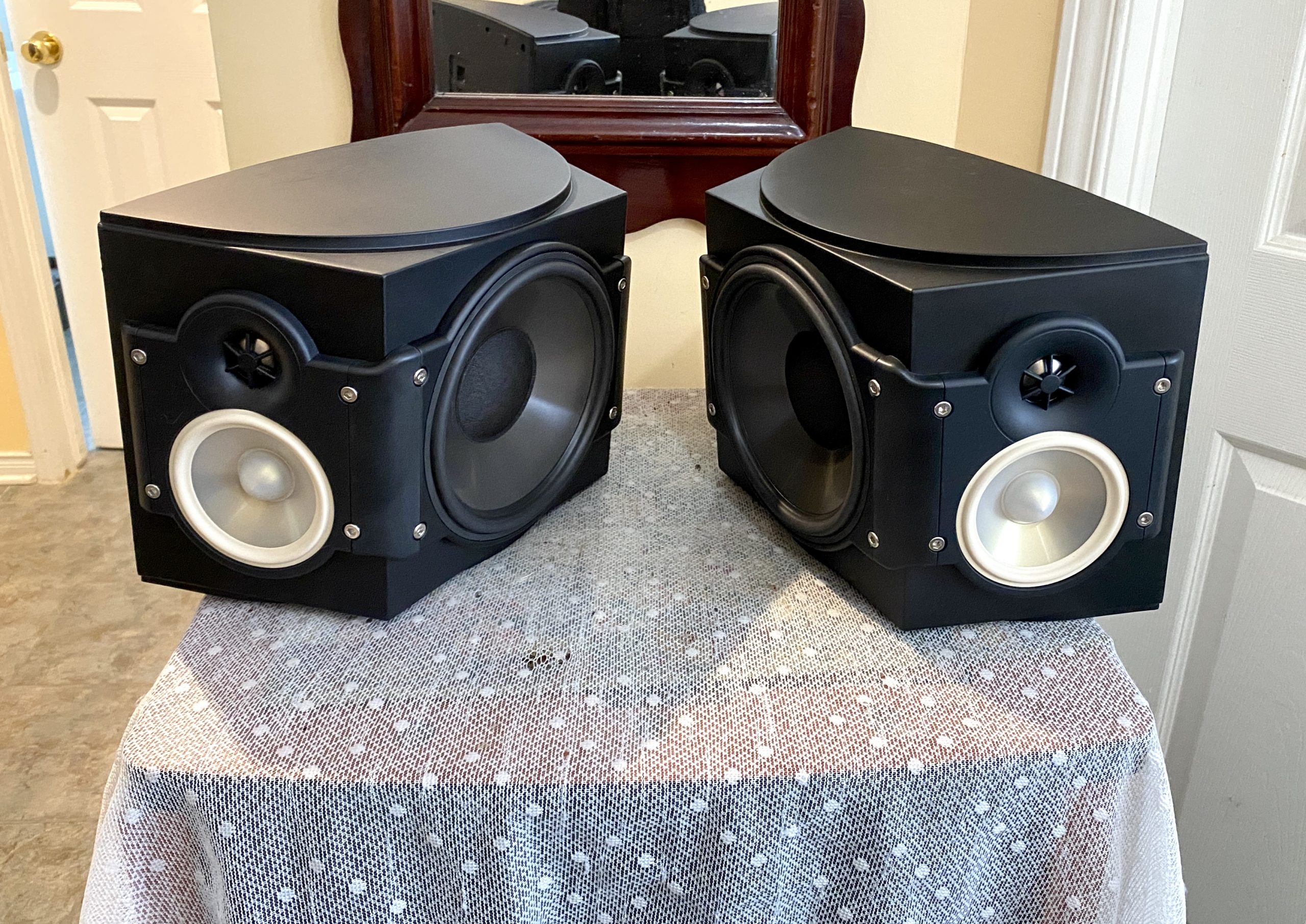

Build a set to length →One pair of great sounding Paradigm Monitor Series ADP-390 V.6, 5-driver, 3-way surround / rear dipole speakers, in black. Can be wall or stand mounted.
Specifications:
Design: 5-driver, 3-way surround / rear
Crossover: 2nd-order electro-acoustic at 3.0 kHz; 2nd order electro-acoustics at 250 Hz (bass drivers)
Frequency Response On-Axis: ±2dB from 100 Hz – 20 kHz (reverberant soundfield)
High Frequency Driver: Two 25-mm (1 in) H-PTD™ domes, ferro-fluid cooled
Midrange Frequency Driver: Two 115-mm (4-1/2 in) M-ICP™ cones, 25mm (1 in) voice coils, ferro-fluid cooled, GRIP™ chassis
Low Frequency Driver: 190-mm (7-1/2 in) carbon-infused polypropylene cone, 38-mm (1-1/2) voice coil, die-cast heatsink chassis
Low Frequency Extension: 70 Hz (DIN)
Sensitivity Room / Anechoic: 90 dB / 87 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15 – 175 watts
Dimensions HxWxD: 9.688″ × 14″ × 6.813″, (24.6cm × 35.6cm × 17.3cm), Weight: 13 lbs. (5.8 kg)
Wall mounts not included.
Retailed for $459 each (over $1030 per pair, tax in), asking $495 for the pair.
| Weight | 26 lbs |
|---|---|
| Dimensions | 27.376 × 36 × 21.626 in |
