Single Paradigm 4-Driver, 2-Way Dipole Speaker ADP-170 v4
$125.00

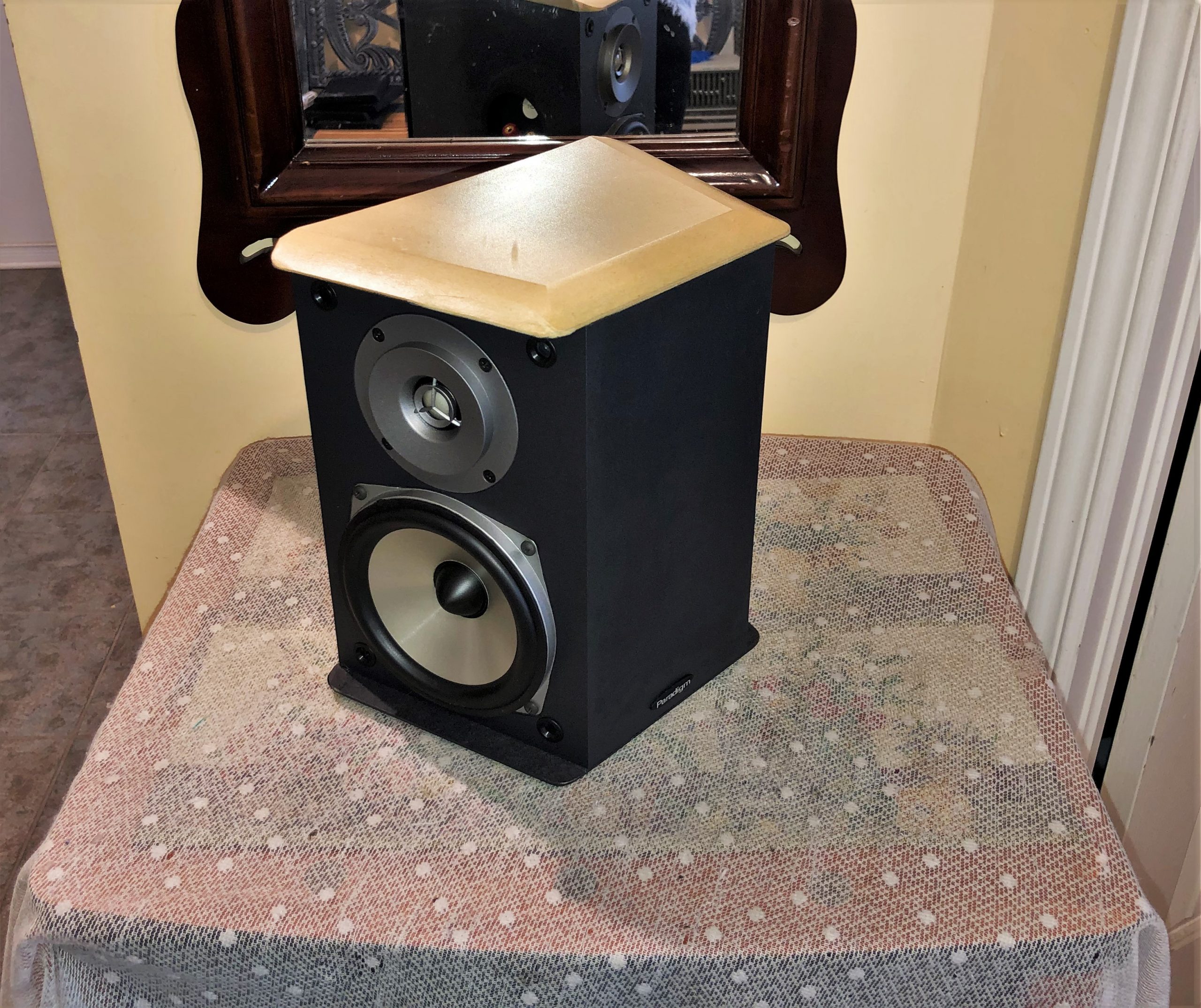

One speaker, not a pair. Four drivers on two angled baffles — two 19 mm CMC domes and two 140 mm MPC cones on die-cast chassis — running out of phase above the 2 kHz crossover and in phase below it. That is what Paradigm meant by adapted dipole: a diffuse surround field without giving up the bass. The upper piece of vinyl cladding has been removed, so the top wants painting or a spot out of sight.
1 in stock
Single (One) Paradigm 4-Driver, 2-Way Dipole Speaker *Cosmetic flaw, please see below*
Unassuming, very well reviewed dipolar surround speaker from Paradigm.

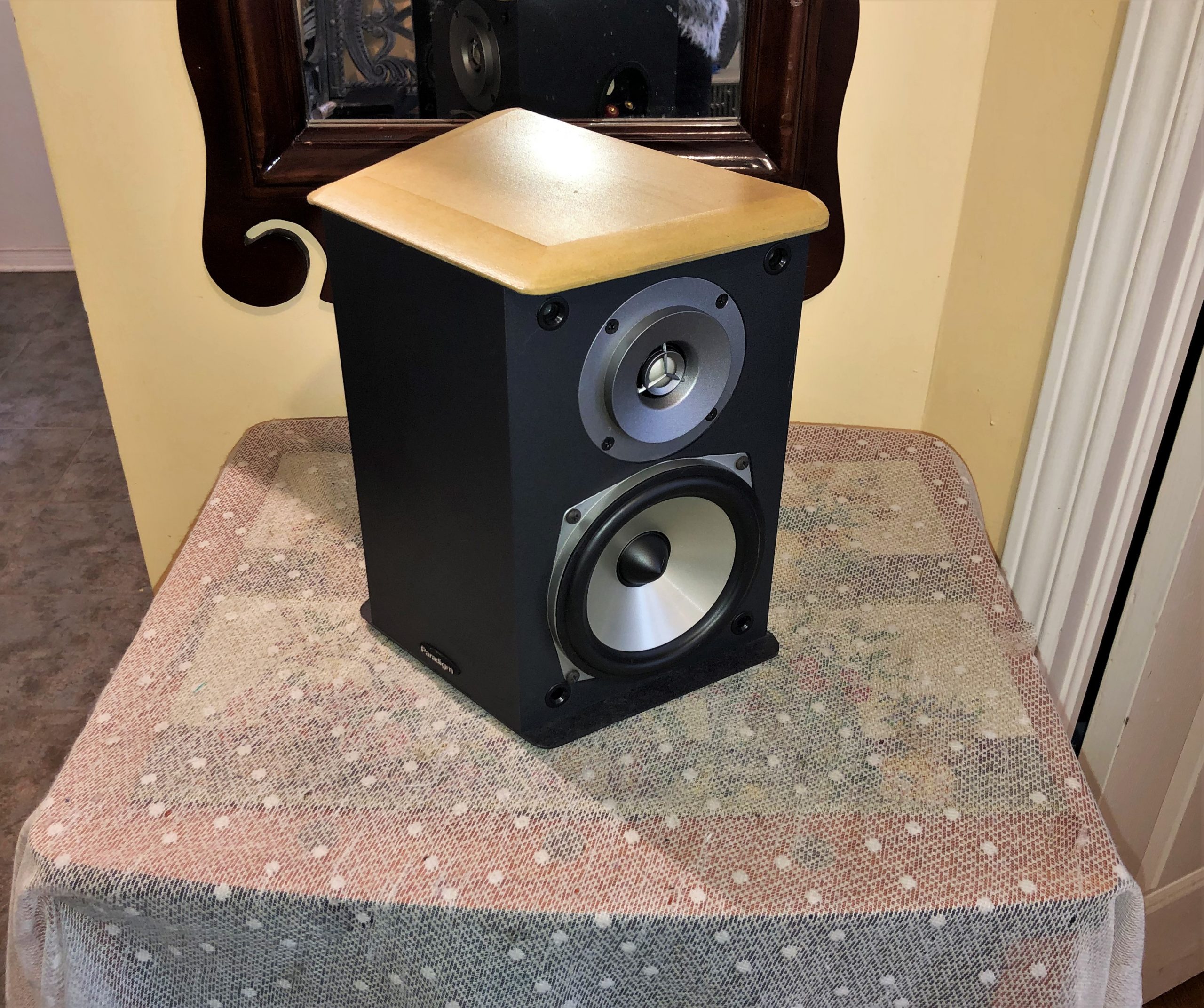

This speaker was a bit of a departure for Paradigm, with a slight wedge shape rather than the rectangular box shape of their previous surround speakers. On each angled baffle is a .75″ CMC tweeter and a 5.5″ MPC woofer. ADP stands for “adapted dipole.” It differs from a conventional dipole by operating out of phase (like a conventional dipole speaker) above the crossover frequency of 2kHz, and operating in phase below the crossover frequency (like a bipole speaker). What this design achieves is a speaker that produces a diffuse soundfield with better bass response than a conventional dipole speaker, since the woofers operate in phase.
High Frequency Drivers: Two x 19-mm (3/4 in) CMC™ domes, Midrange Frequency Drivers: Two x140-mm (5-1/2 in) MPC™ cones, die-cast chassis
Frequency Response On-Axis: ±2dB from 90 Hz – 20 kHz (reverberant soundfield), Sensitivity Room / Anechoic: 90 dB / 87 dB
Power Handling: 15 – 100 Watts at 8 Ohms Impedance
Dimensions: 10.75″H x 9.5″W x 6.6″D, Weight: 12lbs.
Asking $125 for this single speaker.
Original MSRP of $549 plus tax per pair.
The 4 perfect Drivers in this speaker are worth more than our asking price of just $125. This speaker has had the upper piece of vinyl cladding removed. Top could be painted or used as-is in a partially concealed application, or take advantage of this great price for the 4 perfect drivers and cross-over.
Also offering two additional mint condition matching woofers (Midrange Drivers) for this model for $45 each
| Weight | 14 lbs |
|---|---|
| Dimensions | 10.6 × 13.5 × 14.75 in |
