Pioneer TX-900 Solid-State AM/FM Stereo Tuner — Made in Japan — Rosewood Trim

Pioneer TX-900 Solid-State AM/FM Stereo Tuner — Made in Japan — Rosewood Trim

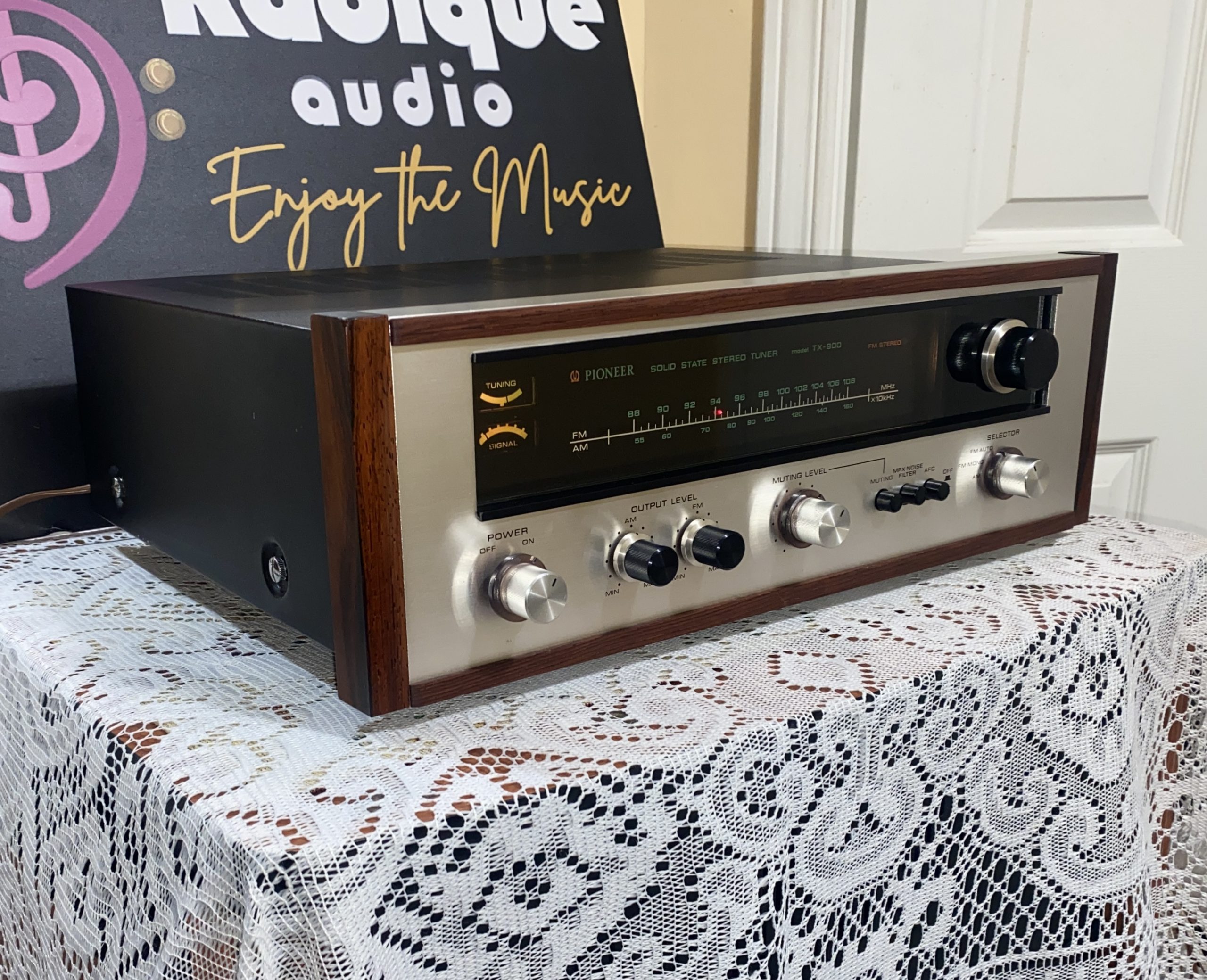

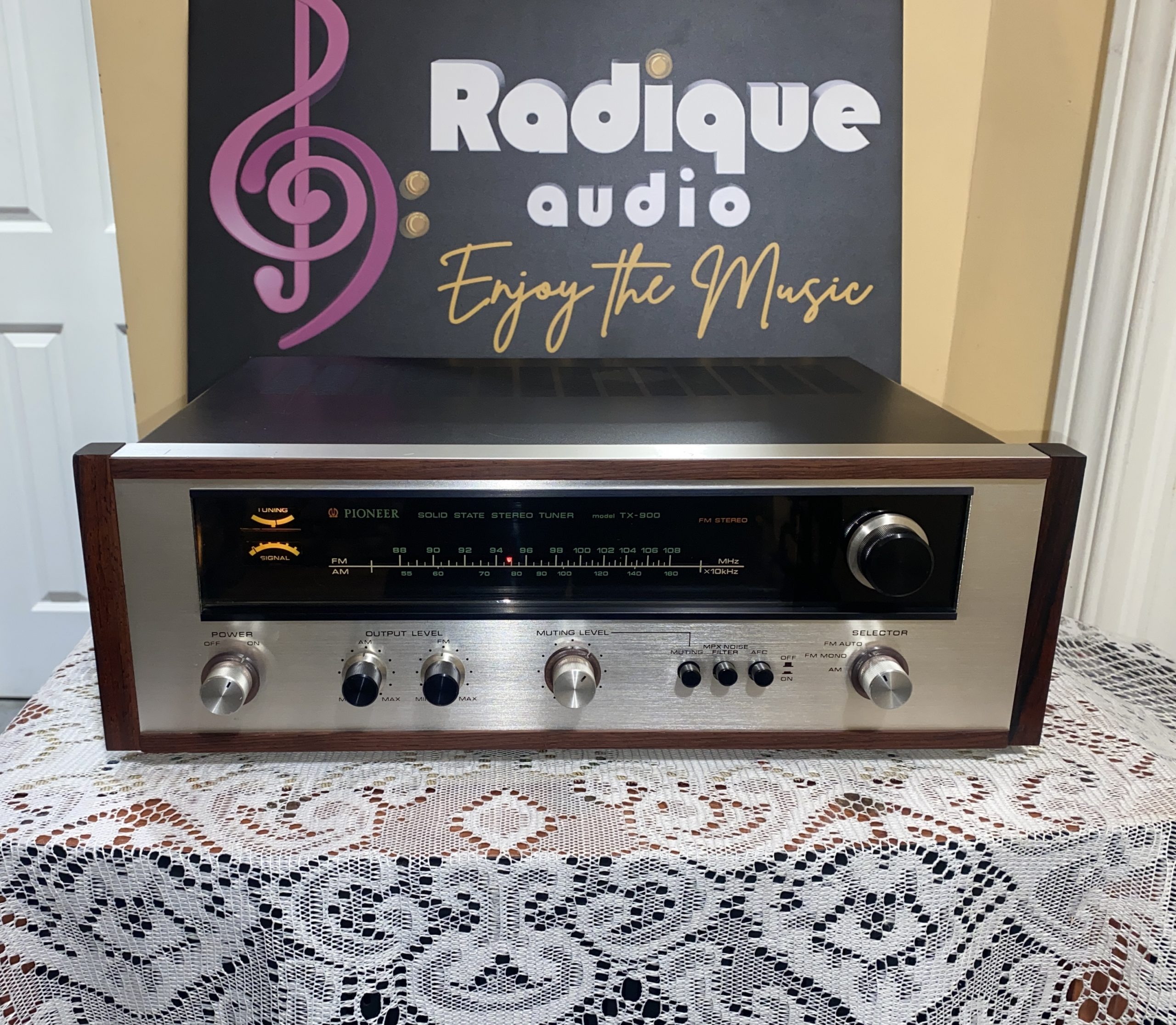

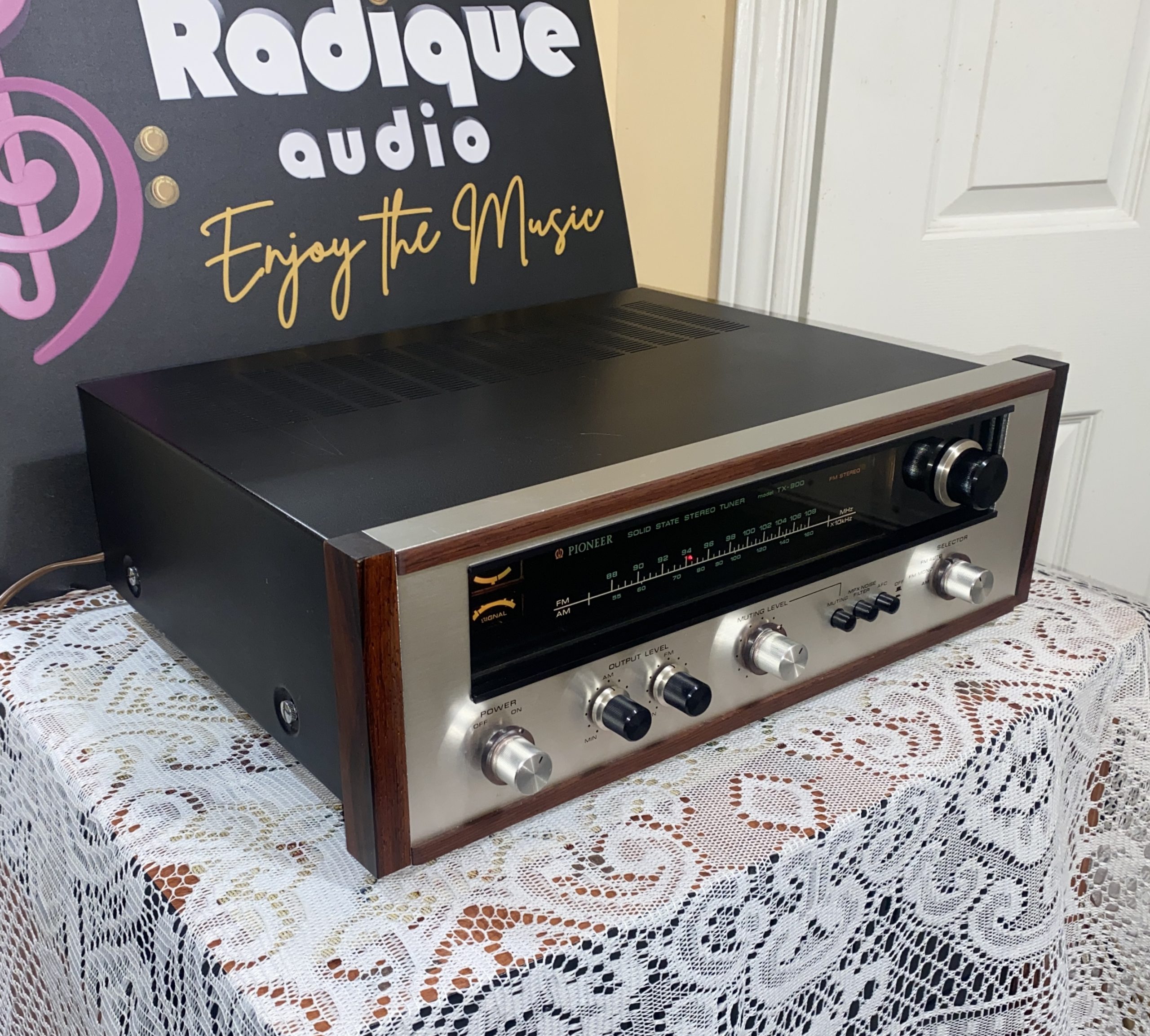

The Pioneer TX-900 is a rare and beautifully crafted professional-grade AM/FM stereo tuner from 1970–71, representing Pioneer’s top-of-the-line tuner offering at the dawn of the high-fidelity era — a stunning piece of Japanese audio engineering finished in brushed chrome and genuine Brazilian rosewood trim.

Designed without compromise, the TX-900 was built for audiophiles who demanded maximum sensitivity and reception precision. Its front end employs three field-effect transistors (FETs) across two RF amplifier stages — an advanced topology for its time that delivers exceptional signal-to-noise performance and stable reception even in weak-signal environments. The IF section features a pair of crystal filters, providing the remarkable selectivity and capture ratio that distinguishes this tuner from lesser designs of the era. Two dedicated tuning meters — one for signal strength, one for stereo tuning centre — make precise station alignment a satisfying and intuitive experience.

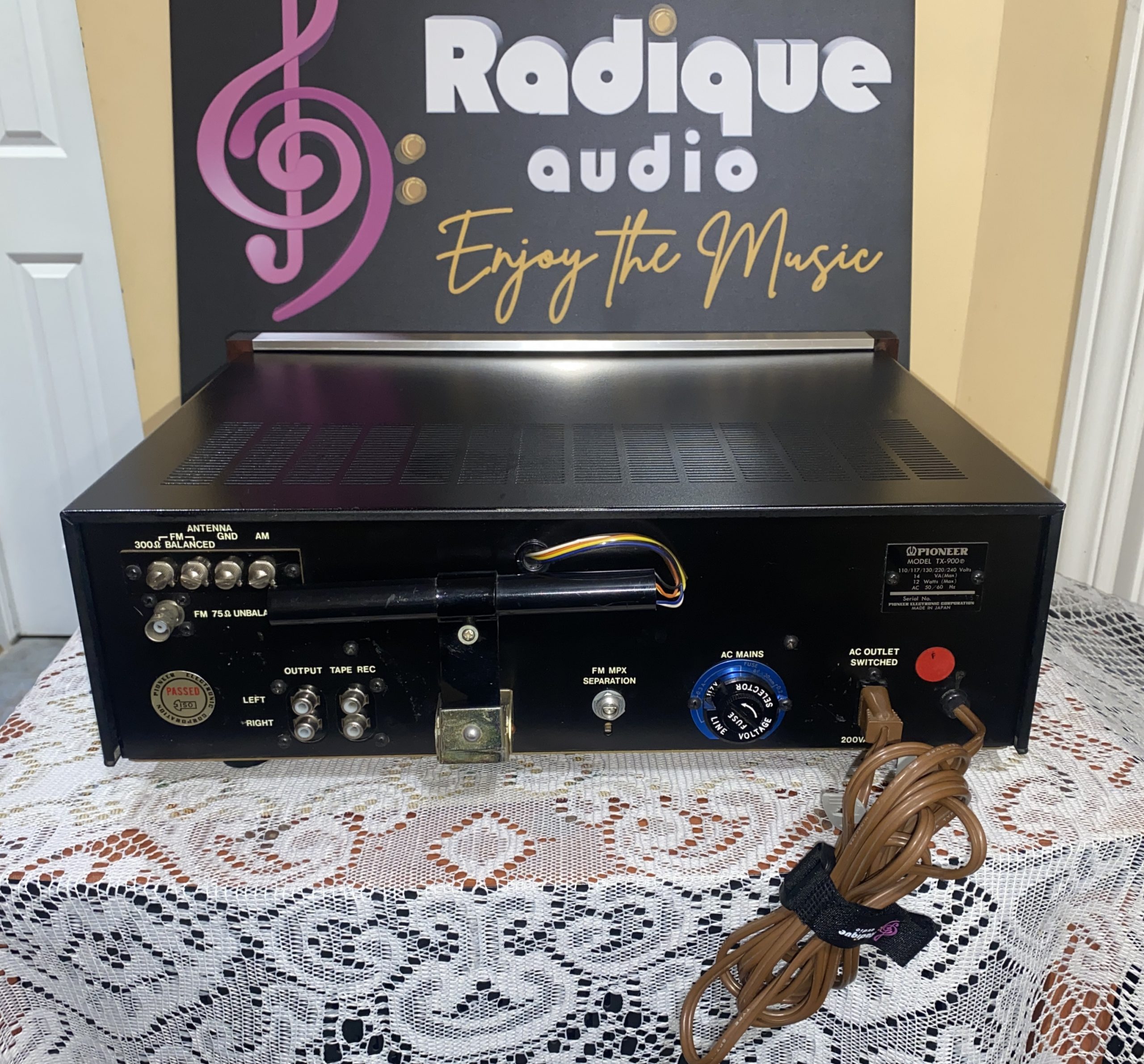

The analogue tuning scale offers smooth, linear dial movement with a weighted feel, and the front panel is logically laid out with a rotary selector switch for FM Auto, FM, and AM modes, a variable muting level control, an MPX Noise Filter switch, and separate output level controls for FM and AM — a level of control rarely found in consumer tuners of any era. A switched AC outlet on the rear panel adds practical convenience for associated equipment.

Aesthetically, the TX-900 is simply outstanding. The brushed chrome faceplate is complemented by genuine Brazilian rosewood side panels and trim accents — a combination that looks as sophisticated today as it did over fifty years ago, and that integrates beautifully with vintage wood-cabinet systems or as a statement piece on a modern shelf.

This unit has been tested and inspected by our team at Radique Audio and is ready to perform.

Type: AM/FM Stereo Tuner

Country of Manufacture: Japan

Year of Manufacture: 1970–71

Front End: 3 FETs, 2-stage RF amplifier

IF Section: 2 crystal filters, 4 ICs

FM Tuning Range: 87–108 MHz

AM Tuning Range: 525–1,605 kHz

IHF Usable Sensitivity: 1.7 µV (FM)

Signal-to-Noise Ratio: 60 dB (30% mod); 70 dB (IHF rating)

Distortion (stereo): 0.3%

Frequency Response: 20 Hz – 15 kHz (±0.5 dB)

Channel Separation: 38 dB (1 kHz); 30 dB (40 Hz–8 kHz)

Image Rejection: 95 dB (at 98 MHz)

Capture Ratio: 1.5 dB (IHF)

Antenna Inputs: 300Ω balanced, 75Ω unbalanced (FM); built-in ferrite loopstick (AM)

Output: 1V fixed; 750 mV variable (±30% control range)

Semiconductors: 3 FETs, 4 ICs, 25 transistors, 24 diodes

Power Consumption: 13W

Finish: Brushed chrome with Brazilian rosewood trim

Dimensions: (W x H x D) 15.9″ x 5.5″ x 14.0″ (405 x 140 x 356 mm)
Weight: 17.2 lbs (7.8 kg)

Fifty-plus years on, the Pioneer TX-900 remains a benchmark of what a serious FM tuner looks and sounds like — warm, precise, and built to last generations. This is a rare opportunity to own a genuine piece of Japanese audio history, finished in real rosewood and backed by Radique Audio’s 90-day warranty and perpetual trade-back policy. A collector’s piece that still earns its place in any serious listening room.

Vintage Pioneer style and performance—tested and ready to play; asking $245.
