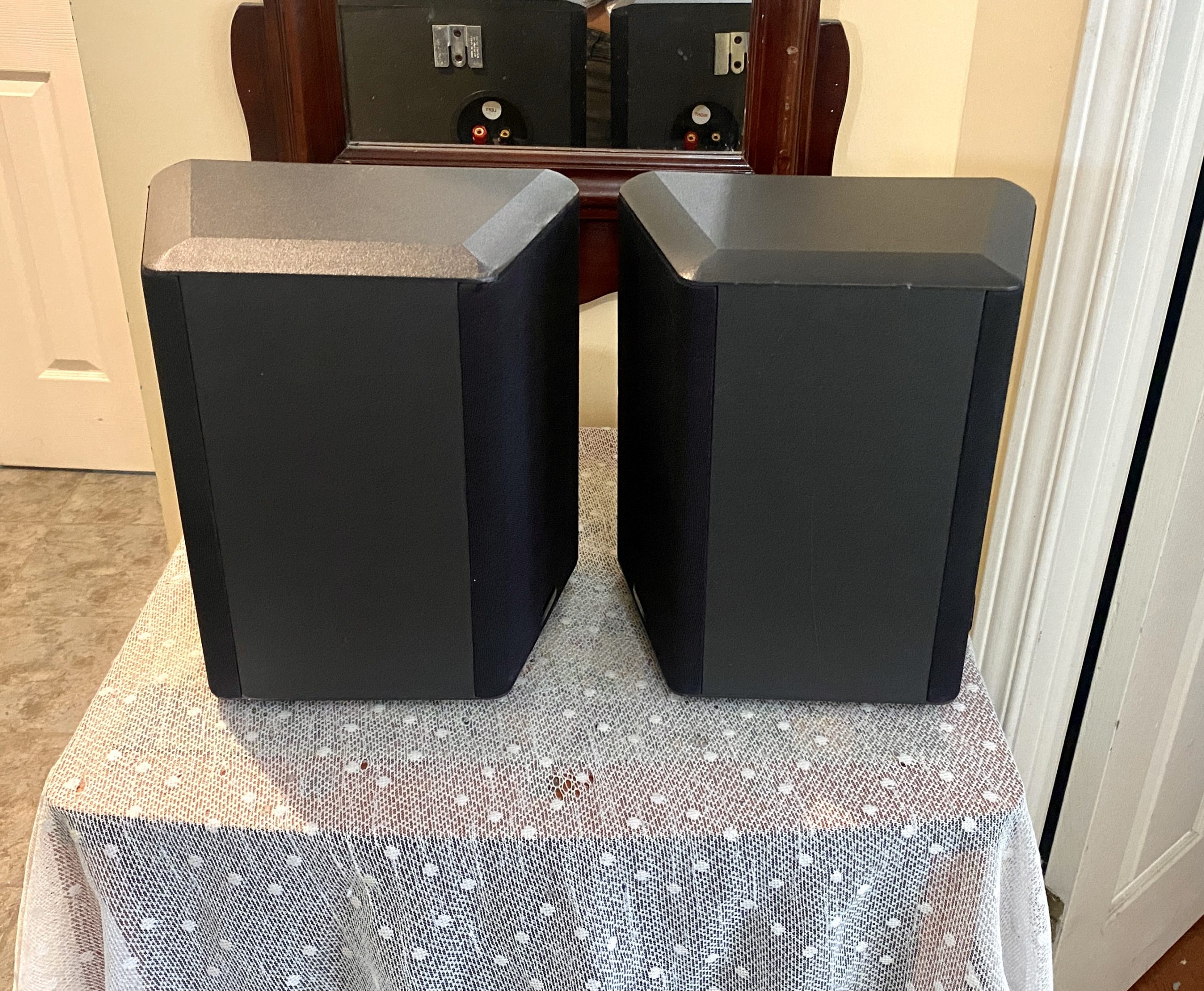

Quality Paradigm Dipole Speakers ADP-170 v3
$245.00
Out of stock
This one has sold. Looking for one?
We take these in regularly. Leave your name and we’ll email you the moment one arrives, before it goes up for sale.
Email me when one arrives
Whatever you end up with, it needs cable. Build a set to length →
Other dipole speakers we have in stock now
3 in stock · $125.00–$395.00 · all ship
Single Paradigm 4-Driver, 2-Way Dipole Speaker ADP-170 v4$125.00Ships
Polk FXi A4 Dipole Bipole Surround Speakers, Pair$395.00Ships
PSB Image 10S Bipole Surround Speakers — Black | Canada$395.00Ships
Whatever you end up with, it needs cable.
We hand-build speaker cable to your exact length and terminate it however you like: banana, spade, pin or bare wire. Tell us the run and the ends, and it ships ready to plug in.
Build a set to length →Gorgeous, very well reviewed bipolar surround speakers from Paradigm.

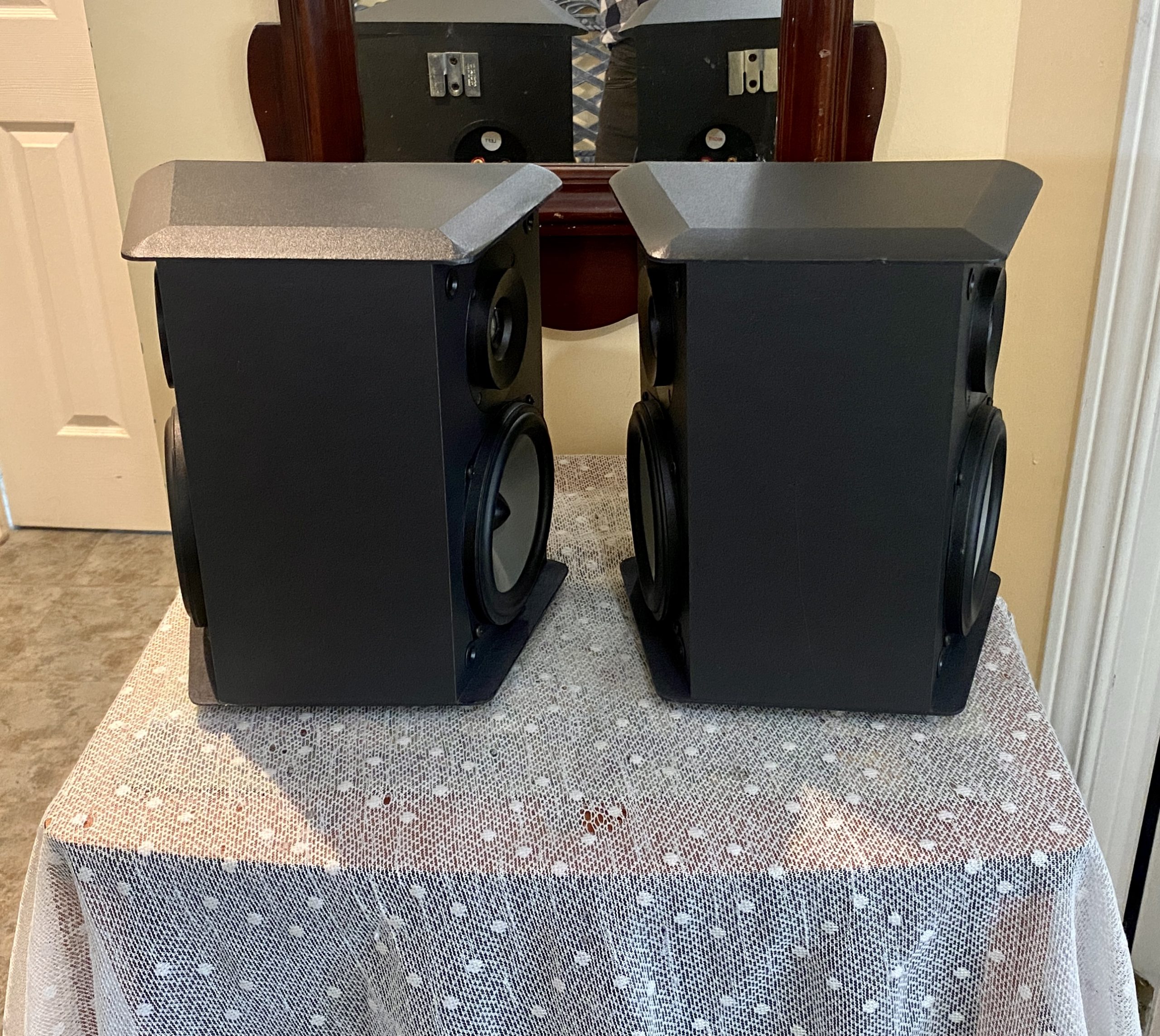

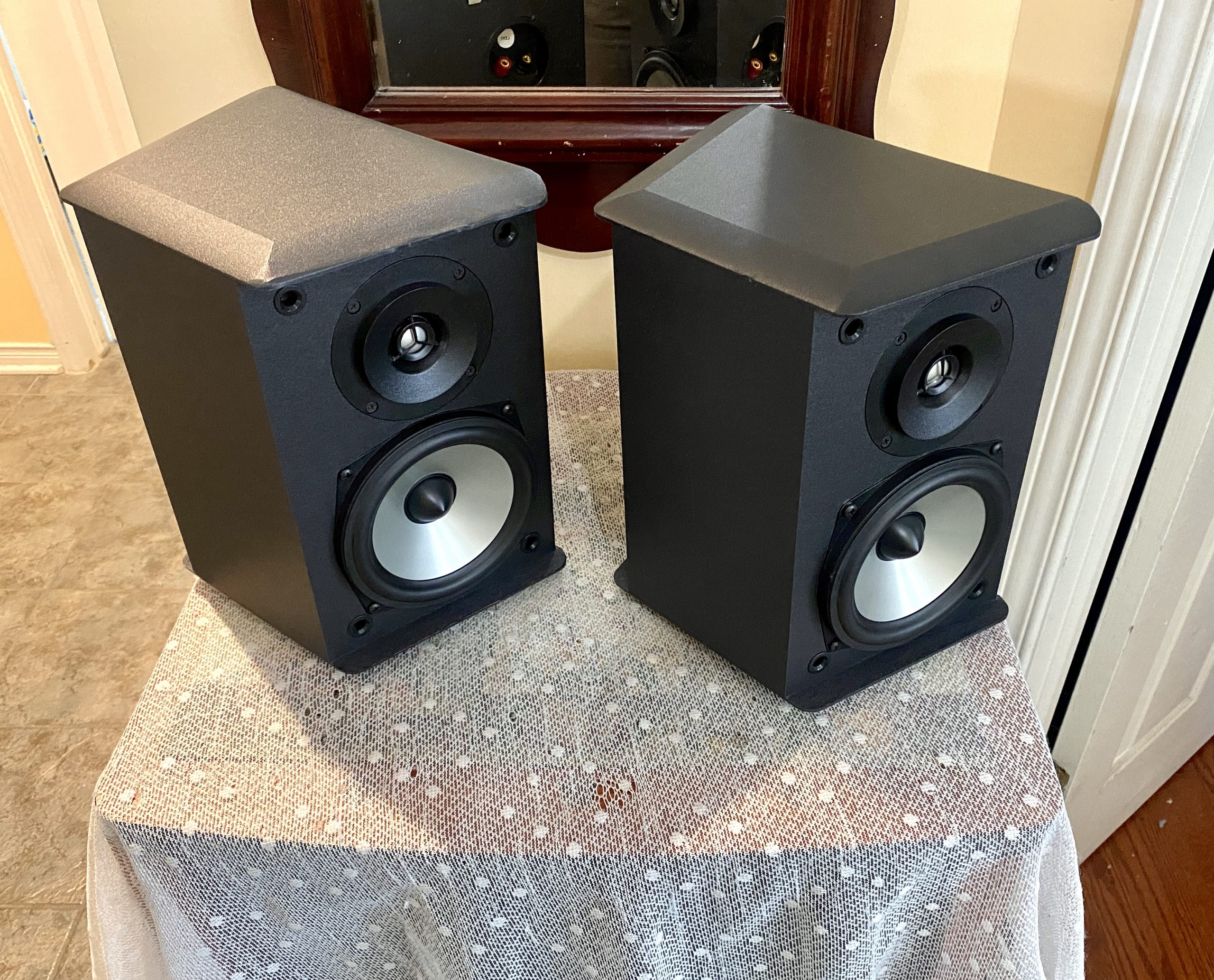

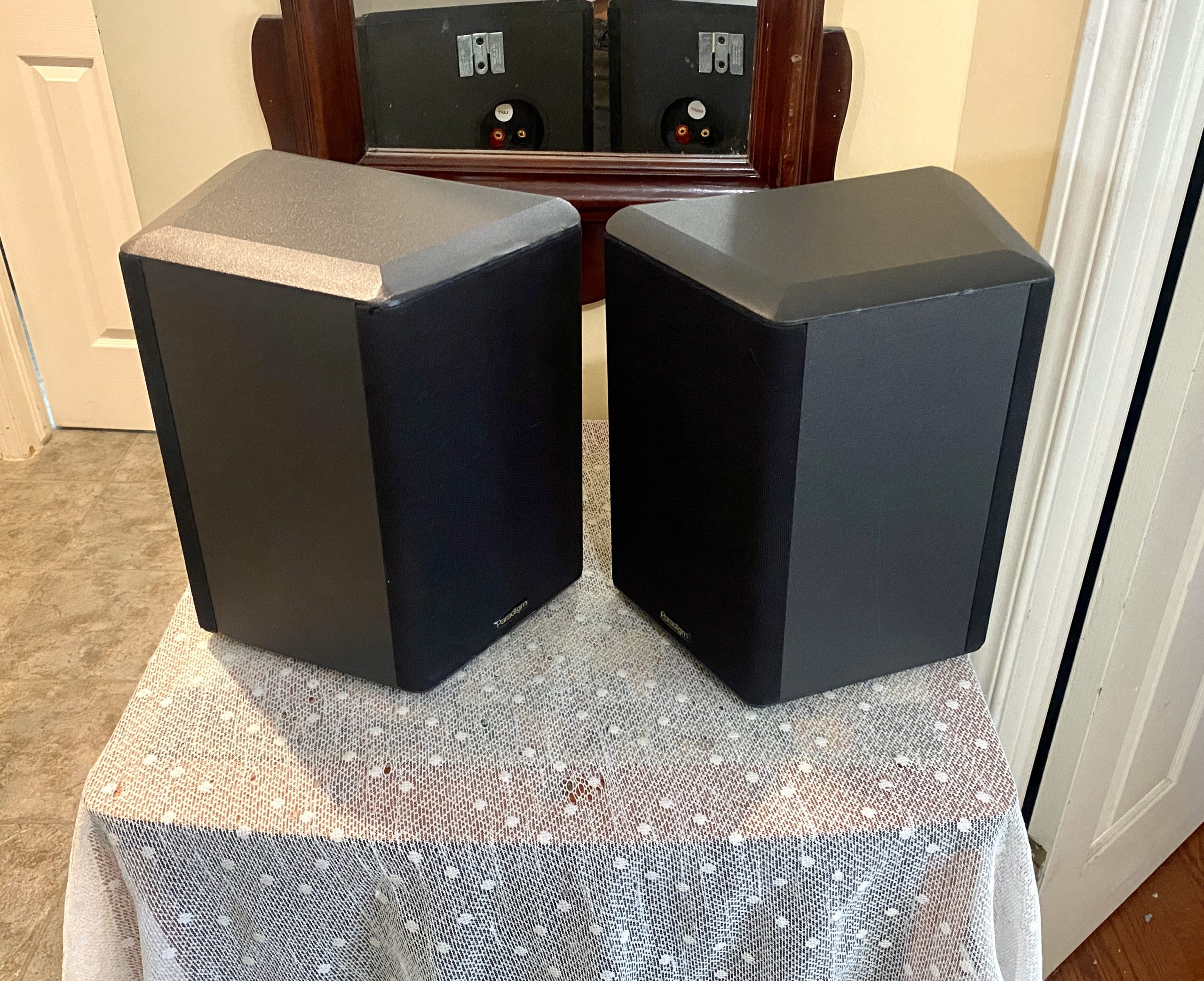

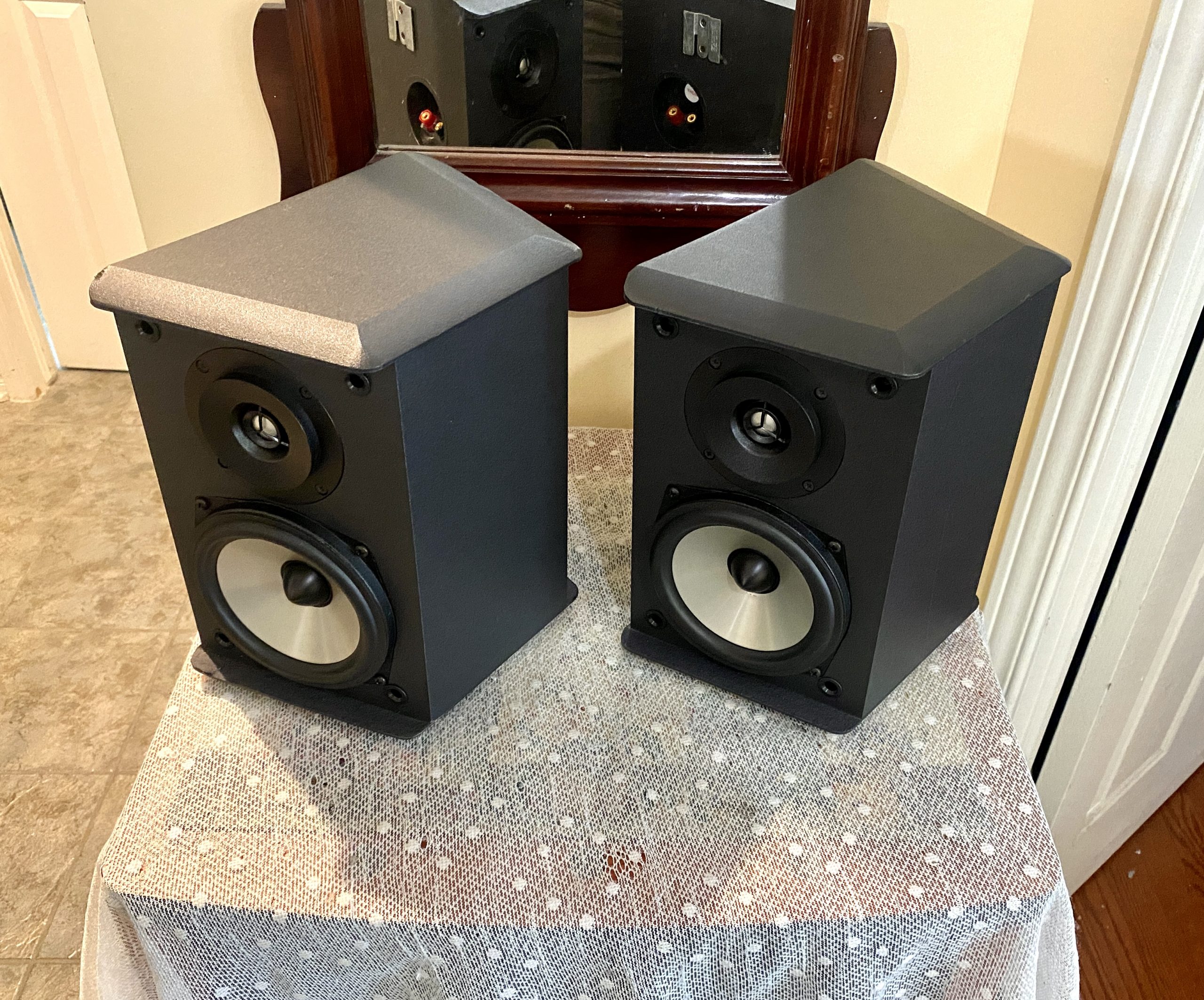

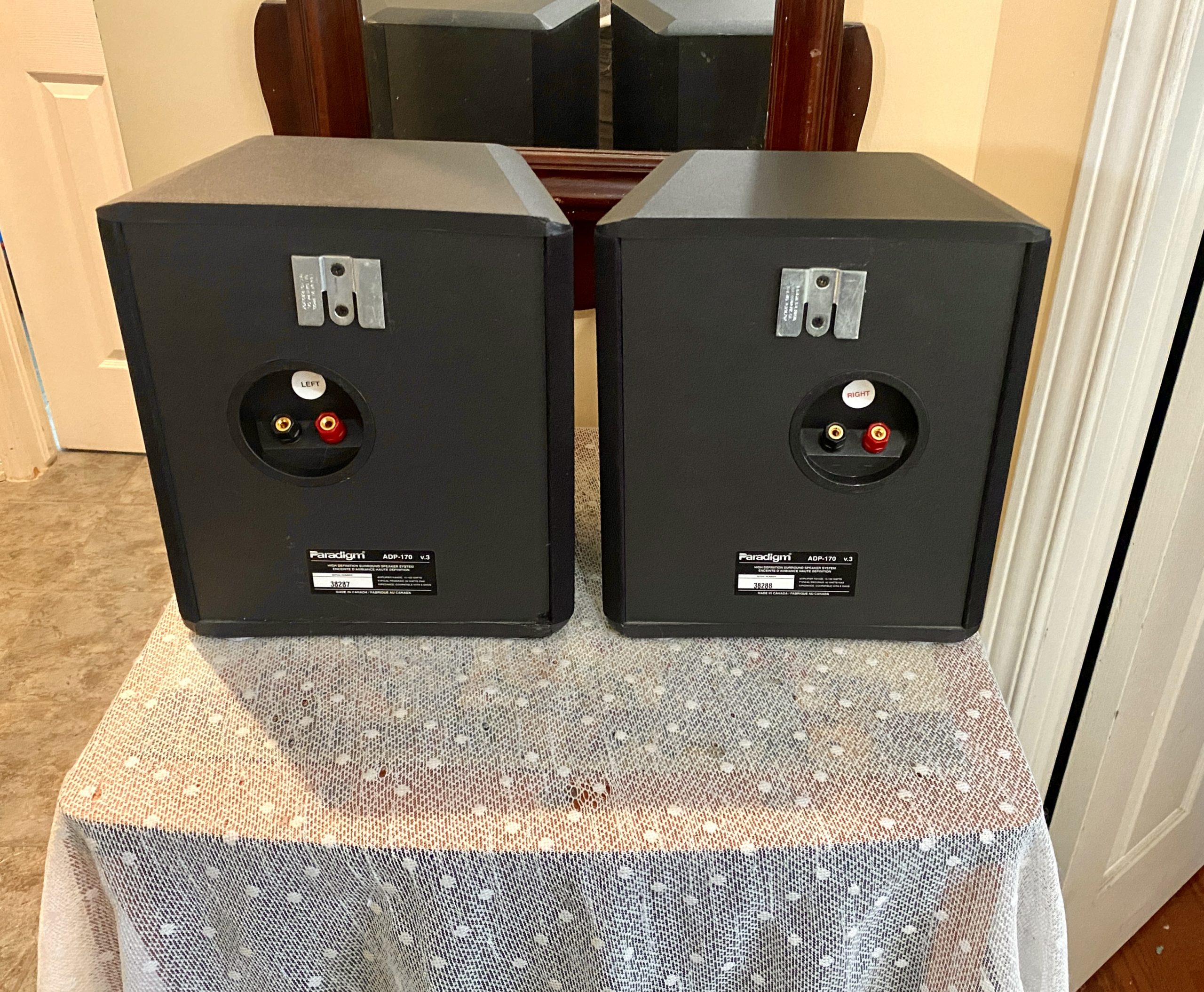

This speaker is a bit of a departure for Paradigm, with a slight wedge shape rather than the rectangular box shape of their other surround speakers. On each angled baffle is a .75″ CMC tweeter and a 5.5″ MPC woofer. ADP stands for “adapted dipole.” It differs from a conventional dipole by operating out of phase (like a conventional dipole speaker) above the crossover frequency of 2kHz, and operating in phase below the crossover frequency (like a bipole speaker). What this design achieves is a speaker that produces a diffuse soundfield with better bass response than a conventional dipole speaker, since the woofers operate in phase.
Dimensions: 10.75″H x 9.5″W x 6.6″D, Weight: 12lbs each.
Original MSRP of $499 plus tax. Great deal for just $245
| Weight | 27 lbs |
|---|---|
| Dimensions | 19.2 × 13.5 × 14.75 in |
