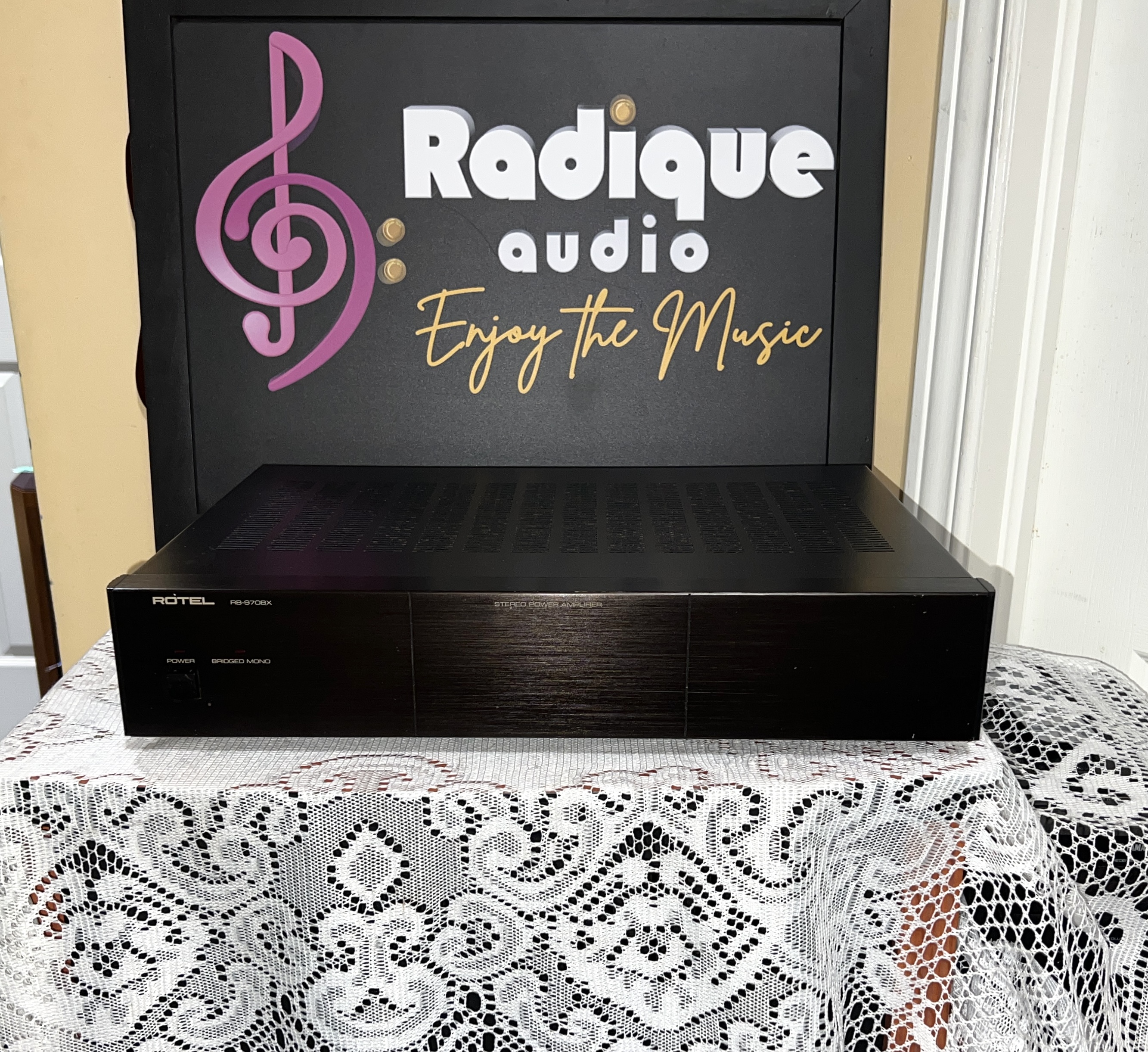

Rotel RB-970BX Stereo/Mono Power Amplifier 60 WPC — Japan

Rotel RB-970BX Stereo/Mono Power Amplifier 60 WPC — Made in Japan

A Made-in-Japan Rotel stereo power amplifier from the celebrated 970BX separates series, combining refined circuit engineering with exceptional versatility — including a bridged mono mode that unleashes 180 watts into a single channel.

The RB-970BX is the power stage to the RC-970BX preamplifier, and together they form one of the most respected budget-audiophile separates pairings of the 1990s. In stereo mode it delivers a confident 60 watts per channel into 8 ohms with vanishingly low THD of 0.03% and a damping factor of 280 — a figure that reflects tight, controlled bass response and authoritative speaker grip regardless of the load. The signal-to-noise ratio of 116 dB is exceptional and represents a level of quiet that lets the finest details in a recording come through cleanly.

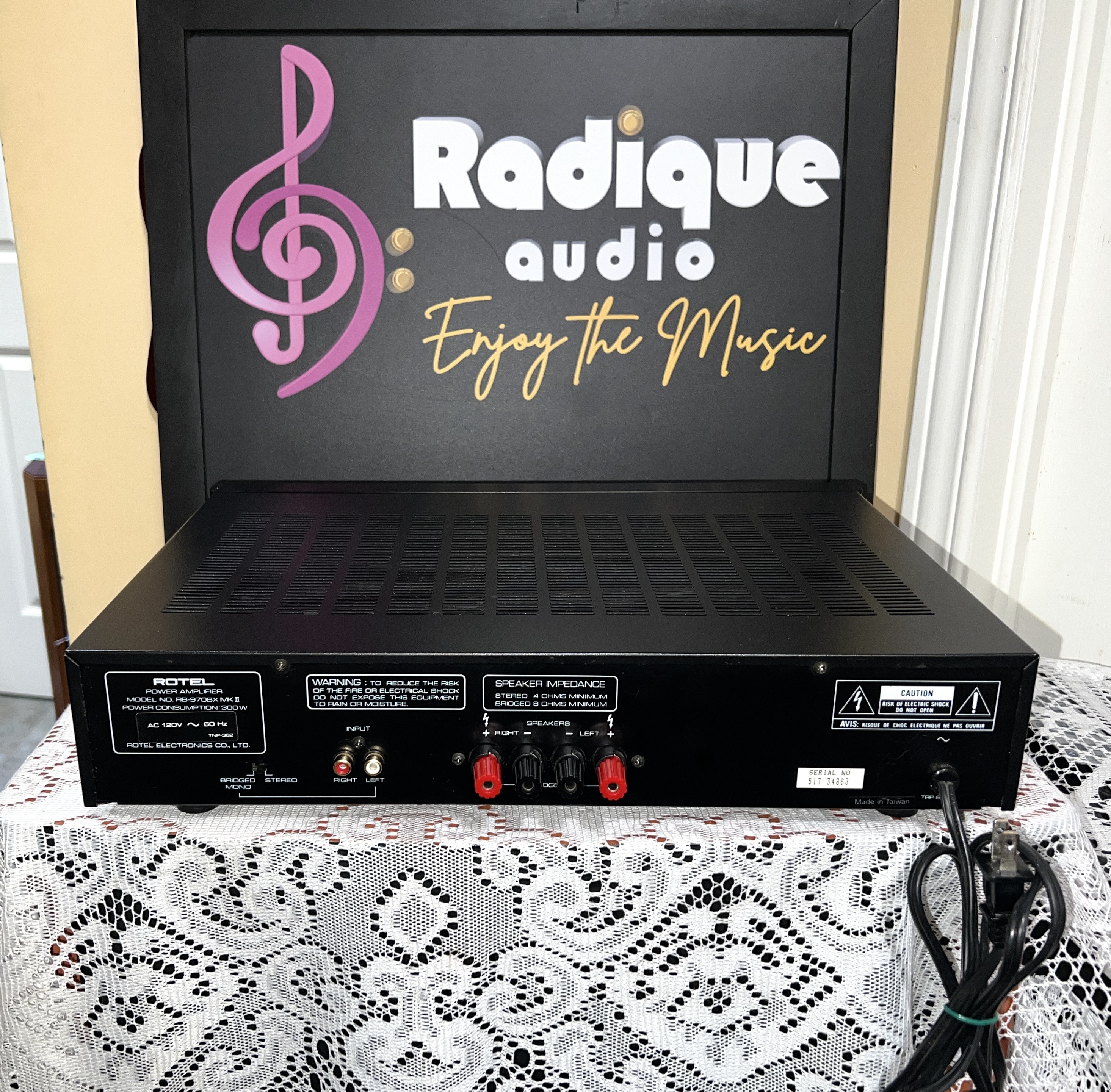

The rear-panel bridged mono switch transforms the RB-970BX into a 180-watt monoblock — a compelling option for driving a centre channel, a subwoofer, or a demanding single speaker in a high-power application, all without purchasing additional hardware. Speaker load impedance is rated from 4 to 16 ohms in stereo and 8 ohms minimum in bridged mode, making it compatible with a wide range of loudspeakers. Frequency response extends to 100 kHz, preserving transient detail and air that lesser amplifiers simply discard.

This unit is in very good condition and has been thoroughly inspected and tested to confirm full functionality.

Configuration: Stereo power amplifier with bridged mono capability

Power output: 60 watts per channel into 8 ohms (stereo, 20 Hz–20 kHz, ≤0.03% THD)

Bridged mono power: 180 watts into 8 ohms (≤0.03% THD)

Frequency response: 15 Hz – 100 kHz (+0 dB / -1 dB)

Total harmonic distortion: ≤0.03%

Intermodulation distortion: ≤0.05%

Damping factor: 280 (20 Hz–20 kHz, 8 ohms)

Signal-to-noise ratio: 116 dB (IHF, A-weighted)

Input sensitivity/impedance: 1.0 V / 27 kΩ

Speaker load impedance: 4–16 ohms (stereo); 8 ohms minimum (bridged mono)

Made in Japan

Dimensions: (Width x Height x Depth) 17.3 x 3.6 x 13.1 inches (440 x 92 x 334 mm)
Weight: 15.0 lbs (6.8 kg)

At 6.8 kg, the RB-970BX is solidly built for its size — a reflection of Rotel’s commitment to a robust power supply and quality internal construction that defines the 970BX series character.

A versatile and beautifully engineered Made-in-Japan power amplifier that rewards any serious two-channel system — an ideal match for the RC-970BX or any quality preamplifier.

Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence.
