Tannoy Revolution R1 Cherry Bookshelf Speakers – Made in Europe
$325.00
Out of stock
This one has sold. Want first dibs on the next one?
We take these in regularly. Leave your name and email, and we’ll email you the moment one is listed, so you hear first. No cost, no obligation.
Email me when one is listed
Whatever you end up with, it needs cable. Build a set to length →
Read the full listing and see all 4 photos ↓
Other bookshelf speakers we have in stock now
3 in stock · $225.00–$295.00 · all ship
Tannoy Mercury m1 EISA Award Bookshelf Speakers — Europe$225.00Ships
Tannoy Mercury mX1-M Bookshelf Speakers, Pair – Cherry$225.00Ships
Whatever you end up with, it needs cable.
We hand-build speaker cable to your exact length and terminate it however you like: banana, spade, pin or bare wire. Tell us the run and the ends, and it ships ready to plug in.
Build a set to length →Tannoy Revolution R1 Cherry Bookshelf Speakers – Made in Europe

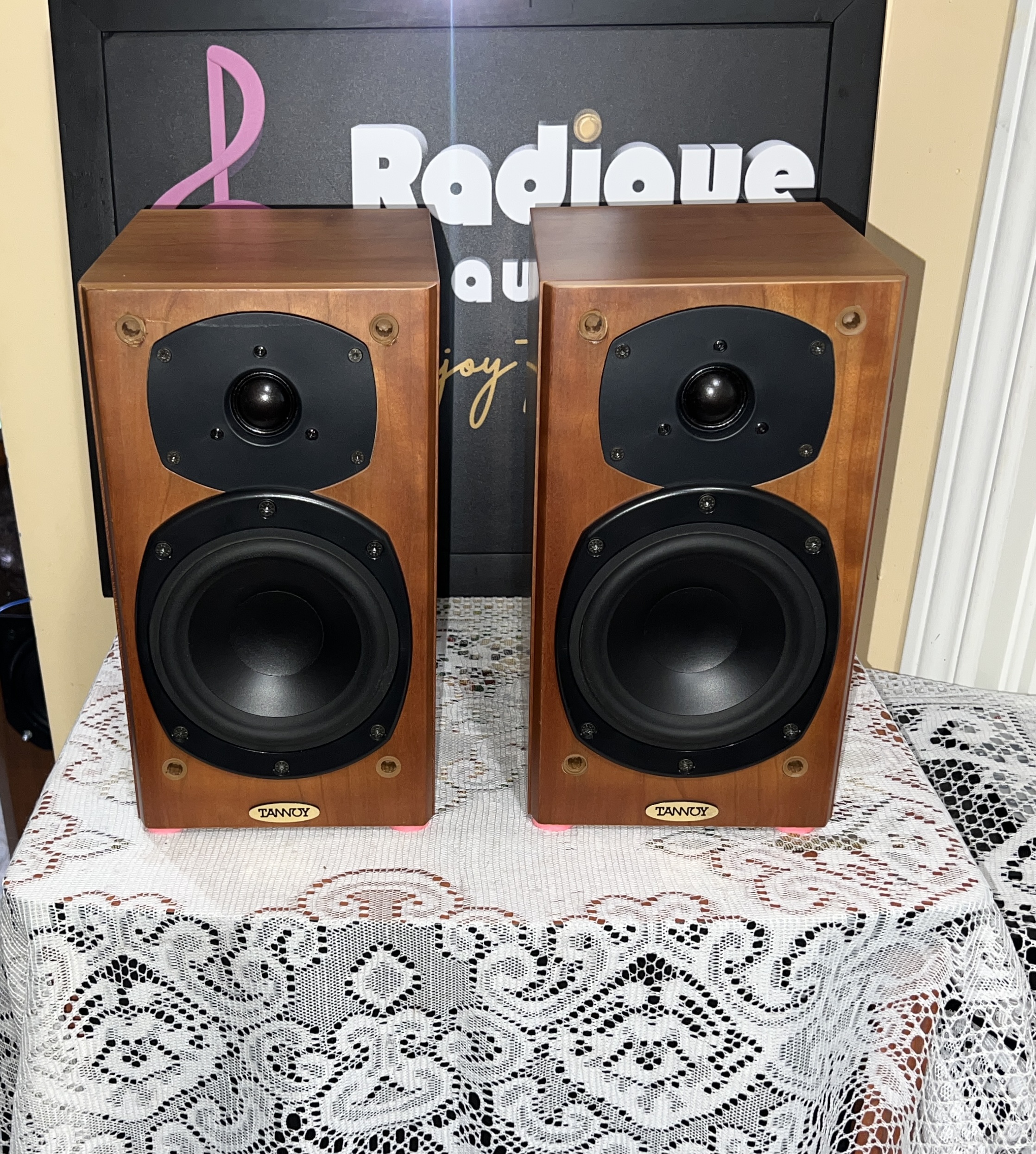

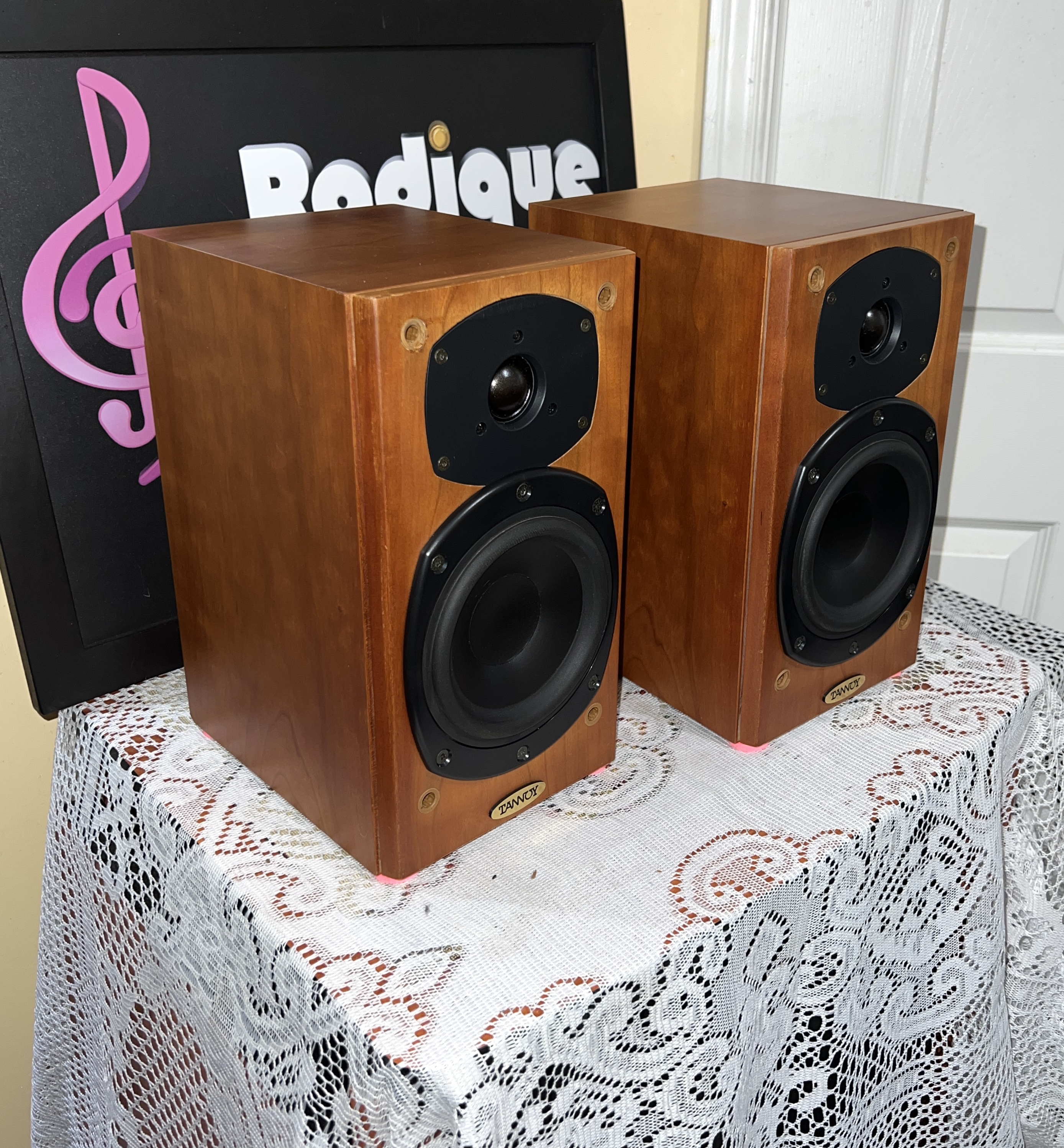

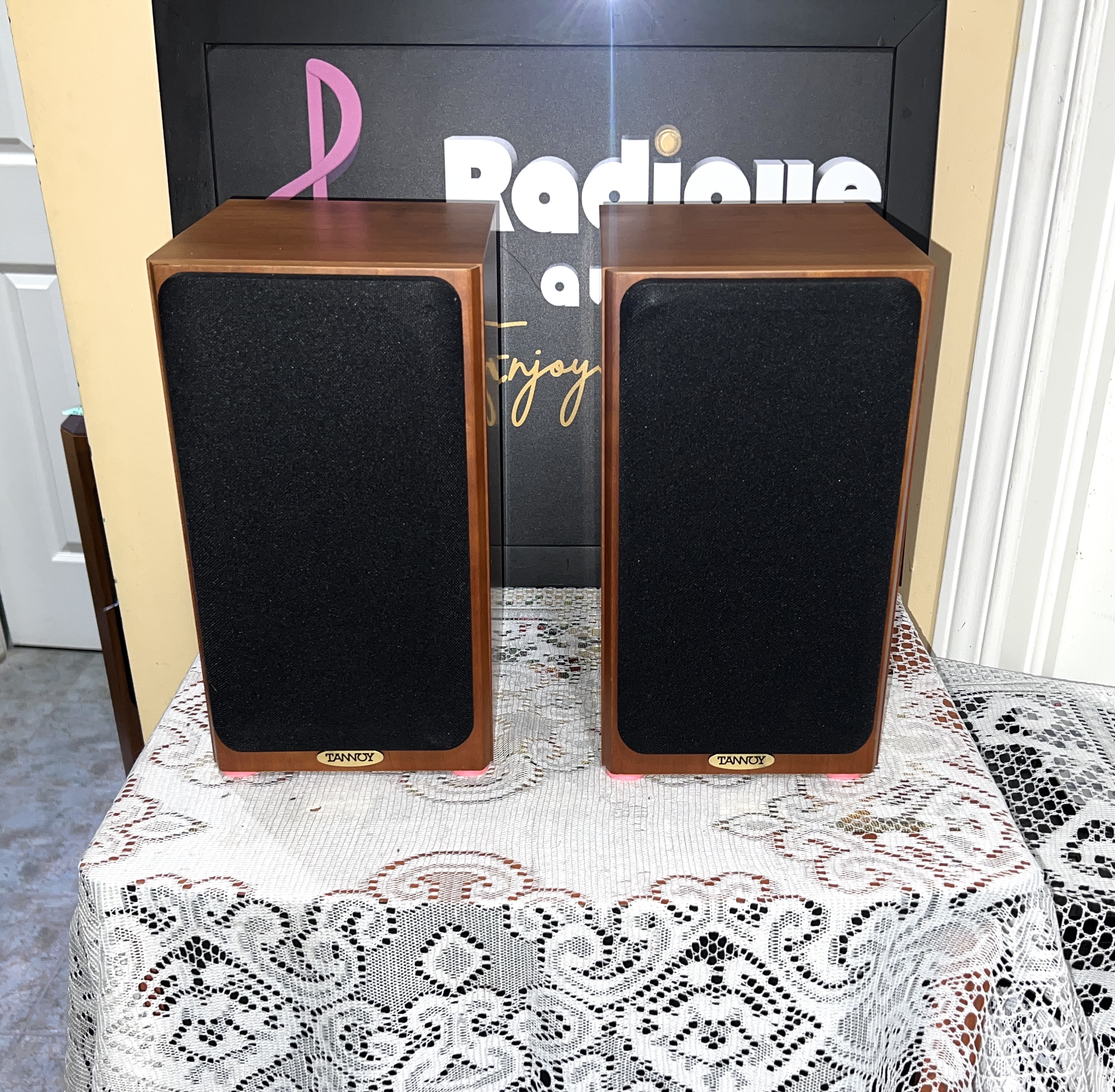

Beautifully finished Tannoy Revolution R1 compact bookshelf speakers in real cherry wood veneer from Tannoy’s higher-tier Revolution series, made in Europe and offering a clear upgrade over the classic Mercury M1 in a very similar footprint. These are ideal for music lovers seeking refined British voicing, genuine cherry cabinets, and bi-wirable connectivity in a compact, décor-friendly package that still delivers a spacious, engaging soundstage.
The Revolution R1 is a 2-way bass-reflex bookshelf design using a 5 inch woofer and soft-dome tweeter in a rigid real-wood cherry veneer enclosure, giving a more premium look and feel than the vinyl-clad Mercury range while preserving Tannoy’s inviting, musical balance. Sensitivity is an easy-to-drive 87 dB at 8 ohms with a recommended amplifier range of 10–70 watts, so they pair well with a wide variety of vintage and modern integrated amps and receivers. The compact cabinets image very well and disappear nicely in the room, making them great as main speakers in a smaller space or as a classy upgrade for desktop or nearfield listening.
This cherry-finished pair presents very nicely overall, and like all of our used offerings has undergone our Level One service and testing which should ensure many more years of reliable performance ahead. The grilles are included and the cloth presents well, though a couple of retaining pins are missing; the grilles remain in place and display normally.
Design: 2-way rear-ported bass reflex bookshelf loudspeakers
Drivers: Approx. 5 inch bass/mid driver, 1 inch soft-dome tweeter
Frequency response: 55 Hz – 20 kHz (nominal)
Crossover frequency: 2.5 kHz
Sensitivity: 87 dB (2.83 V / 1 m)
Nominal impedance: 8 ohms
Recommended amplifier power: 10 – 70 watts per channel
Enclosure: Real cherry wood veneer cabinet, bass reflex, rear ported

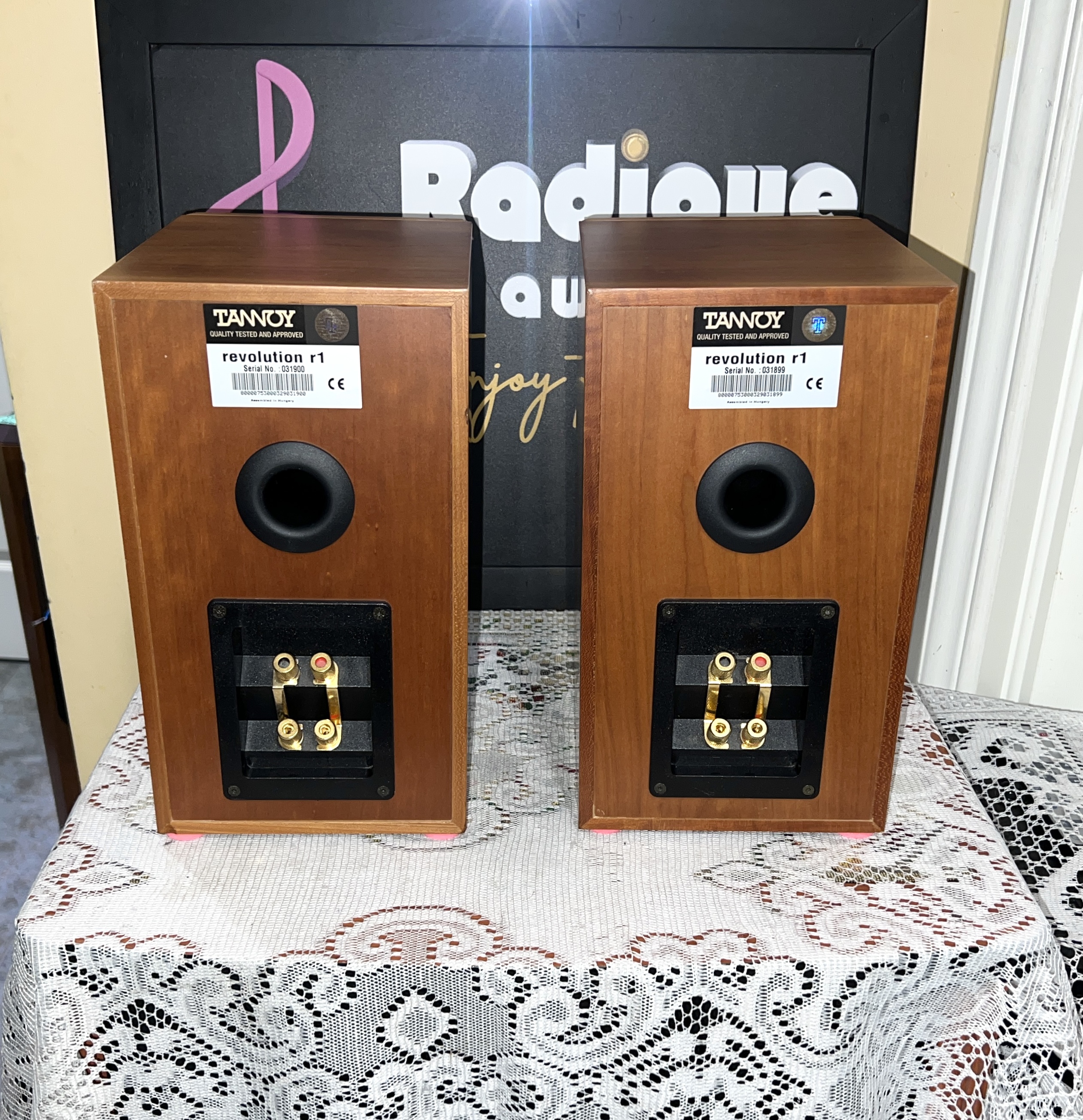

Terminals: Bi-wire capable, gold-plated binding posts
Placement: Designed for stand-mount or sturdy shelf use
Country of manufacture: Made in Europe (cabinet/assembly in Hungary for this generation)
Dimensions: (Width x Height x Depth) 6.7 x 11.8 x 7.9 inches / 170 x 300 x 200 mm
Weight: 10.5 lbs / 4.75 kg each
These cherry-veneered Tannoy Revolution R1s give you the footprint and friendliness of the Mercury M1, but with more upscale real-wood cabinets, bi-wire terminals and higher-line status, making them a very attractive upgrade path for compact British hi-fi systems. If you’re looking for a stylish, musical pair of European-made bookshelf speakers that punch well above their size, we’d be happy to set up a demo and help you bring these home.
Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence.
| Weight | 23 lbs |
|---|---|
| Dimensions | 11.9 × 19.4 × 15.8 in |
Tannoy began in London in 1926, and since the late 1940s it has been known for its Dual Concentric driver, with the tweeter set in the centre of the woofer. We carry Tannoy towers, bookshelf speakers, centre channels and subwoofers. We've had more than 210 Tannoy listings so far, covering more than 65 different models. Every used Tannoy here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.
Our five best-selling Tannoy models so far: the Mercury mx3 towers, the Mercury mx2 and mx1 bookshelf speakers, the PS 110 subwoofer and the Mercury mxC centre.
The Tannoy story, 1926 to today
Guy R. Fountain founded the company in London in 1926 as the Tulsemere Manufacturing Company, making rectifiers and battery chargers for radio sets. It became Tannoy in 1928, a name taken from the tantalum alloy in his rectifier.
The Dual Concentric. Ronnie Rackham's Dual Concentric driver first appeared as the "Monitor Black" in 1947 or 1948 (sources differ). The Monitor Silver, Red and Gold generations followed through the 1950s and 1960s, then the HPD in 1974.
Scotland. Harman International bought Tannoy in 1974, and production moved from London to Coatbridge, Scotland, in 1976. Managers bought the business in 1981, Tannoy merged with Goodmans in the mid-1980s and joined Denmark's TC Group in 2002.
Today. Music Group, later Music Tribe, bought TC Group in 2015. From 2016 the lower-priced ranges, such as Mercury, were made in China, while Prestige stayed in Scotland, where Tannoy's headquarters and assembly are now in Hamilton.
Which Tannoy is which?
1970s HPD cabinets: the Arden, Berkeley, Cheviot, Devon and Eaton, all with Dual Concentric drivers. The Arden, Cheviot and Eaton were reissued as the "Legacy" series in 2017.
Mercury (early 1980s onward): the entry range, through many generations. Our best-selling mx3, mx2, mx1 and mxC come from this family.
Profile (1991 to 1994) and Sensys DC (about 2004): Dual Concentric ranges between Mercury and Prestige.
Revolution (1998 onward): cherry-veneered models such as the R1, R2 and R3.
Prestige (1980s onward): the traditional-styled Dual Concentric range, such as the Westminster and Stirling, later in Gold Reference versions.
Definition (2009): birch-ply Dual Concentric models built in Scotland, such as the DC8 and DC10T.
Buying used Tannoy: what to check
HPD-era surrounds. The surrounds on 1970s drivers rot with age, and many have been replaced. Ask what was replaced and with what.
Dating the drivers. Frame colour alone is not a reliable guide to a Dual Concentric's age; construction details date it better.
Reused names. An Arden, Cheviot or Eaton may be a 1970s original or a 2017 Legacy reissue.
Origin label. From 2016, Mercury and Revolution models were made in China and Prestige in Scotland. Check the label if it matters to you.
Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
