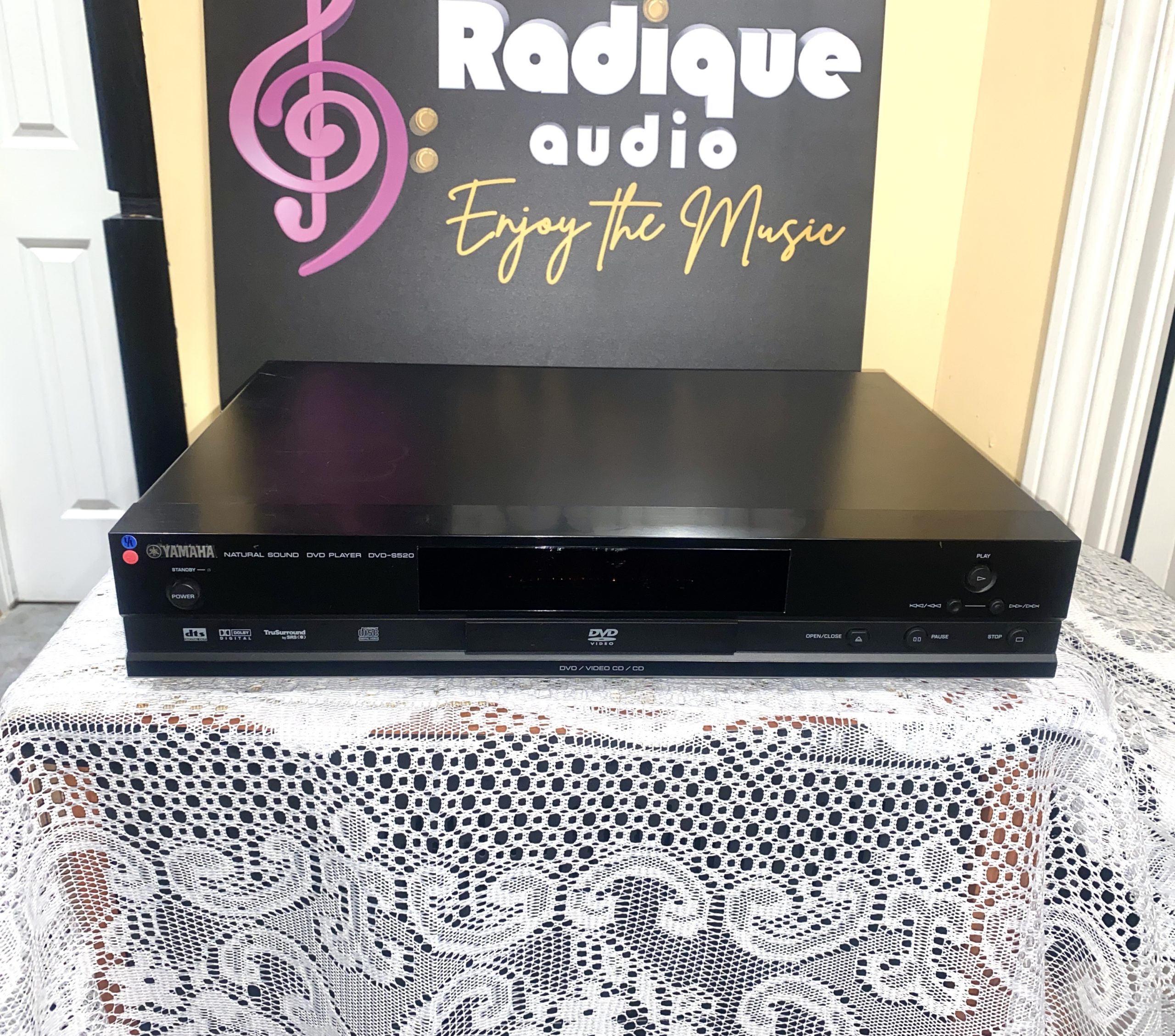

Yamaha DVD-S520 Natural Sound DVD/VCD/CD Player with Optical and Digital Coaxial Output, Subwoofer Pre-Out; Great option for a slim single Disc CD player plus MP3 Playback – Tested, Working Perfectly, with Remote

Experience versatile, high-quality disc playback with the Yamaha DVD-S520—a refined Natural Sound DVD player that delivers clear, engaging picture and sound. Fully tested and working perfectly, this unit comes with a Yamaha remote and is ready to provide years of reliable entertainment.

The DVD-S520 combines understated elegance with genuine performance. Its slim profile and uncluttered faceplate with warm orange-illuminated display hide a capable, well-engineered player. The 24-bit D/A converter and 95dB signal-to-noise ratio ensure clean, distortion-free audio (only 0.0035% THD), while the 10-bit video processor with MPEG2 decompression and progressive scan capability deliver detailed, color-rich pictures from DVD discs.

Universal Format Support: The DVD-S520 plays DVD Video, Super VCD, VCD, CD-Recordable, CD-Rewritable, DVD±RW, and MP3 CDs—making it incredibly versatile for your media library. Parental control and child lock features (with 4-digit PIN) add family-friendly safeguards.

Rich Playback Features include frame-by-frame and slow-motion playback, repeat chapter/title/disc, repeat A-B for specific segments, shuffle and scan modes, time search, zoom and pan (left/right picture shift), direct title selection by chapter number, and Favorite Track Selection (FTS) to store preferences. The 3D Sound (TruSurround) mode creates virtual 5.1-channel output from stereo speakers.

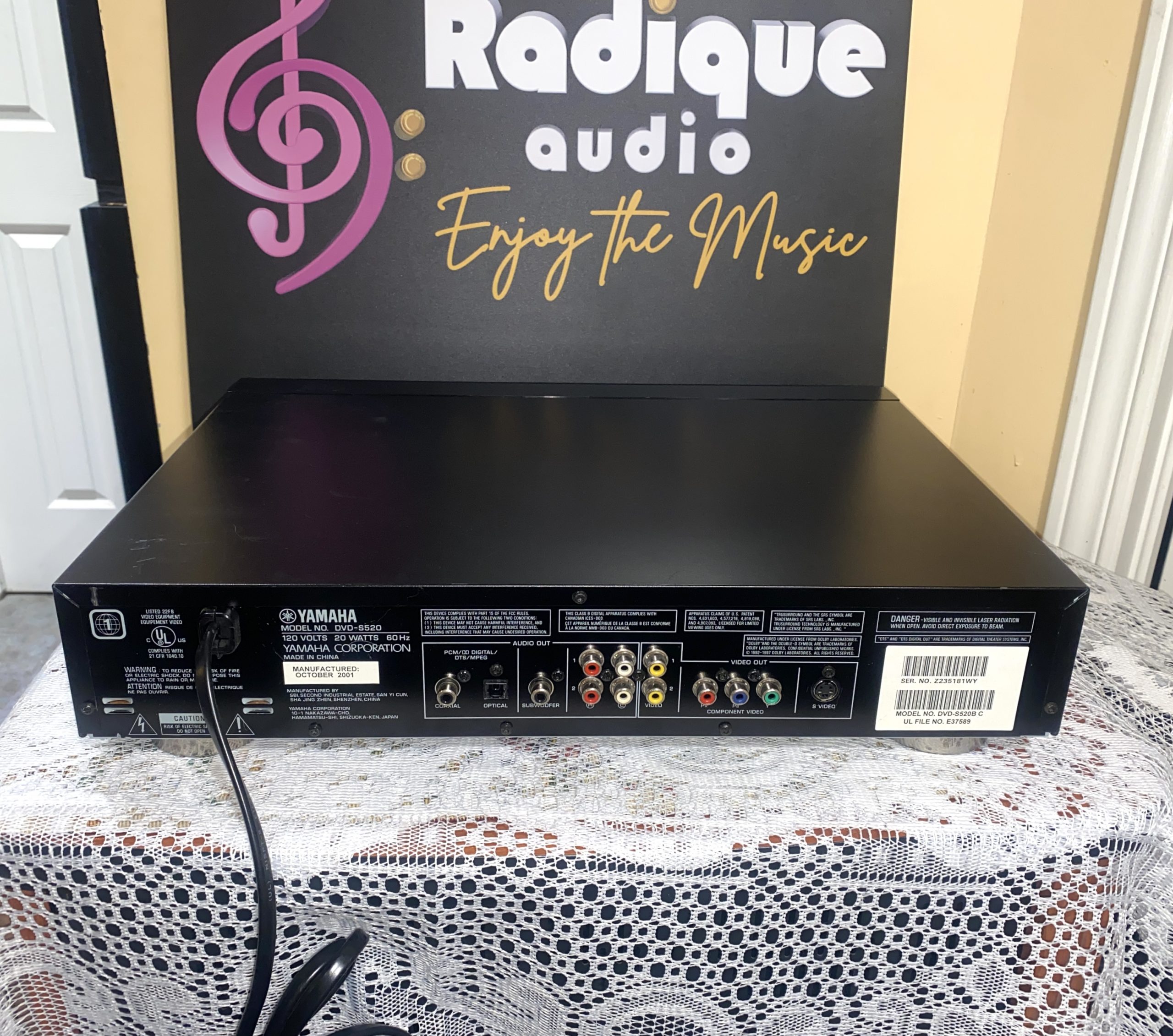

Comprehensive Connections include composite video, S-Video, and component video outputs (YPbPr), separate subwoofer pre-out for expanding into a surround system, coaxial and optical digital audio outputs for surround receivers, and stereo audio (L/R) outputs.

Key Features:

Plays DVD Video, VCD, SVCD, CD, CD-R/RW, MP3, DVD±RW

24-bit D/A converter, 95dB S/N ratio, 0.0035% THD

10-bit video processor with progressive scan

NTSC/PAL multistandard playback (Region 1 DVDs)

Frame-by-frame and slow-motion playback

Repeat A-B to loop specific segments

Shuffle, scan, zoom, picture shift, and time search

Favorite Track Selection (FTS) for custom disc profiles

3D Sound (TruSurround) for virtual surround on 2 speakers

Parental control with PIN and child lock

Dual digital outputs: coaxial and optical

Subwoofer pre-out for surround system expansion

Composite, S-Video, and component video outputs

Compact, elegant design with warm orange-illuminated display

Specifications:

Playback Format: DVD-Video, DVD±RW, VCD, SVCD, CD, CD-R/RW, MP3 CDs

Video DA Converter: 10 bit

Audio DA Converter: 24 bit

Video Output: 1 Vpp (75Ω)

Audio Output: Stereo L/R (75Ω)

Frequency Response: 2Hz–20kHz (CD at 44.1kHz)

Signal-to-Noise Ratio: 95dB

Dynamic Range: 95dB

Distortion: 0.0035% (1kHz)

Video Connections: Composite (RCA × 2), S-Video, Component (YPbPr)

Audio Connections: Stereo RCA, Subwoofer RCA, Coaxial Digital, Optical Digital

Dimensions: 435 × 91 × 314 mm (17.1″ × 3.6″ × 12.4″)

Weight: 3.3 kg (7.3 lbs)

Power Consumption: 20W

A solid, versatile player with impressive feature set and connection flexibility—ideal for disc collectors seeking reliable DVD, VCD, and CD playback in a compact, attractive design.

Asking $145; buy with confidence and benefit from Radique’s “Bumper to Bumper” warranty and Perpetual trade back policy.

Additional information
Weight9.3 lbs
Dimensions15.4 × 21.1 × 7.6 in
About brand
Yamaha at Radique
We service Yamaha, too. Bring us your own Yamaha receivers, amplifiers, CD players, cassette decks, speakers and subwoofers for repair, servicing or restoration, with a 90-day warranty on the work. See our Audio Service page

Yamaha began as an organ maker in Hamamatsu, Japan, in 1887. It made gramophones from the 1920s and began hi-fi with the 1954 HiFi Player. We carry Yamaha AV receivers, vintage stereo receivers, CD players, subwoofers and speakers. We've had more than 280 Yamaha listings so far, covering nearly 200 different models. Every used Yamaha here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Every AV receiver we list is tested input by input on our bench: each HDMI input and output, the analog, optical and coaxial inputs, the subwoofer outputs and the wireless features where it has them. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

Yamaha models we've sold most often: the SW-3 subwoofer, the NX-E270 surrounds, and the RX-V1400, RX-V850 and RX-V800 AV receivers.

The Yamaha hi-fi story

Torakusu Yamaha built his first reed organ in Hamamatsu in 1887 and founded Nippon Gakki in 1897; the company was renamed Yamaha Corporation in 1987. Yamaha calls the 1954 HiFi Player its first audio product, and dates its first Natural Sound (NS) speakers to 1967.

1970s hi-fi. The CA-700 and CA-500 of 1972 were Yamaha's first integrated amplifiers, and the CA-1000 of 1973 could switch its output stage between Class A and Class A/B. The NS-1000 and NS-1000M speakers of 1974 used beryllium dome drivers, and the NS-10M of 1978, sold for home use, became a studio monitor.

CD and surround. The CD-1 of 1982 was Yamaha's first CD player. The DSP-1 of 1986 was a Digital Sound Field Processor, and in 1993 the RX-V870 became the first Yamaha receiver with CINEMA DSP. The RX-V992 of 1997 added built-in Dolby Digital decoding.

AVENTAGE. The AVENTAGE (RX-A) receiver line launched in 2010, above the RX-V range.

Which Yamaha is which?

CA integrated amplifiers (1972 to about 1979): the CA-500, CA-700, CA-1000 and CA-2000, followed by the A-series.

CR receivers (mid-1970s to about 1980): the CR-1000, then the CR-620 to CR-2020 generation of 1977 to 1979.

NS speakers: from the NS-690 and the beryllium NS-1000 to the NS-10M bookshelf speaker, made from 1978 to 2001.

CD players: from the CD-1 of 1982 to the CDX and GT-CD models.

RX-V AV receivers (from at least 1991): such as the RX-V800, RX-V850 and RX-V1400 we sell often. Built-in Dolby Digital arrived in 1997, YPAO room calibration in 2003 and HDMI in the mid-2000s.

RX-A AVENTAGE (from 2010): the step-up AV receivers. The RX-Z models were the flagships until 2007.

Buying used Yamaha: what to check

Formats. On an AV receiver, check what it decodes and connects to: Dolby Digital from 1997, room calibration from 2003, HDMI from the mid-2000s.

HDMI boards. On modern AV receivers, HDMI is usually the first thing to fail. We test every HDMI input and output before listing.

CR receivers. Owners suggest asking whether service bulletins were done on a CR-2020, and expect scratchy controls and burnt-out dial lamps on any unserviced unit.

NS speakers. Check that the tweeters on an NS-10M are original and both work, and inspect the beryllium domes on an NS-1000, since Yamaha stopped making beryllium diaphragms in 1997.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
