Attractive, Modern Looking Mirage 8″ Nanosat Subwoofer NANO Sub

Name: Attractive, Modern Looking Mirage 8" Nanosat Subwoofer NANO Sub
Brand: Mirage
SKU: 7745
Price: 195.00 CAD
Availability: OutOfStock

$195.00

Out of stock

How First Dibs works →

Compare

Add to wishlist

Categories: Used/Vintage, Speakers, Subwoofers

Description

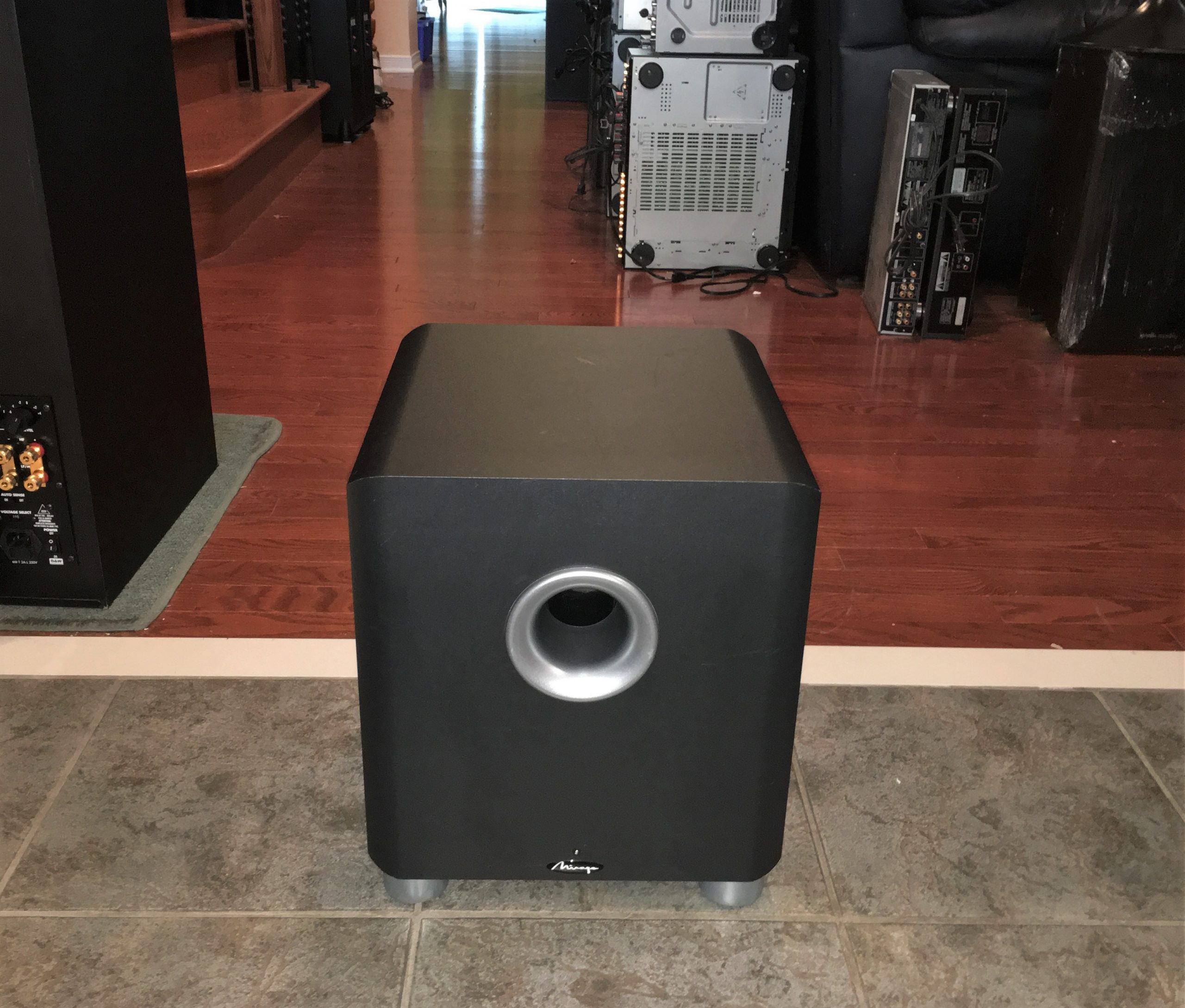

Great sounding compact subwoofer from Mirage. (2 Available)
The Nano Sub is the smallest member of the new line of subwoofers from Mirage. The high and low level inputs allow integration with virtually any home theater or stereo system in a small, mid-sized, or even a fairly large room.
The 8-inch down-firing woofer features new, patented surround technology – the Ribbed Elliptical Surround™. This technology eliminates surround distortion, which allows for greater efficiency, and enables the Nano Sub to play tremendously deep at high volume levels.
The bottom line is – a subwoofer with much lower distortion for cleaner, more musical bass. The Nano Sub delivers louder, lower and cleaner bass output than any sub anywhere near it’s price
Small and powerful subwoofer

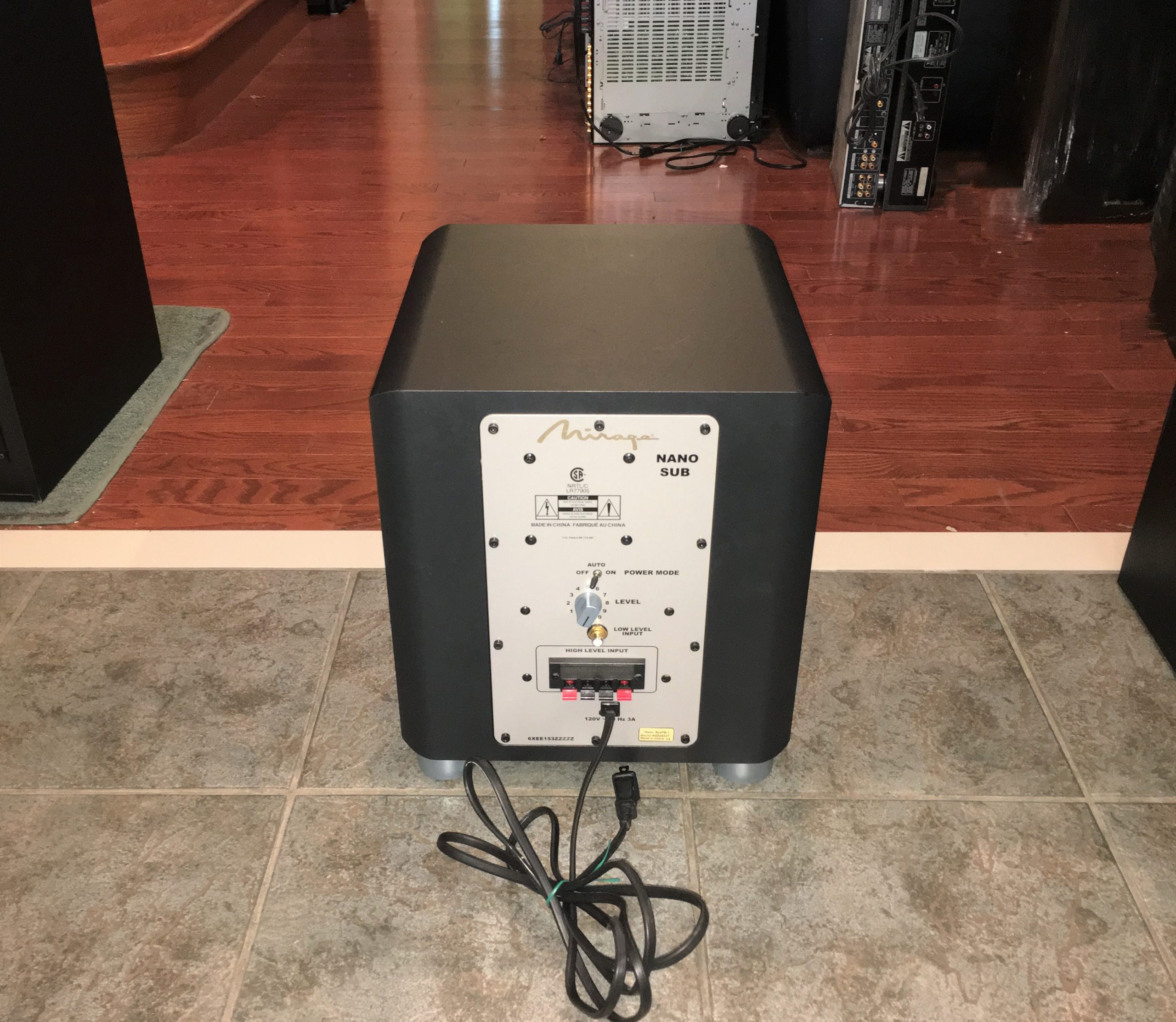

Offers high and low level inputs.

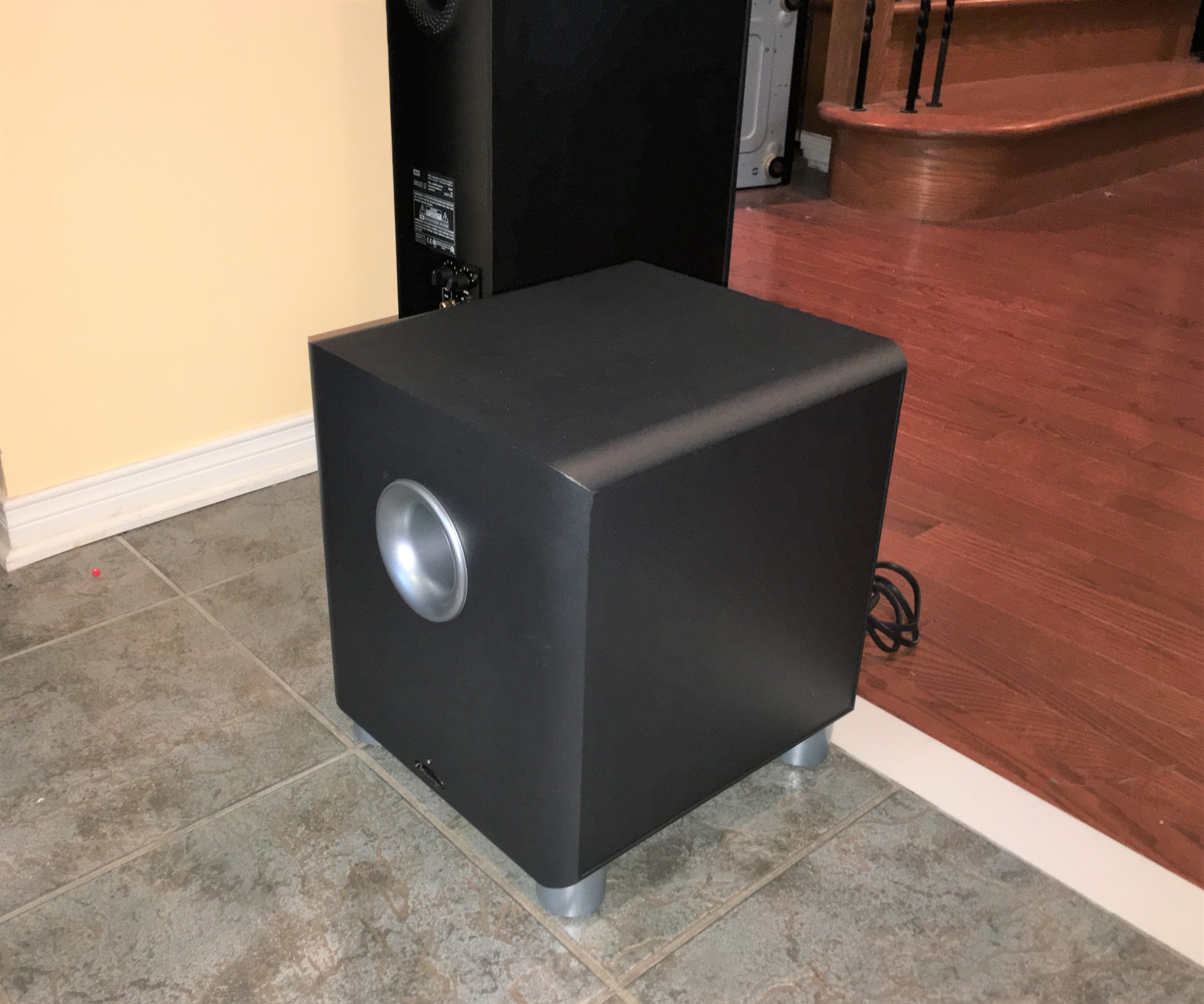

Eight-inch, down-firing, titanium woofer features Ribbed Elliptical Surround
Delivers deep, rich bass tones even at high volume levels
Internal amplifier power of 75 Watts RMS
Nominal Output Power 75 Watt, Max Output Power 300 Watt
Rated Frequency Response 30 – 120 Hz
Dimensions: Width 11.7 in, Depth 13.5 in, Height 13.5 in, Weight 20.06 lbs
2 Available. Asking just $195 each for this attractive and great sounding compact Mirage subwoofer.

Additional information

Weight	20.06 lbs
Dimensions	15.7 × 17.5 × 17.5 in

About brand

Mirage at Radique

We service Mirage, too. Bring us your own Mirage speakers and subwoofers for repair, servicing or restoration (speakers up to 80 lbs each), with a 90-day warranty on the work. See our Audio Service page

Mirage is a Canadian speaker brand, founded in Toronto in the late 1970s and later built by Audio Products International in Scarborough, in the same factory as Energy. Its bipolar and Omnipolar designs send sound in more than one direction. We carry Mirage towers, satellites, centre channels and subwoofers. We've had more than 110 Mirage listings so far. Every used Mirage here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

The Mirage story

Jeff Percy, Jeff Soltysek and Patrick Dempster founded Mirage in Toronto in the late 1970s (1979, according to Stereophile). Kevin Voecks, later of Snell and Revel, did the original designs. Audio Products International of Scarborough, which already assembled Mirage speakers, took the company over in the mid-1980s.

Bipolar. The M-1 of 1987, begun by Voecks and completed by API's Ian Paisley, fired identical drivers forward and backward, in phase. Mirage's engineers worked with the National Research Council's loudspeaker research here in Ottawa.

Omnipolar. The OM-6 of 1997 was the first commercial version of Mirage's Omnipolar idea, and the Omnisat satellite system followed in 2002.

New owners. Klipsch bought API in 2006, and VOXX bought Klipsch in 2011. Later models were made in China; the 2007 OMD-28 was "designed by API in Canada and built in China". Around the end of 2022, Oscar Bernardo, a former API executive, bought the Mirage brand himself to relaunch it.

Which Mirage is which?

Early two-ways (1980s to early 1990s): models owners discuss include the SM-1, 190, 290, M-360 and M-460.

M-series bipolar (1987 to late 1990s): the M-1, M-3, and the "si" models such as the M-1si, M-3si and M-7si.

OM-series Omnipolar (1997 to early 2000s): the OM-6, OM-7 and OM-9, and the OM-5 subwoofer.

Home theatre: FRx (2001), Omnisat and Nanosat satellites (2002 to 2005), OMD (2007) and MX (2009), plus the OMNI towers and Uni-Theater.

Subwoofers: the BPS bipolar subs, the LF-150 and MM-6, and the Nano subwoofers.

Buying used Mirage: what to check

Surrounds. Materials vary by model: some M-series midranges use foam surrounds that turn brittle, while many woofers use rubber. Check the rear-firing drivers too.

Tweeters. Owners report that original M-1 tweeters become fragile and have been unavailable for years. Check that every tweeter plays, front and rear.

Powered woofers and subwoofers. Test the built-in amplifier at volume; owners report failed sub amplifiers with no replacement available.

Finish and pairs. M-series panels are lacquered and some clip off plastic fasteners, so look for damage. The M-1si was built in mirror-image pairs.

Placement. Omnipolar and bipolar speakers sound best well out from the wall.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
