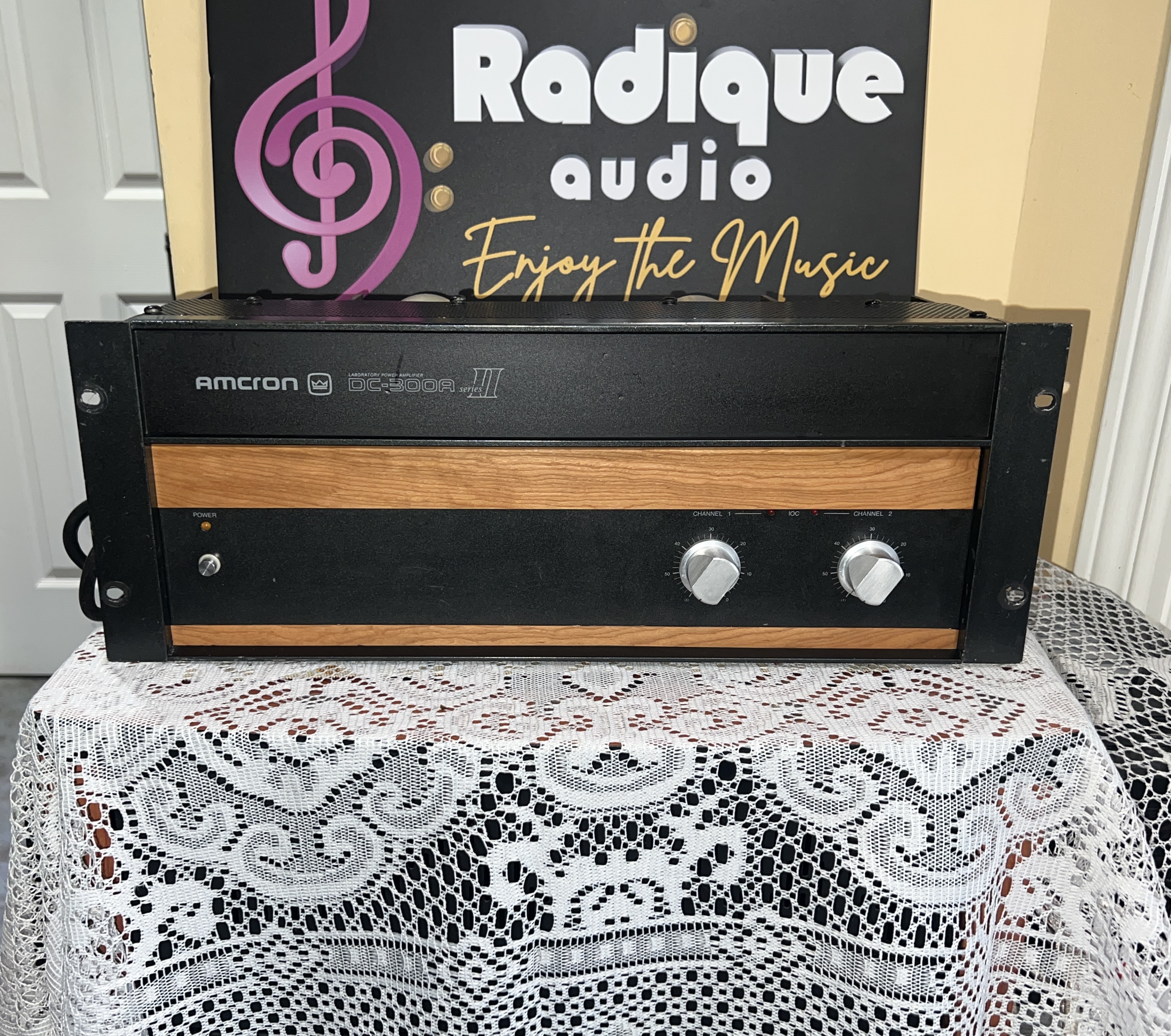

Crown DC-300A Series II Vintage Power Amplifier – 175 WPC, USA

An Amcron (Crown) DC-300A Series II professional power amplifier, 175 watts per channel, the final evolution of Crown’s legendary DC-300 line, through our Level 2 service.

European-branded professional power amplifier representing the pinnacle of Crown’s legendary DC-300 lineage.

Why This Model Matters

The Amcron DC-300A Series II stands as the final and finest evolution of the DC-300 series, a line that revolutionized solid-state amplification when it debuted in 1967 as the first reliable high-power transistor amplifier. Where the original DC-300 earned Stereophile’s accolade as “the best power amplifier currently available” in the late 1960s, the Series II represents what one period reviewer called “a quantum leap in sonic quality” over its already-formidable predecessors. This amplifier has undergone our Level 2 service and testing which should ensure many more years of reliable professional-grade performance.

Direct-coupled from DC to 20 kHz, this dual-channel amplifier delivers 175 watts per channel into 8Ω with both channels driven, or can be configured in bridge-mono mode for 610 watts into 8Ω. The DC response eliminates phase shift at low frequencies entirely, yielding exceptional transient accuracy and bass control that remains unmatched by AC-coupled designs. Crown’s proprietary SPACE (Signal Programmed Automatic Current Executor) protection circuit safeguards both amplifier and speakers without the sonic compromises of traditional current limiting. The front panel features dual IOC (Instantaneous Overload Current) LED indicators that provide real-time monitoring of output stage stress, along with independent level controls for precise gain matching.

Professional studios relied on the DC-300A Series II for its ability to drive difficult loads, including notorious low-impedance monitors like Yamaha NS-10s and power-hungry JBL studio references. The massive 1-kilowatt transformer and computer-grade filter capacitors storing over 48 joules of energy provide effortless dynamic headroom. The damping factor of 750 ensures authoritative speaker control across the frequency spectrum. Level 2 service has verified and replaced capacitors, resistors, and transistors where necessary, tightened all critical hardware, and optimized bias and DC offset for maximum reliability and performance.

This amplifier was marketed as “Amcron” in European markets due to trademark considerations, but the circuitry remains identical to Crown-branded models. Built in Crown’s Elkhart, Indiana facility, the DC-300A Series II exemplifies the over-engineered professional audio equipment of its era. This example has been thoughtfully modified with RCA input jacks in place of the original 1/4-inch professional connectors, making it ideally suited for home hi-fi integration while retaining full professional performance. The standard 19-inch rack-mount chassis occupies seven inches of vertical space and integrates the heatsinks directly into the chassis design for maintenance-free convection cooling.

At 20.4 kg, this amplifier reflects the serious audio-first engineering that defined professional equipment of this era. The substantial mass comes from the 1-kilowatt toroidal transformer, extensive heatsinking integrated into the chassis, computer-grade filter capacitors, and heavy-gauge steel construction. This is not consumer audio equipment disguised in a rack case—this is a tool built for reliable operation in demanding professional environments.

Made in the USA, this Amcron DC-300A Series II combines vintage American engineering with modern reliability courtesy of comprehensive Level 2 service, ready to deliver another generation of uncompromising performance in home or professional systems.

Its RCA inputs take any standard interconnect from your preamplifier, and our Radique Audio Gold Series RCA interconnects are a natural match. For the speaker side, our Custom Speaker Cable Builder will make you a pair to the exact length, terminated and ready to connect. A power amplifier needs a preamplifier in front of it: see the preamplifiers on our shelf.

Crown DC-300A Series II Specifications

• Power output: 175 watts per channel into 8Ω (dual mode), 305 watts per channel into 4Ω, 100 watts per channel into 16Ω
• Bridge-mono mode: 610 watts into 8Ω, 355 watts into 16Ω
• Frequency response: DC (0 Hz) to 20 kHz, ±0.1 dB from 20 Hz to 20 kHz
• Total harmonic distortion: Less than 0.1% at rated power
• Signal-to-noise ratio: Better than 105 dB A-weighted below full output
• Damping factor: 750
• Input sensitivity: 1.4V for full output (adjustable via front panel controls)
• Input impedance: Variable (50kΩ at half level, 10kΩ at full level)
• Input connectors: RCA jacks (aftermarket modification from original 1/4-inch phone jacks), two per channel
• Output connectors: Binding posts
• Dual/Mono mode switching on rear panel
• Front panel IOC LED indicators and independent level controls per channel
• SPACE electronic protection circuitry
• Level 2 service: Component verification and replacement where necessary, hardware tightening, bias and DC offset optimization, thorough testing
• No digital inputs or outputs
• Dimensions: (Width x Height x Depth) 483 x 178 x 248 mm (19 x 7 x 9.75 inches)
• Weight: 20.4 kg (45 lbs)

Available for pickup in Kanata, or shipped across Canada and internationally — we have sent equipment to fifteen countries in the past year, each piece packed in-house in 275 lb test double-wall boxes. Live shipping rates for your address are calculated at checkout. Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. Available for audition by appointment in Kanata.
