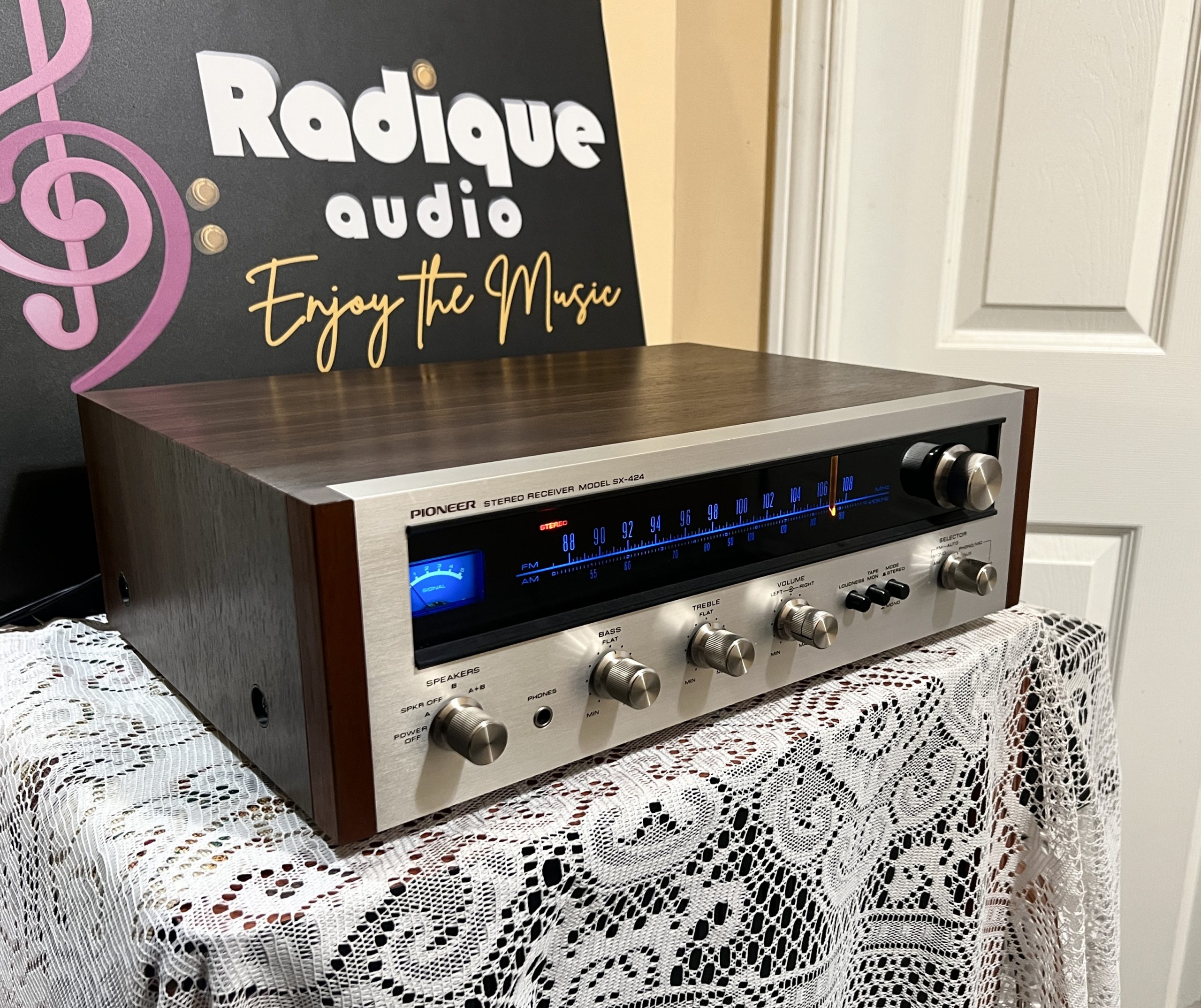

Pioneer SX-424 Stereo Receiver – 12WPC Blue-Light Era

Made in Japan during Pioneer’s legendary blue-light era (1972-74), this iconic silverface receiver combines classic styling with genuine wood veneer cabinetry and the warm, musical sound that made entry-level Pioneer receivers cult favorites among vintage audio enthusiasts.

This SX-424 has undergone complete Level Two service including full recap, ensuring all critical capacitors have been renewed and the unit is ready for reliable performance. Cosmetically, this receiver presents in very good condition with authentic wood veneer cabinet (not vinyl), clean silver faceplate with iconic blue tuning dial, and minimal wear consistent with careful ownership over five decades.

The 12 watts per channel output may appear modest on paper, but the SX-424 delivers surprisingly robust, clean power capable of driving most efficient speakers with authority. The direct-coupled, early transistor topology with limited negative feedback produces a notably tube-like sound signature—warm, musical, and engaging. The damping factor of 40 ensures excellent speaker control, while the frequency response extends from 20Hz to an astonishing 70kHz, capturing harmonics well beyond the audible range. Total harmonic distortion remains below 1%, and the 85dB signal-to-noise ratio delivers quiet background performance.

The phono stage accommodates moving magnet cartridges with 3mV sensitivity and 50kΩ impedance, offering RIAA-accurate reproduction. Additional inputs include microphone (front-panel 6.3mm jack), auxiliary, and tape play. The tape monitor loop enables outboard signal processing or EQ integration. Tone controls offer ±9dB bass adjustment at 100Hz and +6/-9dB treble at 10kHz, with loudness compensation for low-volume listening.

The FM/AM tuner section delivers excellent reception quality with 2.3µV FM sensitivity, providing the tactile satisfaction of analog tuning with a large illuminated blue dial. Front-panel controls include input selector, mode switch, balance, bass, treble, and the satisfying click of mechanical switches characteristic of 1970s Japanese engineering.

Note on RCA Connectivity: The RCA input connectors on this series are positioned close together, which can create challenges with standard-width interconnect plugs. Radique Audio Gold Series Interconnects are specifically designed to work seamlessly with this spacing, ensuring reliable, solid connections without tension or intermittency issues.

Important Note on Speaker Connections: This receiver features Pioneer’s proprietary AC-type speaker terminals (resembling AC wall plugs). One set of speaker adapters is included, enabling connection of one pair of modern speakers with standard binding posts or banana plugs. A second pair can drive additional speakers if you source another adapter set (available on eBay) or use vintage speakers with matching AC-style connectors.

At 7.9 kg (17.4 lbs), the SX-424’s solid metal chassis reflects Pioneer’s build-quality standards—robust transformer, quality circuit boards, and reliable construction that has enabled this receiver to function flawlessly for over 50 years.

Key Features & Specifications:

12 watts per channel into 8Ω with warm, tube-like sound signature

Full Level Two service with complete recap

Genuine wood veneer cabinet (not vinyl) in very good condition

Made in Japan during Pioneer’s blue-light era (1972-74)

Phono MM input: 3mV sensitivity, 50kΩ impedance

Microphone input: front-panel 6.3mm jack

Auxiliary and tape inputs with tape monitor loop

FM/AM tuner: 2.3µV sensitivity with analog tuning dial

Frequency response: 20Hz–70kHz

Tone controls: ±9dB bass, +6/-9dB treble, loudness compensation

Damping factor: 40; THD: <1%

Proprietary AC-type speaker terminals; one adapter set included

RCA connectors work best with Radique Audio Gold Series Interconnects

Classic blue tuning dial with analog scale

Thoroughly serviced and tested

Dimensions: 431 x 146 x 347 mm (17 x 5.7 x 13.7 inches)

Weight: 7.9 kg (17 lbs 6 oz)

For collectors and music lovers seeking authentic blue-light era Pioneer performance with comprehensive restoration and genuine wood cabinetry, the SX-424 delivers warm, engaging sound with timeless styling.

Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence.

Asking $395 CAD.

Additional information
Weight19.5 lbs
Dimensions17.7 × 21 × 9.7 in
About brand
Pioneer at Radique
We service Pioneer, too. Bring us your own Pioneer receivers, amplifiers, tuners, turntables, cassette decks and CD players for repair, servicing or restoration (not reel-to-reel decks), with a 90-day warranty on the work. See our Audio Service page

Pioneer began in Tokyo in January 1938, when Nozomu Matsumoto set up shop around the A-8 speaker he had built the year before. By the late 1970s its SX receivers were at the heart of the hi-fi power race. We carry Pioneer stereo receivers and AV receivers, CD players, cassette decks, tuners and equalizers. We've had more than 240 Pioneer listings so far, covering 140 different models. Every used Pioneer here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

Pioneer is one of our two top-selling brands of vintage amps and receivers, along with Marantz. Our five best-selling Pioneer models so far: the SX-650, SX-750, SX-580, SX-780 and SX-680, all vintage stereo receivers from the 1976 and 1978 SX families. We also offer our custom cherry cabinets for these vintage Pioneers, hand-made from all-natural Ottawa Valley cherry, and we've upgraded dozens of Pioneers with them so far.

The Pioneer story, 1938 to today

Nozomu Matsumoto developed the A-8 speaker in 1937, and in January 1938 he set up Fukuin Shokai Denki Seisakusho in Tokyo. "Pioneer" was first the name of that speaker. Some histories give 1936 in Osaka as the start, but Pioneer dates itself to January 1938 in Tokyo. The company was incorporated in 1947 and renamed Pioneer Electronic Corporation in 1961.

Stereo and the US. In 1962 Pioneer introduced the PSC-5A, which it calls the first stereo with separate speaker cabinets, and its first PL turntables. Pioneer Electronics U.S.A. was founded in New York in 1966.

The power race. After a 1974 US Federal Trade Commission rule tightened how amplifier power was rated, receiver makers competed on watts. Pioneer's SX-1250 of 1976 was rated at 160 watts per channel, and the SX-1980 of 1978 to 1980 at 270.

CD and Elite. The P-D1 of 1982 was Pioneer's first CD player, and Elite-branded components were on sale by 1985.

Today. Pioneer sold its home audio business to Onkyo in 2015, keeping its car and DJ businesses, and Pioneer-branded home theatre gear was later made under licence. In December 2025 CarUX, part of Taiwan's Innolux, completed its purchase of Pioneer Corporation, which now focuses on in-car products.

Which Pioneer is which?

Early-1970s SX receivers: models such as the SX-424 to SX-828, rated at about 15 to 50 watts per channel.

The 1976 "x50" SX receivers: from the SX-450 at 15 watts per channel up to the SX-1250 at 160. Our best-selling SX-650 and SX-750 come from this family.

The 1978 "x80" SX receivers: including the SX-580, SX-680 and SX-780 we sell most, up to the SX-1980 flagship with quartz-lock tuning, which weighs more than 35 kg.

Spec and Exclusive separates: higher-end amplifiers such as the Spec-1 preamplifier (1976 to 1980) and the Exclusive C3/M3 pair (1974).

Elite: Pioneer's upper line from the mid-1980s, for example the PD-9010X CD player.

PL turntables, CT cassette decks and CD players: PL turntables from 1962, such as the PL-12 and the linear-tracking PL-L1; CT decks such as the three-head CT-F1000; and CD players from the 1982 P-D1 to magazine-loading changers such as the PD-M6.

Buying used Pioneer: what to check

Controls and switches. Crackle when you turn a control or work a switch usually means dirt, and restorers clean every pot and switch.

Capacitors. Electrolytic capacitors in 1970s receivers are often past their best, and full restorations replace them.

Big SX models. Owners and restorers report heat stress on the power-supply board of large receivers such as the SX-1250. Ask what has been done.

Relay, lamps and bias. The protection relay is a common replacement, dial lamps burn out and are often converted to LED, and restorers set the bias and DC offset.

Cassette decks. Check the heads, fast-forward and rewind, Dolby and every button. Belts age even when the deck looks perfect.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
