Yamaha RX-V493 5.1 AVR, 240 Watts, 70 WPC, Phono

$145.00

Seventy watts a channel into 8 ohms across left, centre and right, 20 watts to the surrounds, and 0.04% distortion at 1 kHz. The reason to want one is the phono stage: moving magnet at 2.5mV with 80dB signal to noise, on a receiver at this price. Cinema DSP adds Cinema, Stadium and Concert Hall fields. A pre-programmed universal remote is included; all five channels tested.

1 in stock

Description

Yamaha RX-V493 5.1 AVR, 70 WPC, Phono
A compact yet capable 5.1-channel home theater receiver from Yamaha’s late-1990s generation, the RX-V493 delivers 70 watts per channel across three main channels (left, center, right) with 20-watt surround amplifiers, all powered by Yamaha’s proven discrete amplifier topology. The RX-V493 combines genuine audio fundamentals—low distortion at 0.04%, flat response from 20Hz to 20kHz, and a dedicated phono input for turntables—with genuine Yamaha Cinema DSP processing that adds depth and immersion to movie soundtracks without artificial oversimplification. The pre-programmed universal remote is included. This specific unit has been thoroughly tested and verified fully functional across all five surround channels, both stereo and surround modes; all audio inputs and outputs confirmed clean and responsive.

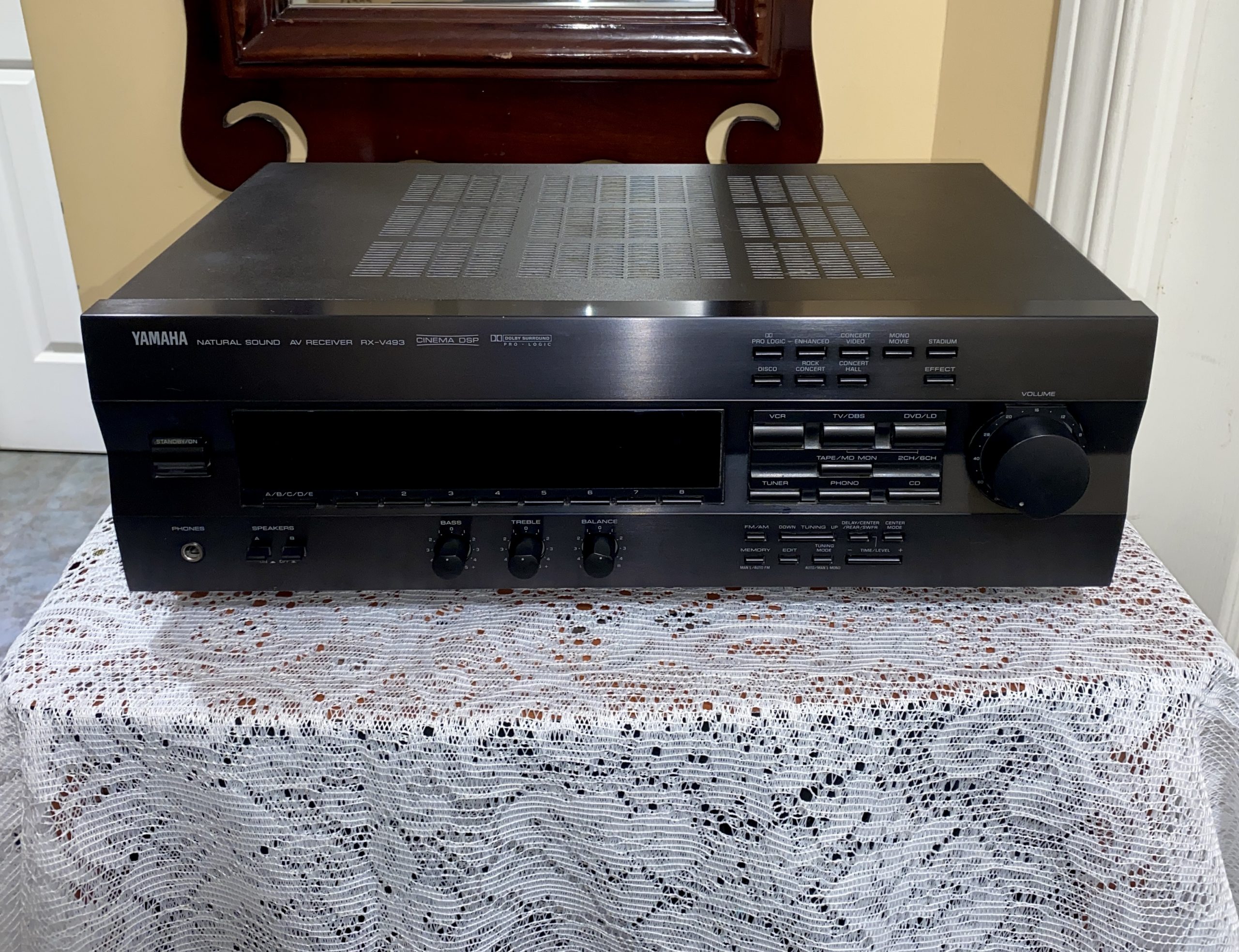

The receiver excels as a genuine two-purpose device: at its core, it functions as a high-quality stereo amplifier with exceptional phono staging for vinyl playback, thanks to the 2.5mV MM input sensitivity and 80dB signal-to-noise ratio that rivals dedicated two-channel preamps of the era. The Cinema DSP engine delivers three distinct surround field modes (Cinema, Stadium, Concert Hall), each of which genuinely alters the spatial presentation of audio sources—a far cry from simple Dolby Pro Logic matrix decoding. All modern surround formats are decoded: Dolby Digital and Dolby Digital Plus, DTS, PCM, allowing full compatibility with DVD movies and commercial streaming content. The phono section is clean and musical, with low noise and enough headroom to handle 2V line-level signals if needed via the auxiliary input. Tape monitor loops allow for external EQ or signal processor integration if desired. The front panel is finished in brushed aluminum with a large analog tuning dial for FM/AM, a motorized volume knob, and large discrete buttons for input selection and surround mode switching. The layout is logical and user-friendly—no hidden menus, all controls immediately accessible.

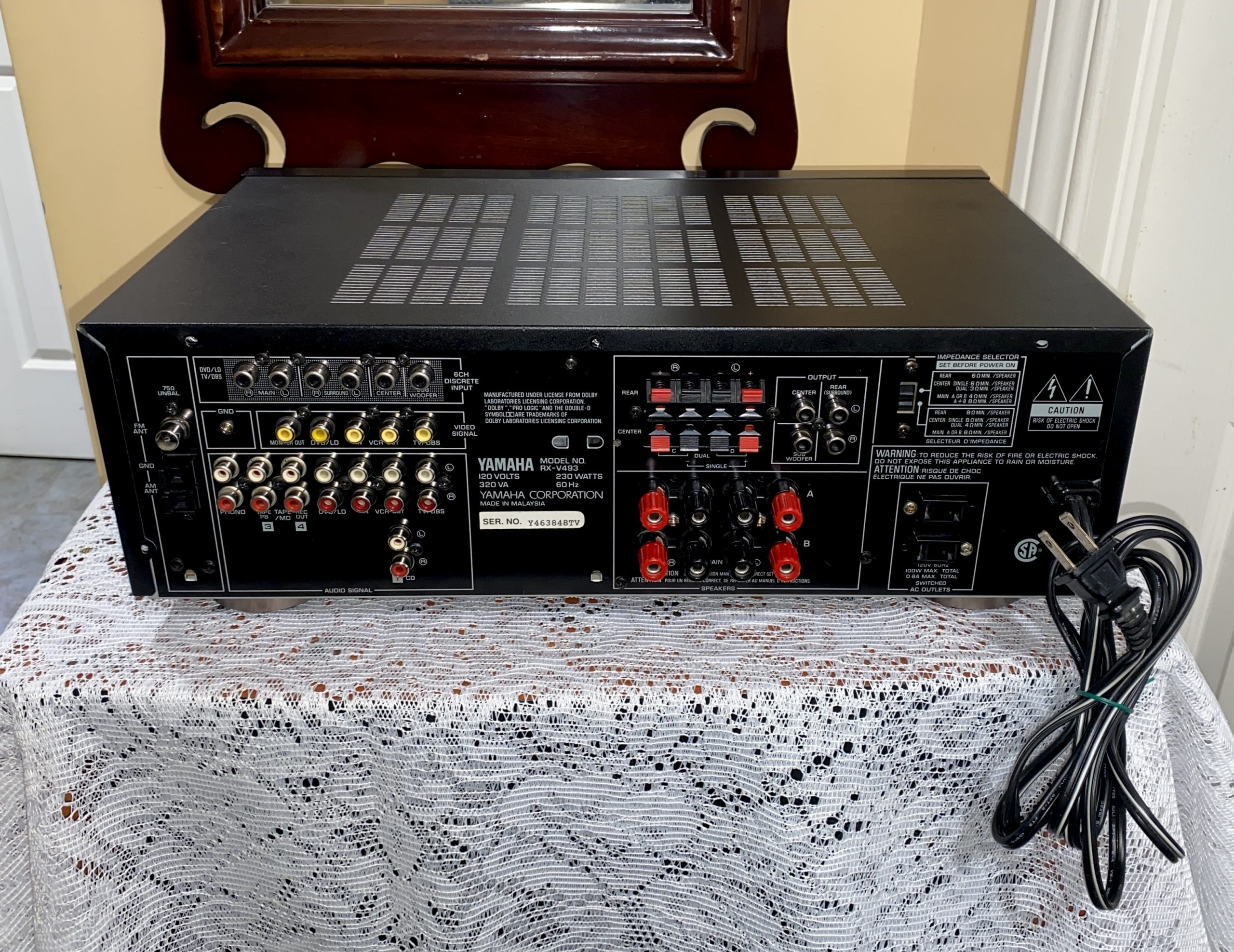

The rear panel offers composite video connections (RCA type) for older LaserDisc and VCR equipment, as well as dedicated left/right audio out for tape machines or zone 2 amplifiers. Speaker terminals accept 4Ω to 16Ω loads with selectable impedance setting on the back panel. The receiver runs cool and quiet, with no exposed heatsinks, and the compact footprint (435 × 308.5 mm / 17.1 × 12.2 inches) makes it suitable for shelf or cabinet mounting in rooms where space is at a premium. Weight of 8.7 kg (19.2 lbs) reflects solid internal construction with a substantial toroidal transformer and discrete power amplifier modules.

Key Features & Specifications

5.1-channel amplification: 70 watts per channel (left, center, right into 8Ω), 20 watts per rear surround

Total harmonic distortion: 0.04% @ 1kHz (reference-level audio quality)

Frequency response: 20Hz to 20kHz; damping factor: 80 (excellent power supply regulation)

Phono input (MM cartridge): 2.5mV sensitivity, 80dB SNR; tuning capacitors can be modified for extended bass response

Line-level input sensitivity: 150mV, 93dB SNR; dedicated tape monitor loop for external processors

Yamaha Cinema DSP surround processing: 3 distinct field modes (Cinema, Stadium, Concert Hall)

Dolby Digital, DTS, Dolby Digital Plus, and PCM surround decoding (full modern codec support)

FM/AM tuner with RDS capability; large tuning dial and motorized volume knob

Remote control: pre-programmed universal remote (included)

Video: Composite RCA connections (2 in, 1 out) for older video sources

Impedance selector switch (4Ω/8Ω settings); zone 2 tape output for multi-room capability

Brushed aluminum front panel with discrete control layout

No hidden menus; all functions accessible from front panel or remote

Dimensions & Weight

Width × Height × Depth: 435 × 151 × 308.5 mm (17.1 × 5.9 × 12.2 inches). At 8.7 kg (19.2 lbs), the RX-V493 feels substantial in hand—a testament to thoughtful engineering that prioritized internal component quality (toroidal transformer, discrete power amplifiers) over chassis bloat. The weight indicates a receiver built for decades of reliable service.

A handsome, well-engineered 5.1 receiver that remains a genuinely musical and capable performer for both stereo and home theater applications. The phono section is a standout feature that newer receivers have largely abandoned, making the RX-V493 an excellent choice for vinyl enthusiasts who also want surround capability without sacrificing two-channel sound quality. It delivers honest amplification, low noise, and proven reliability at an approachable price point.

Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program, you can purchase with confidence.

$145.00
Additional information
Weight21 lbs
Dimensions16.2 × 21.1 × 9.9 in
About brand
Yamaha at Radique
We service Yamaha, too. Bring us your own Yamaha receivers, amplifiers, CD players, cassette decks, speakers and subwoofers for repair, servicing or restoration, with a 90-day warranty on the work. See our Audio Service page

Yamaha began as an organ maker in Hamamatsu, Japan, in 1887. It made gramophones from the 1920s and began hi-fi with the 1954 HiFi Player. We carry Yamaha AV receivers, vintage stereo receivers, CD players, subwoofers and speakers. We've had more than 280 Yamaha listings so far, covering nearly 200 different models. Every used Yamaha here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Every AV receiver we list is tested input by input on our bench: each HDMI input and output, the analog, optical and coaxial inputs, the subwoofer outputs and the wireless features where it has them. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

Yamaha models we've sold most often: the SW-3 subwoofer, the NX-E270 surrounds, and the RX-V1400, RX-V850 and RX-V800 AV receivers.

The Yamaha hi-fi story

Torakusu Yamaha built his first reed organ in Hamamatsu in 1887 and founded Nippon Gakki in 1897; the company was renamed Yamaha Corporation in 1987. Yamaha calls the 1954 HiFi Player its first audio product, and dates its first Natural Sound (NS) speakers to 1967.

1970s hi-fi. The CA-700 and CA-500 of 1972 were Yamaha's first integrated amplifiers, and the CA-1000 of 1973 could switch its output stage between Class A and Class A/B. The NS-1000 and NS-1000M speakers of 1974 used beryllium dome drivers, and the NS-10M of 1978, sold for home use, became a studio monitor.

CD and surround. The CD-1 of 1982 was Yamaha's first CD player. The DSP-1 of 1986 was a Digital Sound Field Processor, and in 1993 the RX-V870 became the first Yamaha receiver with CINEMA DSP. The RX-V992 of 1997 added built-in Dolby Digital decoding.

AVENTAGE. The AVENTAGE (RX-A) receiver line launched in 2010, above the RX-V range.

Which Yamaha is which?

CA integrated amplifiers (1972 to about 1979): the CA-500, CA-700, CA-1000 and CA-2000, followed by the A-series.

CR receivers (mid-1970s to about 1980): the CR-1000, then the CR-620 to CR-2020 generation of 1977 to 1979.

NS speakers: from the NS-690 and the beryllium NS-1000 to the NS-10M bookshelf speaker, made from 1978 to 2001.

CD players: from the CD-1 of 1982 to the CDX and GT-CD models.

RX-V AV receivers (from at least 1991): such as the RX-V800, RX-V850 and RX-V1400 we sell often. Built-in Dolby Digital arrived in 1997, YPAO room calibration in 2003 and HDMI in the mid-2000s.

RX-A AVENTAGE (from 2010): the step-up AV receivers. The RX-Z models were the flagships until 2007.

Buying used Yamaha: what to check

Formats. On an AV receiver, check what it decodes and connects to: Dolby Digital from 1997, room calibration from 2003, HDMI from the mid-2000s.

HDMI boards. On modern AV receivers, HDMI is usually the first thing to fail. We test every HDMI input and output before listing.

CR receivers. Owners suggest asking whether service bulletins were done on a CR-2020, and expect scratchy controls and burnt-out dial lamps on any unserviced unit.

NS speakers. Check that the tweeters on an NS-10M are original and both work, and inspect the beryllium domes on an NS-1000, since Yamaha stopped making beryllium diaphragms in 1997.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
