Late Model JVC Dual Cassette Deck w/ Auto Reverse TD-W505
$145.00
Out of stock
Email when stock available
Late Model JVC Dual Cassette Deck w/ Auto Reverse, in good cosmetic condition, tested and working well.
The JVC TD-W505 features Dolby B/C and HX-Pro noise reduction, pitch control, and high speed dubbing.
It also boasts an electronic tape counter with 4 digits, tape type selection with support for normal, chrome and metal tapes.
Level meters used on the TD-W505 are generic digital peak reading meters. Playback speed may be adjusted with pitch control.
Dolby C-type used in the TD-W505 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original.
Connection to other audio components for play-back can be achieved by a RCA cable and recording from a source by a RCA cable.
Specifications
Type: auto reverse, double compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x playback, 1 x record/playback, 1 x erase
Motor: 2 x reel, 2 x capstan, 2 x mech
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Frequency Response: 20Hz to 17kHz (Metal tape)
Signal to Noise Ratio: 73dB (dolby C)
Wow and Flutter: 0.08%
Total Harmonic Distortion: 0.8%
Input: 80mV (line)
Output: 0.3V (line)
Dimensions: 400 x 127 x 360mm, Weight: 4.6kg
Year: 1997
Includes soft copy of manual in PDF. Asking $145 for this well-equipped Dual Cassette Deck from JVC.
| Weight | 10.14 lbs |
|---|---|
| Dimensions | 19.75 × 9.00 × 18.17 in |
Related Products
JVC TD-W709 Dual Cassette Deck – Auto-Reverse, Dolby B/C, HX Pro
Two auto-reverse wells with Dolby B, Dolby C and HX Pro, Deck 1 recording and high-speed dubbing between the two. Pitch control, relay play, a front mic input and JVC's COMPU LINK. 20 Hz to 17 kHz on metal tape, 73 dB signal-to-noise with Dolby C, 0.08% wow and flutter. Made in Japan, 1993 to 1995. Level 1 serviced here; cosmetics good.
Braun Atelier C1 Slim Cassette Deck — Motorized Drawer, Japan
70 mm tall, almost exactly the height of a cassette case, and that is not a coincidence. The tape does not stand upright behind a door the way it does in every Japanese deck of the era — it lies flat and is drawn in horizontally on a motorised tray, the mechanism disappearing into a slot barely thicker than the cassette itself. The C1 arrived in 1980, two years before a CD player made that gesture familiar. Built for Braun in Japan, the matching deck to the Atelier A1 and T1. Good condition.
JVC KD-A11C Silver Cassette Deck – Serviced, Metal Tape, Japan
Onkyo TA-RW404 Dual Cassette Deck — Auto Reverse, Dolby B/C

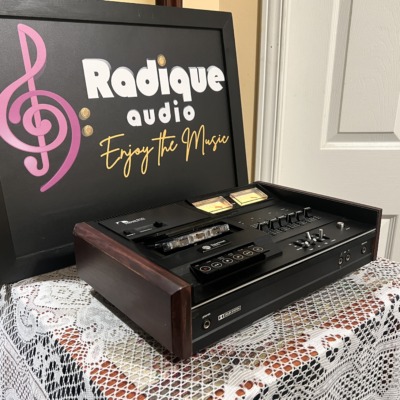

Nakamichi 500 Dual-Tracer Cassette Deck – Walnut, Made in Japan
Nakamichi's mid-seventies top-loading deck with walnut side panels, serviced on our bench and playing as it should.
✔️ Good condition — honest general wear for a fifty-year-old deck, and no damage
✔️ Serviced on our bench — our standard cassette deck service before it was listed
✔️ Walnut side panels fitted, with the original white side panels included
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping

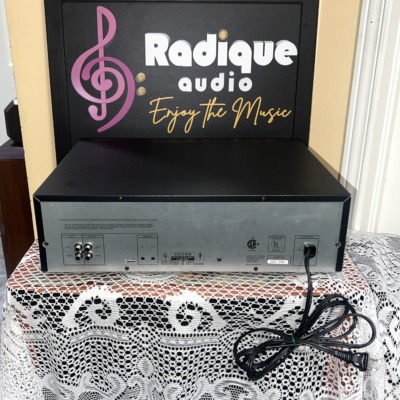

Harman Kardon DC5300 Dual Cassette Deck – Serviced, Japan
