Energy ESW-V8 8″ Passive Subwoofer, Custom-Modified, Gloss Black

$145.00

Out of stock

Get first dibs on the next one

How First Dibs works →

Adding a subwoofer to your system? Read Caring for Your Subwoofer: set-up, placement, the habits that keep a sub alive, and how our subwoofer warranty works.
Description

Energy ESW-V8 8″ Passive Subwoofer, Custom-Modified, Gloss Black

A custom-modified, very-good-cosmetic-condition Energy ESW-V8 8-inch subwoofer — originally a 200-watt BASH-amplified powered sub, now thoughtfully converted to a high-quality passive subwoofer with stereo gold-plated banana-plug binding posts, ready to be driven by any quality external amplifier or the speaker outputs of a stereo integrated amp or AVR.

The ESW-V8 cabinet and driver remain a genuinely excellent piece of speaker engineering. At its heart is Energy’s front-firing 8-inch woven composite fiberglass cone with the company’s patented Ribbed Elliptical Surround — a proprietary design that replaces the conventional half-roll surround with an elliptical profile to dramatically reduce surround distortion, increase usable cone excursion, and effectively enlarge the working piston area of the driver. The result is the kind of clean, articulate, well-controlled bass output that is normally only available from considerably more expensive 8-inch designs — and removing the variables introduced by an aging plate amplifier makes the modified unit’s performance entirely a function of whatever external amplification the buyer chooses to pair with it.

The conversion to passive operation has been cleanly executed: the original BASH amplifier section has been removed and the rear panel is now fitted with high-quality stereo gold-plated five-way binding posts that accept banana plugs, spades, or bare wire. The stereo input configuration accepts a left-and-right speaker-level signal from a stereo amplifier’s speaker outputs (the two channels are summed internally to drive the single 8-inch woofer), making integration with any vintage or modern stereo amplifier completely straightforward. There is no AC power cord, no plate amplifier to age out, no auto-on circuitry to misbehave, and no rear-panel controls to set — just a pure, simple, passive bass driver in a beautifully built cabinet, ready to take whatever signal the upstream amplifier sends it.

This configuration is a genuinely interesting and increasingly sought-after option for several specific use cases:

A stereo two-channel system where the amplifier has speaker-level outputs but no dedicated subwoofer pre-out, where a passive sub fed in parallel from the speaker terminals delivers a clean low-end reinforcement without any signal-path conversion

A vintage system where the owner wants to add bass reinforcement without introducing a modern Class-D plate amp into the signal chain

A subwoofer-amp-plus-passive-sub setup, where a dedicated outboard subwoofer amplifier feeds the modified ESW-V8 and gives the buyer full control over crossover and level via the external amp rather than via a single sub’s onboard controls

A home-theatre installation where one or more passive subs are run from a multi-channel power amplifier under the control of a processor with bass management

Audibly, the modified sub sounds great and delivers the kind of tight, punchy, musical bass that the Energy driver was always known for. Honest disclosure: with the original BASH amplifier removed, the system’s frequency-extension specifications no longer match the factory-published 26 Hz figure — that figure was specific to the cabinet-plus-driver-plus-amplifier as designed, and any final extension and SPL figures are now a function of the external amplifier paired with the unit. In practice, paired with a quality external amplifier in the 100–250 watt range into 8 ohms, the modified ESW-V8 delivers genuinely impressive 8-inch passive sub performance, with the kind of articulate, well-controlled bass that suits both music and movies in a small-to-medium room.

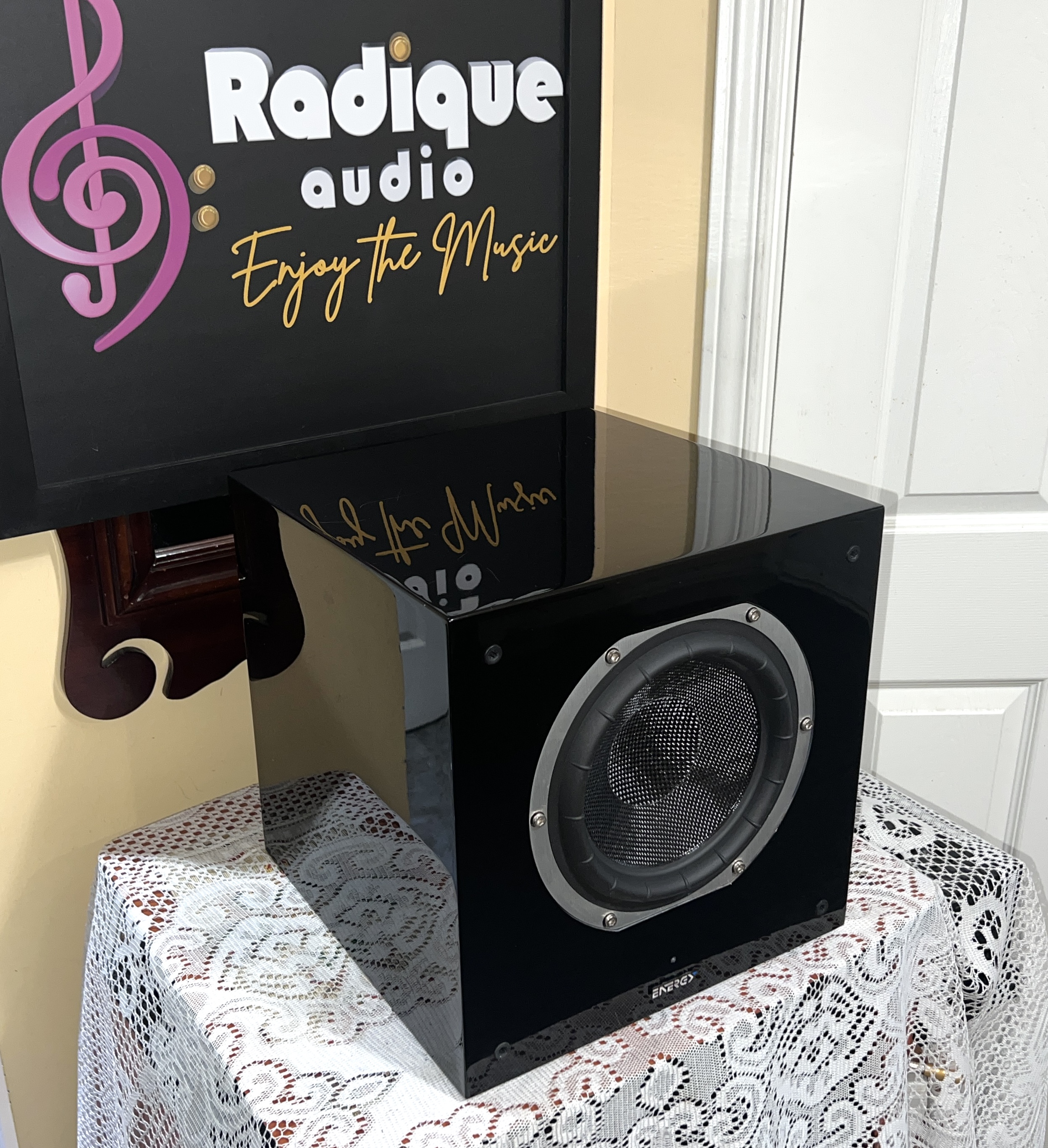

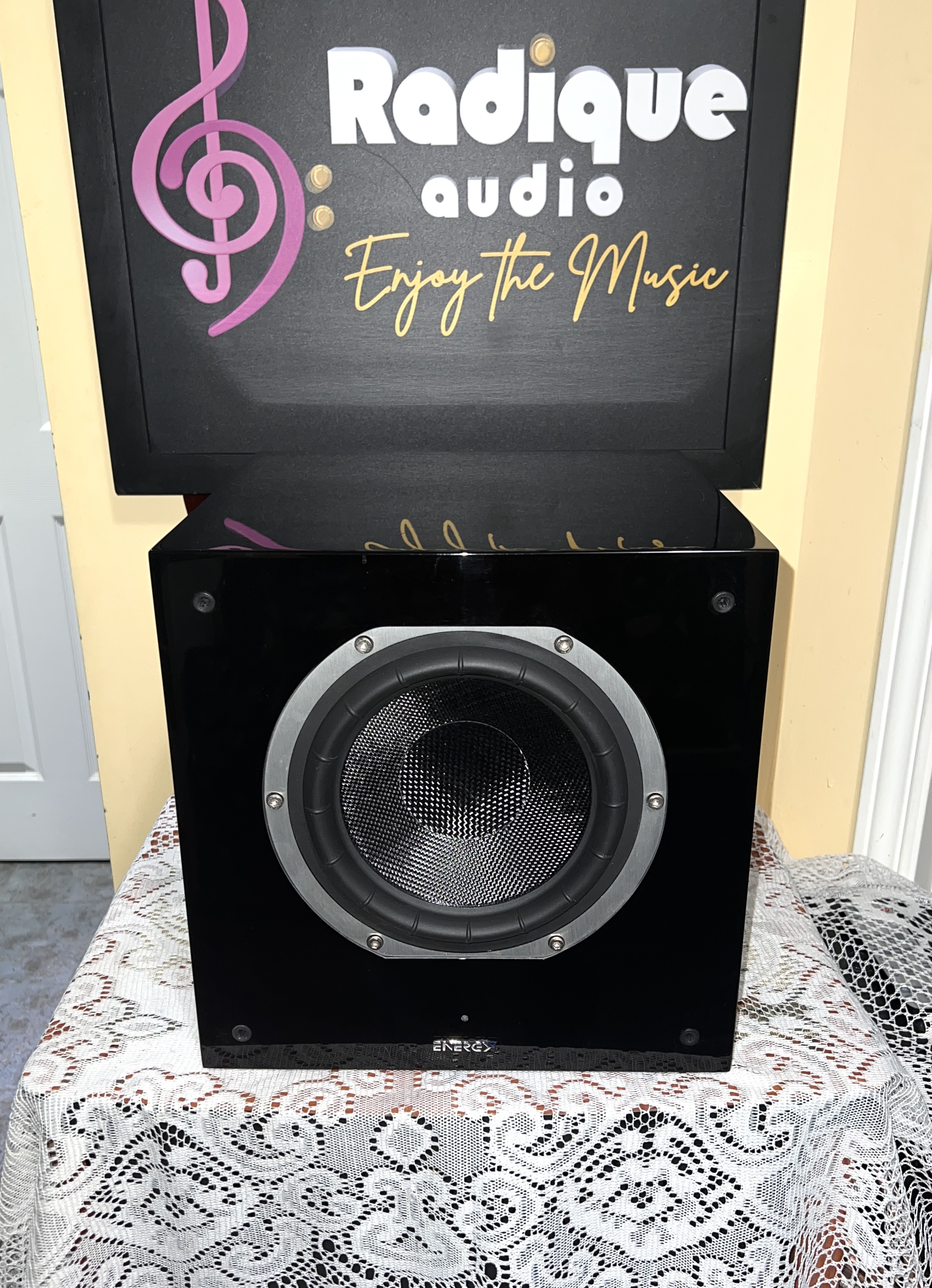

Visually, the cabinet remains a genuine 12.6-inch cube finished in a deep, lustrous high-gloss black polyurethane — beautifully at home alongside flat-panel displays, premium bookshelf speakers, or modern furniture. The unit is in very-good cosmetic condition with only minimal signs of use.

Product highlights:

Custom-modified passive 8-inch subwoofer, professionally converted from the original ESW-V8 powered design

Energy 8-inch woven composite fiberglass cone with patented Ribbed Elliptical Surround

Stereo gold-plated 5-way binding posts (banana / spade / bare wire compatible)

Bass-reflex cube cabinet with rear-firing port

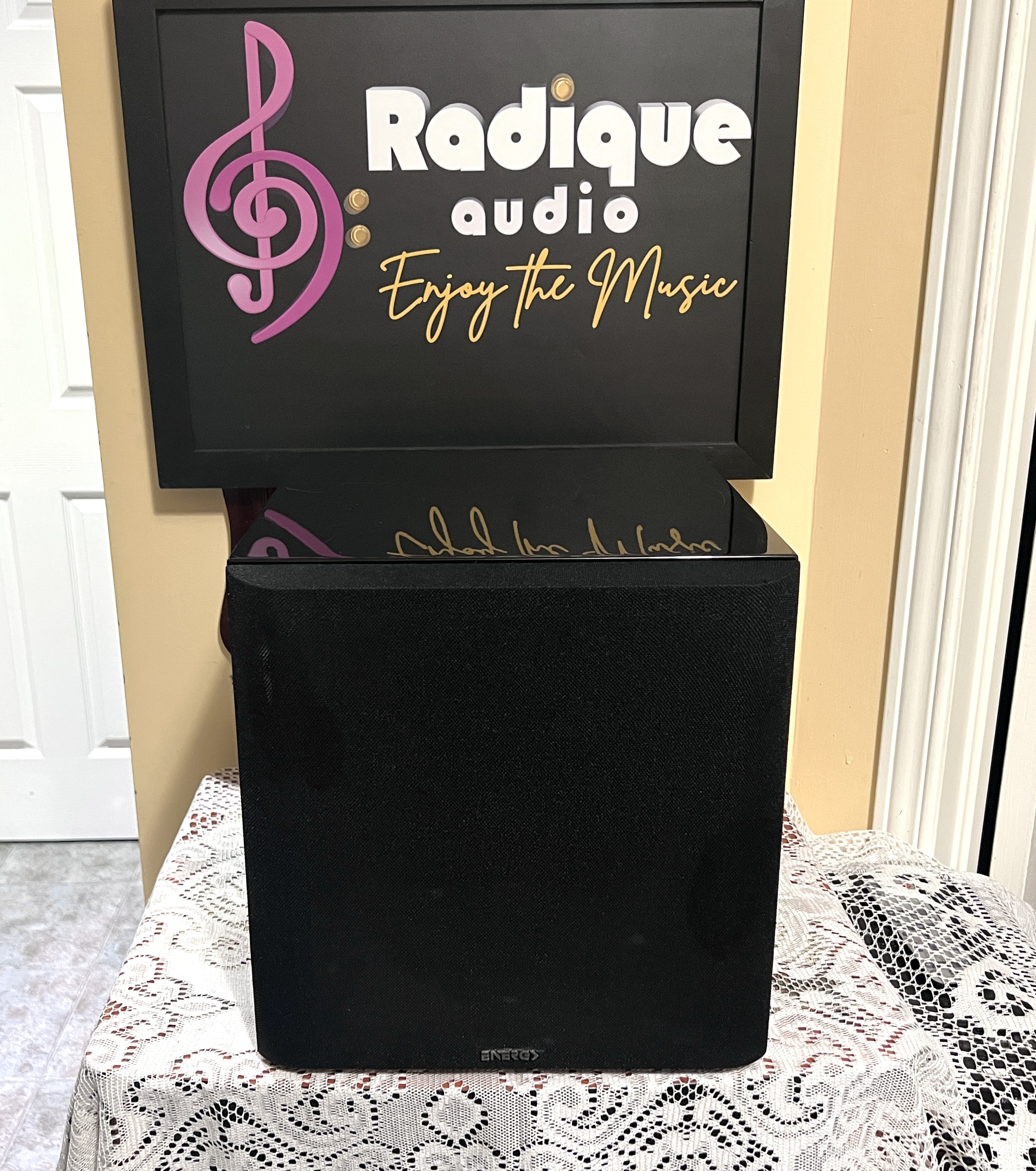

High-gloss black polyurethane finish, removable black cloth grille

No plate amplifier, no AC power required, no auto-on circuitry

Compatible with stereo speaker-level outputs or with a dedicated passive subwoofer amplifier

Compact 12.6-inch cube footprint

Specifications:

Type: Passive subwoofer, custom-modified from Energy ESW-V8 powered original

Driver: 8-inch front-firing woven composite fiberglass cone with Ribbed Elliptical Surround

Enclosure: Bass-reflex cube cabinet with rear-firing port

Inputs: Stereo gold-plated 5-way binding posts (left and right, summed internally)

Recommended amplification: 100–250 watts into 8 ohms from a stereo amplifier or dedicated passive sub amplifier

Finish: High-gloss black polyurethane, removable black cloth grille

Condition: Very Good cosmetic, modified

Dimensions (W x H x D): 12.6 x 12.6 x 12.6 inches (320 x 320 x 320 mm)
Weight: ~22 lbs (10 kg) — slightly lighter than the original 26.5 lb specification due to the removal of the BASH amplifier and associated heat sink and power supply

A custom-modified, very-good-cosmetic-condition Energy ESW-V8 in a passive configuration with stereo gold-plated banana-plug inputs, finished in striking gloss black — a genuinely clever conversion that takes Energy’s excellent 8-inch driver out of the powered-sub aging-amplifier risk pool and lets it perform indefinitely under whatever external amplification the buyer chooses to pair with it.

Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence.

Additional information
Weight24 lbs
Dimensions18.6 × 18.6 × 18.6 in
About brand
Energy at Radique
We service Energy, too. Bring us your own Energy speakers and subwoofers for repair, servicing or restoration (speakers up to 80 lbs each), with a 90-day warranty on the work. See our Audio Service page

Energy is a Canadian speaker brand from Audio Products International (API) of Scarborough, Ontario, the same company and factory behind Mirage. API was founded in 1973, and the Energy brand dates from the late 1970s or early 1980s. We carry Energy bookshelf speakers, towers, centre channels and subwoofers. We've had more than 170 Energy listings so far, covering more than 75 different models. Every used Energy here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

Our five best-selling Energy models so far: the RC-mini bookshelf speakers, the e:XL-S8 and ESW-8 subwoofers, the e:XL-C centre and the C-300 towers.

The Energy story

Howard Heiber founded Audio Products International in 1973 in Scarborough, Ontario, as a builder of private-label speakers. Energy says its brand dates from 1973; other sources point to the late 1970s or early 1980s, when API took on the Energy and Sound Dynamics names.

Research in Canada. Energy took part in the National Research Council of Canada's listening-test research from 1977 to 1986, and its speakers were built at API's Scarborough factory, which it shared with Mirage.

Veritas and Connoisseur. The Veritas v2.8 flagship was shown at the 1993 Winter CES, and the Connoisseur series followed in the mid-1990s. The Take 5 satellite system arrived in 1997.

New owners. Klipsch Group of Indianapolis bought API, with Energy, Mirage and Athena, in August 2006, and production moved to China around 2006 to 2007. VOXX bought Klipsch in 2011, and Gentex bought VOXX in 2025.

Which Energy is which?

Veritas (1993 onward): the flagship line, such as the three-way v2.8.

Connoisseur (mid-1990s to mid-2000s): models such as the C-2, C-3, C-6 and C-8.

Reference Connoisseur (RC): including the RC-70 towers and the RC-mini, one of our best sellers.

Take 5 and Take Classic (1997 onward): small satellite-and-subwoofer systems.

XL and e:XL (2000s): the entry line. Our best-selling e:XL-S8 subwoofer and e:XL-C centre come from here.

C-series (late 2000s): the vinyl-finished budget line, from the C-50 to the C-500, including the C-300 towers.

Subwoofers: the ESW and S-series, such as the ESW-8 we sell often.

Buying used Energy: what to check

Aluminum-dome tweeters. Owners report broken tweeters on some Connoisseur models. Look closely for dented or cracked domes.

Powered subwoofers. Owners report failed plate amplifiers on some S-series subs. Any sub should play cleanly at volume.

Surrounds. Most Energy woofers of the 1990s and 2000s use rubber surrounds, but some models, such as the RVSS dipole, used foam. Press gently on each woofer surround.

Where it was made. Energy speakers were made in Scarborough into the mid-2000s and in China from about 2006 to 2007. Check the rear label if Canadian manufacture matters to you.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
