Harman Kardon Dual Cassette Deck DC5500
$295.00
Out of stock
This one has sold. Want first dibs on the next one?
We take these in regularly. Leave your name and email, and we’ll email you the moment one is listed, so you hear first. No cost, no obligation.
Email me when one is listed
Stock up on tape. Maxell UR 120 Blank Cassette, $15.00 →

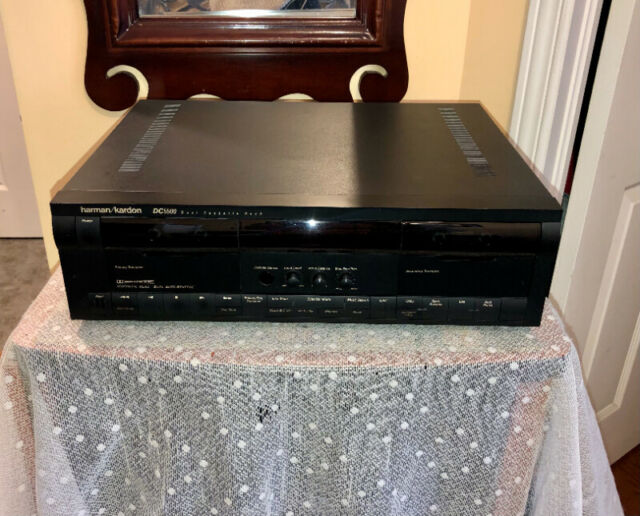

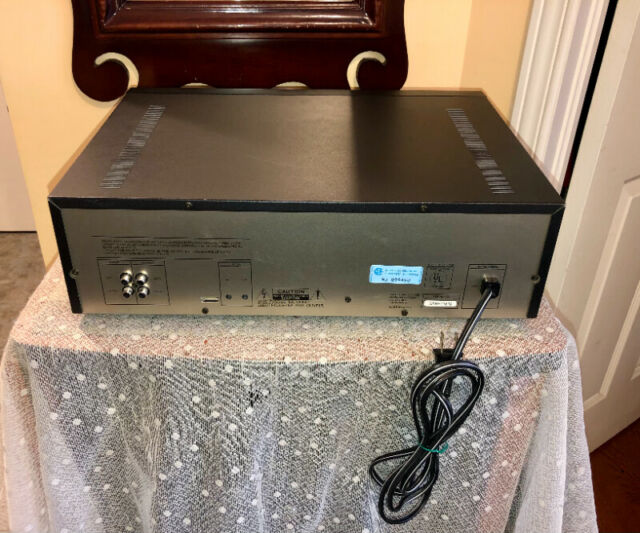

Read the full listing and see all 2 photos ↓
Other cassette decks we have in stock now
3 in stock · $195.00–$345.00 · all ship
Harman Kardon DC5300 Dual Cassette Deck – Serviced, Japan$345.00Ships
Harman Kardon Ultrawideband Linear Phase Cassette Deck TD292$195.00Ships
Technics RS-TR210 Dual Cassette Deck – Dolby B/C, Auto-Reverse$195.00Ships
Stock up on tape.
Sealed Maxell UR 120 blank cassettes, normal bias: sixty minutes a side, ready for any deck.
Maxell UR 120 Blank Cassette, $15.00 →Tested and working nicely
The basics are simple enough, In a standard size and characteristically stylish ~ $1000 package (when new), the H/K DC5500 supplies a record/replay tape transport and a playback only one, both with auto-reverse. The deck has the standard Dolby B, C and HX Pro, and switchable MPX filter switching. All the usual features are present: one-key normal and high speed dubbing, an electronic tape counter (shared between the transports) plus intro and track search modes that will look up to fifteen tracks in either direction.
The Harman/Kardon DC5500 largely justifies its maker’s claims. This really is a ‘dual well’ cassette deck for those who want the convenience without too much compromise. The deck is most comfortable with Type I (ferric) and Type II (chrome bias) tapes. Metal tape recordings tend to sound raw and edgy, especially if Dolby C is used. As with so many cassette decks, Dolby B is sonically preferable, and represents the optimum compromise between sound quality and background hiss for most music and tape types.
This is an excellent dual deck for the audiophile who doesn’t want to sacrifice quality for the sake of being able to dub tapes.
Specifications:
Type: auto reverse, double compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x playback, 1 x record/playback, 1 x erase
Motor: 2 x reel, 2 x capstan
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 20Hz to 18kHz (Metal tape)
Signal to Noise Ratio: 70dB (dolby C)
Wow and Flutter: 0.05%
Total Harmonic Distortion: 0.9%
Input: 80mV (line)
Dimensions: 443 x 134 x 342mm, Weight: 7.8kg
Includes soft copy of manual in PDF.
Asking $295 for this High Quality HK Dual Cassette Deck.
| Weight | 20 lbs |
|---|---|
| Dimensions | 17.5 × 21.4 × 9.3 in |
| Cassette Wells | Dual Well (Dubbing) |
| Noise Reduction | Dolby B, Dolby C |
Harman Kardon began in New York in 1953, founded by Sidney Harman, who was born in Montreal, and Bernard Kardon. Harman Kardon calls its 1954 Festival D1000 the first hi-fi receiver. We carry Harman Kardon stereo receivers, AV receivers, integrated amplifiers, cassette decks and CD players. We've had more than 130 Harman Kardon listings so far. Every used Harman Kardon here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Every AV receiver we list is tested input by input on our bench: each HDMI input and output, the analog, optical and coaxial inputs, the subwoofer outputs and the wireless features where it has them. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.
The Harman Kardon story, 1953 to today
Sidney Harman and Bernard Kardon left the David Bogen Company, where Kardon was chief engineer, and founded Harman Kardon in New York in 1953. Harman was born in Montreal in 1918 and grew up in New York. Kardon retired in the 1950s.
Receivers first. Harman Kardon calls the Festival D1000 of 1954 the first hi-fi receiver and the Festival TA230 of 1958 the first stereo receiver. The Citation II tube power amplifier of 1959, designed by Stu Hegeman, sold as a kit or ready-built.
Cassette and the 1970s. Harman Kardon says its CAD-5 of 1970 was the first hi-fi cassette recorder with Dolby noise reduction. Its "Twin Powered" receivers of the 1970s, such as the 430 and 730, gave each channel its own power supply.
Owners. Sidney Harman sold the company to Beatrice Foods in the late 1970s, when he became US Deputy Secretary of Commerce. He formed Harman International in 1980 and bought Harman Kardon back in 1985. Samsung bought HARMAN in 2017, and Harman Kardon remains one of its brands.
Which Harman Kardon is which?
Tube era (1950s and 1960s): Festival receivers, and Citation kits and factory-built units such as the Citation I preamplifier and II amplifier.
1970s receivers: the 330 series, the Twin Powered 630, 930, 430 and 730, and the HK670.
1980s receivers: the "i" models such as the hk690i, advertised for its high current capability, and the 330i.
Citation separates: solid-state Citation amplifiers and preamplifiers from 1970 to the 1990s, including the Citation XX of the early 1980s.
Cassette decks: from the CAD-4 and CAD-5 to the 1980s decks numbered CD91 to CD491. Those "CD" models are cassette decks, not CD players; Harman Kardon CD players carry "HD" names.
AV receivers (late 1990s on) and later stereo: the AVR line, such as the AVR 3600, and stereo models such as the HK 3700 and HK 990.
Buying used Harman Kardon: what to check
Dial and meter lamps. Owners report dead or flickering lamps on 1970s receivers such as the 930, 430 and 330C; many are replaced with LEDs.
Capacitors. Expect a 1970s receiver that hasn't been recapped to need it.
Output stage. Owners report blown output transistors on the 730 and 430, often caused by a failed part nearby. Both channels should play cleanly at a realistic level.
Switches. Owners say the 1980s "i" receivers are prone to dirty switches that make channels cut out. Try every input and the balance control.
AV receivers. HDMI is usually the first thing to fail on a modern AV receiver. We test every HDMI input and output before listing.
Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
