Yamaha TX-530 Natural Sound AM/FM Stereo Tuner – Made in Japan
$125.00
Out of stock
Get first dibs on the next one
Yamaha TX-530 Natural Sound AM/FM Stereo Tuner – Made in Japan
The Yamaha TX-530 is a compact, well-engineered AM/FM stereo tuner from 1989-1990, manufactured in Japan by Yamaha’s Hamamatsu facility. Designed as part of Yamaha’s “Natural Sound” lineup, this digital tuner offers solid performance, an attractive aluminum faceplate, and clean integration into any vintage or contemporary audio system.
The TX-530 combines a digital frequency display with a clear 24-segment signal-strength meter, making station hunting and tuning precise and visually intuitive. Its 400mV line-level output integrates easily with virtually any amplifier or receiver, and the tuner’s respectable sensitivity and selectivity ensure reliable FM stereo and AM reception on most standard antennas. Front-panel controls are straightforward: power switch, tuning controls, band selection, and output level adjustment. The switchable IF bandwidth and high-blend circuit help optimize reception on weaker or crowded stations.
Natural Sound AM/FM stereo tuner from 1989-1990, manufactured in Japan
Digital frequency display with front-panel 24-segment signal-strength meter for easy tuning alignment
FM sensitivity: 1.4µV (mono) / 30µV (stereo, DIN); AM sensitivity: 100µV for reliable reception across both bands
FM frequency response: 20Hz to 15kHz with 70dB signal-to-noise ratio (stereo DIN)
FM selectivity: 70dB (DIN) with excellent image frequency and spurious wave rejection (75dB)
AM performance: 55dB AM suppression, 32dB selectivity for clean AM listening
Mono/stereo switch allows flexible tuning on weaker stations
20-station memory with 4 tuning mode storage for preset flexibility
Switchable IF bandwidth and high-blend circuit for optimized reception on crowded or weak stations
400mV line-level output for straightforward integration with any amplifier
Compact aluminum and black chassis with quality fit and finish typical of late-1980s Yamaha design
Dimensions: (Width x Height x Depth) 435 x 92.5 x 283.5 mm (17.1 x 3.6 x 11.2 inches)
Weight: 3.1 kg (6.8 lbs)
The Yamaha TX-530 is a capable, well-designed tuner that delivers clean FM and AM reception in a compact, visually appealing package suitable for vintage Yamaha-based systems or as a straightforward radio source for any audio setup. Its made-in-Japan engineering and thoughtful design touches make it a solid choice for radio enthusiasts.
Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence; asking $125.
| Weight | 8.8 lbs |
|---|---|
| Dimensions | 15.2 × 21.1 × 7.6 in |
Yamaha began as an organ maker in Hamamatsu, Japan, in 1887. It made gramophones from the 1920s and began hi-fi with the 1954 HiFi Player. We carry Yamaha AV receivers, vintage stereo receivers, CD players, subwoofers and speakers. We've had more than 280 Yamaha listings so far, covering nearly 200 different models. Every used Yamaha here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Every AV receiver we list is tested input by input on our bench: each HDMI input and output, the analog, optical and coaxial inputs, the subwoofer outputs and the wireless features where it has them. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.
Yamaha models we've sold most often: the SW-3 subwoofer, the NX-E270 surrounds, and the RX-V1400, RX-V850 and RX-V800 AV receivers.
The Yamaha hi-fi story
Torakusu Yamaha built his first reed organ in Hamamatsu in 1887 and founded Nippon Gakki in 1897; the company was renamed Yamaha Corporation in 1987. Yamaha calls the 1954 HiFi Player its first audio product, and dates its first Natural Sound (NS) speakers to 1967.
1970s hi-fi. The CA-700 and CA-500 of 1972 were Yamaha's first integrated amplifiers, and the CA-1000 of 1973 could switch its output stage between Class A and Class A/B. The NS-1000 and NS-1000M speakers of 1974 used beryllium dome drivers, and the NS-10M of 1978, sold for home use, became a studio monitor.
CD and surround. The CD-1 of 1982 was Yamaha's first CD player. The DSP-1 of 1986 was a Digital Sound Field Processor, and in 1993 the RX-V870 became the first Yamaha receiver with CINEMA DSP. The RX-V992 of 1997 added built-in Dolby Digital decoding.
AVENTAGE. The AVENTAGE (RX-A) receiver line launched in 2010, above the RX-V range.
Which Yamaha is which?
CA integrated amplifiers (1972 to about 1979): the CA-500, CA-700, CA-1000 and CA-2000, followed by the A-series.
CR receivers (mid-1970s to about 1980): the CR-1000, then the CR-620 to CR-2020 generation of 1977 to 1979.
NS speakers: from the NS-690 and the beryllium NS-1000 to the NS-10M bookshelf speaker, made from 1978 to 2001.
CD players: from the CD-1 of 1982 to the CDX and GT-CD models.
RX-V AV receivers (from at least 1991): such as the RX-V800, RX-V850 and RX-V1400 we sell often. Built-in Dolby Digital arrived in 1997, YPAO room calibration in 2003 and HDMI in the mid-2000s.
RX-A AVENTAGE (from 2010): the step-up AV receivers. The RX-Z models were the flagships until 2007.
Buying used Yamaha: what to check
Formats. On an AV receiver, check what it decodes and connects to: Dolby Digital from 1997, room calibration from 2003, HDMI from the mid-2000s.
HDMI boards. On modern AV receivers, HDMI is usually the first thing to fail. We test every HDMI input and output before listing.
CR receivers. Owners suggest asking whether service bulletins were done on a CR-2020, and expect scratchy controls and burnt-out dial lamps on any unserviced unit.
NS speakers. Check that the tweeters on an NS-10M are original and both work, and inspect the beryllium domes on an NS-1000, since Yamaha stopped making beryllium diaphragms in 1997.
Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
Related Products
Braun Atelier T1 Slim AM/FM Tuner — 9 Presets, Quartz, Japan
An analogue tuner given a quartz-referenced five-digit readout — the precision of a synthesised design with a real analogue front end behind it, which tends to hold a weak signal more gracefully. The nine presets are not memories: each station button carries its own tuning adjustment, set by hand with a small screwdriver through the panel, so it is effectively nine little tuners in one chassis. Made in Japan, 445 mm wide and 70 mm tall to match the Atelier deck. Good condition.
Sansui TU-5900 AM/FM Stereo Tuner — Dolby FM, Made in Japan
An analogue AM/FM stereo tuner from Sansui's strongest years, built in Japan in the mid-seventies as the matching partner to the AU-series integrated amplifiers, and a good deal more serious inside than its modest size suggests.
✔️ Condition: Very Good
✔️ Level One — named in the copy
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Marantz Model 2130 AM/FM Tuner – Oscilloscope, Original Box
Marantz's quartz-locked flagship tuner with its built-in oscilloscope, in excellent condition and complete with its original Marantz carton.
✔️ Excellent condition — the scope traces cleanly, and the original Marantz carton is included
✔️ Tested on our bench and needed no service
✔️ Built-in oscilloscope, quartz lock and wide/narrow IF — Marantz's flagship tuner of 1978
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Marantz Model 112 Vintage AM/FM Stereo Tuner – Made in Japan
A mid-1970s Marantz Model 112 AM/FM stereo tuner, designed in the USA and made in Japan, serviced on our bench.
✔️ Serviced on our bench, dial lamps replaced
✔️ Very good condition
✔️ Gyro-Touch flywheel tuning, tuning meter, FM stereo in our bench test
✔️ Bare chassis, or in a cherry cabinet built in our own shop
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Blaupunkt Micronic T-60 AM/FM Tuner & Preamp – Made in Japan
A rare Blaupunkt Micronic T-60 AM/FM tuner and preamplifier from 1981, designed in Germany and made in Japan, with a phono input for your turntable.
✔️ Tested on our bench, every input, the output and the tuner
✔️ Very good condition
✔️ AM/FM tuner plus phono, aux and tape inputs
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
Blaupunkt Micronic A-60 + T-60 Micro System – 20 WPC, Bundle
The complete Blaupunkt Micronic 60 system from 1981, the A-60 amplifier and the matching T-60 AM/FM tuner and preamplifier, together for less than buying them separately.
✔️ Tested on our bench, both units
✔️ Both very good
✔️ Radio, phono, tape and a 20-watt amplifier in a stack 25 cm wide
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping

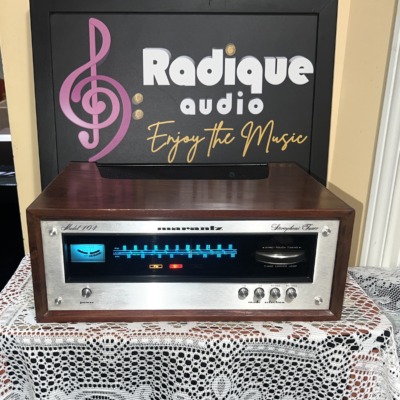

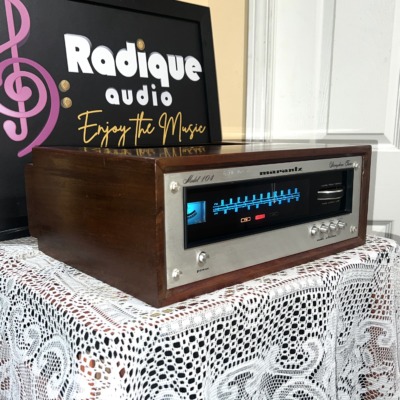

Marantz Model 104 AM/FM Tuner — Made in Japan, Excellent
