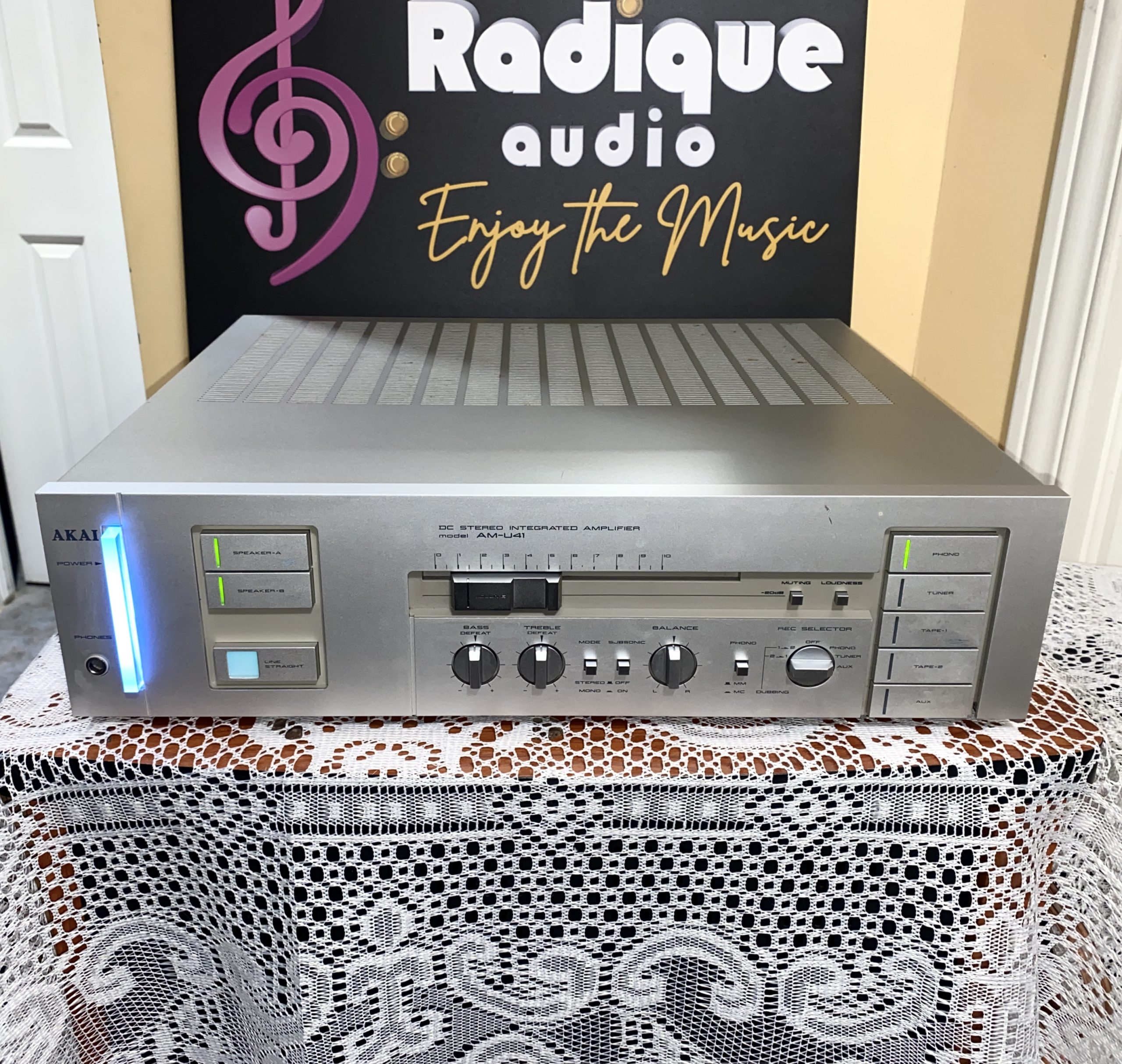

Akai AM-U41 Integrated Amplifier – 55 WPC with MC/MM Phono

Akai AM-U41 Integrated Amplifier – 55 Watts with MC/MM Phono, Very Good Condition, Level One Serviced

Experience the increased power and refined engineering of the Akai AM-U41—a distinctive early-1980s integrated amplifier that builds upon the foundation of its sibling, the AM-U04, with 55 watts per channel and an improved MC/MM phono stage. Built in Japan (1982-1983) with the same dual power supply system and direct-coupled (DC) amplifier topology that made the AM-U04 a sleeper hit, the AM-U41 adds genuine moving-coil cartridge support and noticeably more headroom for demanding speakers. This unit has undergone our Level One service and testing which should ensure many more years of reliable performance ahead. Very good cosmetic condition with all functions verified and operating smoothly.

Enhanced Power & Refined Phono Stage:
Where the AM-U04 delivered 48 watts per channel, the AM-U41 steps up to 55 watts per channel into 8Ω with an impressively low 0.007% total harmonic distortion—even cleaner than its predecessor. This translates to greater dynamic range and more effortless performance with moderately efficient speakers (86-88dB sensitivity). The power supply architecture mirrors the AM-U04’s dual supply design with separate bridge rectifiers and filter capacitors feeding left and right channels independently, ensuring minimal crosstalk and excellent channel separation.

The phono section receives a significant upgrade: where the AM-U04 offered two MM inputs (one optimized for lower-output cartridges), the AM-U41 provides true MC (moving coil) support at 0.25mV sensitivity alongside the standard MM input at 2.5mV. This makes the AM-U41 a genuine vinyl enthusiast’s amplifier—compatible with high-end low-output MC cartridges without requiring an external step-up transformer. Signal-to-noise ratios are exceptional: 67dB (MC), 86dB (MM), and 103dB (line)—quieter backgrounds than most consumer receivers of the era.

Comprehensive Control Architecture:
The AM-U41 retains the AM-U04’s professional-minded feature set:

Dual Phono Inputs: MC (0.25mV) and MM (2.5mV) with true RIAA equalization

Line Input: 150mV sensitivity for CD players and other line-level sources

Dual Speaker Outputs (A/B): Switch between two speaker pairs or bi-amp capable

Tape Loop with Monitor Function: Record/playback comparison for cassette decks

Independent Bass, Midrange & Treble Controls: The rare midrange control (±6dB) allows fine-tuning of vocal presence—a feature virtually absent from consumer amps

Loudness Contour: Bass and treble boost at low listening levels

Pre/Main Amplifier Separation: Feed external graphic equalizers or processors

Headphone Jack: 6.3mm output for private listening

Design & Aesthetics:
The AM-U41 shares the AM-U04’s substantial build quality—weighing 10.4kg with a deeper chassis (440 × 120 × 397mm vs. the AM-U04’s 440 × 105 × 308mm). The silver faceplate and professional control layout are quintessentially early-1980s: clean, logical, and built for reliability. All controls are positioned for easy access, and the overall presentation exudes quality engineering.

Specifications:

Power Output: 55W per channel into 8Ω (stereo, continuous RMS)

Frequency Response: 20Hz–20kHz

Total Harmonic Distortion: 0.007% (exceptionally low)

Damping Factor: 60 at 8Ω

Signal-to-Noise Ratio: 67dB (MC), 86dB (MM), 103dB (line)

Channel Separation: 60dB (line input)

Input Sensitivity: 0.25mV (MC), 2.5mV (MM), 150mV (line)

Speaker Load Impedance: 4Ω–16Ω

Tone Control Range: Bass ±12dB @ 100Hz, Midrange ±6dB @ ~1kHz, Treble ±9dB @ 10kHz

Power Supply: Dual (separate bridge rectifiers and filter capacitors)

Dimensions: 440 × 120 × 397 mm (17.3″ × 4.7″ × 15.6″)

Weight: 10.4 kg (22.9 lbs)

Year: 1982–1983

Made in: Japan

Sound Character:
Like its AM-U04 sibling, the AM-U41 is praised for clean, powerful bass and detailed midrange. The additional 7 watts per channel translates to noticeably more headroom—the amp stays composed at higher volumes and drives less-efficient speakers with greater authority. The 0.007% THD specification ensures clean, undistorted performance even during dynamic peaks. The MC phono stage is exceptionally quiet, revealing the fine detail of high-end cartridges without coloration. Reviewers note the AM-U41’s ability to deliver “elegant, original” sound with excellent control.

Level One Service Completed:
This AM-U41 has undergone our comprehensive Level One service protocol:

✅ All Inputs & Outputs Tested – MC and MM phono stages clean and quiet; line inputs clear; speaker outputs verified both channels
✅ Potentiometers & Switches Cleaned – Deoxidized for smooth, noise-free operation
✅ Power Supply Verified – Dual supply rails measured for proper voltage; filter capacitors checked for integrity
✅ Tone Controls Calibrated – Bass, midrange, and treble all respond smoothly across full range
✅ Bias & DC Offset Adjusted – Output stage optimized for clean, stable performance
✅ Full Frequency Response Verified – 20Hz–20kHz tested and confirmed

Every control operates smoothly; every input delivers clear signal; both output channels match in power and distortion. This unit is turnkey ready.

Condition:
This AM-U41 is in very good cosmetic condition. The silver faceplate is clean with crisp lettering; all knobs and controls are smooth and secure; the metal chassis shows honest signs of age but no major damage or corrosion. All original hardware and connectors are intact. A well-maintained example of early-1980s Japanese engineering.

Summary:
The Akai AM-U41 is the more powerful, more refined successor to the AM-U04—ideal for vinyl enthusiasts who want genuine MC cartridge support, additional power for moderately efficient speakers, and professional-grade tone controls. The combination of 55 watts per channel, 0.007% THD, true MC/MM phono capability, and that rare midrange control makes the AM-U41 a standout choice for discerning listeners who appreciate 1980s aesthetics and honest engineering. Fully serviced and tested, it’s ready to anchor a warm, powerful, and completely controllable audio system.

Purchase with Confidence

Includes Radique Audio “Bumper to Bumper” Warranty

Perpetual Trade-Back Policy—upgrade or swap with peace of mind

Japanese engineering with MC phono support—serviced, tested, very good condition, ready to play; asking $395.
