Akai AM-U04 Vintage Integrated Amplifier – 48 WPC, Serviced
$295.00
Forty-eight watts a channel from a DC-coupled design with a dual power supply feeding separate filter capacitors on each channel. Bass, midrange and treble controls — the midrange one is the rare part — plus MM phono at 3 mV, a DIN line input, tape monitor with source comparison, A/B speaker outputs and a sliding volume control. Built in Japan, 1980–81. Level One serviced; very good cosmetic condition.
1 in stock
Akai AM-U04 Integrated Amplifier – 48 WPC, Vintage, DC-Coupled with Midrange Control, Very Good Condition, Level One Serviced
Discover the unique sonic versatility and robust engineering of the Akai AM-U04—a distinctive early-1980s integrated amplifier that combines honest 48-watt-per-channel power with unusual tone-shaping controls rarely found outside the professional realm. Built in Japan (1980-1981) with a dual power supply system feeding separate filter capacitors on each channel, the AM-U04 was engineered for listeners who demanded both power and precise frequency control. This unit has undergone our Level One service and testing which should ensure many more years of reliable performance ahead. Very good cosmetic condition with all functions verified and operating smoothly.
DC-Coupled Architecture & Power Supply Design:
The AM-U04 stands apart from its era through its commitment to direct-coupled (DC) amplifier topology and dual power supply rails—a design philosophy more common in professional audio gear. The discrete power amplifier uses a quasi-complementary single-ended push-pull output stage with carefully matched transistors and a damping factor exceeding 140 at 8Ω, delivering exceptionally tight, controlled bass that outperforms most receivers of the era. The dual power supply system (separate bridge rectifiers and filter capacitors feeding left and right channels) was Akai’s answer to minimizing crosstalk and channel interaction—a feature that audiophile reviewers noted contributed to the AM-U04’s “clean and powerful” character.
Rare Midrange Tone Control:
What truly sets the AM-U04 apart is its dedicated midrange tone control—a feature virtually non-existent on consumer receivers, appearing primarily on professional mixing consoles and guitar amplifiers. This ±6dB midrange adjustment (at approximately 1kHz, the heart of vocal and acoustic presence) allows listeners to dial in the perfect balance of warmth or clarity, compensating for room acoustics or speaker characteristics. Combined with its Bass (±12dB @ 100Hz) and Treble (±9dB @ 10kHz) controls, the AM-U04 becomes a powerful audio shaping tool—ideal for rooms with stubborn acoustic challenges or for fine-tuning speaker-room interaction.
Comprehensive Control Architecture:

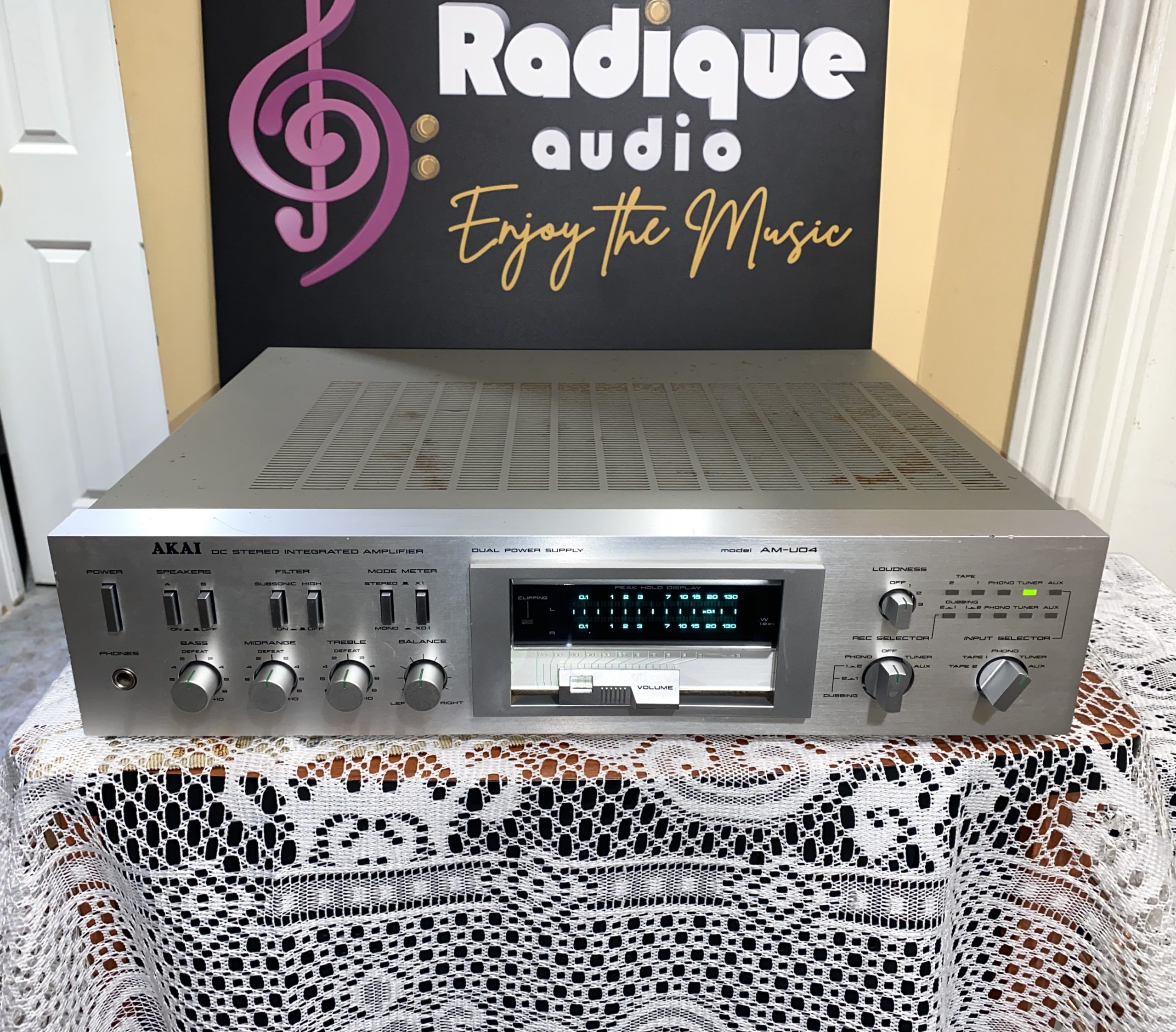

The AM-U04’s front panel reads like a professional studio console:
Phono Input with MM EQ: 3mV sensitivity with true RIAA equalization for moving-magnet cartridges
Line Input (DIN Connector): 150mV input sensitivity for CD players and other line-level sources
Dual Speaker Outputs (A/B): Switch between two speaker pairs or bi-amp capable
Tape Loop with Monitor Function: Record/playback comparison, ideal for vintage cassette decks
Input Selector: Clean switching between Phono, Tuner, Tape, and Auxiliary inputs
Unique Sliding Volume Control: A distinctive feature praised by users for its smooth, tactile operation—a “charm” that sets the AM-U04 apart from typical knob-based amps
Loudness Contour: Bass and treble boost at low listening levels for realistic perception at quiet volumes
Headphone Jack: 6.3mm output for private listening
Pre/Main Amplifier Separation: Feed the preamp output to an external graphic equalizer (as originally intended by Akai), then return to Main input—perfect for 80s-style audio setups
Design & Aesthetics:
The AM-U04 is a substantial piece of engineering—weighing 10.1kg with a deep chassis housing the dual power supply and oversized transformer. The silver face and solid metal case are quintessentially 1980s: clean lines, professional appearance, and built-in gravitas. The front panel layout is logical and uncluttered, with all controls positioned for easy reach. One reviewer noted discovering this amp at an estate sale described it perfectly: “a real representation of 80’s style”.
Specifications:
Power Output: 48W per channel into 8Ω (stereo, continuous RMS)
Frequency Response: 20Hz–20kHz ±1dB (audio band)
Total Harmonic Distortion: 0.008% (exceptionally low for the era)
Damping Factor: >140 at 8Ω
Signal-to-Noise Ratio: 82dB (phono MM), 95dB (line inputs)
Channel Separation: 60dB (line input)
Input Sensitivity: 3mV (MM), 150mV (DIN/Line)
Speaker Load Impedance: 4Ω–16Ω
Tone Control Range: Bass ±12dB @ 100Hz, Midrange ±6dB @ ~1kHz, Treble ±9dB @ 10kHz
Power Supply: Dual (separate bridge rectifiers and filter capacitors)
Dimensions: 440 × 105 × 308 mm (17.3″ × 4.1″ × 12.1″)
Weight: 10.1 kg (22.2 lbs)
Year: 1980–1981
Original MSRP: Approx. $598 USD (1980)
Made in: Japan
Sound Character:
Users consistently praise the AM-U04 for delivering powerful, authoritative bass and a clean, detailed midrange. One owner noted: “nice sounding amp… drives big speakers with quality” and “great clear sound, mid range is not seen a lot”. Another reviewer who paired it with powerful 15-inch woofer speakers stated: “this thing just delivers beautiful amount of power, heaps of bass… For beefier music, it’s nice to have power again”. The 0.008% THD specification is exceptionally low for consumer gear and translates to clean, undistorted performance even at moderate volumes. The midrange control is the ace card—it allows tonal shaping without the vagueness of traditional receiver tone controls.
Level One Service Completed:
This AM-U04 has undergone our comprehensive Level One service protocol:
✅ All Inputs & Outputs Tested – Phono stage (MM) clean and quiet; line inputs clear; speaker outputs verified both channels
✅ Potentiometers & Switches Cleaned – Deoxidized for smooth, noise-free operation (especially important for the unique sliding volume control)
✅ Power Supply Verified – Dual supply rails measured for proper voltage; filter capacitors checked for integrity
✅ Tone Controls Calibrated – Bass, midrange, and treble all respond smoothly across full range
✅ Bias & DC Offset Adjusted – Output stage optimized for clean, stable performance
✅ Full Frequency Response Verified – 20Hz–20kHz tested and confirmed
Every control slides and switches smoothly; every input delivers clear signal; both output channels match in power and distortion. This unit is turnkey ready—connect speakers and source components and enjoy.
Condition:
This AM-U04 is in very good cosmetic condition. The silver faceplate is clean with crisp lettering; all knobs and controls are smooth and secure; the sliding volume control operates precisely; the metal chassis shows honest signs of age but no major damage or corrosion. All original hardware and connectors are intact. A well-maintained 45-year-old piece of audio history.
Summary:
The Akai AM-U04 is a professional-minded integrated amplifier disguised in a consumer chassis—ideal for listeners who want more control than typical receivers provide. The combination of dual power supply, 48 watts per channel, exceptionally low distortion, and especially that rare midrange tone control makes the AM-U04 a standout choice for vinyl enthusiasts with rooms that need acoustic fine-tuning, or anyone who appreciates 1980s aesthetics and honest engineering. Fully serviced and tested, it’s ready to anchor a warm, powerful, and completely controllable audio system.
Purchase with Confidence
Includes Radique Audio Bumper-to-Bumper Warranty
Perpetual Trade-Back Program—upgrade or swap with peace of mind
Japanese engineering with professional-grade controls—serviced, tested, very good condition, ready to play.
| Weight | 24 lbs |
|---|---|
| Dimensions | 16.1 × 21.3 × 8.1 in |
Akai was founded in Tokyo in 1929 by Masukichi Akai and his son Saburo as Akai Electric Company, a maker of radio parts. We carry vintage Akai stereo receivers, integrated amplifiers, tuners and cassette decks. We've had 18 Akai listings so far, covering 16 different models. Every used Akai here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.
Akai models we've sold so far include the AM-U3 integrated amplifier, the AA-1030, AM-A3 and AM-U11 receivers, and the HX-A451W cassette deck.
The Akai story
Masukichi Akai started making radio components in Tokyo in 1929, and his son Saburo grew up in the factory. Some sources date the company to 1946, after the war.
Tape. Akai's first reel-to-reel, the AT-1, was offered as a kit in 1954, and the company became best known outside Japan for its tape recorders of the 1960s and 1970s, sold in the US through Roberts Electronics.
Hi-fi and music. Akai made receivers, amplifiers, tuners and cassette decks, and around 1980 started Akai Professional, which moved into electronic music in 1984.
Today. Akai Electric filed for insolvency in November 2000. The Akai name has since been used on products made by others, and Akai Professional, sold in 1999, is now owned separately.
Which Akai is which?
Reel-to-reel decks (1950s to 1980s): such as the 4000DS and the GX models.
AA receivers: such as the AA-1030, AA-R22 and AA-R31.
AM integrated amplifiers: such as the AM-A3, AM-U3 and AM-U11.
Tuners and cassette decks: AT tuners such as the AT-K03, and cassette decks such as the HX-A451W.
