Build a set to length →Paradigm ADP-190 v5 – Dipole Surround Speakers – Made in Canada

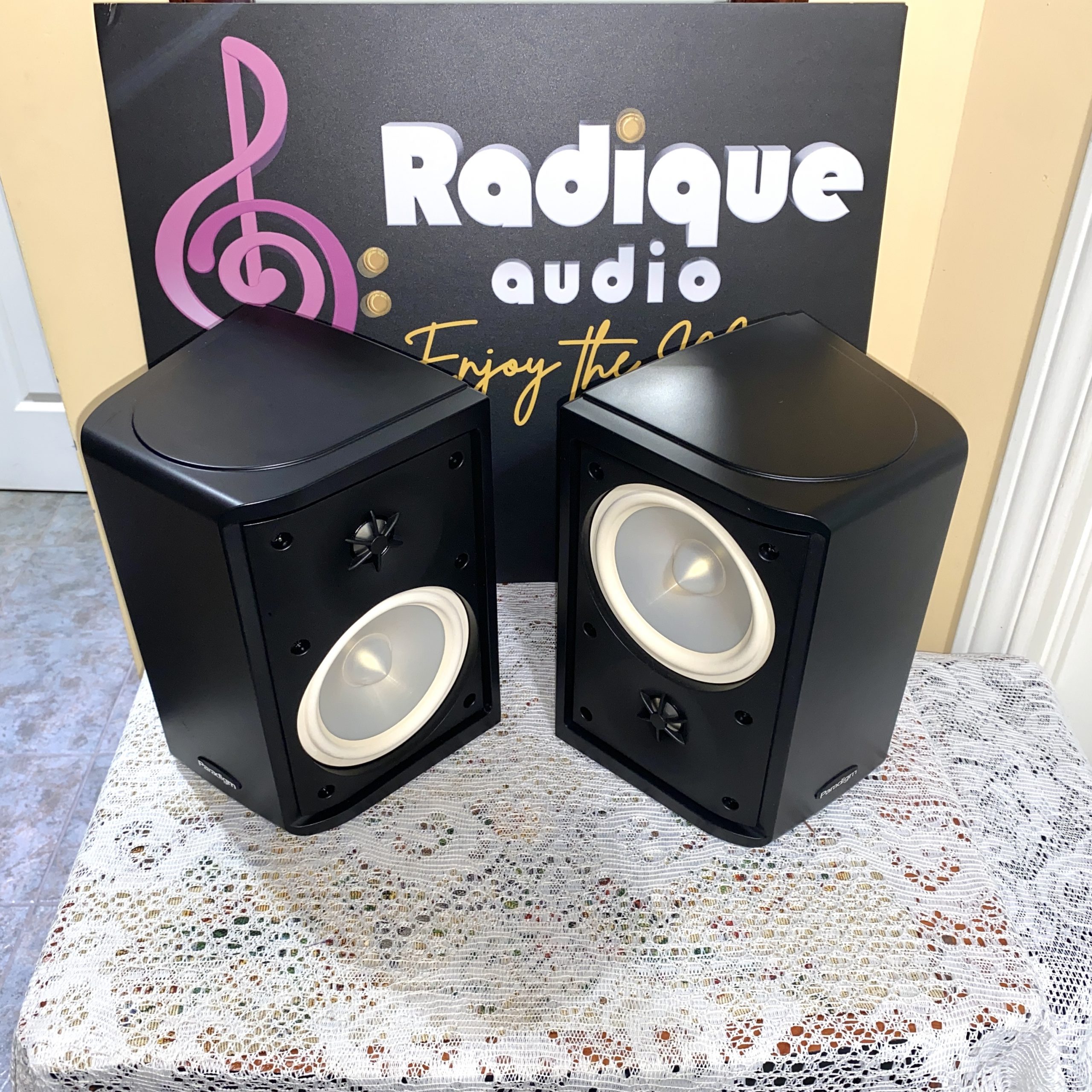

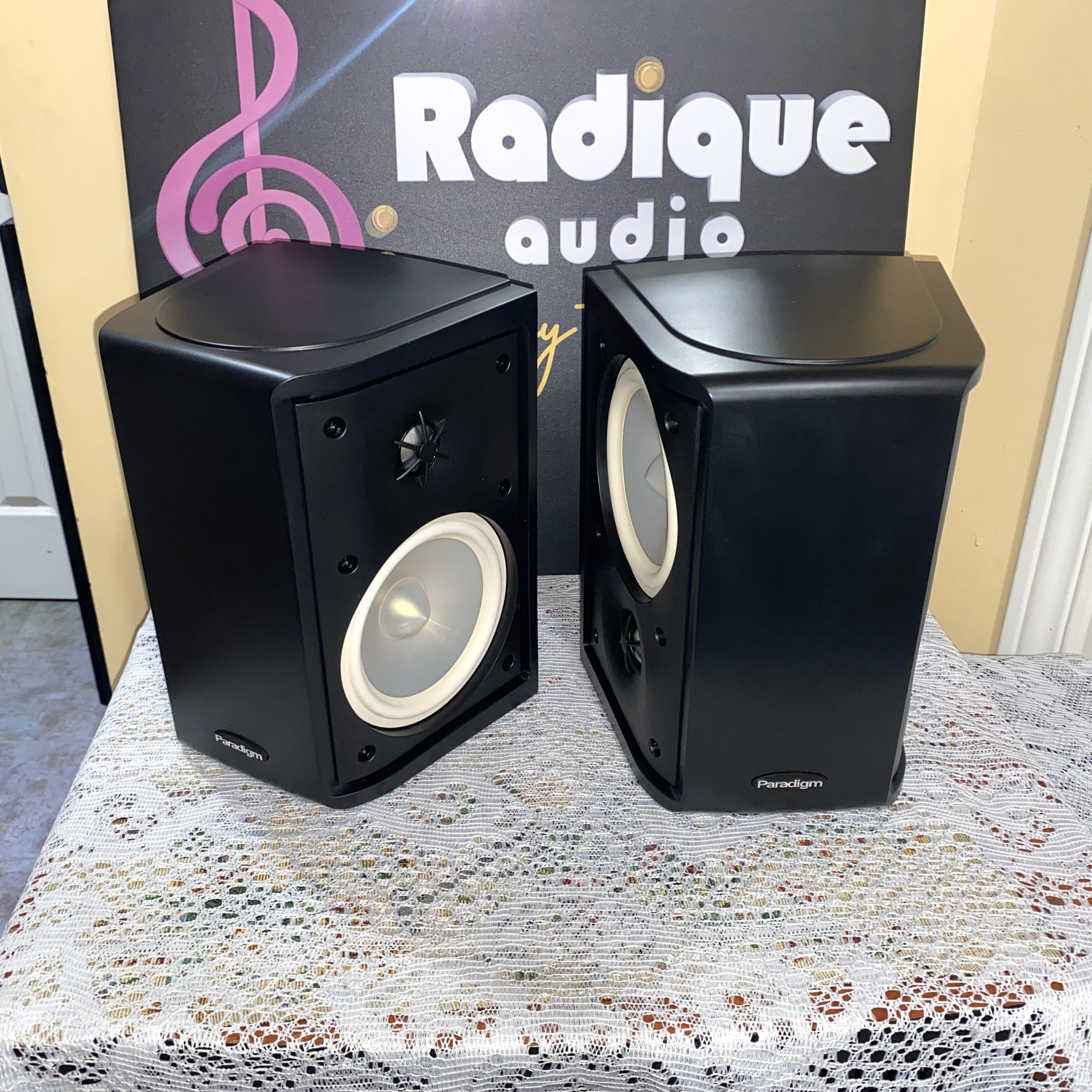

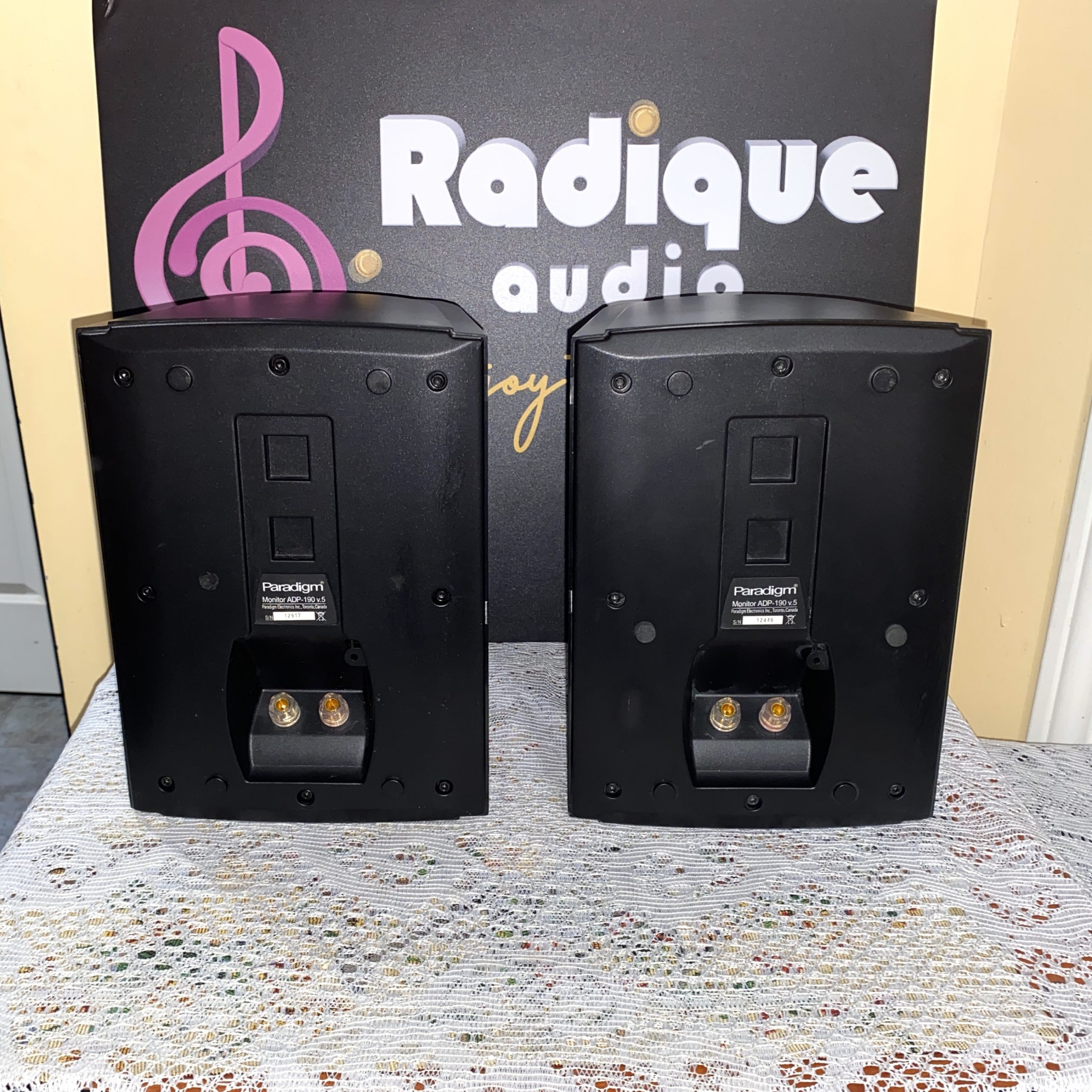

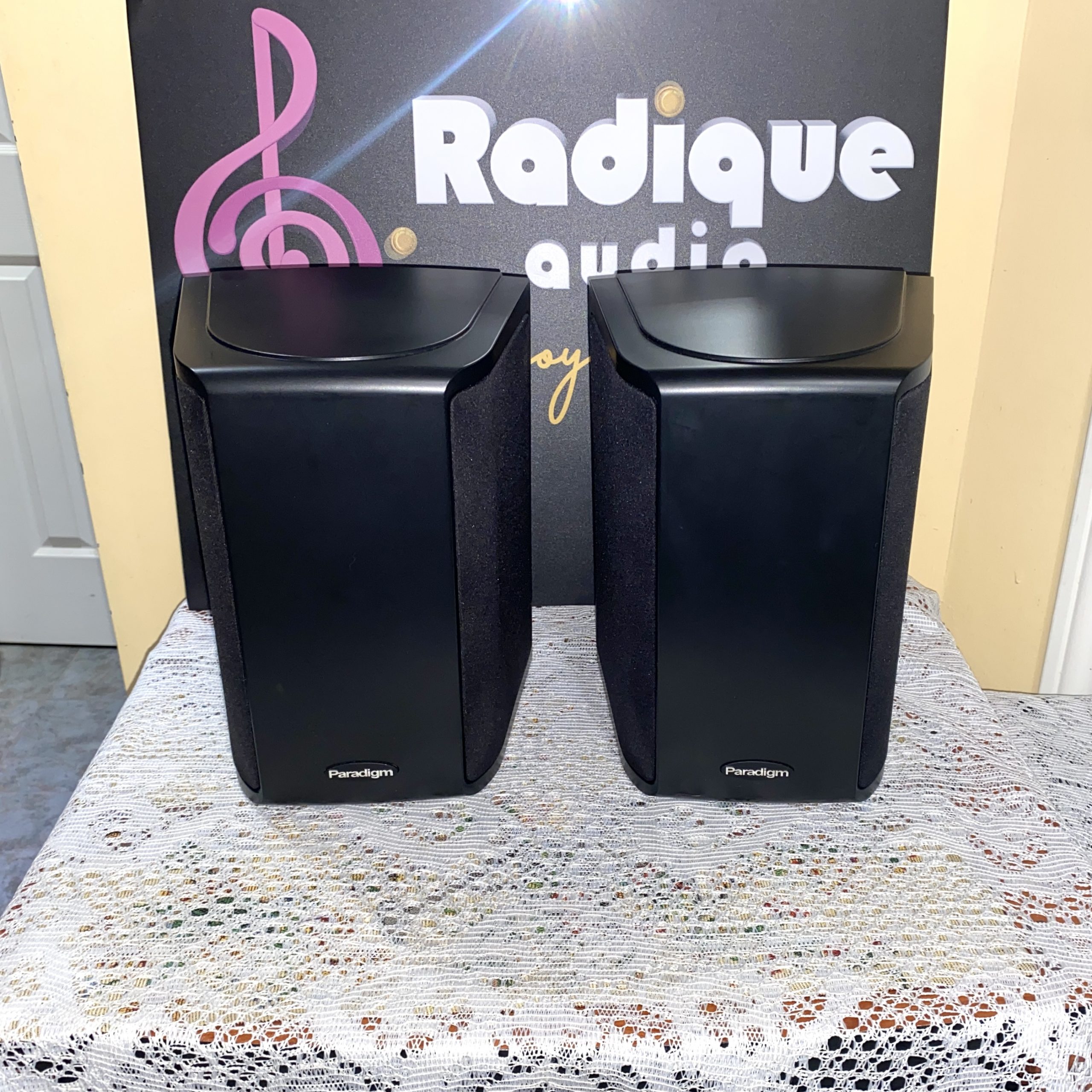

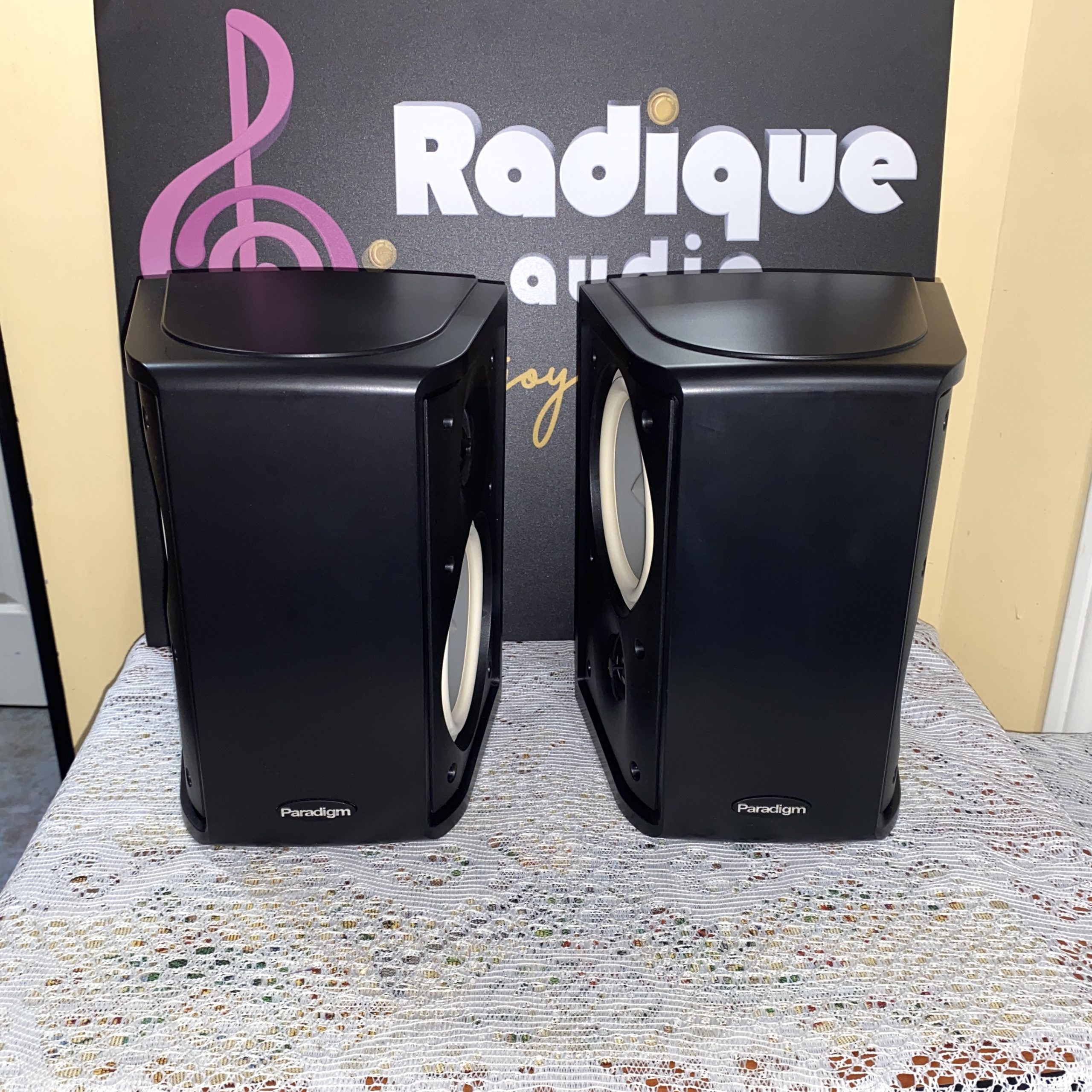

A beautifully built, Made-in-Canada dipole surround speaker pair from Paradigm’s Monitor Series v5, praised by Playback Magazine for delivering “a full, enveloping and diffuse surround sound field” with “rich sonic details” and “exceptional value for the money.”
The ADP-190 v5 is a true dipole design — meaning its drivers are mounted on opposing side panels and wired out of phase, creating a diffuse, enveloping surround field rather than a localizable point source of sound. This is widely considered the most cinematic and immersive approach to surround speaker design, pulling the listener into the soundfield rather than making them aware of the speaker’s position. Paradigm’s implementation is particularly refined, with a four-driver, two-way configuration deploying two 25mm (1-inch) H-PTD ferro-fluid cooled titanium dome tweeters and two 140mm (5.5-inch) M-ICP ferro-fluid cooled mid/bass drivers — one tweeter and one mid/bass driver on each side panel — crossed over at 2.0 kHz with a second-order electro-acoustic network.
At 90 dB room sensitivity with an 8-ohm compatible impedance, the ADP-190 is an easy load for any AV receiver and works well with amplifier power from 15 to 100 watts. The compact, elegant black enclosure is wall-mountable and designed to sit unobtrusively at or slightly above ear height for optimal dipole dispersion. These make a natural and sonically cohesive match for any Paradigm Monitor Series v5 or v6 front and centre channel combination.
As with every component we sell at Radique Audio, this pair has been thoroughly tested before listing.
Specifications:
Type: 4-driver, 2-way dipole surround loudspeaker
High-frequency drivers: Two x 25mm (1 inch) H-PTD dome, ferro-fluid cooled (one per side)
Mid/bass drivers: Two x 140mm (5.5 inch) M-ICP cone, ferro-fluid cooled, 25mm voice coil, GRIP chassis (one per side)
Crossover: 2nd-order electro-acoustic at 2.0 kHz
Frequency response: 110 Hz–20 kHz (±2 dB, reverberant soundfield)
Low-frequency extension: 80 Hz (DIN)
Sensitivity: 90 dB room / 87 dB anechoic
Impedance: Compatible with 8 ohms
Recommended amplifier power: 15–100 W
Finish: Black ash
Country of manufacture: Canada
Dimensions: (W x H x D) 7.4 x 10.3 x 6.4 inches / 187 x 261 x 161 mm
Weight: 8 lbs / 3.6 kg each
A refined, enveloping pair of Made-in-Canada dipole surrounds that bring genuine cinematic immersion to any home theater — beautifully built, easy to drive, and a natural match for any Paradigm Monitor Series system.
Backed by Radique Audio’s 90-day warranty and perpetual trade-back policy, this is a confident purchase for any home theater enthusiast looking to complete or upgrade their surround setup; asking $275.
| Weight | 19 lbs |
|---|---|
| Dimensions | 18.8 × 11.4 × 14.3 in |
Paradigm has designed loudspeakers in the Toronto area since 1982, with engineering roots that run through Ottawa: it took part in the National Research Council's loudspeaker research here, and its research lab has been in Ottawa since 1993. We've had more than 600 Paradigm listings so far, covering 193 different models, more than any other brand. Every used Paradigm here is inspected, tested and photographed in-house, then covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.
The Paradigm story, 1982 to today
Jerry VanderMarel and Scott Bagby founded Paradigm in 1982 in the Toronto area, VanderMarel running sales and marketing and Bagby design and manufacturing. Their first speakers made their debut at a Toronto audio show that year, and Paradigm says 12 dealers signed on.
The Ottawa years. In the 1980s almost every major Canadian speaker maker measured its designs in the National Research Council's anechoic chamber here in Ottawa, and Paradigm took part in the research Dr. Floyd Toole led at the NRC, which paired chamber measurements with blind listening tests. Paradigm built its own anechoic chamber in 1988, sparing its engineers the five-hour drive to Ottawa. In the late 1980s and early 1990s it was one of several Canadian companies in the NRC's Athena project, which studied speakers that adapt to the room. NRC scientists Peter Schuck and Marc Bonneville then joined Paradigm, which says it opened its Ottawa research centre, PARC, for them in 1993. That lab went on to design Anthem's electronics and its room-correction system. A 1990s Paradigm Titan is now part of the collection at Ingenium, Canada's science and technology museums, here in Ottawa.
Growth. Paradigm moved into the US market in the mid-1980s, added its first in-wall speaker in 1989 and launched the Monitor series in 1990. The Titan was a hit by 1991, the Atom followed in 1992, and the PS-1000 of 1994 was its first powered subwoofer. By 1992 Stereophile counted about 256 Paradigm dealers in the US.
Reference and the new factory. The Reference line, with its Studio speakers, arrived in the mid-1990s; Stereophile reviewed the Studio/100 in 1997. In 1998 Paradigm bought Sonic Frontiers, which brought Anthem into the family. In 2001 it moved into a new Mississauga factory with what it calls the hemisphere's largest privately owned anechoic chamber, at 33,000 cubic feet. A tour that year found the plant finishing 1,500 speakers a day, with driver frames cast, cones moulded and voice coils wound in-house.
Changes of hands. Co-founder Jerry VanderMarel left in 2005, when the private-equity firm ShoreView Industries became Scott Bagby's partner; together they went on to buy MartinLogan. Compact lines such as Cinema were built overseas from the start, and from the 2010s Monitor was too, while Prestige (2014), Persona (2016) and Founder (2021) have been built in Mississauga. In 2019 Scott Bagby and his son John bought Paradigm, Anthem and MartinLogan back from ShoreView, and their company, PML Sound International, added GoldenEar at the start of 2025.
Which Paradigm is which?
Performance Series (1990s to 2006): the entry line, with the Atom, Titan, Focus, Esprit and Phantom. A 1990s Titan's label reads "Performance Series … Made in Canada". At the end of 2006 the Atom and Titan moved into the Monitor line.
Monitor (from 1990): the step-up line, and from 2006 the entry line; today's version is Monitor SE. In the early 1990s it was topped by the Studio Monitor tower, in real wood veneer.
Reference Studio (mid-1990s to mid-2010s): the Studio/20, 40, 60, 80 and 100 plus matching centres, with die-cast aluminium driver chassis and aluminium-dome tweeters, made in numbered versions. From the v.2 generation of 1999 the sides came in laminate or, for a little more, real wood veneer. A favourite here is the Studio/80 v.2, a slim 2.5-way tower from about 1999 to 2003; the pairs with real wood sides are the ones to find.
Signature (2004–2016): the flagship of its day, part of the Reference family.
Cinema (from about 2000): compact home-theatre satellites and centres in polymer cabinets, designed to be used with a subwoofer, later sold as Cinema CT packages.
Millenia (from 2006): slim aluminium-cabinet speakers made to suit flat-panel TVs. The little MilleniaOne was Sound & Vision's 2011 Product of the Year.
Stylus (from 1999): weatherproof outdoor speakers.
Today's lines: Monitor SE, Premier (2018), Prestige (2014), Founder (2021) and the Persona flagship (2016).
Subwoofers: from the PS-1000 (1994) and Servo-15 (1996) through the PS and PW series to Defiance (2018).
Buying used Paradigm: what to check
The rear label. Where a Paradigm was built depends on the line and the year, and some names were reused (the Atom and Titan moved from Performance to Monitor, and the Esprit name appeared in more than one line), so the label tells you exactly what you have.
Veneer or laminate. On Reference Studio models from 1999 on, real wood veneer sides were an option; look closely at the sides before you assume.
Woofer surrounds. Owners report foam surrounds needing replacement on some older models, including early Titans. Press gently around each one.
Powered subwoofers. The amplifier is the part most likely to have aged. Run a used sub at volume and check that auto-on still works.
Everything we list is inspected, tested and photographed here first, and comes with our warranty.
