Dual 504 Belt-Drive Turntable – Made in Germany, Real Wood

$345.00

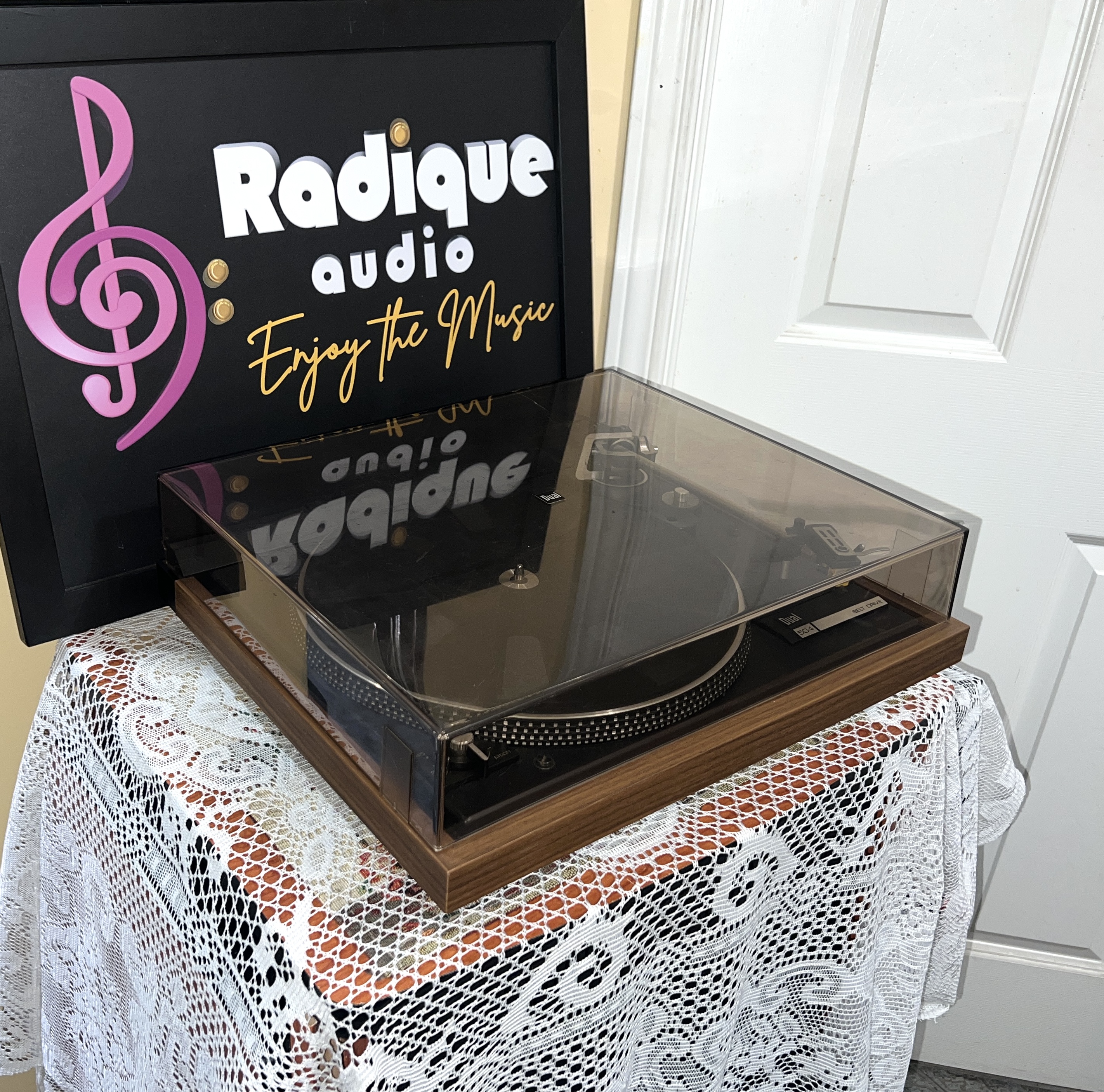

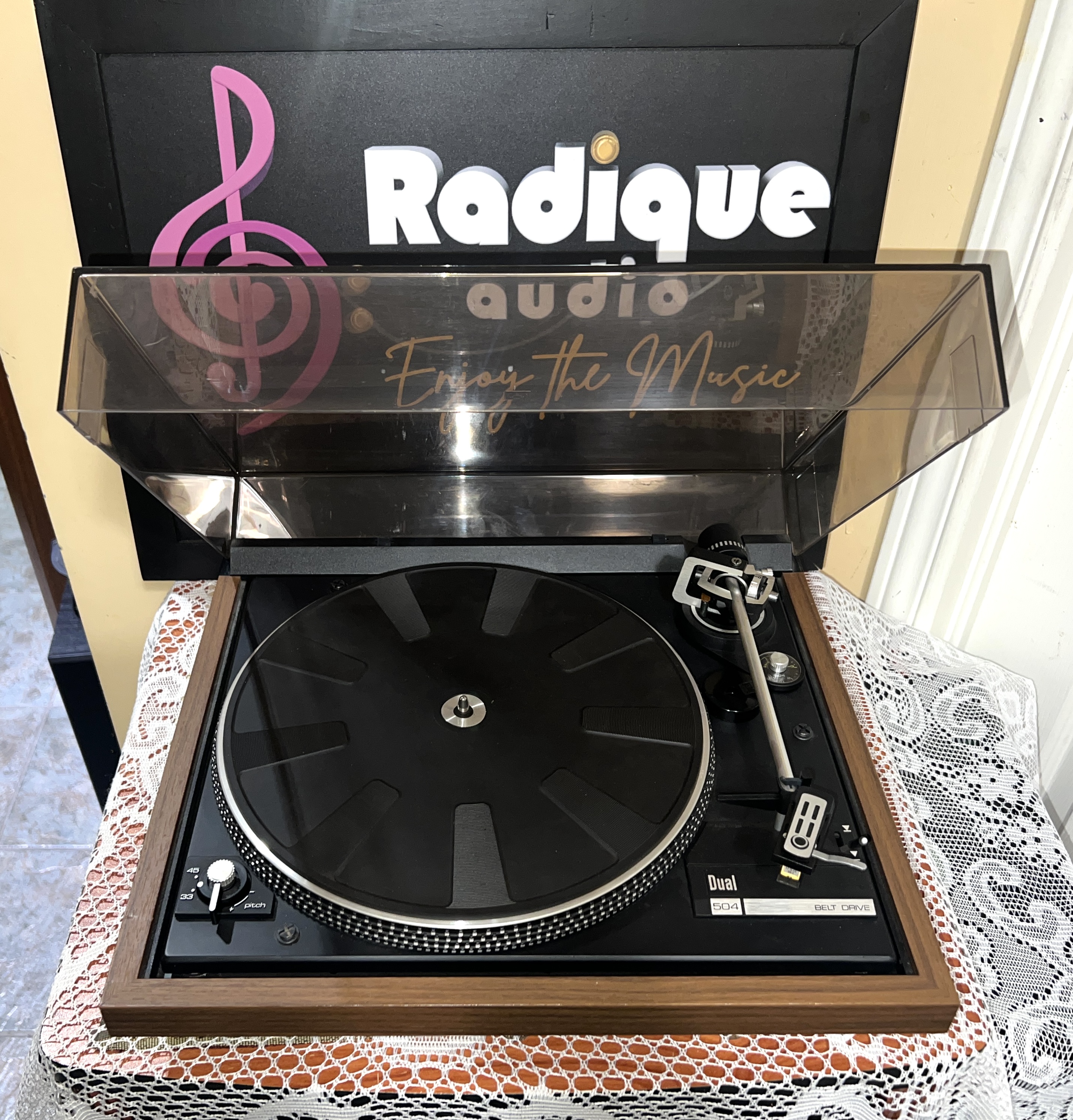

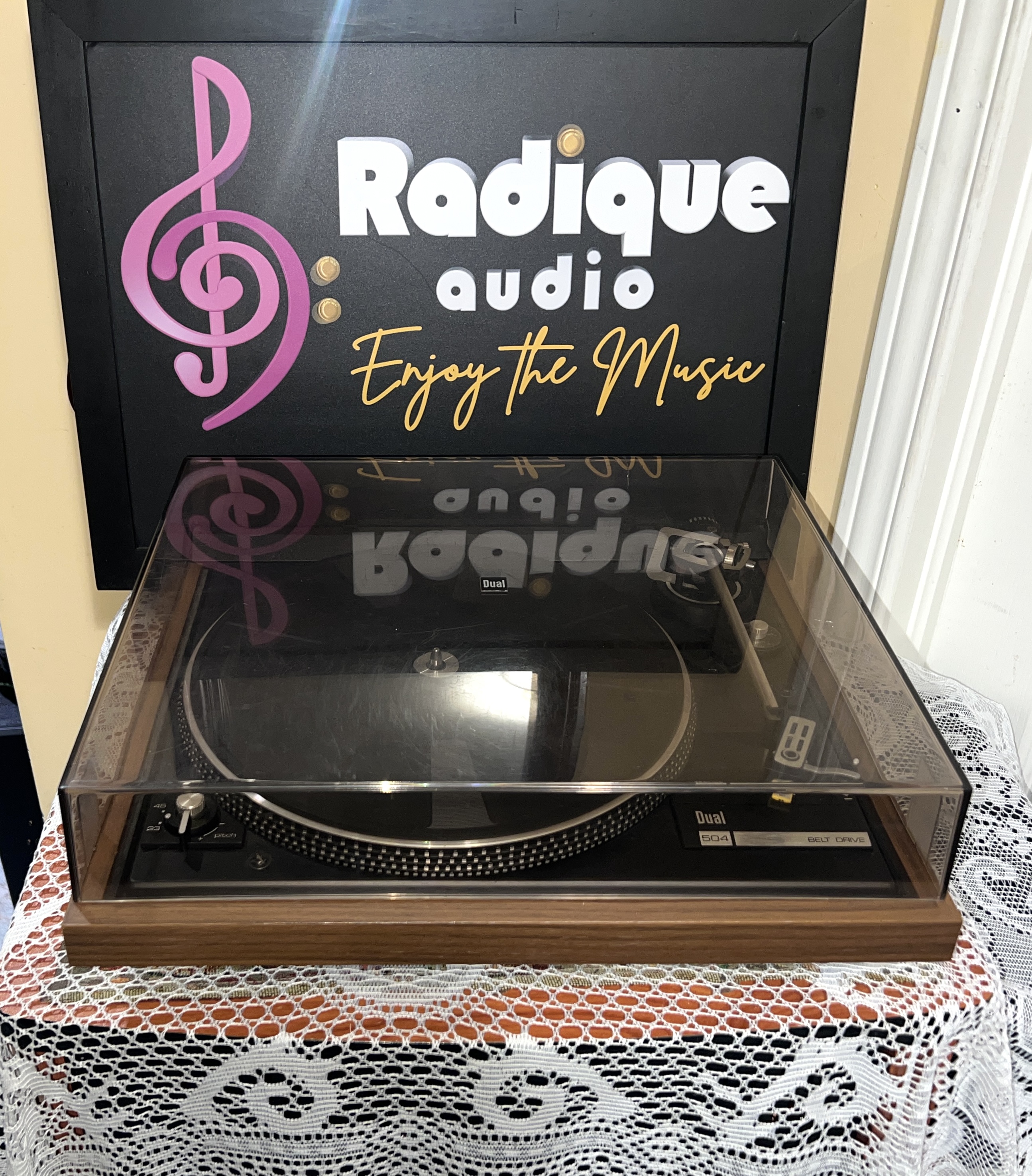

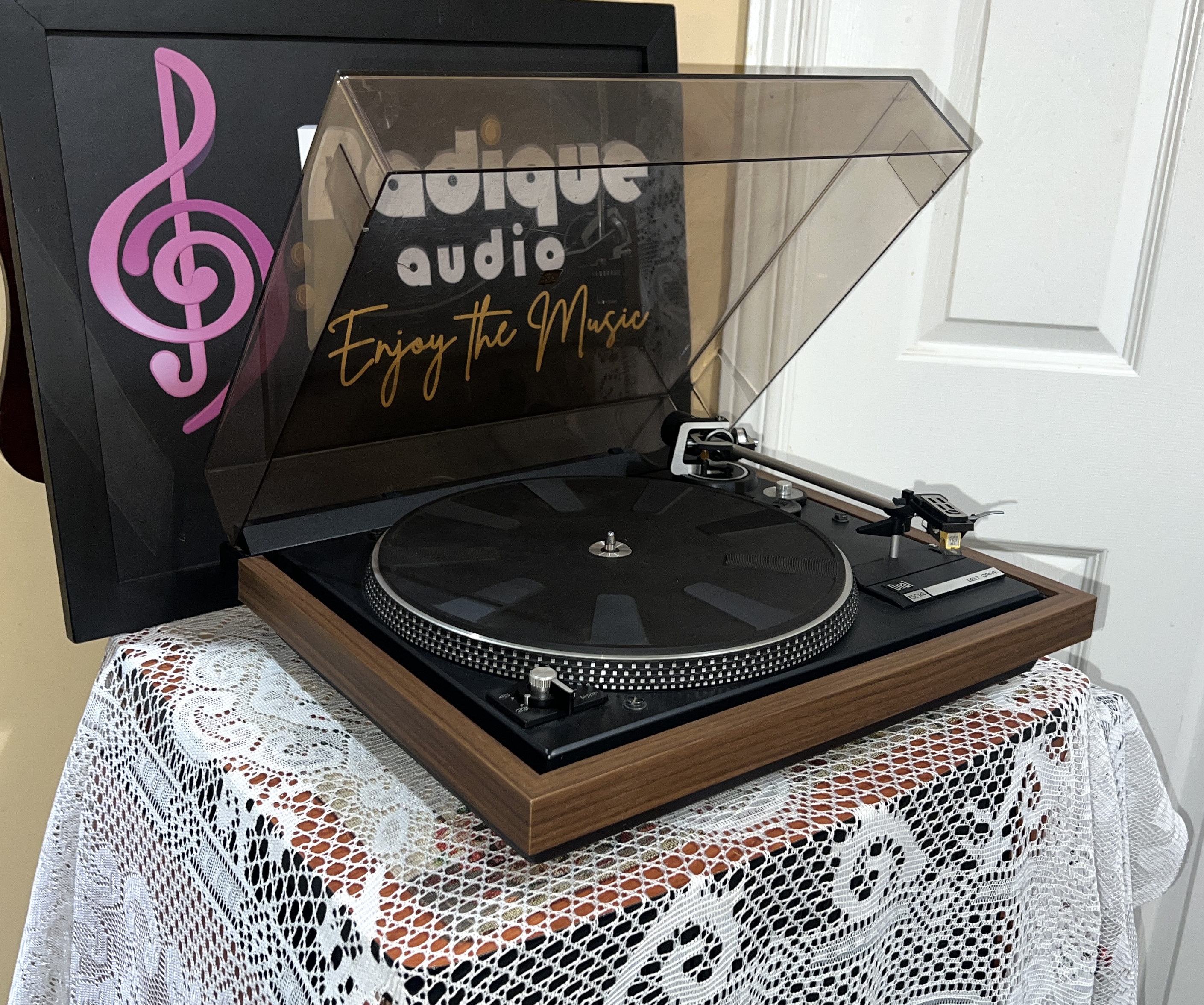

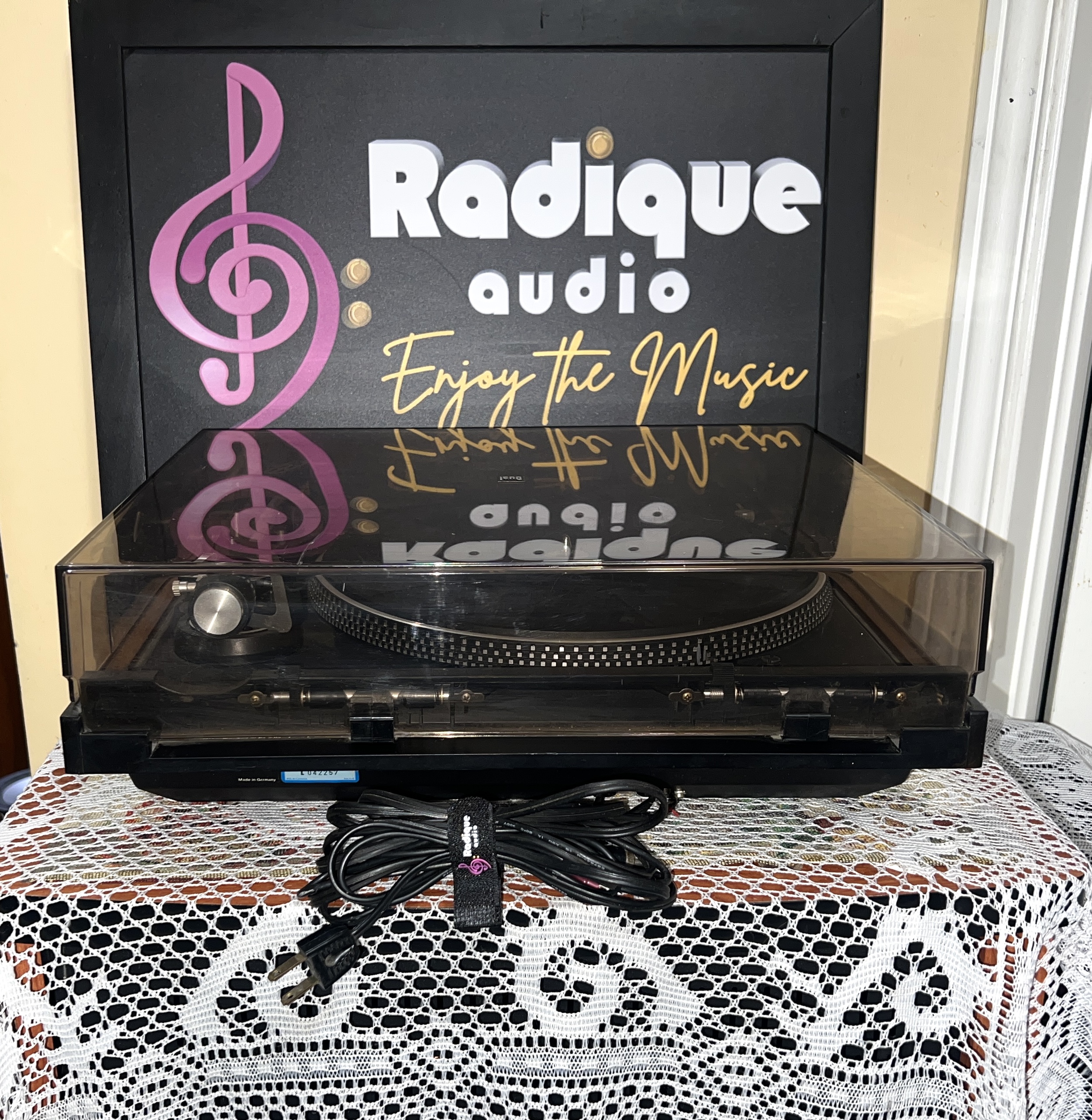

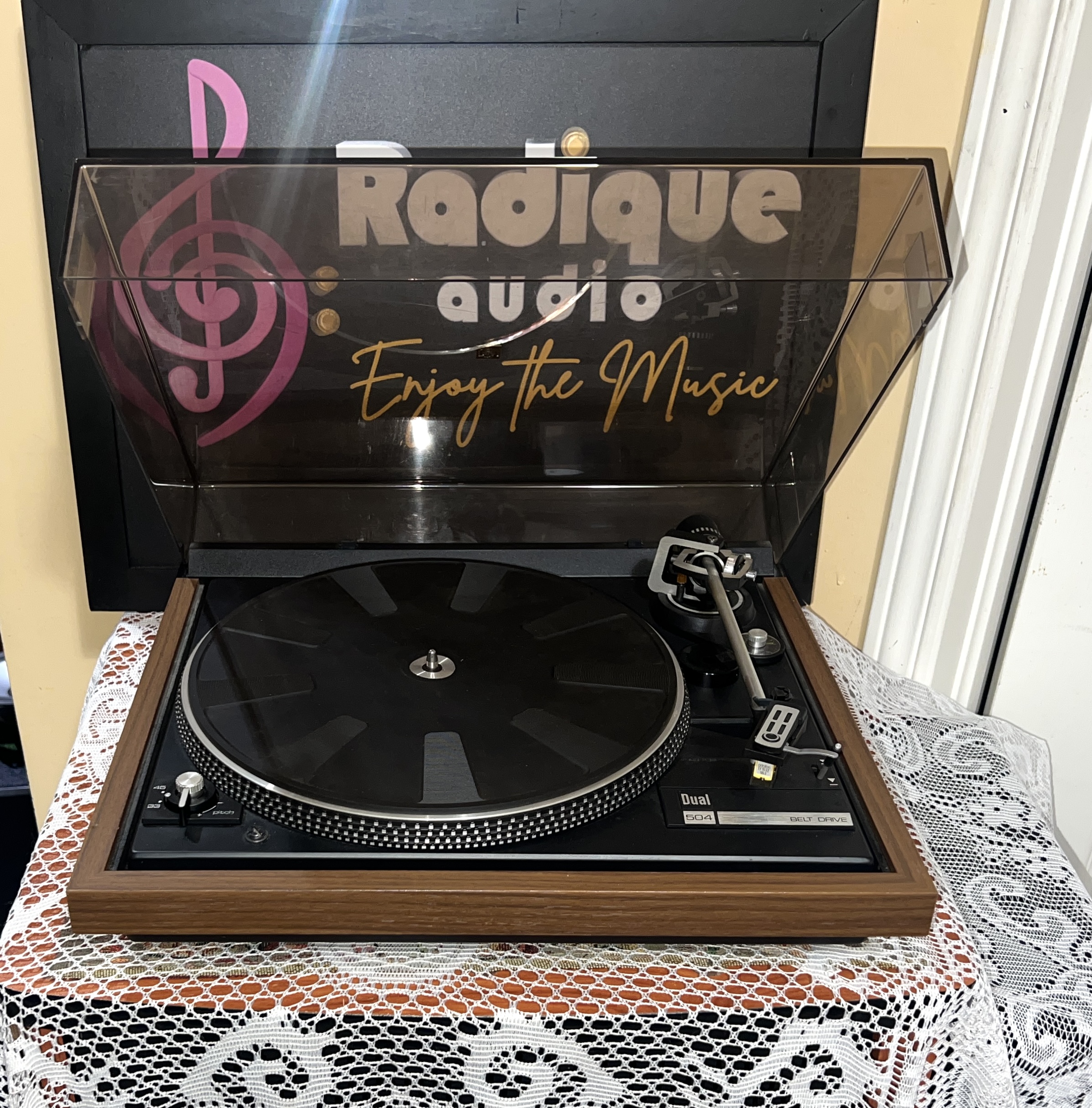

A vintage Dual 504 belt-drive turntable, made in Germany in the late 1970s, in a real wood plinth in walnut with a smoked dust cover, fitted with an Ortofon FF15XE MkII cartridge, fully tested on our bench and in very good condition.

✔️ Very good condition — free of significant marks
✔️ Real wood plinth in walnut, with a smoked dust cover
✔️ Made in Germany, fitted with an Ortofon FF15XE MkII elliptical cartridge
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Curbside delivery, local collection or freight within Canada

1 in stock

Keep it sounding the way it left our bench: read Caring for Your Turntable.
Description

A vintage Dual 504 belt-drive turntable, made in Germany in the late 1970s, in a real wood plinth in walnut with a smoked dust cover, fitted with an Ortofon FF15XE MkII cartridge, fully tested on our bench and in very good condition.

What it is

Dual built the 504 from 1976 to 1979 as a straightforward, well-engineered semi-automatic belt-drive turntable. A Dual 8-pole synchronous motor drives the platter through a precision flat belt and reaches 33⅓ rpm in about two seconds. The platter is non-magnetic, dynamically balanced and detachable, 304 mm across and 1.3 kg, and a stroboscope with pitch control lets you see and set the speed exactly for both 33⅓ and 45 rpm.

The tonearm is a torsion-resistant tubular aluminum arm in a four-point gimbal bearing, the kind of arm Dual was known for, with a removable cartridge holder that takes any standard half-inch cartridge and has adjustable overhang. It is attractive, easy to use, and sounds excellent, with a full and deep range.

The cartridge is an Ortofon FF15XE MkII with an elliptical diamond stylus. The elliptical tip traces fine high-frequency detail better than a basic conical stylus, and with a healthy 6 mV output and medium compliance it suits a standard phono input on a receiver or amplifier and arms like this one.

The service it has had

Fully tested on our bench before listing.

Condition

Very Good, and free of significant marks. The real wood plinth in walnut and the smoked dust cover present well.

A German-built Dual in real walnut with an Ortofon on the arm, ready for your records.

Dual 504 Specifications

  • Type: semi-automatic belt-drive turntable
  • Service: fully tested on our bench
  • Drive: precision flat belt
  • Motor: Dual 8-pole synchronous motor
  • Starting time: about 2 seconds to 33⅓ rpm
  • Platter: 304 mm, 1.3 kg, non-magnetic, dynamically balanced, detachable
  • Speeds: 33⅓ and 45 rpm
  • Pitch control: 6% (about one semitone), with stroboscope for both speeds
  • Wow and flutter: ±0.09% (DIN), 0.055% WRMS
  • Rumble: better than 62 dB
  • Tonearm: torsion-resistant tubular aluminum, four-point gimbal bearing
  • Effective length: 221 mm
  • Stylus pressure: 0 to 3 g
  • Cartridge holder: removable, for half-inch cartridges from 5.5 to 10 g; overhang adjustable over 5 mm
  • Cartridge: Ortofon FF15XE MkII, elliptical diamond (18 x 8 µm), 6 mV output, tracking force 1.5 to 3 g
  • Plinth: real wood, walnut, with smoked dust cover
  • Era: 1976 to 1979
  • Made in Germany
  • Dimensions: (Width x Height x Depth) 16.7 x 5.9 x 14.5 inches (424 x 150 x 368 mm)
  • Weight: approx. 9.0 lbs (4.1 kg)

🚚 Curbside Delivery — This Item Ships Differently

We do not ship turntables by courier. Instead we offer personal curbside delivery by our own vehicle, collection in person from us in Kanata, or freight anywhere in Canada. Please contact us before purchasing — use the pink Ask a Question button on this page and include your postal code, and we will come back with pricing and timelines so you can decide before you buy. Full details and coverage area are on our Curbside Delivery page. 👉

⚠️ Important Information for International Buyers

This unit is configured for North American 110/120V power. Buyers outside North America will require a step-down transformer and appropriate plug adapter.

✅ Buy With Confidence — The Radique Promise

Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. When you’re ready to move on, we’ll take it back. That’s the Radique difference.

📦 Watch how we protect your gear — our unboxing video.

📺 Curious about our business? Check out our YouTube channel for behind-the-scenes videos and more!

📞 Questions? Use the Ask a Question button above, or call us at 613-416-9995.

$345.00
Additional information
Drive Type
Operation
About brand
Dual at Radique
We service Dual, too. Bring us your own Dual turntables for repair, servicing or restoration, with a 90-day warranty on the work. See our Audio Service page

Dual grew out of the clock-parts workshops of brothers Christian and Josef Steidinger in St. Georgen, in Germany's Black Forest, who founded Gebrüder Steidinger there in 1907. We carry vintage Dual turntables, belt-drive and automatic. We've had more than 20 Dual listings so far, covering 17 different models. Every used Dual here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

The Dual turntables we've sold most often: the CS 505, CS 506, CS 616 and CS 1236.

The Dual story, from the Black Forest

The Steidinger family made clock parts in St. Georgen in the 1800s. Christian Steidinger built a house with a workshop there in 1900, and on 1 February 1907 he and his brother Josef founded Gebrüder Steidinger, making precision parts and spring motors for gramophones. Josef soon left to start his own firm, Perpetuum.

The Dual-Motor. In 1927 the company introduced the Dual-Motor, which combined a clockwork spring with an electric motor. It sold well, and the company took the name Dual in 1935. Dual turntables won a prize at the 1937 Paris World's Fair, and the Dual 1000 was shown in 1949.

Germany's turntable maker. At its peak Dual was one of the largest turntable makers, with more than 3,000 employees, and in 1971 it took over its old rival Perpetuum-Ebner. Dual went bankrupt in 1982 and was bought by France's Thomson, then in 1988 by Schneider.

Today. The last Dual factory in St. Georgen closed in 1993, and Alfred Fehrenbacher GmbH carried on building Dual turntables in St. Georgen. An investor group took over the company in 2023. Dual Electronics, the US car audio brand, is a separate company.

Which Dual is which?

Automatic changers (1950s to 1970s): record changers such as the Dual 1009, which made the brand's name.

CS belt-drive automatics (1970s): fully automatic belt-drive turntables such as the CS 1236 and CS 1264.

CS 505 family (from 1981): the CS 505, a budget belt-drive deck with a suspended drive unit, then the CS 505-2 and its relatives, such as the CS 506.

CS 5000 (1985): a semi-automatic flagship aimed at the Rega Planar 3.

Later CS models: turntables built in St. Georgen by Fehrenbacher after 1993.

Buying used Dual: what to check

Old grease. Restorers often find the grease in Dual automatic mechanisms has hardened with age, and clean it off and re-lubricate with the right grease, not oil.

Belt and speed. On belt-drive models, check the belt and that both speeds run steadily.

Cartridge mount. The CS 505 family uses its own headshell and cartridge mount, so changing cartridges needs the right Dual mounting parts. Owners recommend moving-magnet cartridges for it.

Tonearm and automatics. Check that the arm hasn't been knocked, and that the automatic start, return and cueing all work.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
