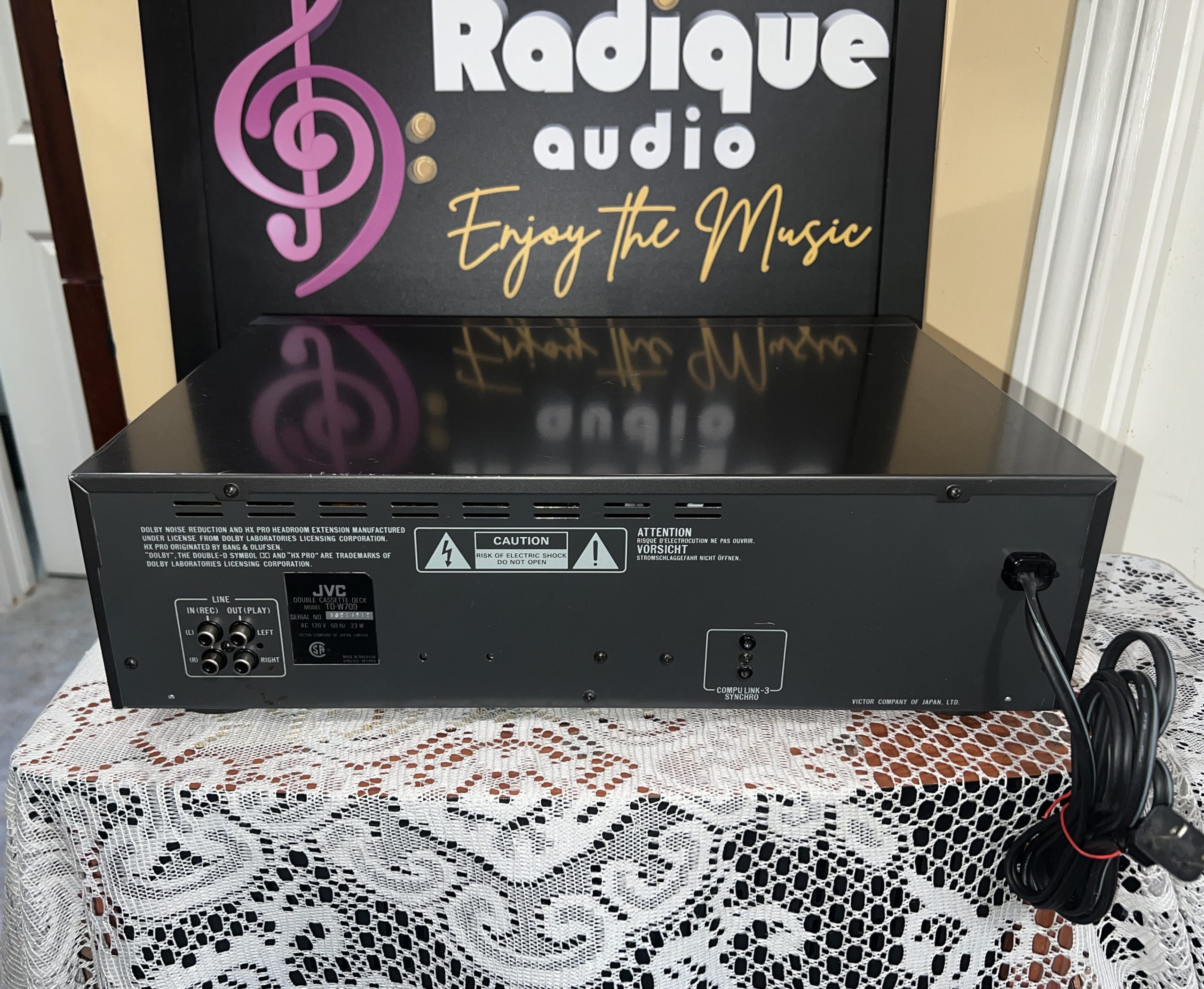

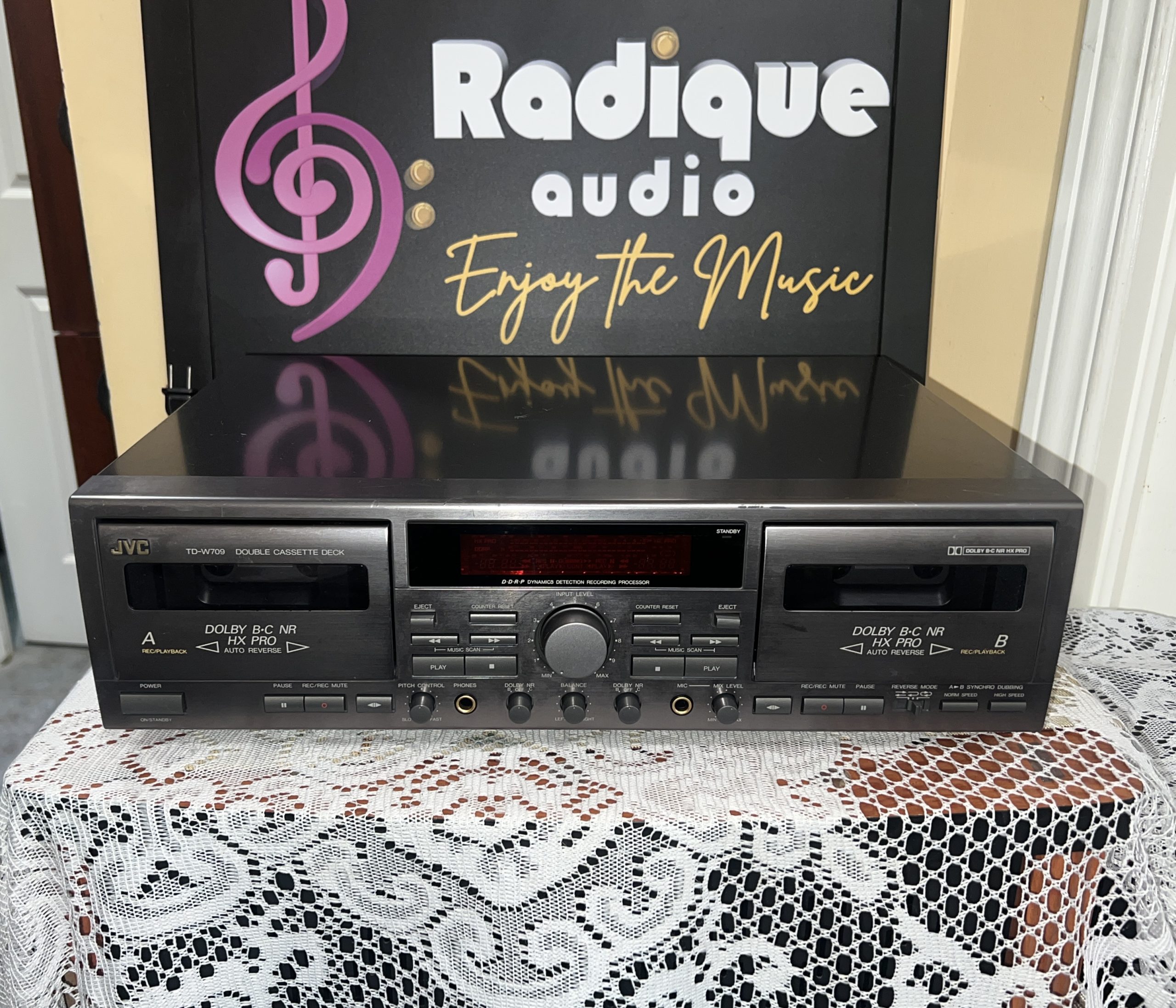

JVC TD-W709 Dual Cassette Deck - Auto-Reverse, Dolby B/C, HX Pro
JVC TD-W709 Dual Cassette Deck - Auto-Reverse, Dolby B/C, HX Pro - Image 2
JVC TD-W709 Dual Cassette Deck - Auto-Reverse, Dolby B/C, HX Pro - Image 3
JVC TD-W709 Dual Cassette Deck - Auto-Reverse, Dolby B/C, HX Pro
JVC TD-W709 Dual Cassette Deck - Auto-Reverse, Dolby B/C, HX Pro - Image 2
JVC TD-W709 Dual Cassette Deck - Auto-Reverse, Dolby B/C, HX Pro - Image 3
Tannoy HTS200 Slim Tower Speakers — Black Ash Pair
Tannoy HTS200 Slim Tower Speakers — Black Ash Pair $295.00
Back to products
Sony ES STR-DA555ES 5.1 AVR 600W — Phono, Preouts
Sony ES STR-DA555ES 5.1 AVR 600W — Phono, Preouts $345.00
JVC

JVC TD-W709 Dual Cassette Deck – Auto-Reverse, Dolby B/C, HX Pro

$145.00

Two auto-reverse wells with Dolby B, Dolby C and HX Pro, Deck 1 recording and high-speed dubbing between the two. Pitch control, relay play, a front mic input and JVC’s COMPU LINK. 20 Hz to 17 kHz on metal tape, 73 dB signal-to-noise with Dolby C, 0.08% wow and flutter. Made in Japan, 1993 to 1995. Level 1 serviced here; cosmetics good.

Out of stock

Other cassette decks in stock now
JVC KD-A11C Silver Cassette Deck – Serviced, Metal Tape, Japan$195.00Yamaha KX-W232 double cassette deck in black, front panel with Deck A record/playback and Deck B playback doors, tape counter and peak level meters$125.00Harman Kardon Ultrawideband Linear Phase Cassette Deck TD292$195.00

This one has sold. Want first dibs on the next one?

We take these in regularly. Leave your name and email, and we’ll email you the moment one is listed, so you hear first. No cost, no obligation.

Email me when one is listed

How First Dibs works →

Stock up on tape. Maxell UR 120 Blank Cassette, $15.00 →

Compare
Add to wishlist

Read the full listing and see all 3 photos ↓

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , ,

Other cassette decks we have in stock now

3 in stock · $125.00–$195.00 · all ship

JVC KD-A11C Silver Cassette Deck – Serviced, Metal Tape, JapanJVC KD-A11C Silver Cassette Deck – Serviced, Metal Tape, Japan$195.00ShipsYamaha KX-W232 double cassette deck in black, front panel with Deck A record/playback and Deck B playback doors, tape counter and peak level metersYamaha KX-W232 Dual Cassette Deck – Dolby B & C, Made in Japan$125.00ShipsHarman Kardon Ultrawideband Linear Phase Cassette Deck TD292Harman Kardon Ultrawideband Linear Phase Cassette Deck TD292$195.00Ships
Maxell UR 120 Blank Cassette – Normal Bias, Sealed

Stock up on tape.

Sealed Maxell UR 120 blank cassettes, normal bias: sixty minutes a side, ready for any deck.

Maxell UR 120 Blank Cassette, $15.00 →
Description

JVC TD-W709 Dual Cassette Deck — Auto-Reverse, Dolby B/C, HX Pro

Made in Japan, the JVC TD-W709 is a dual-well auto-reverse cassette deck from 1993–95 that handles recording, playback, and high-speed dubbing across both transports. With Dolby B, Dolby C, and HX Pro on board, plus support for Normal, CrO2, and Metal tape types, it covers all the essentials for cassette enthusiasts looking for a reliable, well-featured deck.

Both decks offer auto-reverse playback, and Deck 1 handles recording duties with relay play available across both transports for extended unattended listening. Pitch control allows fine-tuning of playback speed, and the mic input on the front panel makes it easy to create personal recordings. JVC’s COMPU LINK system enables integrated control when paired with other compatible JVC components.

This unit is in good cosmetic condition and has undergone our Level One service and testing which should ensure many more years of reliable performance ahead.

Type: Auto-reverse double cassette deck

Heads: 2 x record/playback, 2 x erase

Tape Compatibility: Type I (Normal), Type II (CrO2), Type IV (Metal)

Noise Reduction: Dolby B, Dolby C

Headroom Extension: HX Pro

Frequency Response: 20 Hz – 17 kHz (Metal tape)

Signal-to-Noise Ratio: 73 dB (Dolby C)

Wow and Flutter: 0.08%

THD: 0.8%

Input: 80 mV (line), 0.4 mV (mic)

Output: 0.3 V (line)

Features: Auto-reverse, high-speed dubbing, pitch control, relay play, COMPU LINK, mic input

Year: 1993–1995

Dimensions: (W x H x D) 17.1″ x 5.3″ x 12.9″ (435 x 134 x 328 mm)

Weight: 11.2 lbs (5.1 kg)

A solid, Japan-made dual cassette deck freshly serviced and ready to record, play, and dub — backed by Radique Audio’s 90-day warranty and perpetual trade-back policy; asking $145.

Views: 173
Additional information
Weight13 lbs
Dimensions17 × 21.1 × 9.3 in
Cassette Wells
Noise Reduction
About brand
JVC at Radique
We service JVC, too. Bring us your own JVC receivers, amplifiers, CD players, cassette decks and turntables for repair, servicing or restoration, with a 90-day warranty on the work. See our Audio Service page

JVC was founded in Yokohama, Japan, in 1927 as the Japanese arm of America's Victor Talking Machine Company, first making phonographs and records. We carry JVC stereo receivers and AV receivers, cassette decks, CD players, turntables and speakers. We've had more than 90 JVC listings so far, covering more than 80 different models. Every AV receiver we list is tested input by input on our bench: each HDMI input and output, the analog, optical and coaxial inputs, the subwoofer outputs and the wireless features where it has them. Every used JVC here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

JVC models we've sold more than once include the RX-7000VBK and RX-8000VBK AV receivers.

The JVC story, 1927 to today

JVC began in 1927 as the Japanese subsidiary of the Victor Talking Machine Company, making phonographs and records, and built a large plant in Yokohama in 1930. RCA bought Victor in 1929, and in the late 1930s JVC passed to Japanese owners.

Stereo, quad and video. JVC joined the Matsushita (Panasonic) group in the early 1950s. It developed the CD-4 discrete four-channel record system in the early 1970s and the SEA graphic equalizer built into its receivers, and in 1976 its video division introduced VHS.

Hi-fi highlights. The late 1970s and early 1980s brought the JR-S receivers, whose SEA sliders replaced the tone controls, the Super-A amplifiers and the QL quartz-lock turntables, and around 1990 the XL-Z CD players with JVC's K2 Interface.

Today. JVC merged with Kenwood between 2008 and 2011, and JVCKENWOOD Corporation now owns the brand. JVC has had its own Canadian distribution since the 1970s, and JVCKENWOOD Canada is based in Mississauga, Ontario.

Which JVC is which?

1970s receivers: early four-channel models with CD-4 demodulators, and the JR-S series of 1976 to 1977, with built-in SEA equalizers.

Super-A amplifiers and receivers (1979 to the early 1980s): such as the A-X5 and A-X9 amplifiers and the R-S33 receiver.

Turntables: QL quartz-lock direct-drive models such as the QL-A7 and QL-Y5F, and belt-drive automatics such as the JL-A1.

Cassette decks and CD players: KD and CD-S decks from the 1970s, TD-W dual-well decks, and XL-Z CD players and XL changers.

AV receivers (2000 to 2004): the RX-x000V, RX-x010V and RX-x020V families, including the RX-7000VBK, RX-8000VBK and RX-6020VBK, and the RX-8040B.

Buying used JVC: what to check

SEA sliders. On JR-S and R-S receivers, work every equalizer slider through its range and listen for crackle or a channel dropping out.

FM muting. Stereo Review found the JR-S600's muting could thump when tuning on or off a station, so turn the volume down before tuning.

AV receivers. Run every channel, centre and surrounds included, at moderate volume. Owners report overload shutdowns on some 2000s models, which can come from a short in the speaker wiring.

Turntables. On QL servo turntables, check that the tracking-force and damping dials respond and that the arm finds the lead-in at both record sizes. Older JL automatics often need old grease cleaned out and a new belt.

Cassette decks. Treat belts and pinch rollers on any 1970s to 1990s deck as service items.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
