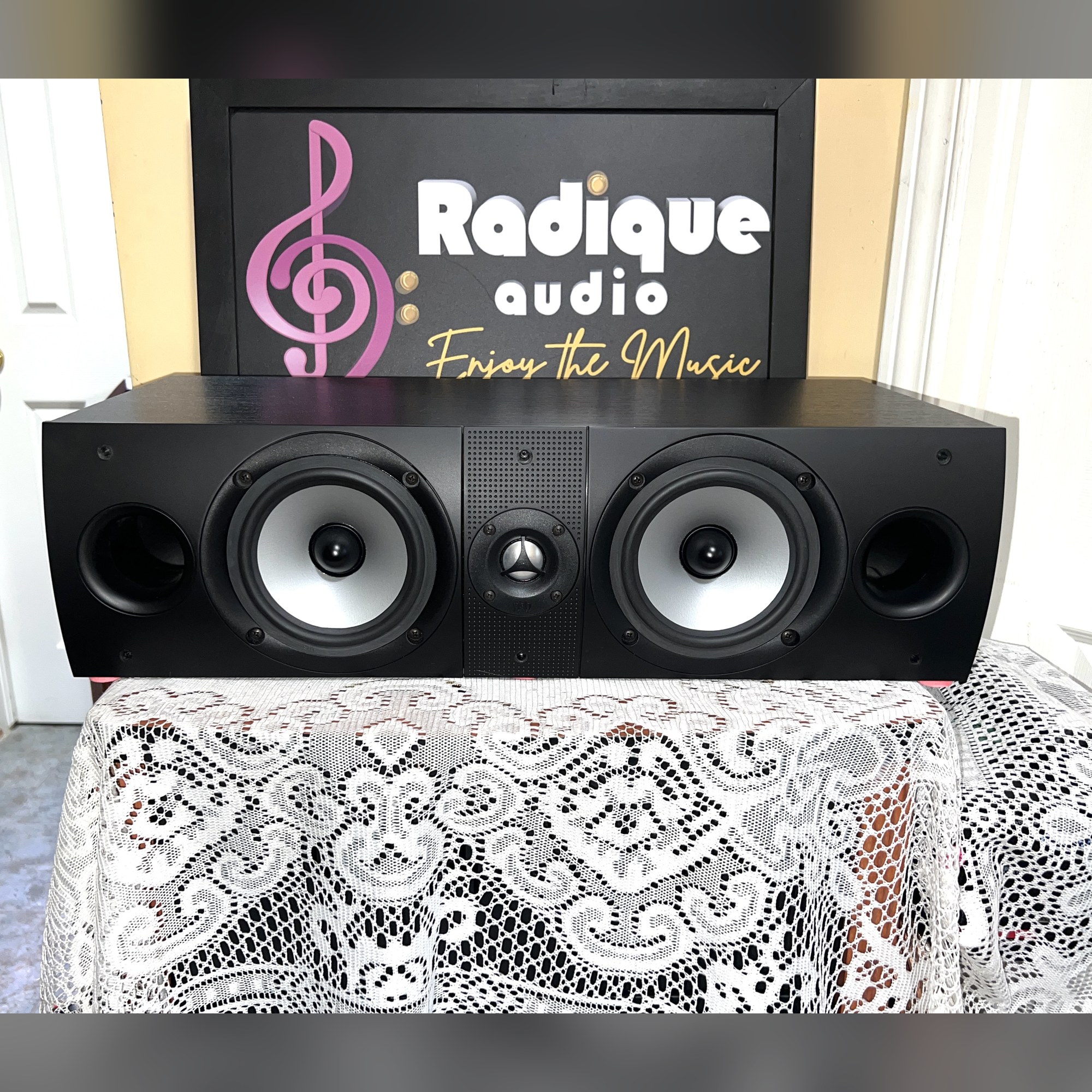

PSB Image 8C Centre Channel Speaker — 240W Peak | Made in Canada
$245.00
Two 5.25-inch woofers either side of a 1-inch aluminium dome, crossed at 2.2 kHz in a wide front-ported cabinet — 55 Hz to 21 kHz, 90 dB, and 240 watts of peak handling on a 6 ohm load. Voiced by Paul Barton against NRC anechoic measurements and built in Canada. Very good condition, apart from a few small mounting holes underneath that a shelf hides.
1 in stock
Designed and built in Canada by PSB Speakers, the Image 8C is a large, serious centre channel that refuses to be the weak link in a home theatre system — a speaker sized and engineered to match PSB’s full Image series towers in output capability and sonic character.
The 8C deploys a dual 5.25-inch woofer array flanking a 1-inch aluminum dome tweeter in a wide, low-profile front-ported cabinet — a configuration that delivers the horizontal driver spacing needed for seamless left-to-right dialogue and effects panning across a wide screen, while the front-firing port allows flexible placement against walls or in enclosed cabinetry. Magnetic shielding (video shielding) ensures safe placement near CRT and LCD screens alike. PSB’s Paul Barton voiced the Image series with his characteristic commitment to NRC (National Research Council) anechoic chamber measurement, which means what you hear is accurate, uncoloured, and fatigue-free over long viewing sessions — a quality that dialogue reproduction in particular rewards. Sound & Vision noted that the 8C “plays very loud and quite deep” for a centre channel at this price, with genuinely full-range capability that reduces the load on a subwoofer.
Gold-plated five-way binding posts support banana plugs, bare wire, and spade connections, and the 6-ohm nominal impedance (4-ohm minimum) and 240-watt peak power handling mean this speaker will work with virtually any AV receiver or processor without strain. At 23 lbs it is a substantial, solidly built cabinet.
This unit is in very good condition with the exception of minor mounting holes on the underside of the cabinet — not visible when placed on a shelf, rack, or stand, and with no effect whatsoever on performance.
Type: 3-driver, 2-way bass-reflex centre channel, Made in Canada
Tweeter: 1-inch aluminum dome
Woofers: 2 × 5.25-inch cone
Bass reflex: Front-firing port
Crossover frequency: 2.2 kHz
Frequency response: 55 Hz – 21 kHz (±3 dB)
Sensitivity: 90 dB (anechoic)
Nominal impedance: 6 ohms (minimum 4 ohms)
Recommended amplifier power: 10–150 W
Peak power handling: 240 W
Magnetic (video) shielding: Yes

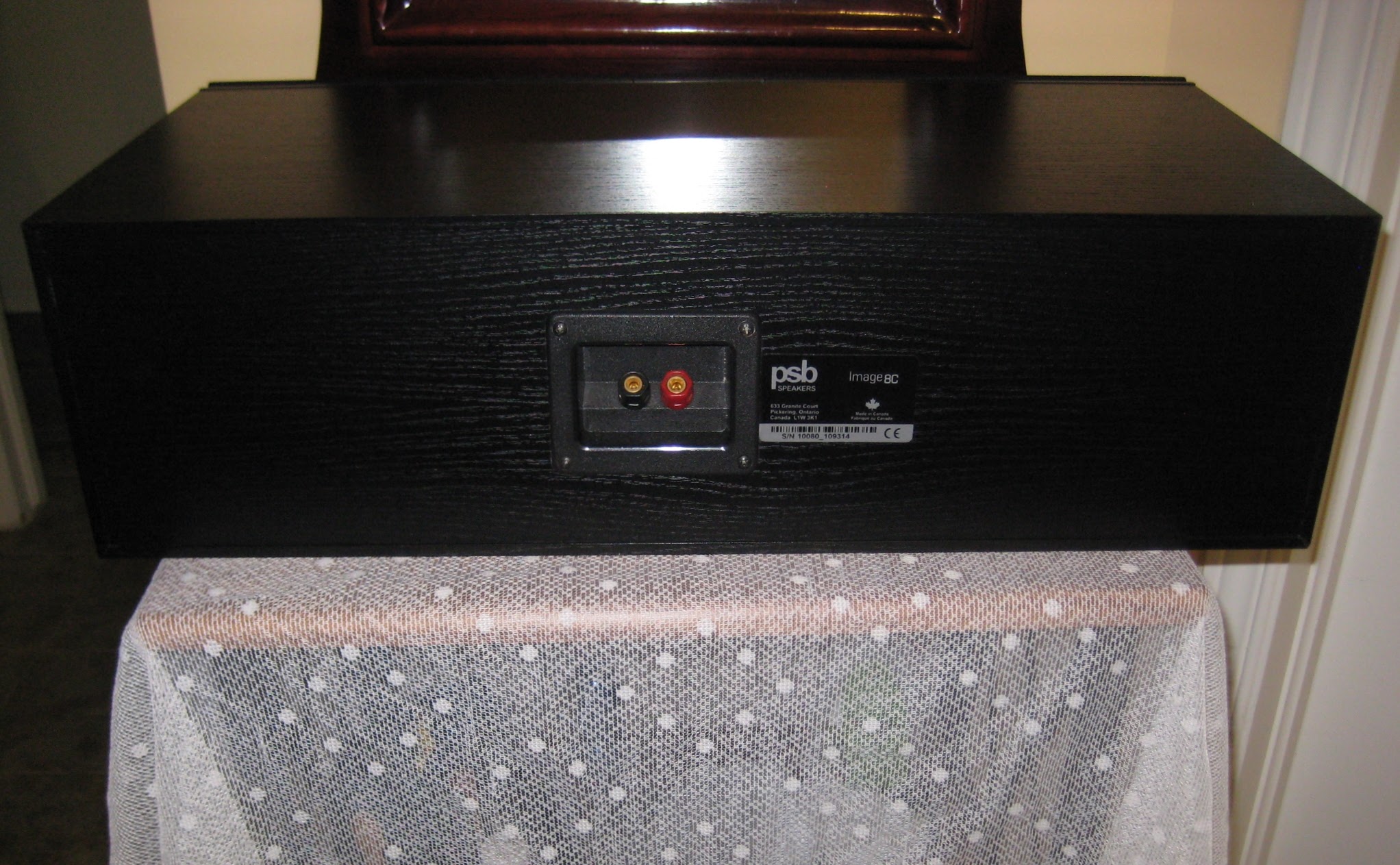

Binding posts: 5-way gold-plated
Dimensions: (Width x Height x Depth) 23 x 6.5 x 11.25 inches (584 x 165 x 286 mm)
Weight: 23 lbs (10.4 kg)
A large, capable, Canadian-made centre channel that delivers the output, clarity, and power handling to anchor any serious home theatre system — and at this price, it is exceptional value.
Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program, you can purchase with confidence.
| Weight | 26 lbs |
|---|---|
| Dimensions | 15.25 × 27 × 10.5 in |
