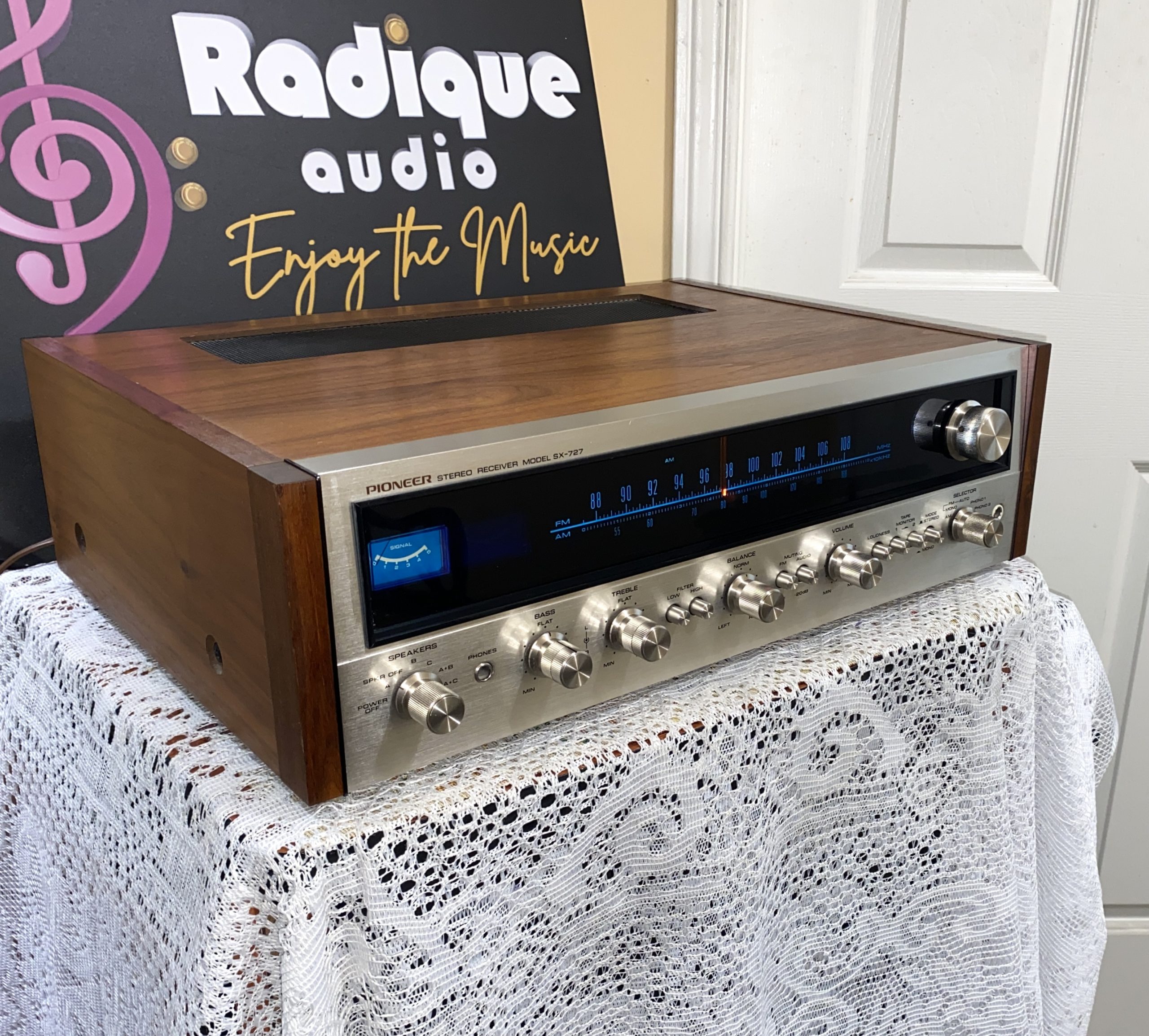

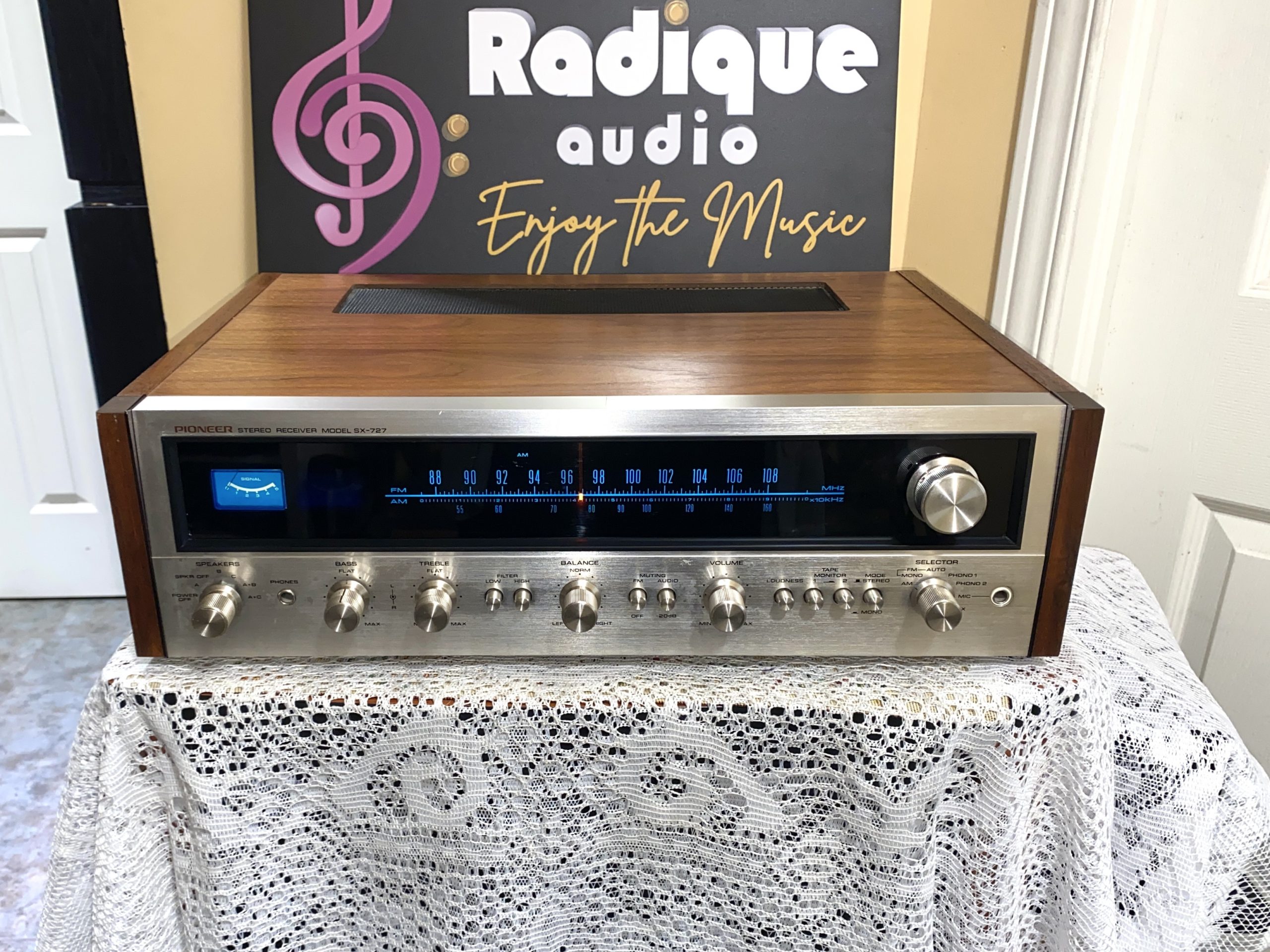

Pioneer SX-727 Vintage Stereo Receiver – 37 WPC

Pioneer SX-727 AM/FM Stereo Receiver 37 WPC – Upgraded Binding Posts, Fully Serviced, Very Good Cosmetics, Exceptional Early 1970s Engineering

Experience the refined sound and elegant design of the Pioneer SX-727—one of Pioneer’s most respected receivers from the golden age of 1970s audio. With its stunning real walnut cabinet, sophisticated faceplate, and impressive versatility, the SX-727 represents the pinnacle of early ’70s receiver design. Fully serviced with upgraded 5-way binding posts and in very good cosmetic condition, this is a remarkable example of vintage audio craftsmanship.

The SX-727 is widely considered one of the best receivers Pioneer ever made. Reviewers and long-term owners consistently praise its “very good sound,” “wide soundstage,” “powerful, controlled bass,” and “beautiful construction.” One Stereo Review magazine assessment states: “Having put the Pioneer SX-727 through every test we can perform… we find it to be a rugged, reliable instrument that certainly represents state-of-the-art receiver technology in its design and performance.”

Impressive Power and Flexibility:

At 37 watts per channel into 8Ω (with dynamic peaks reaching 195W at 4Ω), the SX-727 delivers surprising power and authority—more than sufficient for high-efficiency speakers or refined listening rooms. The direct-coupled, pure complementary OCL (output capacitorless) power amplifier eliminates coupling capacitors between stages, feeding signals directly to speakers. This design innovation provides wide power bandwidth, extended frequency response reaching 7Hz–80kHz, and minimized intermodulation distortion—all hallmarks of sophisticated audio engineering.

The ultra-low distortion (0.5% THD) and damping factor of 40 ensure tight, controlled bass and precise speaker control. The power amp employs FET input stage, IC integrated circuits, 55 transistors, and 34 diodes—modular construction that makes restoration and repair straightforward.

World-Class FM Tuner:

The FM tuner is exceptional—featuring 1.84µV sensitivity (IHF), 70dB signal-to-noise ratio, and spurious rejection exceeding 90dB at 98MHz. A two-stage RF amplifier with FET input combined with ceramic filters and integrated circuits delivers distortion-free reception and outstanding selectivity. The dual signal strength and center-tuning meters make station acquisition precise and intuitive.

Extraordinary Connectivity & Control:

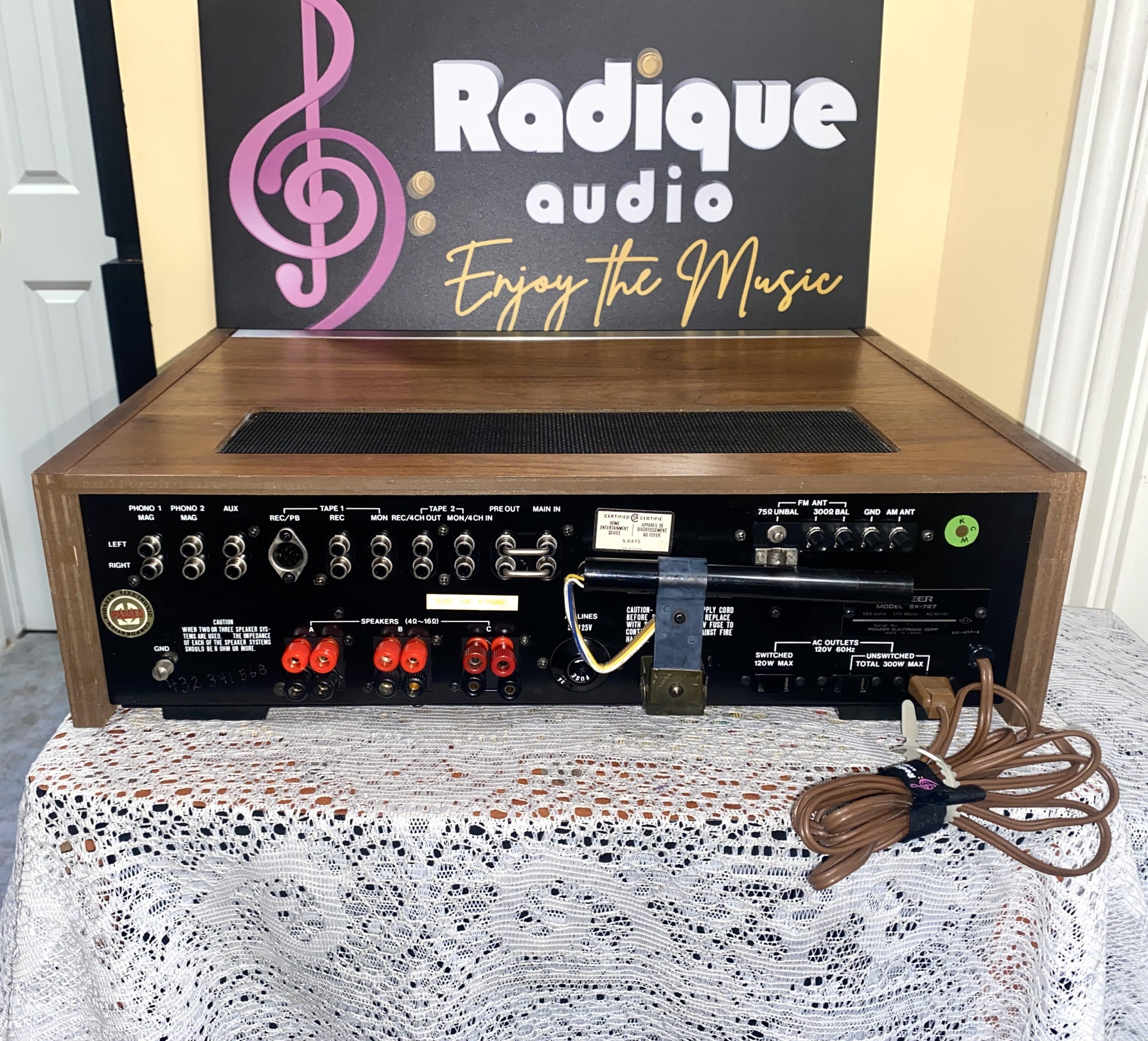

The SX-727 anticipates modern system complexity with three pairs of speaker outputs (A, B, C with switching), two phono inputs, two tape loops with record/play distinction, microphone input, AUX input, headphone output, and pre-in/main-out jacks allowing separation into independent preamp and power amp—a feature rare in 1972. Controls include dual independent bass/treble tone controls with ±10dB boost/cut, loudness compensation, subsonic filter, high-cut filter, and 20dB muting button. The sophisticated tone control circuitry uses feedback topology ensuring accurate, musical tonal shaping.

Upgraded Binding Posts:

This unit’s stock spring-clip speaker connectors have been upgraded to premium 5-way binding posts, accepting banana plugs, spade lugs, pin connectors, and bare wire—making speaker connection infinitely more convenient and reliable. (Note: Close RCA input pair spacing on vintage Pioneer designs can accommodate oversized connectors tightly; **Radique Audio Gold Series Interconnects feature slim connectors specifically engineered for vintage amp compatibility—ideal pairing with this receiver.)

Aesthetic Excellence:

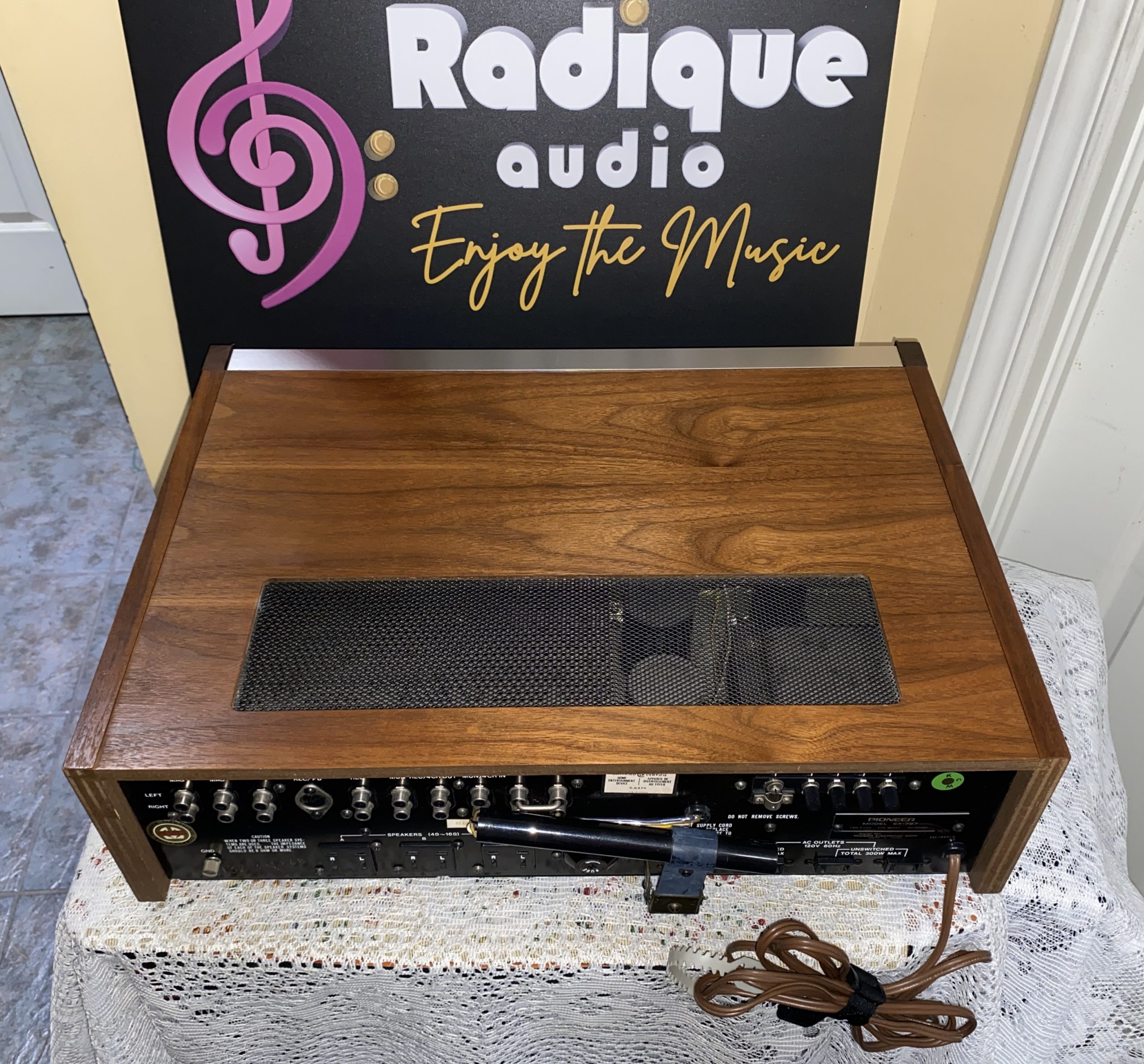

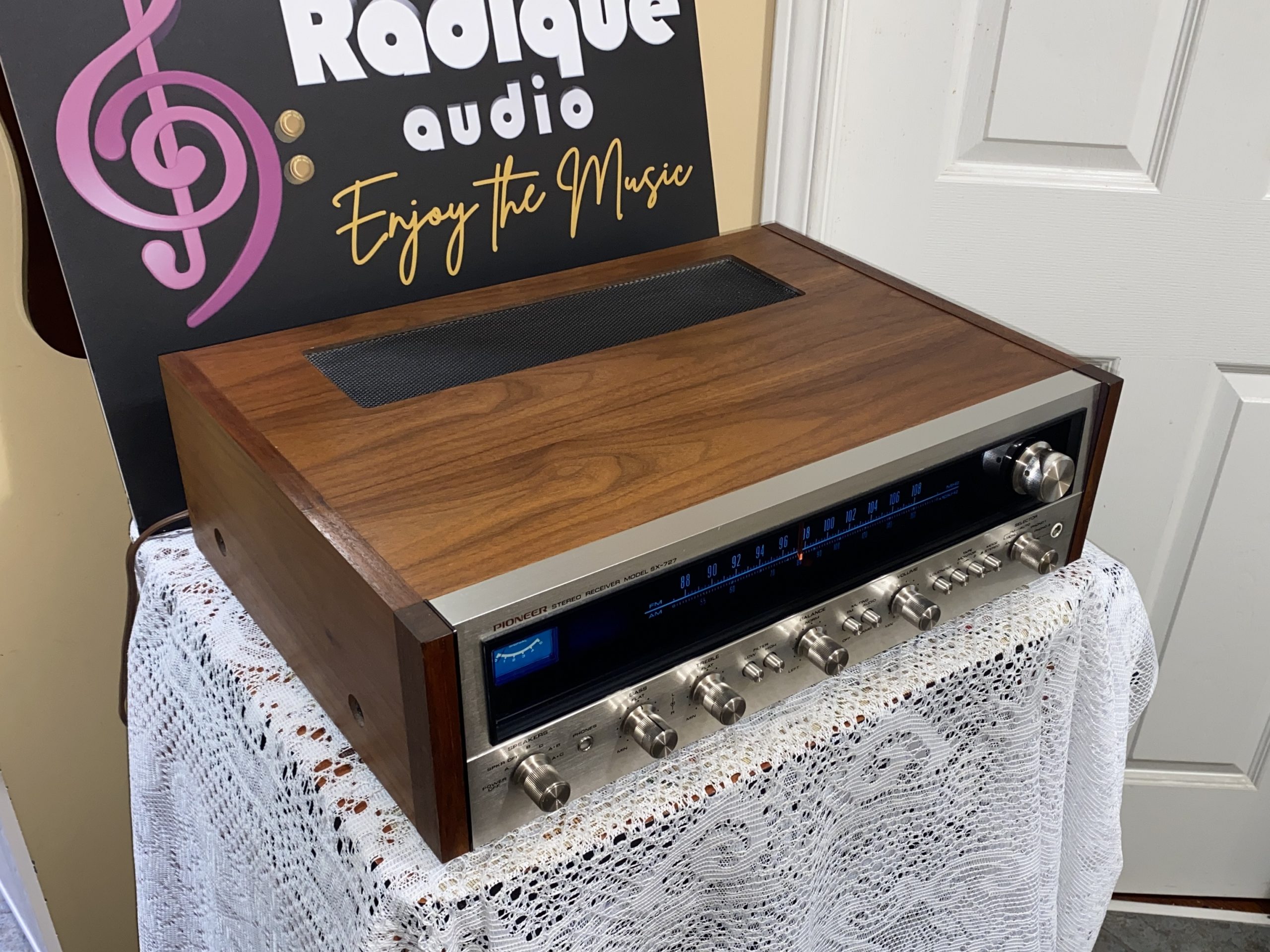

The genuine walnut-finish wooden cabinet exudes quality and sophistication. The silver and black faceplate with illuminated blue dial, signal/stereo meters, and sequential indicator lights create an inviting, warm aesthetic that complements any vintage or modern listening room. The substantial 14kg weight reflects rugged construction and premium component density.

Key Features:

37W per channel (8Ω), 195W dynamic peak (4Ω)

Direct-coupled OCL pure complementary power amplifier

Ultrawide bandwidth: 7Hz–80kHz (±1dB at high level)

0.5% THD, damping factor 40

Two-stage RF FET tuner with exceptional sensitivity (1.84µV IHF)

Dual signal strength and center-tuning meters

Three pairs of speaker outputs (A/B/C switching)

Two phono inputs with 3mV sensitivity

Two tape loops with record/playback distinction

Pre-in/Main-out jacks for separable preamp/power amp use

Sophisticated tone controls: ±10dB bass/treble

Loudness, subsonic filter, high-cut filter

Microphone input (6.3mm jack)

AUX input, headphone output (6.3mm)

AM fold-out antenna, 75/300Ω FM antenna terminals

Protective relay eliminates turn-on thumps

Modular circuit board construction for reliable serviceability

Upgraded 5-way binding posts (replaced original spring clips)

Real walnut cabinet in very good cosmetic condition

Fully serviced and tested, working perfectly

Specifications:

Power Output: 37W/ch (8Ω, 20Hz–20kHz, 0.5% THD)

Dynamic Power: 195W (4Ω), 122W (8Ω)

Frequency Response: 7Hz–80kHz (±1dB at high level)

Damping Factor: 40

Tuner Sensitivity: 1.84µV (FM IHF)

Tuner S/N: 70dB

Signal-to-Noise Ratio: 85dB (phono), 95dB (line)

Input Impedance: 47kΩ (phono), 50kΩ (mic), 100kΩ (line)

Speaker Load: 4Ω–16Ω

Tone Control: ±10dB at 100Hz (bass), 10kHz (treble)

Dimensions: 485 × 150 × 390mm (19.1″ × 5.9″ × 15.4″)

Weight: 14kg (30.9 lbs)

Year: 1972–1974

The SX-727 remains a benchmark for receiver excellence—owners report their units working flawlessly after 50+ years of ownership. The combination of sophisticated engineering, exceptional build quality, and refined sound places it among the best integrated receivers ever designed.

Asking $895; buy with confidence and benefit from Radique’s “Bumper to Bumper” warranty and Perpetual trade back policy.
