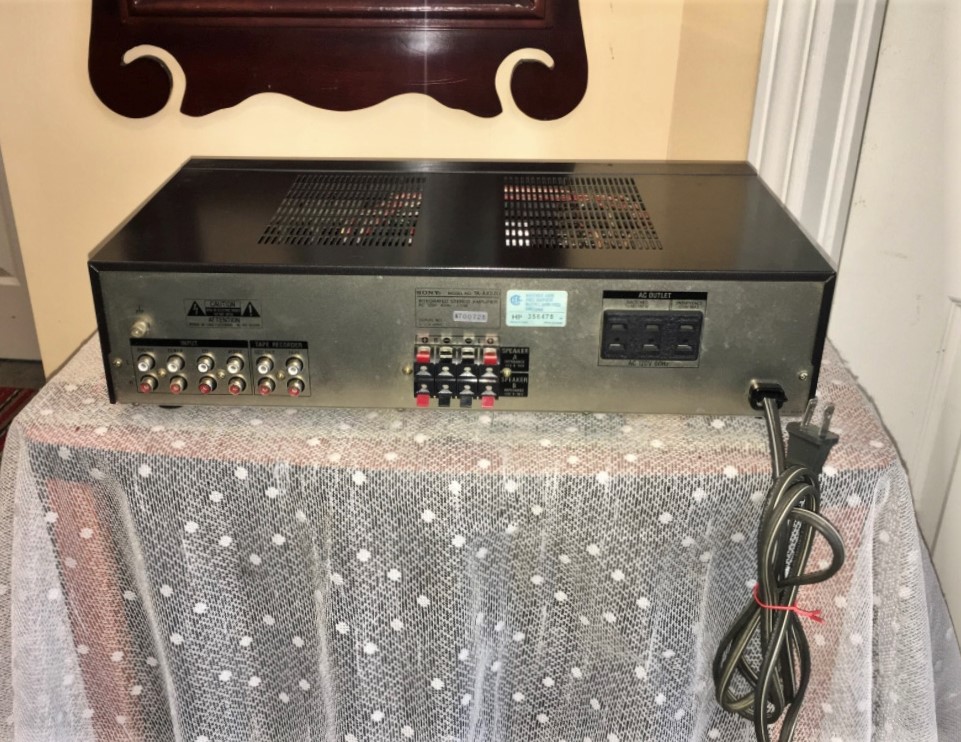

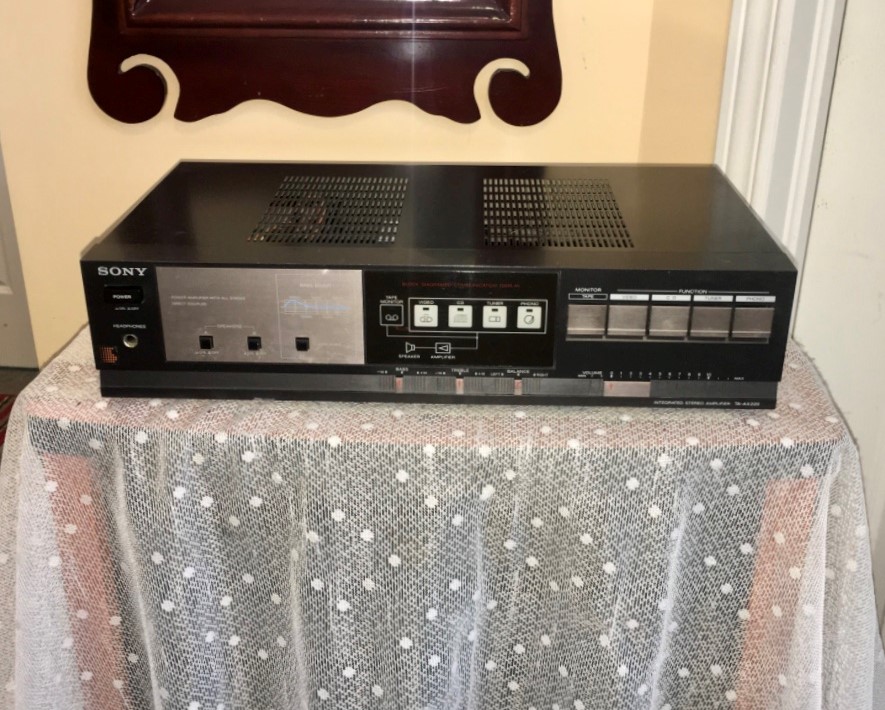

Sony TA-AX220 Vintage Integrated Amplifier – 40 WPC, Compact
$125.00
40 watts a channel into 8 ohms at 0.08% distortion, 15 Hz to 70 kHz, with a damping factor of 36. A phono stage and four more pairs of line inputs, one of them a tape loop. Slider controls for bass, treble, balance and volume, which is what mid-eighties Sony did instead of knobs. Made in Japan; 4.6 kg.
1 in stock
Compact Vintage Sony 40 WPC Integrated Amplifier, made in Japan in the mid-80’s.
Includes Phono Stage and 4 other pairs of analog inputs, including a tape loop.
80’s Slider-Style Bass, Treble, Balance, and Volume Controls.
Specifications:
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 70kHz
Total harmonic distortion: 0.08%
Damping factor: 36
Input sensitivity: 150mV (line)
Signal to noise ratio: 98dB (line)
Output: 150mV (line)
Speaker load impedance: 8Ω to 16Ω
Dimensions: 430 x 106 x 250mm, Weight: 4.6kg
Asking just $125 for this vintage, made in Japan Sony Integrated Amplifier.
| Weight | 12.14 lbs |
|---|---|
| Dimensions | 20.93 × 8.17 × 13.84 in |
Sony began in Tokyo in 1946, founded by Masaru Ibuka and Akio Morita, and it helped bring the world the Walkman and the compact disc. We carry Sony stereo and AV receivers, CD players, cassette decks, amplifiers and speakers. We've had more than 220 Sony listings so far, covering more than 185 different models. Every used Sony here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.
Sony models we've sold more than once include the TC-K61 cassette deck, the CDP-CE305 and CDP-C335 CD players, the STR-DA5700ES AV receiver and the STR-4800SD stereo receiver.
The Sony story, 1946 to today
Masaru Ibuka and Akio Morita founded Tokyo Tsushin Kogyo ("Totsuko") in Tokyo in 1946, growing out of a radio repair business Ibuka had started the year before. The company was renamed Sony in 1958.
Tape and transistors. The G-model tape recorder of 1950 is described as Japan's first, and the TR-55 transistor radio of 1955 was the first Sony-branded product.
ES. Sony describes the TA-1120 integrated amplifier of 1965 as the first all-silicon-transistor stereo amplifier and dates its ES ("Elevated Standard") line from it.
Walkman and CD. The Walkman went on sale in Japan in July 1979. Sony worked with Philips on the compact disc, and Sony's CDP-101 was among the first CD players on sale in Japan in October 1982. Sony still makes ES AV receivers.
Which Sony is which?
STR receivers: stereo receivers from the late 1960s on, such as the STR-6120, and later AV receivers, including ES models.
TA amplifiers and ES separates: from the TA-1120 to the TA-E86 preamplifier and TA-N86 power amplifier (1978).
CDP CD players: from the CDP-101 (1982) and CDP-701ES (1983) to changers such as the CDP-CE305 and CDP-C335 we sell often.
TC tape decks: reel-to-reel recorders until 1985, and cassette decks such as the TC-K61 and the three-head TC-K777ES.
SS speakers: such as the SS-G7 floorstanders of 1978.
Buying used Sony: what to check
CD players. Open and close the drawer several times; hesitation can be an early sign of trouble. Laser pickups wear, skipping is a symptom, and tray belts age.
Cassette decks. Belts dry out and cause slipping or uneven playback, and worn heads dull the sound. Run fast-forward and rewind, and check Dolby.
Amplifiers and receivers. Noisy switches and dirty relay contacts cause many faults, and bias settings drift with age. On tuners, look for blown bulbs and broken dial cords.
Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
