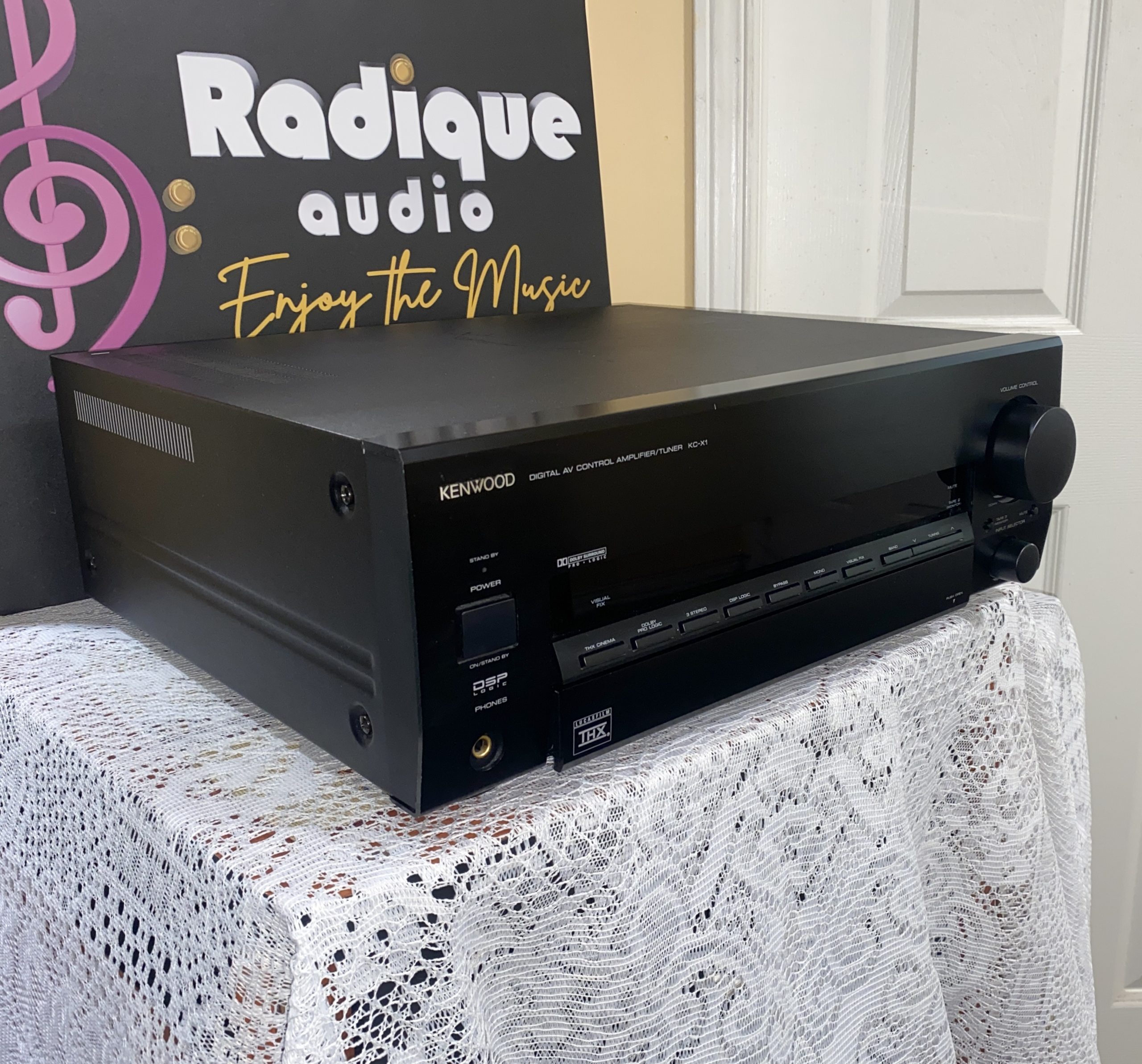

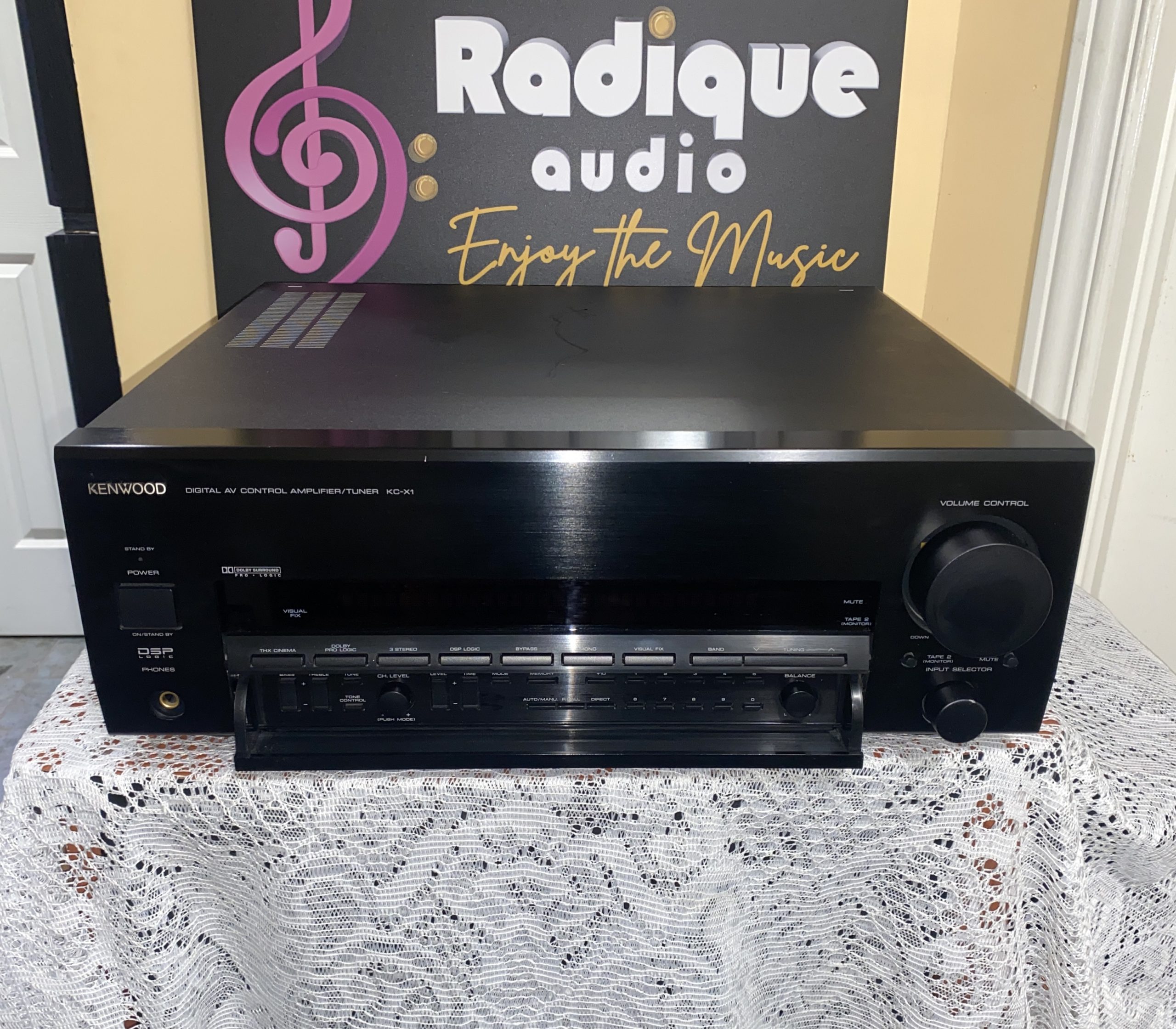

Kenwood KC-X1 Stereo Preamp with Tuner – MM Phono, Remote

Kenwood KC-X1 Stereo Preamp with Tuner – MM Phono Stage, and Remote

The Kenwood KC-X1 is an excellent quality stereo preamplifier and AM/FM tuner that delivers transparent, musical performance for analog and radio listening. At its core, this is a serious stereo component: a dedicated preamp with a high-quality moving-magnet phono stage that connects directly to turntables, multiple line-level inputs for CD and tape playback, and an integrated AM/FM tuner with 30 preset memory. The unit excels in its primary role as the control and amplification center for a stereo-focused audio system, particularly for vinyl enthusiasts seeking clean, low-distortion gain staging without unnecessary digital processing.

The phono stage is the standout feature. Designed for moving-magnet cartridges with 2.55mV input sensitivity and proper 47kΩ impedance matching, it connects turntables directly without requiring additional preamp hardware. The phono section delivers 78dB signal-to-noise ratio and accepts standard MM output levels without overloading (46mV equivalent at 1kHz). The preamp’s transparent design minimizes coloration, with measured THD+N of only 0.0055% at 1.2V output and 100dB signal-to-noise ratio on line inputs. The front-panel tone controls (100Hz ±3.9dB and 10kHz ±7dB) provide useful adjustment range for vinyl playback without compromising the signal path when flat response is preferred.

Additional inputs include a dedicated CD input, two tape monitor loops (which can also accommodate a graphic equalizer or other outboard signal processors), and antenna connections for the integrated AM/FM tuner. The tuner section provides 30 FM presets plus 15 AM presets, solid frequency response (15Hz-15kHz on FM), and reliable reception characteristics. The unit outputs a full 9.2 volts at 1kHz clipping—more than adequate to drive a variety of power amplifier designs. All functions are controlled via the included system remote, and the unit ships with its comprehensive printed manual detailing signal flow, input/output specifications, and setup procedures.

The Kenwood KC-X1 also includes surround-sound decoding (Dolby Pro Logic) and THX certification from its 1993 design era—features of interest to vintage audio collectors and enthusiasts, though the unit is optimized and best suited for stereo operation with conventional audio sources.

At 10.5kg (23.1 lbs), this component reflects serious audio-first engineering and robust construction. The substantial weight is the result of multiple internal circuit boards on independent levels, a heavy-duty power supply, and quality transformers—all hallmarks of designs built to deliver decades of reliable performance.

Preamp Section:
Output at 1kHz clipping: 9.2 volts
Frequency Response (stereo mode): 20Hz-20kHz +0, -0.6dB
THD + N at 1.2V output: 0.0055%
Input Sensitivity (CD): 180mV, (Phono): 2.55mV MM
Signal-to-Noise Ratio (line): 100dB, (Phono): 78dB
Phono input impedance: 47kΩ || 200pF
Phono overload levels (1kHz equivalent): 46mV
Tone controls: 100Hz ±3.9dB, 10kHz ±7dB (defeatable)
Subsonic filter: 18Hz high-pass

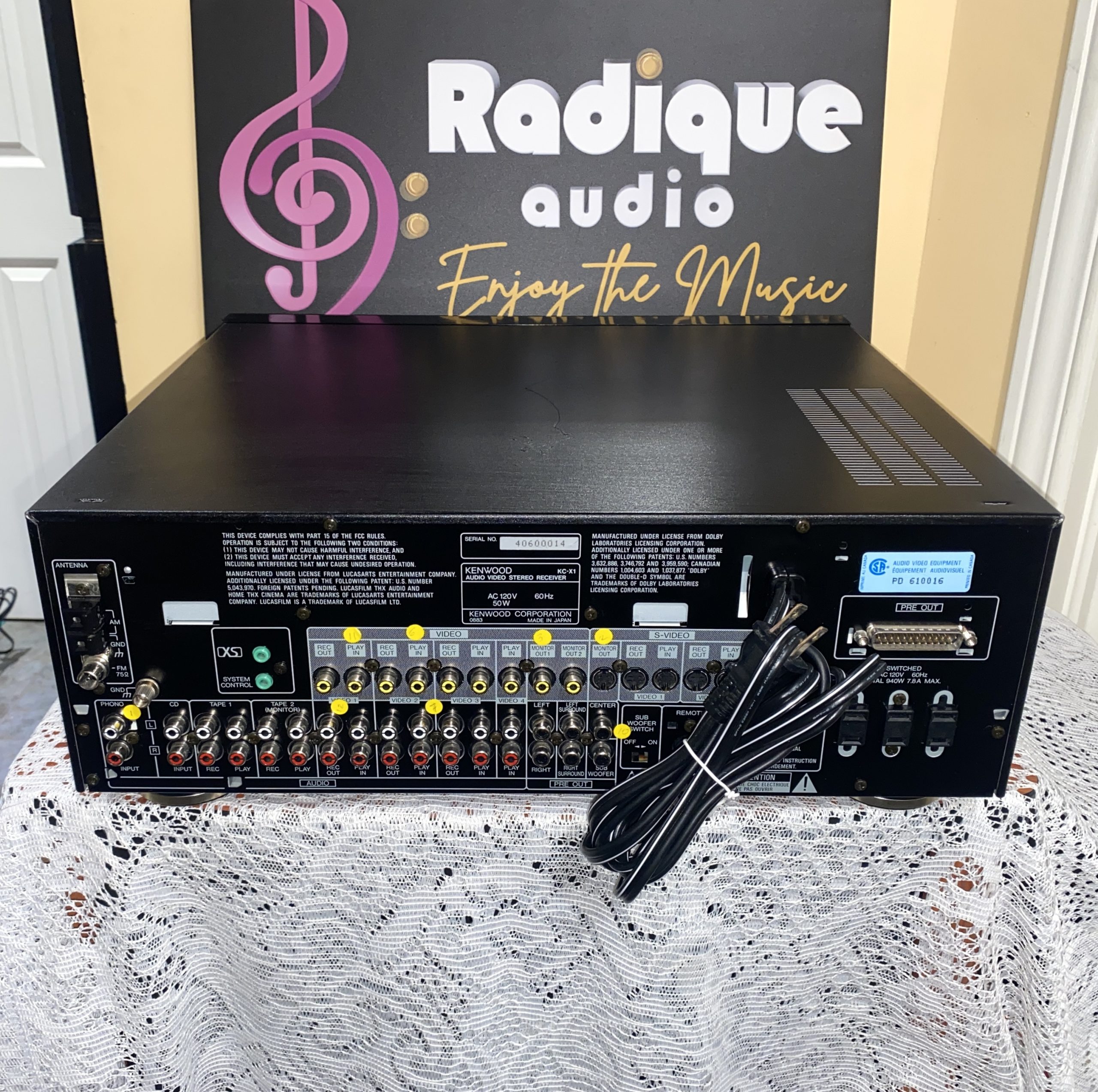

Audio Connectivity:
Moving-magnet phono input with dedicated ground
CD input
Tape 1 and Tape 2 (full record/playback loops – can be used for graphic EQ or outboard processors)
6 independent RCA outputs (Left, Right front outputs; plus additional channels for surround use)
AM/FM tuner with 30 FM presets, 15 AM presets
3 switched AC outlets (940W combined capacity)
Remote control
Includes original remote control and printed manual

Dimensions: (Width x Height x Depth) 440 x 161.5 x 380 mm (17.3 x 6.4 x 15 inches)
Weight: 10.5 kg (23.1 lbs)

The Kenwood KC-X1 is ideally suited for analog-focused listeners and vinyl enthusiasts seeking a high-quality, all-in-one control center. The transparent preamp section, dedicated phono stage with proper impedance matching, and integrated tuner make this an excellent centerpiece for a stereo-first system. The build quality is evident throughout—multiple internal circuit boards, robust power supply, and serious audio-first engineering combine to create a component designed for decades of reliable performance.

Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence; asking $295.
