NAD 502 CD Player – Coaxial Digital Out, Plays CD-Rs

A great sounding NAD single-disc CD player from the early nineties, extensively serviced on our bench, with a coaxial digital output and the happy knack of playing your burned CD-Rs.

What it is

The 502 is classic NAD: designed and engineered by NAD Electronics in London, built to NAD’s specifications in Taiwan, and focused on sound rather than features. Inside is a Panasonic MN6474AM MASH 18-bit converter with 4x oversampling, fed by the well-regarded Sony KSS-210A laser mechanism. It is quiet, clean and detailed, with a signal-to-noise ratio above 110 dB and distortion of just 0.0025%.

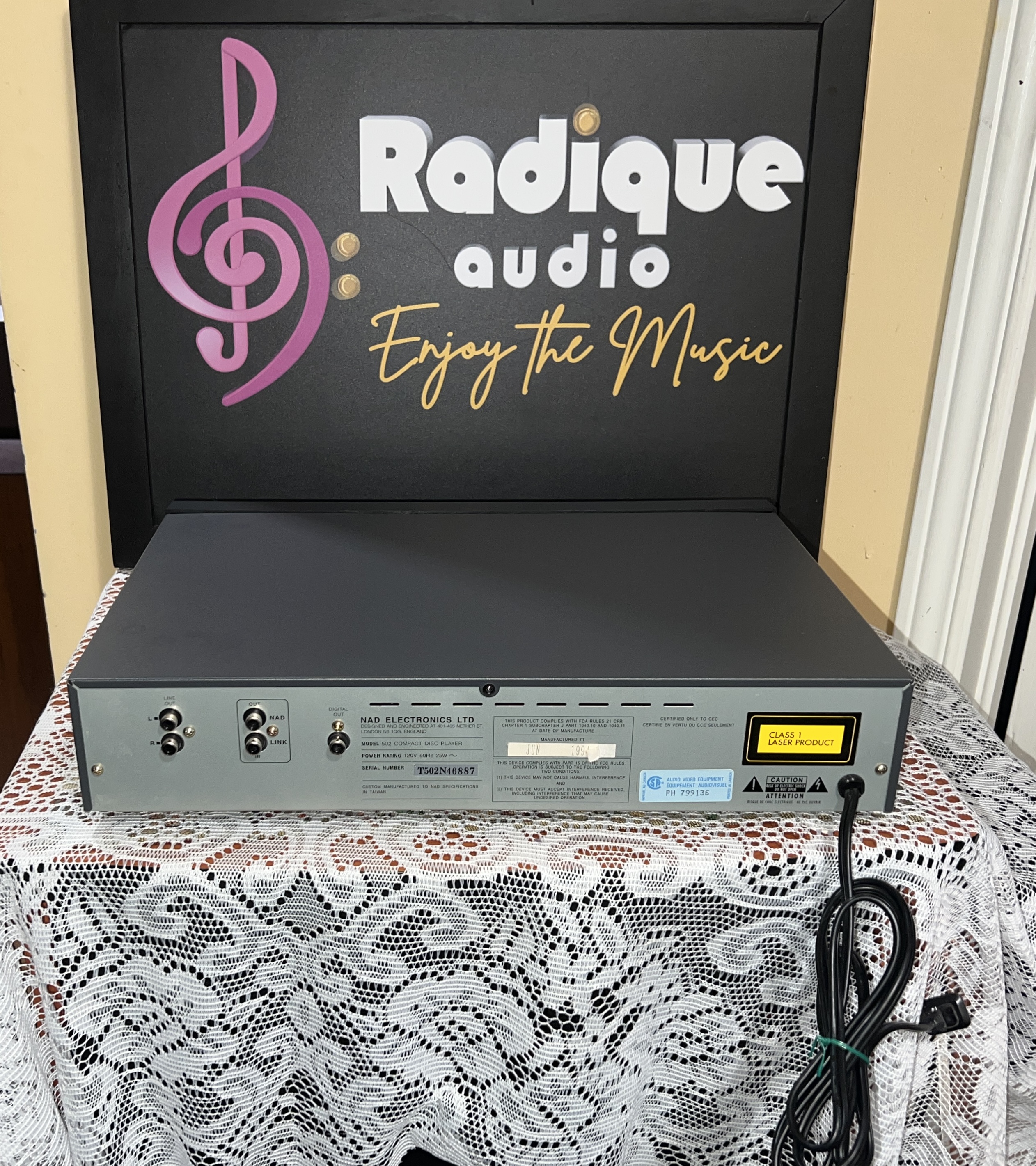

Two things make it especially useful today. The coaxial digital output lets you run the 502 as a transport into a modern DAC or a receiver’s digital input, and it reads CD-Rs, so your burned discs and home compilations play as happily as your pressed CDs. On the rear, NAD Link connections let it work with a compatible NAD amplifier.

The service it has had

Every CD player we service goes through our bench before it is listed:

And, as each player requires:

Condition

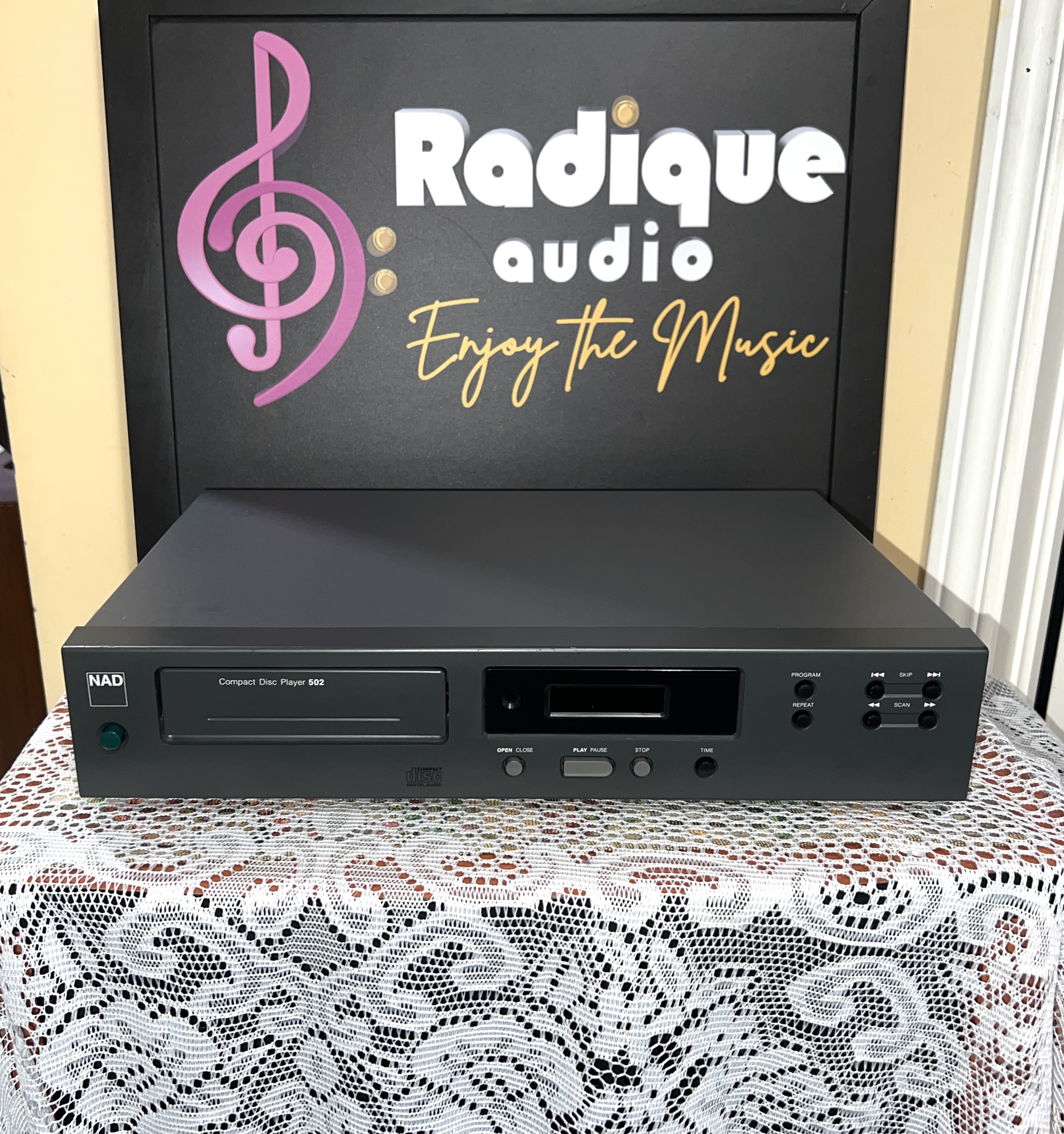

Very Good. The dark grey faceplate and case present well, as the photographs show.

Proper NAD sound, a digital output for your modern DAC, and it plays the discs you burned yourself.

Available for pickup in Kanata, or shipped across Canada and internationally — we have sent equipment to fifteen countries in the past year, each piece packed in-house in 275 lb test double-wall boxes. Live shipping rates for your address are calculated at checkout. Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. Available for audition by appointment in Kanata.

NAD 502 Specifications

• Laser lens cleaned
• Disc tray and loading mechanism cleaned
• Controls and switches cleaned and deoxidized
• Every function tested: play, skip, search, program and repeat, tray, display, analogue and digital outputs, and CD-R playback
• Post-service burn-in and sign-off
• Tray and loading belts replaced
• Laser focus, tracking and output adjusted
• Laser pickup replaced
• Mechanism and sled cleaned and lubricated
• Power supply capacitors replaced
• Display lamps replaced
• Type: single-disc CD player
• Service: extensively serviced on our bench (see above)
• Converter: MN6474AM, MASH 18-bit, 4x oversampling
• Laser mechanism: Sony KSS-210A
• Frequency response: 20 Hz – 20 kHz (±0.5 dB)
• Total harmonic distortion: 0.0025%
• Dynamic range: 98 dB
• Signal-to-noise ratio: more than 110 dB
• Channel separation: more than 80 dB
• Output level (0 dB): 2.0 V rms · Output impedance: 120 ohms
• Outputs: analogue line out (RCA), coaxial digital out, NAD Link in/out
• Plays CD and CD-R
• Remote: not included
• Power: 120 V, 60 Hz, 25 W
• Designed and engineered in London, England; made in Taiwan
• Dimensions: (Width x Height x Depth) 16.5 x 3.7 x 10.2 inches (420 x 93 x 260 mm)
• Weight: 9 lbs (4.1 kg)

⚠️ Important Information for International Buyers

This unit is configured for North American 110/120V power. Buyers outside North America will require a step-down transformer and appropriate plug adapter.

✅ Buy With Confidence — The Radique Promise

Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. When you’re ready to move on, we’ll take it back. That’s the Radique difference.
