PSB SubSeries HD10 10″ Powered Subwoofer — 750W, 2000W Peak!

$595.00

A serious subwoofer in about a square foot of floor, from one of the most respected names in Canadian loudspeaker design, with deep, powerful bass for home theatre and most music.

✔️ Good condition — light scuffs on the top, and a little vibration when played loud (details below)
✔️ 10-inch driver, two passive radiators and a 750 W Class H amplifier
✔️ Line-level and high-level inputs — works even with a receiver that has no sub out
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping

1 in stock

Adding a subwoofer to your system? Read Caring for Your Subwoofer: set-up, placement, the habits that keep a sub alive, and how our subwoofer warranty works.
Description

A serious subwoofer in about a square foot of floor, from one of the most respected names in Canadian loudspeaker design, with deep, powerful bass for home theatre and most music.

What it is

PSB summarised the problem better than anyone else has: small, deep and loud — pick two. The HD10 was an eighteen-month attempt to have all three, and the HD in the name stands for High Density, which is the honest description of what they did. A 10-inch high-mass poly-coated fibre cone on an extra-heavy-duty cast aluminum basket, with an oversize magnet and a large-diameter voice coil, sits in a computer-modelled enclosure barely bigger than the driver itself, flanked by two opposing 10-inch passive radiators. Behind it is a Class H amplifier rated at 750 watts continuous and 2,000 watts of peak dynamic potential.

The two passive radiators face opposite sides of the cabinet, so their reaction forces largely cancel each other out. And because the radiators do the loading rather than a port tube, no internal volume is lost to plumbing. The result is output to a rated 30 Hz from a box that has no business reaching it, with as much as two inches of peak-to-peak excursion available when the material asks for it.

The Class H amplifier is the other half. Rather than sitting at a fixed rail voltage and shedding the difference as heat, it raises its supply only when the signal demands it, which is how 750 continuous watts fit inside a cabinet this size. PSB’s smart bass monitoring sits over the top, holding the driver inside its excursion limits so that what you hear at high level is still bass rather than a driver running out of room.

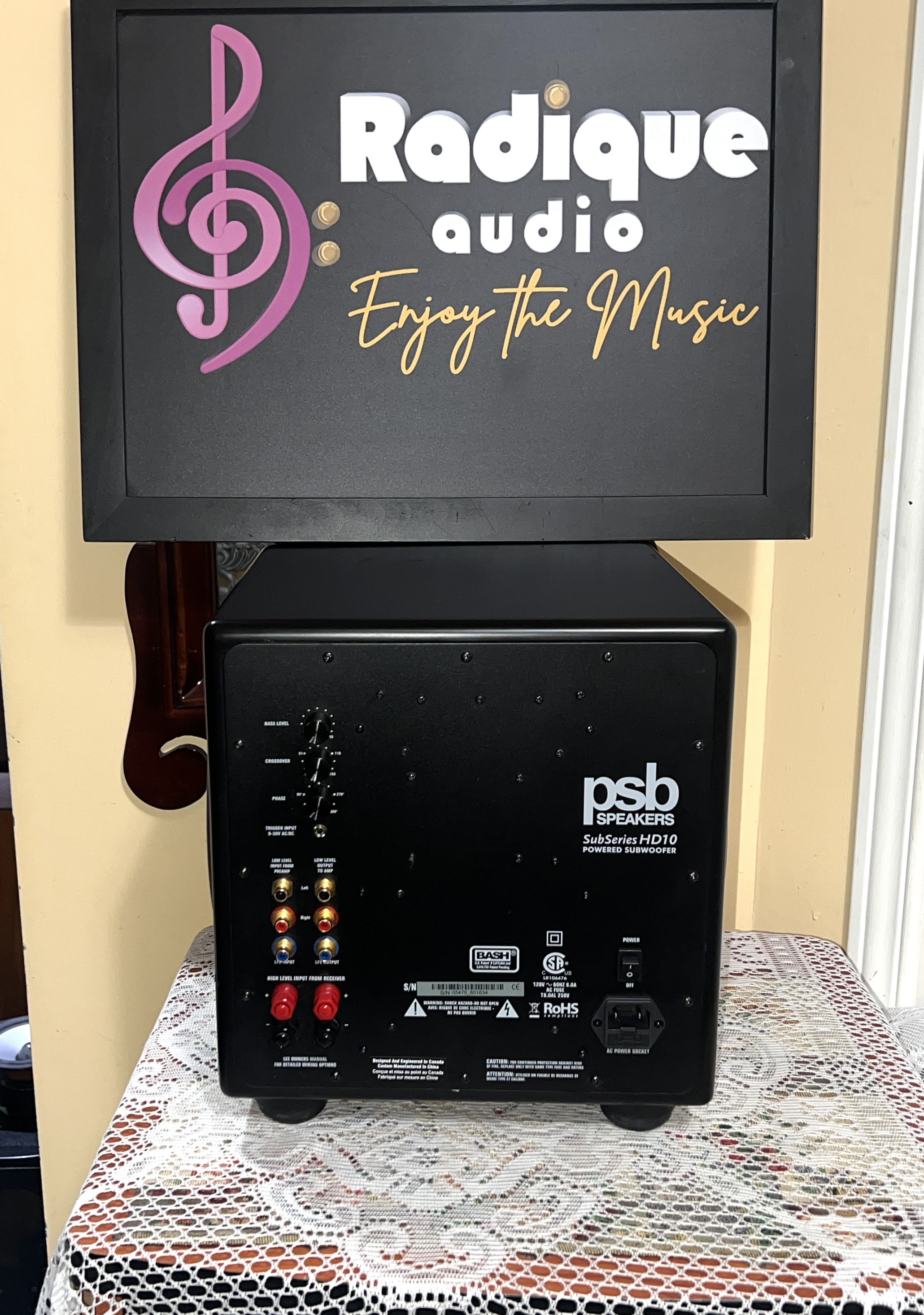

The connection panel deserves particular attention if you run vintage gear. Alongside line-level stereo and LFE inputs and outputs, the HD10 has high-level stereo inputs on five-way binding posts, which take bare wire, spades, pins or banana plugs (our own Radique Audio banana plugs are a neat fit, and our Custom Speaker Cable Builder will make the short run from your amplifier), so it takes a speaker-level feed straight from the amplifier terminals of a receiver that has no subwoofer output at all. A great many superb amplifiers from the 1970s have no LFE socket anywhere on them, and this is the sub that does not care. Bass level, crossover and continuously variable phase controls are all on board, along with auto on/off and a trigger input for anyone integrating it into a controlled system.

When Audio Ideas Guide’s Andrew Marshall reviewed it in June 2008, he found its bass reaching down to 25 Hz before rolling off.

The HD10 launched in 2007 at US$1,499, about $2,400 in 2026 Canadian dollars. For comparison, PSB’s current compact subwoofer, the SubSeries BP8, sells new in Canada for $2,599 CAD (approx. US$1,870).

Condition

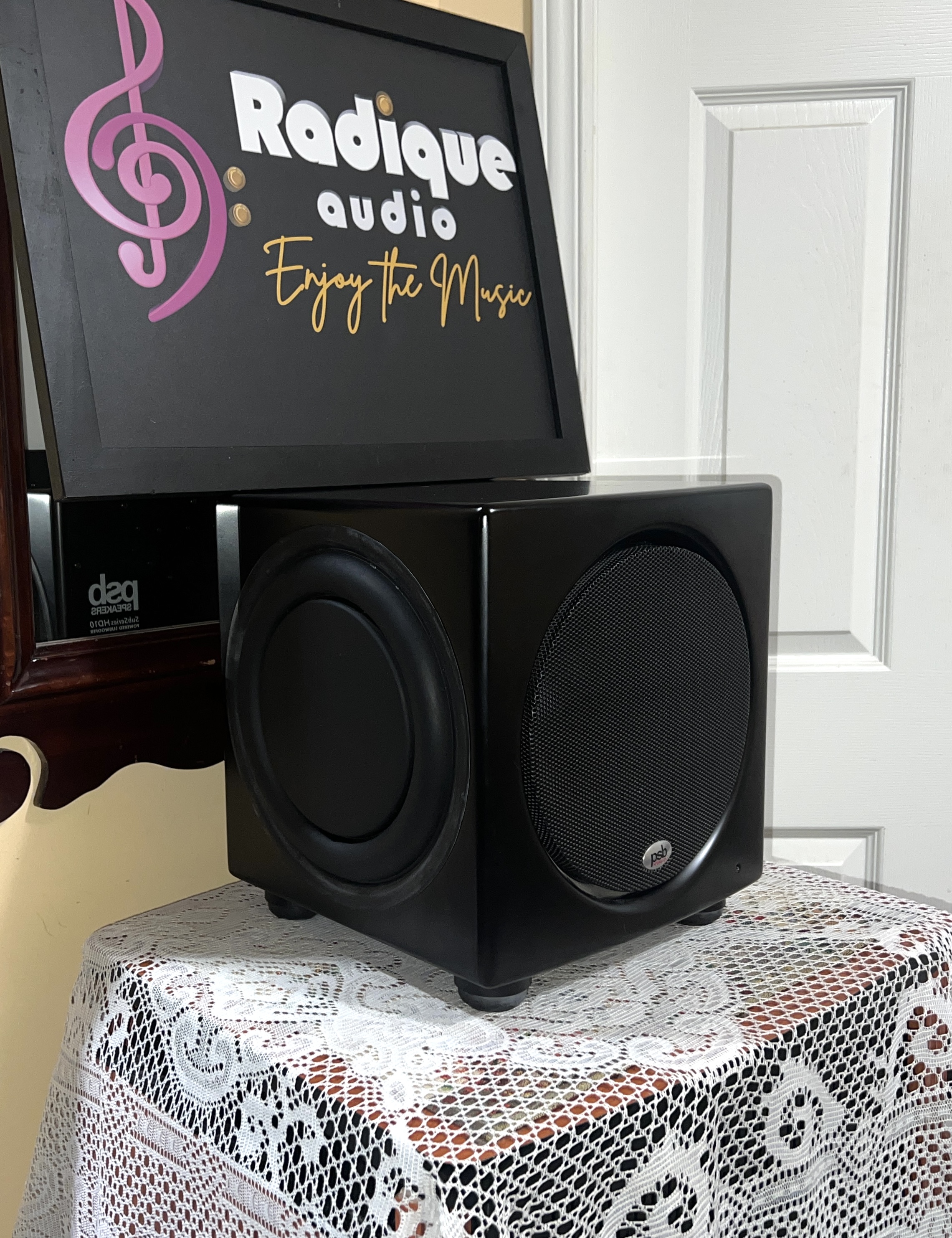

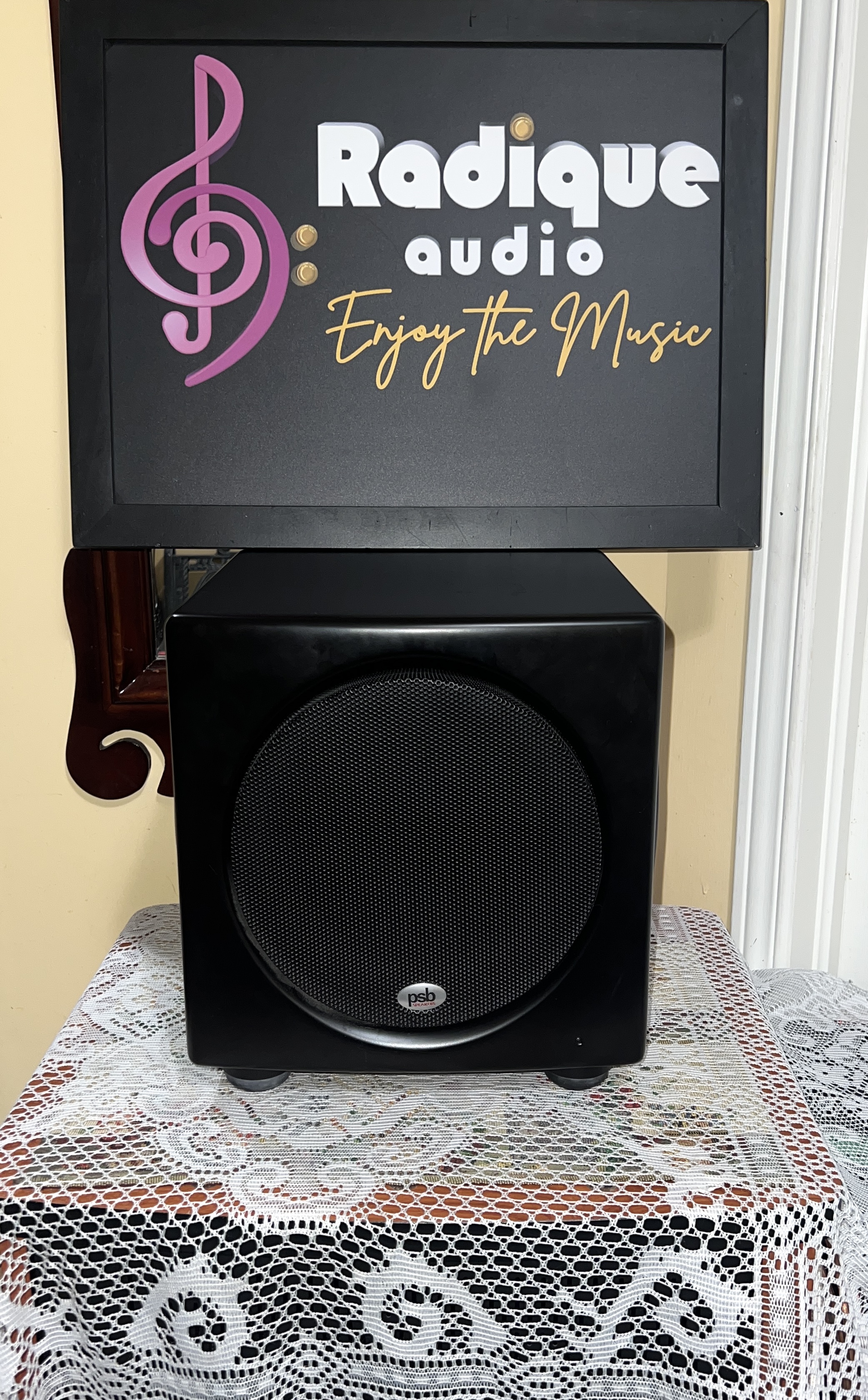

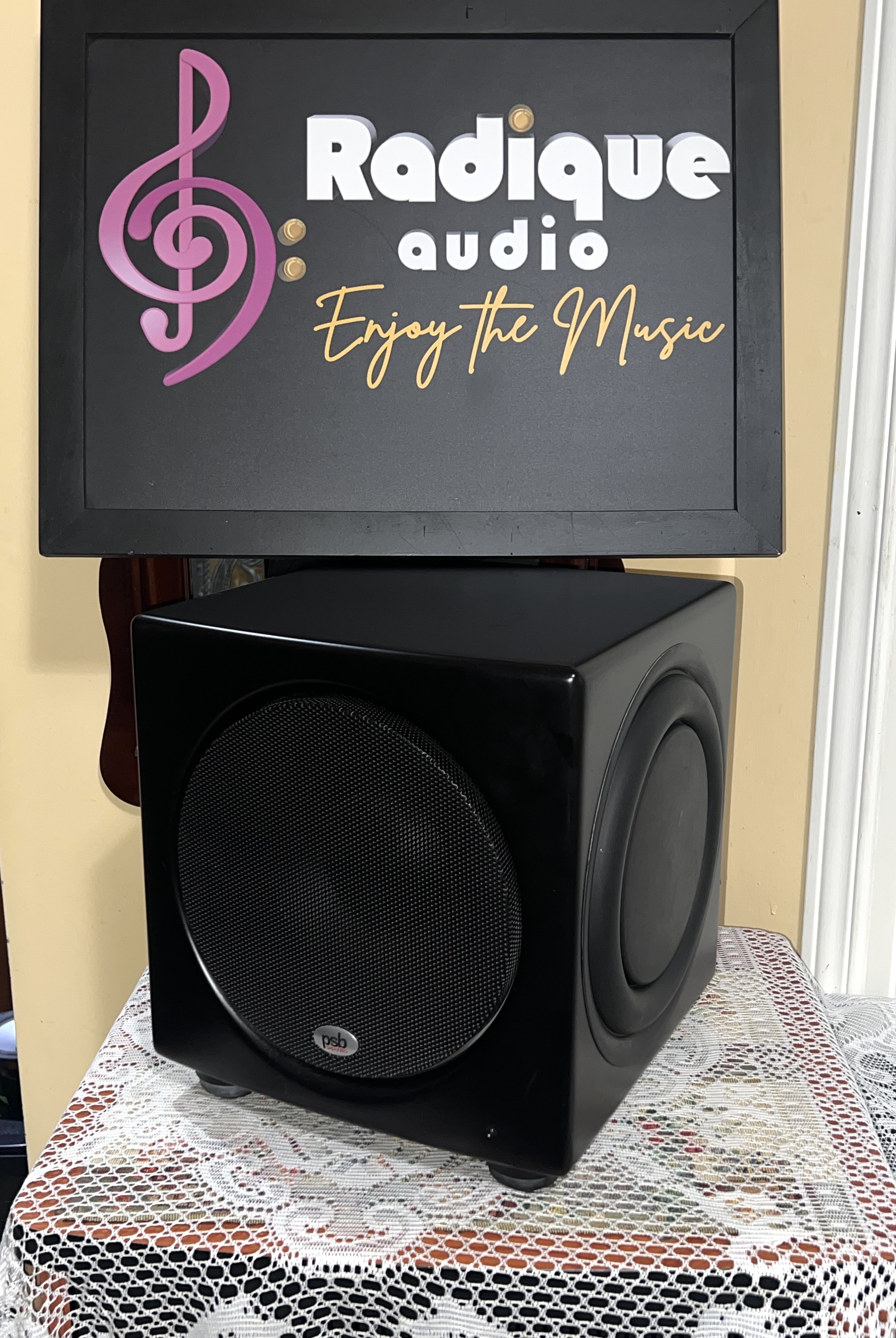

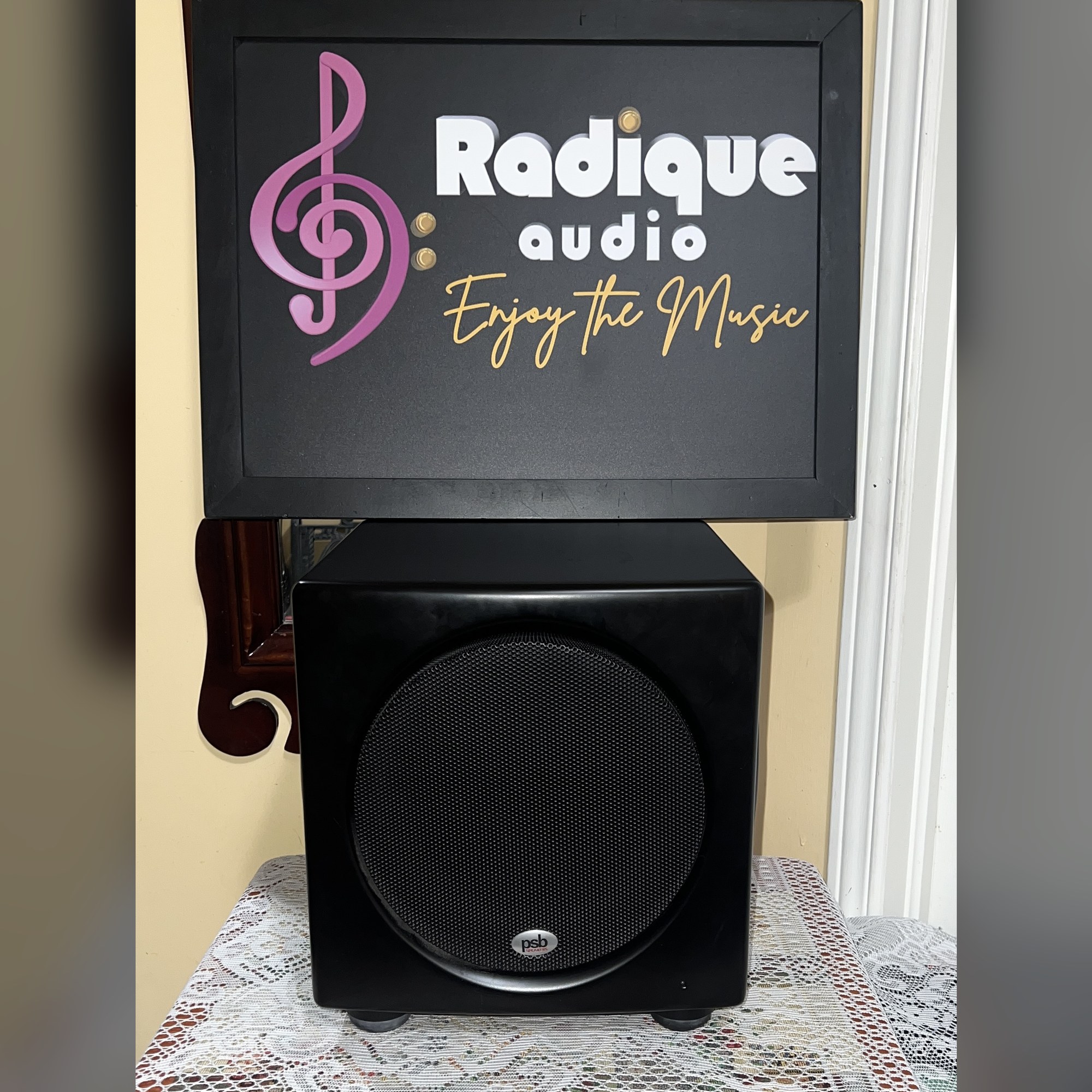

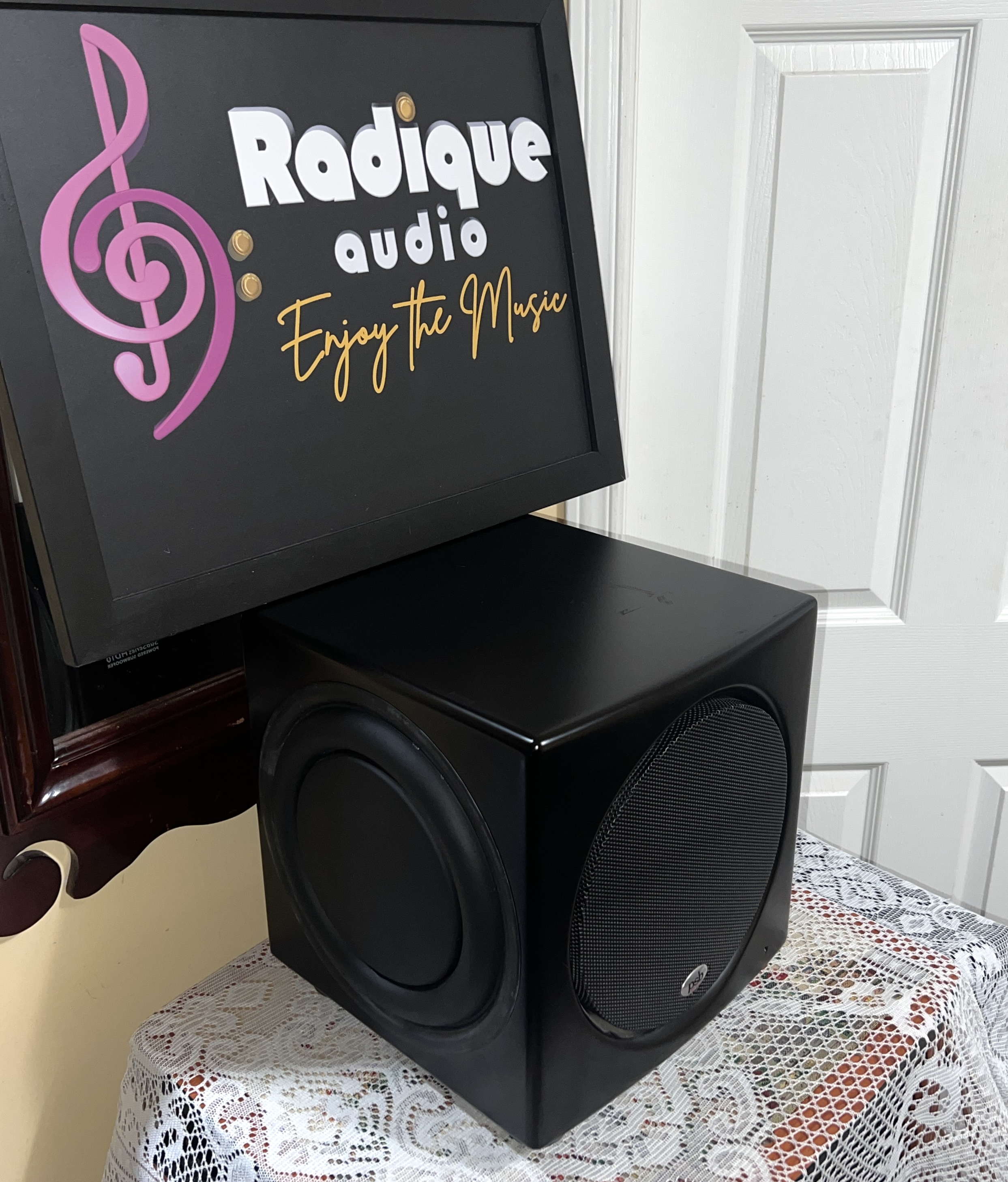

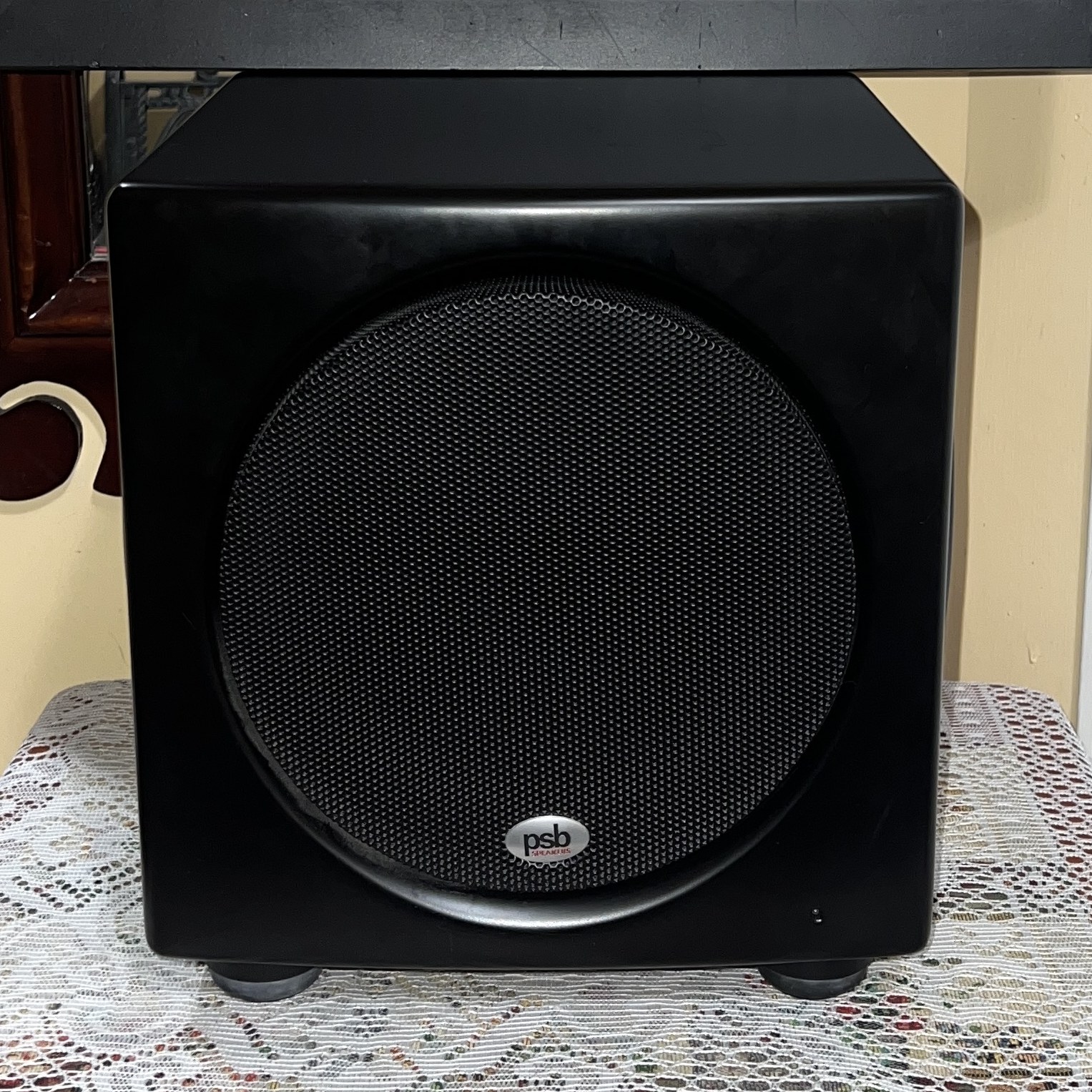

Good. The satin black cabinet is clean on the front, sides and back, but the top carries a few light scuffs near the front right corner, visible in the photographs. The grille, PSB badge, controls and all four feet are intact.

Its sound is also graded Good, and it is still a very good subwoofer. Bass extension is excellent, so is its output for a cabinet this compact, and it sounds great at lower volumes. We did note a little vibration when it is played loud, so it is an excellent match for home theatre and music in a medium or larger room. In a small, enclosed space it is happiest at moderate levels, where even a near-field setup can work well.

In Very Good condition we would list an HD10 at $745 CAD (approx. US$535). Because of the scuffs and that note, this one is $595 CAD (approx. US$430).

Deep, powerful bass from a cabinet you can live with, an amplifier with real headroom, and inputs that work with the vintage amplifier you already own.

Available for pickup in Kanata, or shipped across Canada and internationally — we have sent equipment to fifteen countries in the past year, each piece packed in-house in 275 lb test double-wall boxes. Live shipping rates for your address are calculated at checkout. Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. Available for audition by appointment in Kanata.

PSB SubSeries HD10 Specifications

  • Design: powered subwoofer, front-firing 10″ driver with two opposing 10″ passive radiators
  • Active driver: 10″ high-mass poly-coated fibre cone, cast aluminum basket, oversize magnet
  • Amplifier: Class H, 750 watts continuous, 1,000 watts dynamic, 2,000 watts peak dynamic
  • Low-frequency extension: 30 Hz (PSB rating)
  • Driver excursion: up to 2 inches peak to peak
  • Protection: PSB smart bass monitoring
  • Inputs: line-level stereo and LFE on gold-plated RCAs; high-level stereo on five-way binding posts (bare wire, spades, pins or banana plugs, including our Radique Audio banana plugs)
  • Outputs: line-level stereo and LFE on gold-plated RCAs
  • Controls: bass level, crossover, continuously variable phase, auto on/off, trigger input
  • Finish: satin black
  • Designed and engineered in Canada
  • Dimensions: (Width x Height x Depth) 12 x 13 x 13 inches (305 x 330 x 330 mm)
  • Weight: 35 lbs (15.9 kg)

🔊 Subwoofer Cable

This subwoofer takes a line-level feed on RCA. Our Gold Series Subwoofer Cable is a shielded lead built for exactly that run, in stock and ready to go. 👉

🔌 Speaker Cable, Built on Our Own Bench

The speaker terminals here are five-way binding posts, so they take banana plugs or spade lugs and you have the run of the options. We hand-build speaker cable here in any length you need — choose the gauge and the terminations on our Custom Speaker Cable Builder. If you would rather terminate cable you already own, we make our own gold-plated banana plugs and spade connectors as well. 👉

⚠️ Important Information for International Buyers

This unit is configured for North American 110/120V power. Buyers outside North America will require a step-down transformer and appropriate plug adapter.

✅ Buy With Confidence — The Radique Promise

Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. When you’re ready to move on, we’ll take it back. That’s the Radique difference.

📦 Watch how we protect your gear — our unboxing video.

📺 Curious about our business? Check out our YouTube channel for behind-the-scenes videos and more!

📞 Questions? Use the Ask a Question button above, or call us at 613-416-9995.

$595.00
Additional information
Weight37 lbs
Dimensions17 × 16 × 17 in
Power HandlingOver 200 W
Woofer Size12″
About brand
PSB at Radique
We service PSB, too. Bring us your own PSB speakers and subwoofers, including Image tweeter replacements for repair, servicing or restoration (speakers up to 80 lbs each), with a 90-day warranty on the work. See our Audio Service page

PSB began in the summer of 1972 in St. Jacobs, Ontario, where Paul Barton and two high-school friends started building speakers. The name stands for Paul and Sue Barton. PSB says every speaker it makes is voiced in the National Research Council's anechoic chambers here in Ottawa. We carry PSB towers, bookshelf speakers, centre channels and subwoofers. We've had more than 440 PSB listings so far, covering nearly 90 different models, second only to our other big Canadian brand, Paradigm. Every used PSB here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

Our five best-selling PSB models so far: the Alpha Intro LR bookshelf speakers, the Image 8C centre, the Image 4T towers, the Alpha SubZero i subwoofer and the Alpha B bookshelf speakers.

The PSB story, 1972 to today

Paul Barton founded PSB in St. Jacobs, Ontario, in the summer of 1972 with two high-school friends, and named it for himself and Sue Barton, his high-school sweetheart and now his wife. PSB stayed in St. Jacobs for about its first eight years.

The Ottawa connection. In 1973 or 1974 (sources differ) PSB's Beta II caught the attention of Dr. Floyd Toole at the National Research Council in Ottawa, and Barton has used the NRC's Ottawa facilities since 1974. PSB says every speaker it makes is still voiced in the NRC's anechoic chambers.

Lenbrook and Stratus. The Lenbrook Group of Pickering, Ontario bought PSB in the mid-1980s (PSB's own timeline says 1985), and PSB is now based in Pickering. The Stratus series began in the late 1980s, and Stereophile first reviewed the Stratus Gold in 1991.

Alpha, Image and beyond. The budget Alpha launched in 1991, and more than 50,000 pairs had sold by 2000. The Image series replaced the Century series in 1999, the Platinum flagship followed in 2002, then Synchrony in 2007 and Imagine in 2008. PSB marked its 50th anniversary in 2022 with the Passif 50.

Which PSB is which?

Early models (1970s and 1980s): the Beta II, Avanté II, Passif II and Project B2, then the R series after the Lenbrook purchase.

Stratus (late 1980s to the 2000s): the upper line, including the Mini, Silver, Gold and Gold i. The Gold is a three-way with a 10" woofer.

Alpha (1991 to today): the entry line, including the Alpha A/V, Alpha B, Alpha B1 and later the Alpha P5. Our best-selling Alpha Intro LR and Alpha B come from this family.

Image (1999 to the 2010s): one step above Alpha. Our best-selling Image 8C centre and Image 4T towers come from this family.

Platinum (2002), Synchrony (2007) and Imagine (2008): the higher lines of the 2000s.

SubSeries and SubZero: PSB's powered subwoofers, such as the Alpha SubZero i we sell often.

Buying used PSB: what to check

Where it was made. Lines launched from about 2008 onward, such as Imagine and later Image and Alpha models, were made in China. Check the label before calling an older PSB "made in Canada"; spec sheets from the 1990s list only the Pickering address.

Amplifier load. The Stratus Gold and Gold i have a 4-ohm nominal impedance, and owners say Stratus models want an amplifier with plenty of current.

Image tweeters. On Image series speakers, check that every tweeter works and sounds as bright as its partner. A dim or dead tweeter is a frequent point of failure on that line. We sell a new Peerless 1" replacement tweeter that drops straight in (Image 1B, 2B, 4T, 5T, 8C, 10S and more) and is more robust than the original, and we can install it while you wait.

Drivers. Owners report occasional woofer failures on older towers. Listen to each driver on its own.

Surrounds. Many PSB woofers, such as the Platinum T8's, use rubber surrounds rather than foam, but press gently on any woofer surround to check it.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
