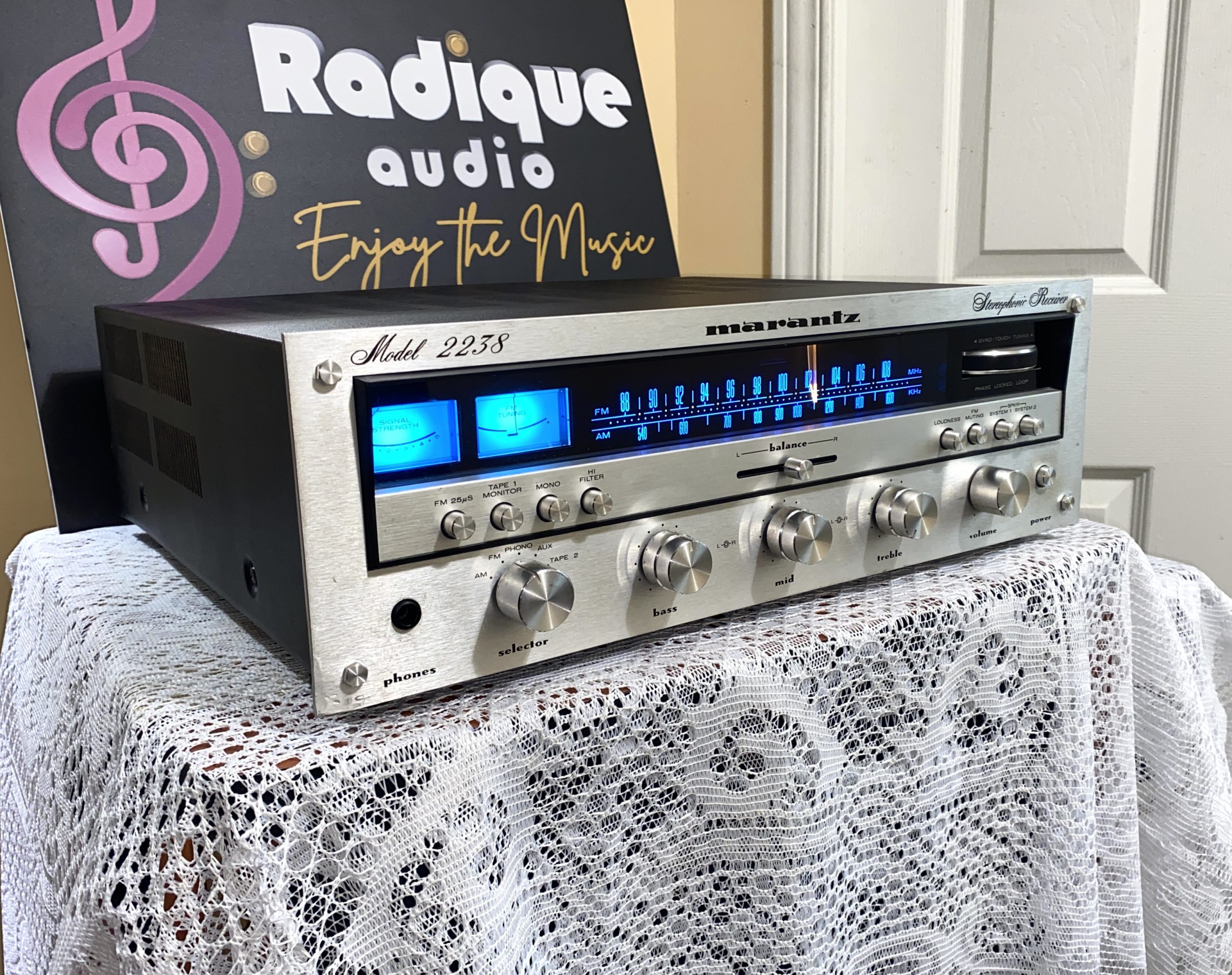

Very Clean Vintage 38 WPC Marantz Stereo Receiver 2238

Very Clean, Attractive, Vintage 38 WPC Marantz Stereo Receiver, Serviced and working beautifully.

Marantz 2238 – Classic 1970s Japanese Stereo Receiver with Legendary Marantz Sound

The Marantz 2238, crafted in Japan and introduced in 1976, is a highly regarded mid-range stereo receiver known for its warm, detailed sound and robust build quality. Featuring the iconic Marantz silver faceplate, and gyro touch tuning wheel, the 2238 exemplifies the golden era of hi-fi audio with both style and substance.

This receiver delivers 38 watts per channel into 8 ohms, utilizing a direct-coupled design for excellent low-frequency response and superior damping. Its highly sensitive dual-gate MOSFET FM front end and phase-locked loop (PLL) FM stereo demodulator ensure precise, low-distortion radio performance. The 2238 also offers three separate tone controls-bass, mid, and treble-using a Baxandall negative feedback circuit for finely tailored sound adjustment. With a clean, organized internal layout and high-quality components, the 2238 is both reliable and easy to service, making it a long-lasting investment for any vintage audio enthusiast.

Key Features:

Made in Japan, classic Marantz styling with silver faceplate and gyro touch tuning wheel

38 watts per channel into 8 ohms (stereo)

Direct-coupled amplifier design for wide power bandwidth and excellent low-frequency control

Dual-gate MOSFET FM front end and PLL FM stereo demodulator for outstanding tuner performance

Three independent tone controls (bass, mid, treble) for precise sound shaping

Highly regarded for its warm, musical sound and reliability

Specifications:

Power Output: 38 watts per channel (8Ω, stereo)

Frequency Response: 15Hz to 60kHz

Total Harmonic Distortion: 0.1%

Damping Factor: 45

Input Sensitivity: 1.8mV (MM phono), 180mV (line)

Signal to Noise Ratio: 75dB (MM), 87dB (line)

Outputs: 775mV (line), 1.5V (pre out)

Tuning Range: FM, MW (AM)

Semiconductors: 3 x IC, 45 x transistors, 29 x diodes, 1 x FET

Dimensions: 17.3 x 5.4 x 14.4 inches (440 x 137 x 365 mm)
Weight: 26.5 lbs (12 kg)

The Marantz 2238 is a true classic, offering legendary Japanese build quality, rich and detailed sound, and timeless design. Perfect for discerning collectors and music lovers alike-add this vintage gem to your system and enjoy the golden age of hi-fi.

Asking $1395 for this 2238, Serviced with our Level 1, plus full lamp replacement with LED lights (look great); buy with confidence and benefit from Radique’s “Bumper to Bumper” warranty and Perpetual trade back policy.
