Yamaha 500 Watt 5.1 AVR w/ Phono, Pre-Outs, Main-Ins RX-V1000

Yamaha 500 Watt 5.1 AVR w/ Phono, Pre-Outs, Main-Ins

Versatile, audiophile grade Yamaha model, perfect for double duty in a budget music + home theater system.

Yamaha RX-V1000 is a 5-channel receiver providing the finest performance and processing available for music and video sound. 5 channels are: L/R Main, Front Ctr, L / R Rear Effects. It has a pre-out for Rear Center to deliver the newest 6-channel formats Dolby Digital Matrix 6.1 and DTS ES. Features Yamaha’s Digital Sound Field Processing, Cinema DSP, Tri-Field Processing, still very popular Dolby Surround Pro Logic, Dolby Digital processing, Digital ToP-ART design for signal integrity. It is compatible with Panja and Crestron for easy set-up. Yamaha’s Digital ToP-ART, the Total Purity Audio Reproduction design philosophy maximizes digital quality and minimizes analog circuitry. Specifics include high performance digital circuitry using 24-bit DACs for all output channels, a digitally regulated volume control, processor direct switch, high density Cinema DSP circuitry, utilizing Yamaha’s 32-bit YS-928 LSI, two decoding LSIs, and low impedance drive amplifier featuring superior power transistors and gigantic heat sink. Yamaha’s exclusive Tri-Field Processing, which applies Digital Sound Field Processing technology to Dolby digital and DTS, creates a true movie theater experience in the home. It develops independent enhanced sound fields for the front signals as well as for left and right surround. Great for casual listening and parties, Yamaha’s All-Channel stereo puts music through all speakers in the system and maintains stereo imaging.

Key Features Channels 5.1 Output Power 500 Watt Amplifier Output Details 100 Watt – 8 Ohm – 20 – 20000 Hz – THD 0.04% – 2 channel(s) ( main ), 100 Watt – 8 Ohm – 20 – 20000 Hz – THD 0.04% – 2 channel(s) ( rear ), 100 Watt – 8 Ohm – 20 – 20000 Hz – THD 0.04% – 2 channel(s) ( surround ), 100 Watt – 8 Ohm – 20 – 22000 Hz – THD 0.04% – 1 channel(s) ( center ) Sound Effects BASS EXTENSION Surround Sound Effects Digital Cinema Sound Virtual 3D, Virtual CINEMA DSP Sound Output Type Surround Sound HDMI No Built-in Decoders DTS-ES decoder, Dolby Digital, Dolby Digital Matrix 6.1, Dolby Pro Logic Receiver Tuner Type Digital Receiver Tuner Bands AM/FM Response Bandwidth 10 – 100000 Hz

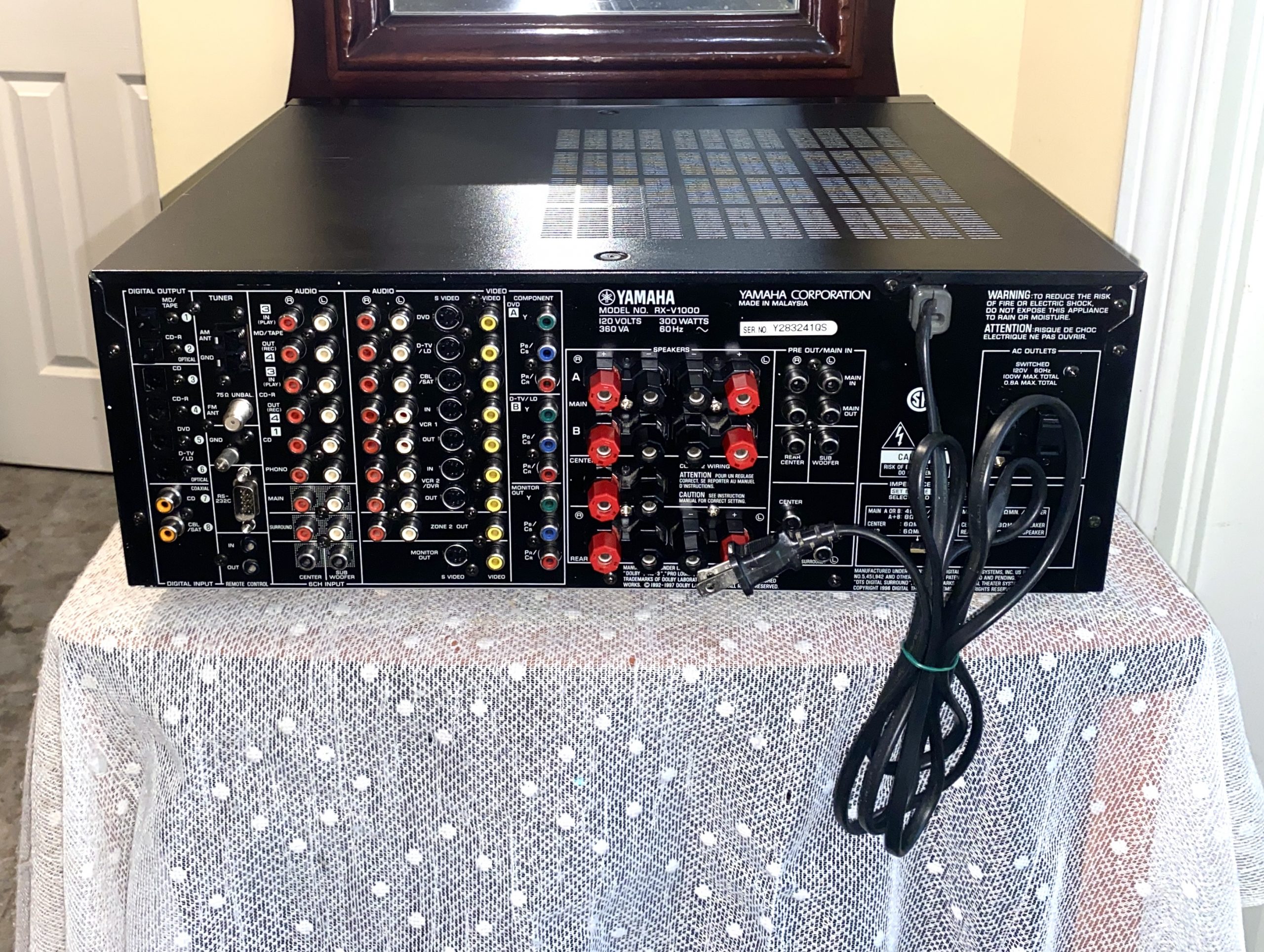

Connectivity Connectors Type 1 X AM Tuner Antenna input – rear, 1 X Component output – rear, 1 X Composite (Video) output – rear, 1 X Digital Optical input – front, 1 X FM Tuner Antenna input – rear, 1 X Headphones output – front, 1 X Multichannel Analog Audio input – rear, 1 X RCA (2 Audio Channels) input – front, 1 X S-Video input – front, 1 x AM antenna ( click-fit x 2 ) – rear, 1 x FM antenna ( F connector ) – rear, 2 X Analog Audio output – rear, 2 X Component input – rear, 2 X Digital Coaxial input – rear, 2 X Digital Optical output – rear, 3 X RCA (2 Audio Channels) output – rear, 3 X S-Video output – rear, 3 x composite video/audio output ( RCA phono x 3 ) – rear, 4 X Analog Audio input – rear, 4 X Digital Optical input – rear, 5 X RCA (2 Audio Channels) input – rear, 5 X S-Video input – rear Coaxial Digital Input Yes Optical Digital Input Yes Optical Digital Output Yes Headphone Jack Yes

Dimensions: Height 6.73 in., Width 17.13 in., Weight 33.07 lb.

Includes Yamaha Remote and soft copy of manual in PDF. Asking just $245 for this versatile, audiophile grade AVR with Phono and full set of pre-ins and main-outs.
