Pioneer SX-3600 Vintage Stereo Receiver – 30 WPC, Serviced

Price range: $493.00 through $635.00

Pioneer SX-3600 stereo receiver: 30 watts per channel, the signature blue Fluoroscan meters and warm early-1980s Pioneer sound — fully tested and through our Level 1 service.

✔️ Choose your cabinet: original walnut-finish side panels, or re-veneered in Ottawa Valley cherry
✔️ Fully tested and through our Level 1 service
✔️ 30 WPC, blue Fluoroscan meters, MM phono input, A/B speakers
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping

Compare

Add to wishlist

Description

Pioneer SX-3600 — Classic Pioneer Sound, in Its Original Walnut Finish or in Ottawa Valley Cherry

The Pioneer SX-3600 is one of the most rewarding mid-power receivers of the early 1980s — clean 30-watt power, the legendary Fluoroscan blue meters, and the brushed silver faceplate that defined the Golden Age of stereo. We offer it two ways: in its original walnut-finish side panels, presented as Pioneer intended, or with its original Pioneer cabinet re-veneered in real Ottawa Valley cherry by Radique Audio. Each has been fully tested and through our Level 1 service. Choose your cabinet above.

Sound and Performance

30 watts per channel into 8 ohms (RMS) is plenty to drive efficient bookshelf or floorstanding speakers in any normal living room. The SX-3600’s direct-coupled output stage delivers a warm, musical presentation — tight bass, sweet midrange, and the slightly forward voice that vintage Pioneer is known for. Dual tape monitor loops, AUX, MM phono, and a front-panel headphone jack give you all the connectivity a vintage rig needs.

The Fluoroscan Display

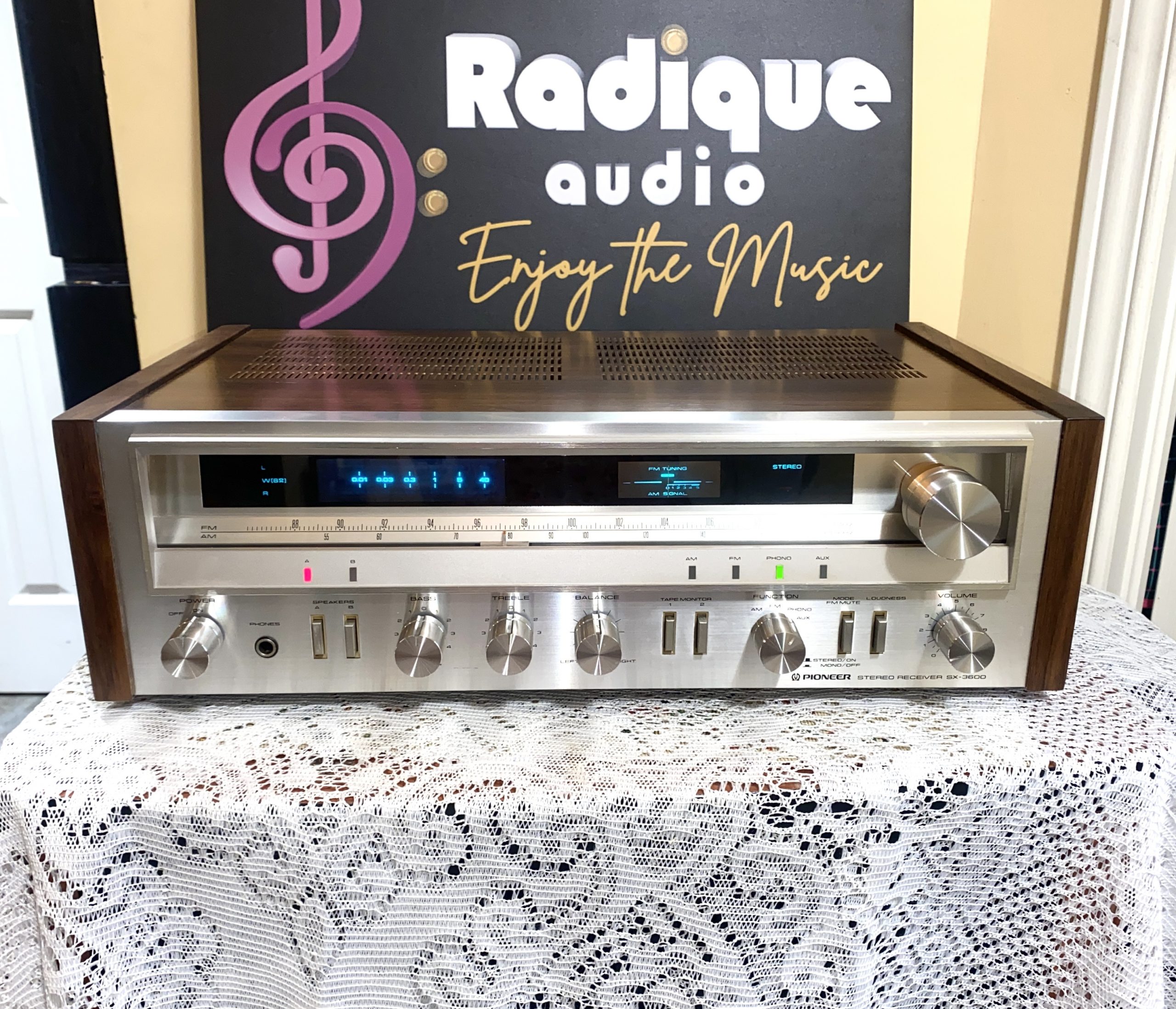

Pioneer’s Fluoroscan blue power meters with peak-hold are one of the most iconic visual signatures of the era. Paired with the analog FM dial and center-channel tuning meter, this receiver lights up a listening room beautifully.

Choose Your Cabinet

Original walnut-finish side panels

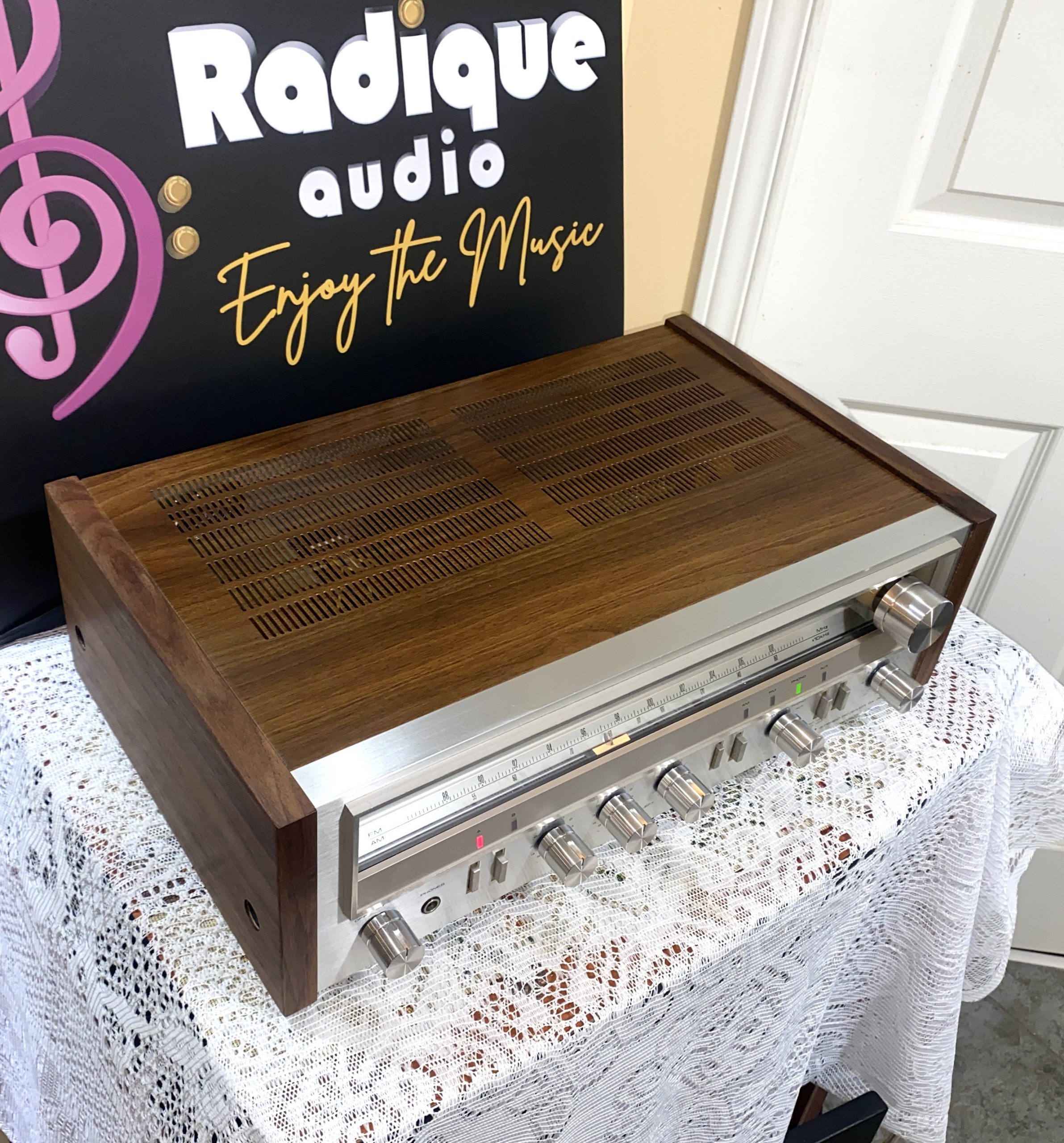

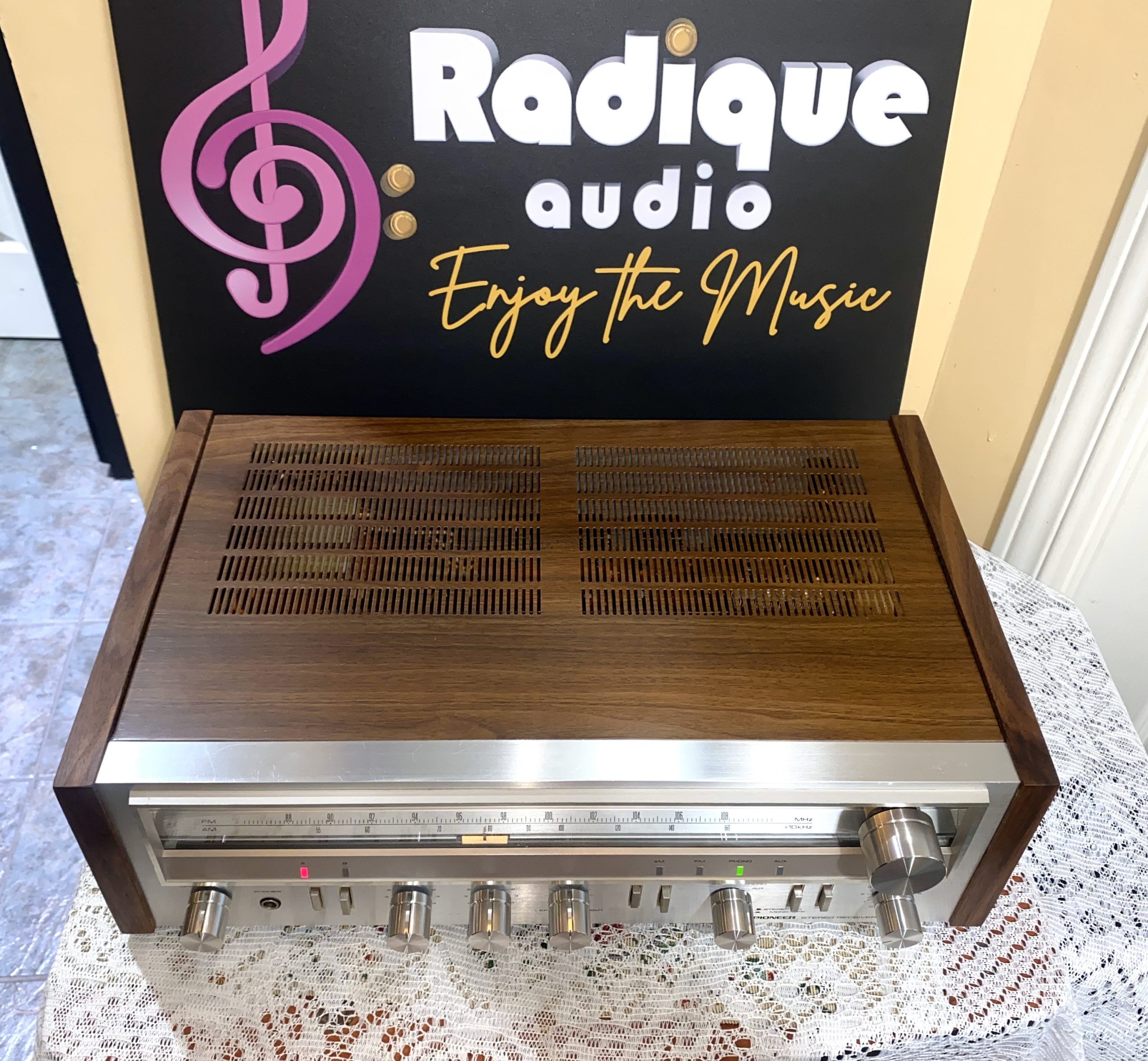

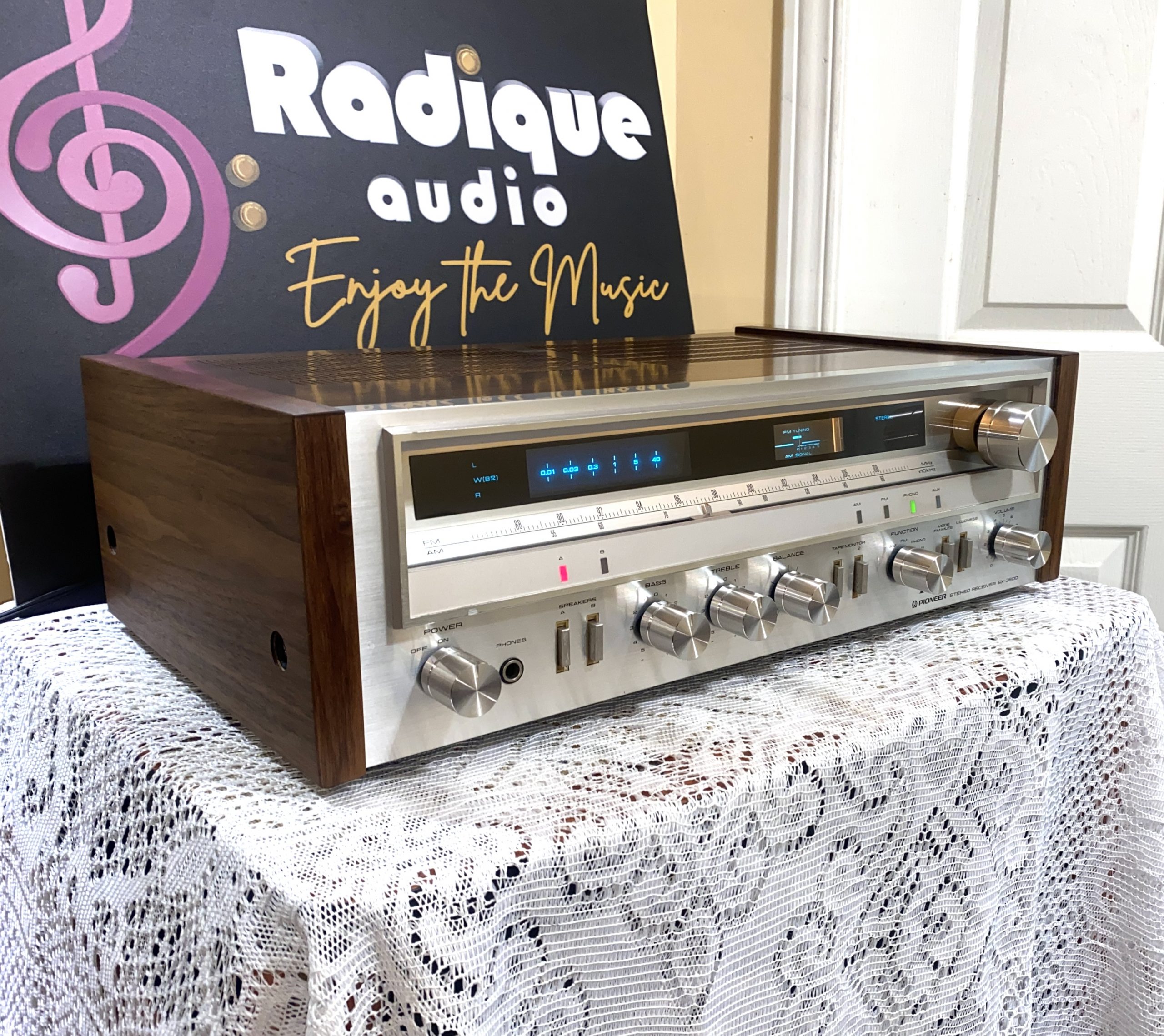

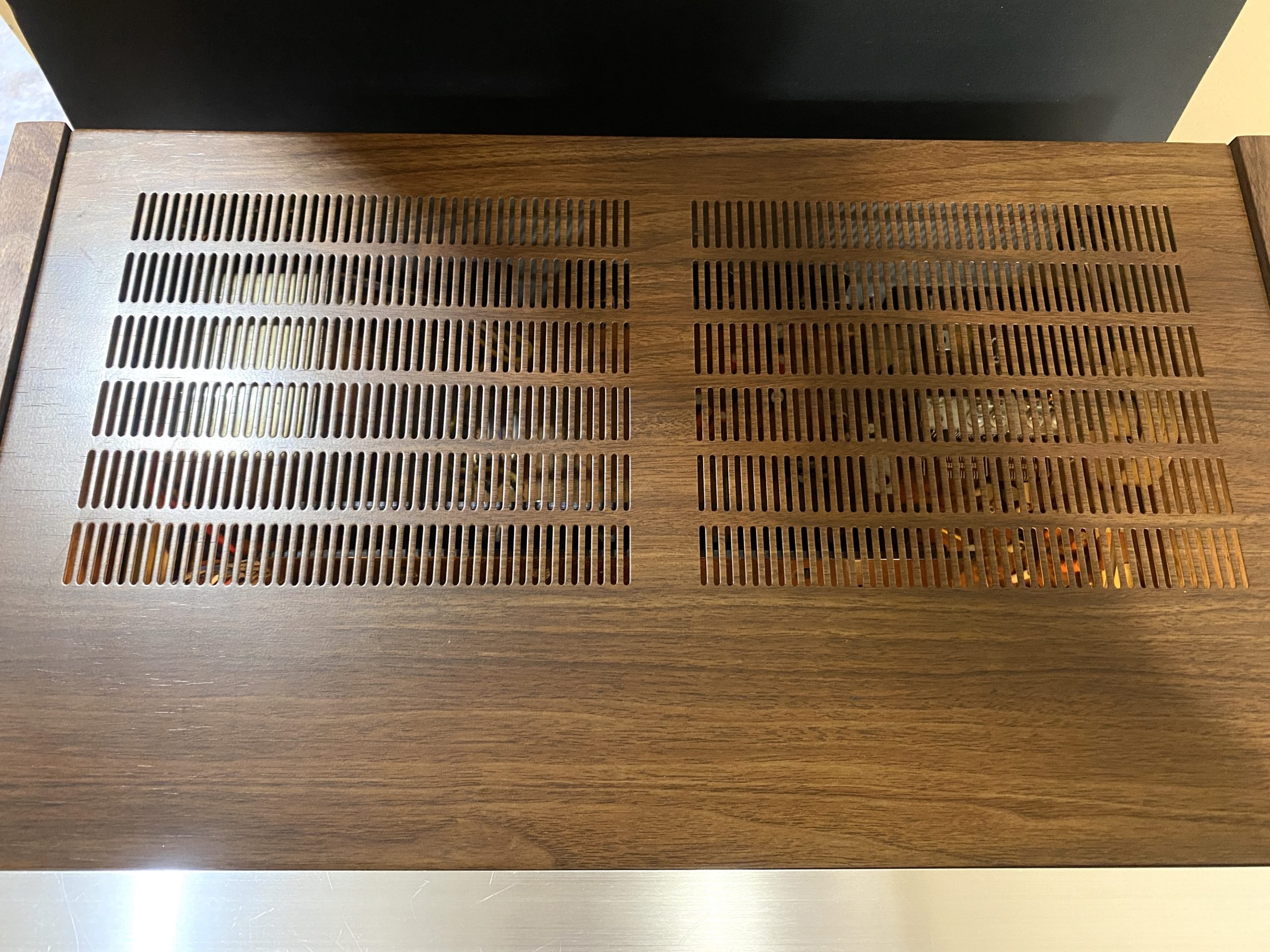

The SX-3600 wears its factory walnut-finish side panels — warm wood-grain tones that complement the brushed silver faceplate and look right at home alongside vintage furniture. A true period piece, presented as Pioneer intended.

Ottawa Valley cherry

This receiver wears its original Pioneer cabinet, refinished in-house at Radique Audio: the factory vinyl wrap stripped away and the sides and top re-veneered in real Ottawa Valley cherry, hand-finished with boiled linseed oil and beeswax. The cherry tones deepen with age into a rich reddish-amber that complements vintage speakers, turntables, and traditional furniture. No two of our cherry cabinets are exactly alike — each one is unique.

🌳 Caring for Your Cherrywood Cabinet

Each custom cherry cabinet is sanded to a silky 320-grit smoothness and hand-finished with boiled linseed oil and a final beeswax polish — no stains, no polyurethane, no synthetics. For tips on keeping it looking its best for decades, including safe cleaners, what to avoid, and how to manage sunlight exposure, see our Cherrywood Cabinet Care Guide. 👉

Pioneer SX-3600 Specifications

Power output: 30 W × 2 (8Ω, RMS, 0.05% THD, 20Hz–20kHz)
Frequency response: 10Hz–50kHz (AUX/Tape), 30Hz–15kHz (Phono)
Signal-to-noise ratio: ~96 dB (line), ~76 dB (phono)
Input sensitivity: 2.5 mV (Phono), 150 mV (Line)
Tone controls: Bass ±8 dB @ 100 Hz, Treble ±8 dB @ 10 kHz; Loudness +6 dB @ 100 Hz
Speaker terminals: A / B selectable
FM tuner: 11.2 dBf usable sensitivity, 40 dB stereo separation @ 1 kHz
Dimensions: 17.7″ W × 5.6″ H × 12.1″ D
Weight: 18.1 lbs (8.2 kg)
Cabinet: original walnut-finish side panels, or the original Pioneer cabinet re-veneered in Ottawa Valley cherry by Radique Audio

⚠️ Important Information for International Buyers

This receiver is configured for North American 110/120V power. Buyers outside North America will require a step-down transformer and appropriate plug adapter.

✅ Buy With Confidence — The Radique Promise

Backed by Radique’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. When you’re ready to move on, we’ll take it back. That’s the Radique difference.

📦 Watch how we protect your gear — our unboxing video.

📺 Curious about our business? Check out our YouTube channel for behind-the-scenes videos and more!

📞 Questions? Use the Ask a Question button above, or call us at 613-416-9995.

⭐ Don’t Just Take Our Word For It

Radique Audio holds over 600 customer ratings averaging 4.97 stars across six public platforms — Facebook Marketplace, Kijiji, Canuck Audio Mart, Google and others. Every rating lives somewhere we don’t control, so you can read the originals yourself, including the less flattering ones. See what our customers say. 👉

Additional information

Weight	21 lbs
Dimensions	16.1 × 21.7 × 9.6 in
Cabinet	Ottawa Valley cherry, Original walnut-finish side panels

About brand

Pioneer at Radique

We service Pioneer, too. Bring us your own Pioneer receivers, amplifiers, tuners, turntables, cassette decks and CD players for repair, servicing or restoration (not reel-to-reel decks), with a 90-day warranty on the work. See our Audio Service page

Pioneer began in Tokyo in January 1938, when Nozomu Matsumoto set up shop around the A-8 speaker he had built the year before. By the late 1970s its SX receivers were at the heart of the hi-fi power race. We carry Pioneer stereo receivers and AV receivers, CD players, cassette decks, tuners and equalizers. We've had more than 240 Pioneer listings so far, covering 140 different models. Every used Pioneer here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

Pioneer is one of our two top-selling brands of vintage amps and receivers, along with Marantz. Our five best-selling Pioneer models so far: the SX-650, SX-750, SX-580, SX-780 and SX-680, all vintage stereo receivers from the 1976 and 1978 SX families. We also offer our custom cherry cabinets for these vintage Pioneers, hand-made from all-natural Ottawa Valley cherry, and we've upgraded dozens of Pioneers with them so far.

The Pioneer story, 1938 to today

Nozomu Matsumoto developed the A-8 speaker in 1937, and in January 1938 he set up Fukuin Shokai Denki Seisakusho in Tokyo. "Pioneer" was first the name of that speaker. Some histories give 1936 in Osaka as the start, but Pioneer dates itself to January 1938 in Tokyo. The company was incorporated in 1947 and renamed Pioneer Electronic Corporation in 1961.

Stereo and the US. In 1962 Pioneer introduced the PSC-5A, which it calls the first stereo with separate speaker cabinets, and its first PL turntables. Pioneer Electronics U.S.A. was founded in New York in 1966.

The power race. After a 1974 US Federal Trade Commission rule tightened how amplifier power was rated, receiver makers competed on watts. Pioneer's SX-1250 of 1976 was rated at 160 watts per channel, and the SX-1980 of 1978 to 1980 at 270.

CD and Elite. The P-D1 of 1982 was Pioneer's first CD player, and Elite-branded components were on sale by 1985.

Today. Pioneer sold its home audio business to Onkyo in 2015, keeping its car and DJ businesses, and Pioneer-branded home theatre gear was later made under licence. In December 2025 CarUX, part of Taiwan's Innolux, completed its purchase of Pioneer Corporation, which now focuses on in-car products.

Which Pioneer is which?

Early-1970s SX receivers: models such as the SX-424 to SX-828, rated at about 15 to 50 watts per channel.

The 1976 "x50" SX receivers: from the SX-450 at 15 watts per channel up to the SX-1250 at 160. Our best-selling SX-650 and SX-750 come from this family.

The 1978 "x80" SX receivers: including the SX-580, SX-680 and SX-780 we sell most, up to the SX-1980 flagship with quartz-lock tuning, which weighs more than 35 kg.

Spec and Exclusive separates: higher-end amplifiers such as the Spec-1 preamplifier (1976 to 1980) and the Exclusive C3/M3 pair (1974).

Elite: Pioneer's upper line from the mid-1980s, for example the PD-9010X CD player.

PL turntables, CT cassette decks and CD players: PL turntables from 1962, such as the PL-12 and the linear-tracking PL-L1; CT decks such as the three-head CT-F1000; and CD players from the 1982 P-D1 to magazine-loading changers such as the PD-M6.

Buying used Pioneer: what to check

Controls and switches. Crackle when you turn a control or work a switch usually means dirt, and restorers clean every pot and switch.

Capacitors. Electrolytic capacitors in 1970s receivers are often past their best, and full restorations replace them.

Big SX models. Owners and restorers report heat stress on the power-supply board of large receivers such as the SX-1250. Ask what has been done.

Relay, lamps and bias. The protection relay is a common replacement, dial lamps burn out and are often converted to LED, and restorers set the bias and DC offset.

Cassette decks. Check the heads, fast-forward and rewind, Dolby and every button. Belts age even when the deck looks perfect.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
