Gorgeous Vintage Pioneer 20 WPC Stereo Receiver SX-535
$795.00
Out of stock
This one has sold. Looking for one?
We take these in regularly. Leave your name and we’ll email you the moment one arrives, before it goes up for sale.
Email me when one arrives
Give your next receiver Bluetooth. RA-Twin II Gold Series RX Bundle, $69.00 →
Other stereo receivers we have in stock now
3 in stock · $795.00 · all ship
Pioneer SX-550 Vintage Stereo Receiver — 20 WPC with Custom Cherry Cabinetry$795.00Ships
Pioneer SX-3600 Vintage Stereo Receiver — 30 WPC with Walnut Side Panels$795.00Ships
Pioneer SX-580 Vintage Receiver | 20 WPC | Cherry Wood Finish$795.00Ships
Give your next receiver Bluetooth.
The RA-Twin II adds Bluetooth streaming to any vintage receiver or amp with a spare input. The Gold Series RX bundle pairs it with our shielded 3.5 mm to RCA cable, a serious step up from the starter cable, for a higher-end system.
RA-Twin II Gold Series RX Bundle, $69.00 →Gorgeous Vintage Pioneer SX-535 20 WPC Stereo Receiver with Custom Cherry Wood Veneer (Japan)

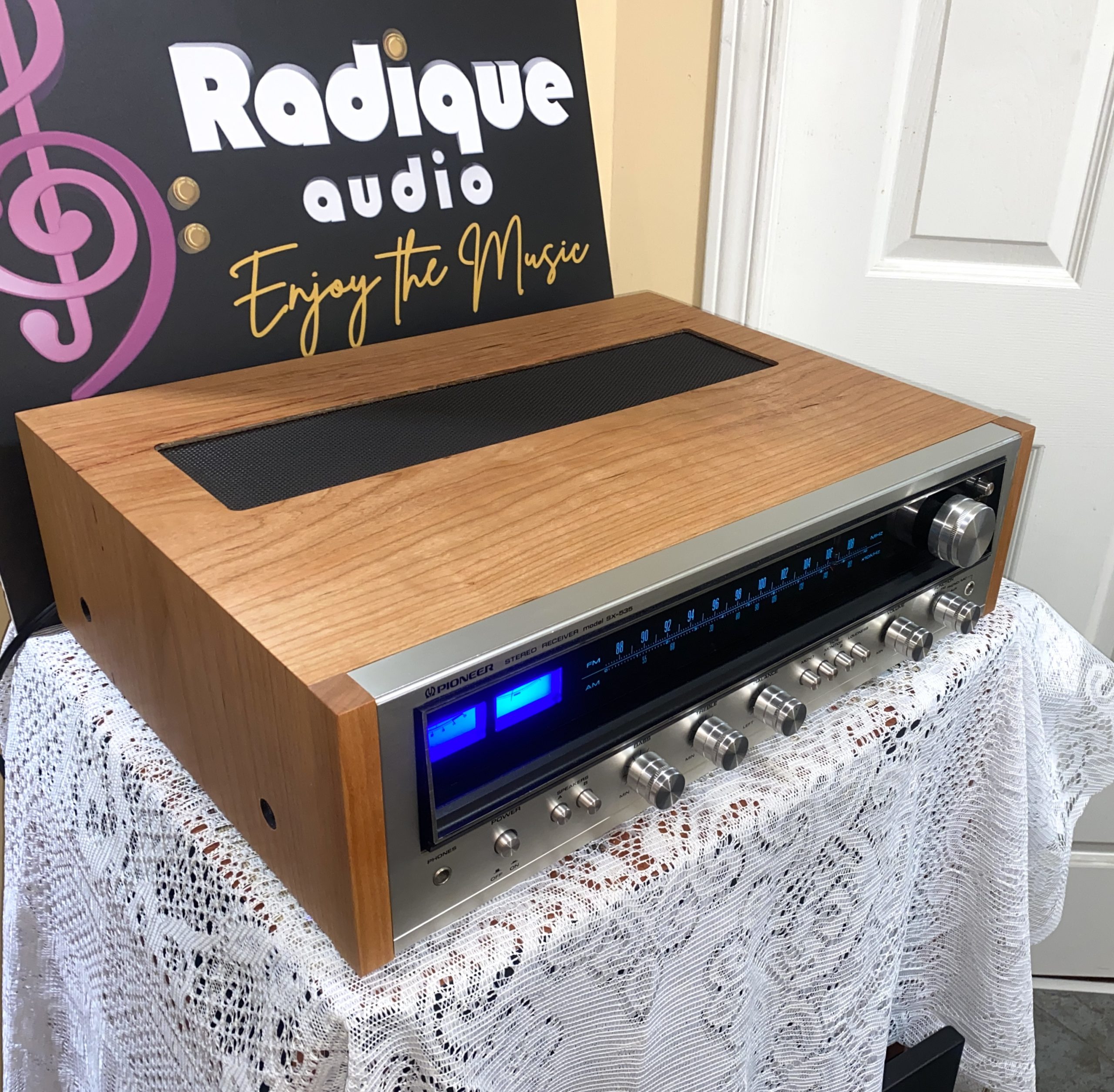

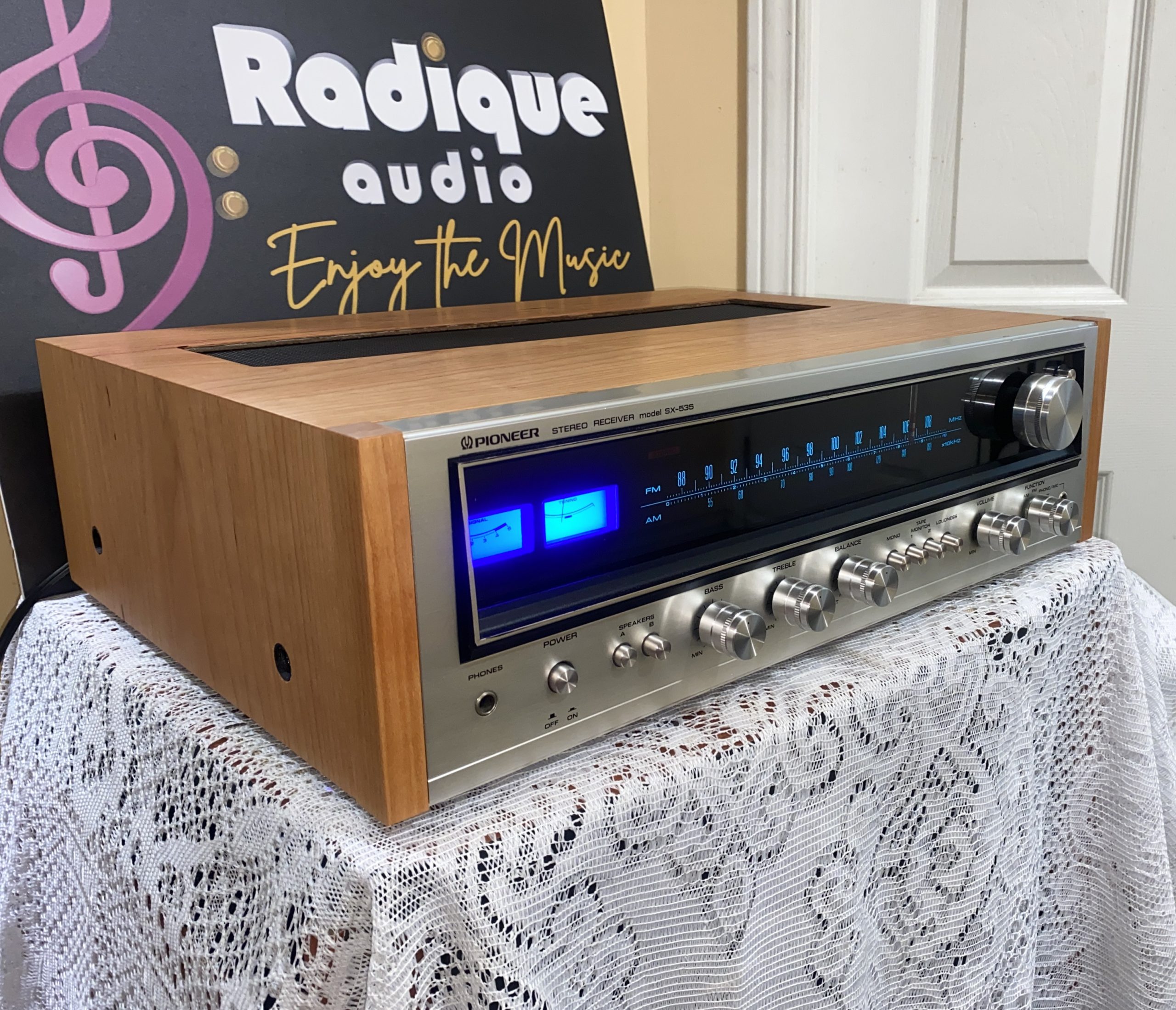

This beautiful Japanese-manufactured Pioneer SX-535 vintage receiver has been carefully restored by Radique and freshly customized with our gorgeous real wood cherry veneer, creating a stunning visual centerpiece that has undergone our Level One service and testing which should ensure many more years of reliable performance ahead. Originally retailing for $299.95 in 1974, this classic receiver embodies Pioneer’s “practical power” philosophy, delivering 20 watts per channel of pure, clean audio that proves high wattage isn’t everything when it comes to exceptional musical reproduction.
The SX-535 features Pioneer’s advanced FM tuner section with low-noise FET front end, 3-gang variable capacitor, and Phase Lock Loop MPX circuitry for exceptional reception clarity and stability. The precision RIAA-equalized phono stage uses a 2-stage direct-coupled design that faithfully reproduces every nuance pressed into your vinyl records without coloration. The direct-coupled OCL power amplifier design keeps total harmonic distortion to just 0.8% across the full audio spectrum while the discrete component construction ensures serviceability and long-term reliability.

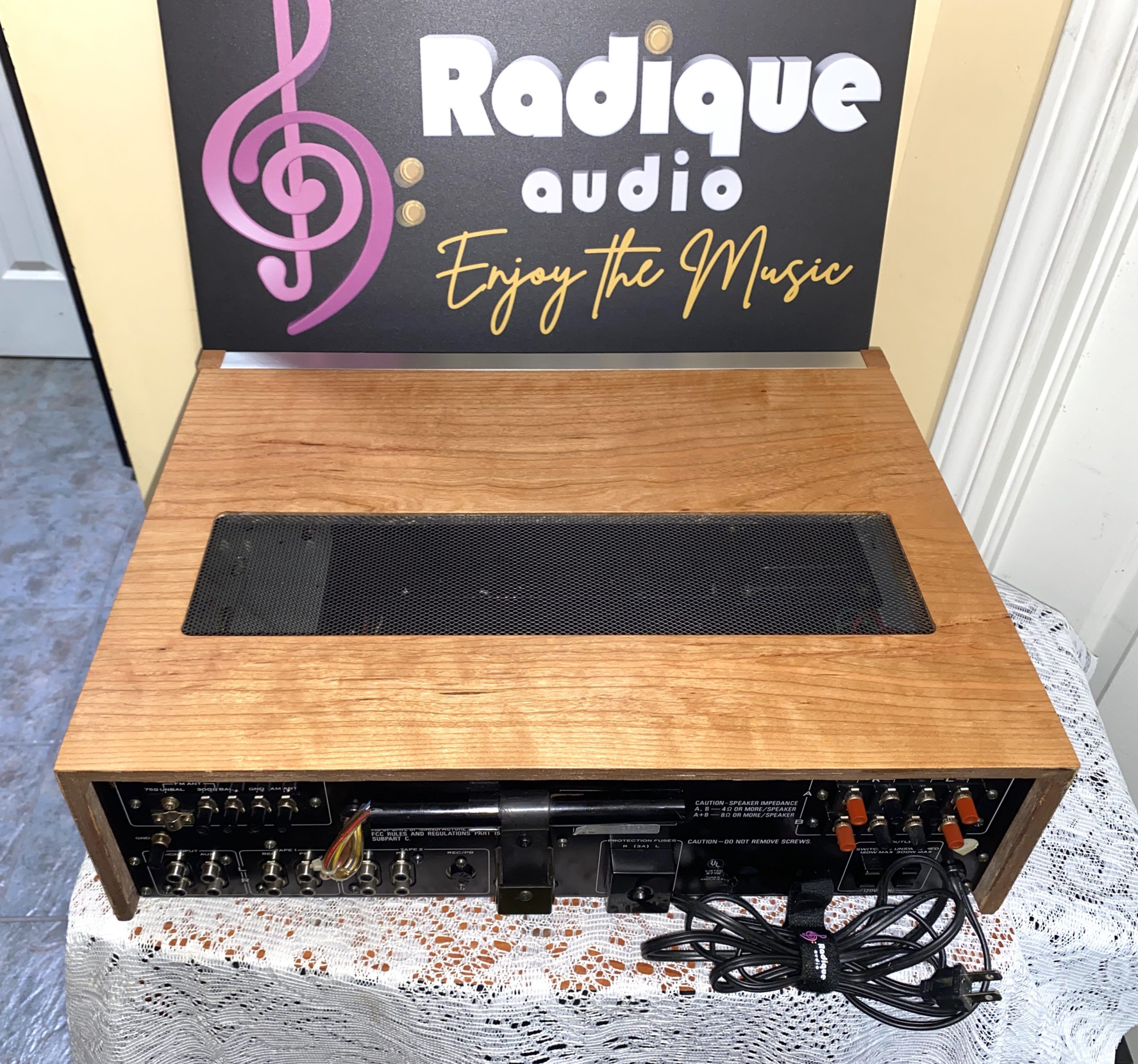

Comprehensive connectivity includes magnetic phono input, auxiliary input, dual tape loops for deck-to-deck recording, front-panel microphone jack, and dual speaker outputs. The click-stop bass and treble controls, loudness compensation, and muting function provide precise audio tailoring. That iconic blue dial glow and Pioneer’s signature beveled knobs complete the mesmerizing 1970s aesthetic, now enhanced by the warmth and elegance of genuine cherry wood veneer.
Specifications:
Power Output: 20 watts per channel into 8Ω (stereo), 22 watts into 4Ω
Frequency Response: 20Hz to 30kHz
Total Harmonic Distortion: 0.8% (full power), 0.08% (1W output)
Signal-to-Noise Ratio: 90dB (line), 70dB (phono), 65dB (mic)
Damping Factor: 30
Input Sensitivity: 2.5mV (MM phono), 150mV (line), 7mV (mic)
Tuning Range: FM 88-108MHz, AM 525-1605kHz
FM Sensitivity: 1.9μV (IHF)
Speaker Load Impedance: 4Ω to 16Ω
Tone Controls: Bass ±9/-8dB (100Hz), Treble ±6dB (10kHz)
Inputs: Phono (MM), Aux, Tape 1 & 2, Microphone
Outputs: Two sets of speakers, headphone jack, tape record
Dimensions: 18.9 x 5.8 x 15.9 inches (480 x 147 x 405 mm)
Weight: 22 lbs 11 oz (10.3 kg)
This Japanese-crafted Pioneer SX-535 with stunning custom cherry veneer represents the perfect marriage of vintage audio excellence and contemporary aesthetic refinement, ready to serve as both an exceptional music source and a beautiful conversation piece in your listening space.
🌳 Caring for Your Cherrywood Cabinet
Each custom cherry cabinet is sanded to a silky 320-grit smoothness and hand-finished with boiled linseed oil and a final beeswax polish — no stains, no polyurethane, no synthetics. For tips on keeping it looking its best for decades, including safe cleaners, what to avoid, and how to manage sunlight exposure, see our Cherrywood Cabinet Care Guide. 👉
Buy with confidence and benefit from Radique’s “Bumper to Bumper” warranty and Perpetual trade back policy.
| Weight | 25 lbs |
|---|---|
| Dimensions | 20 × 23 × 9.8 in |
