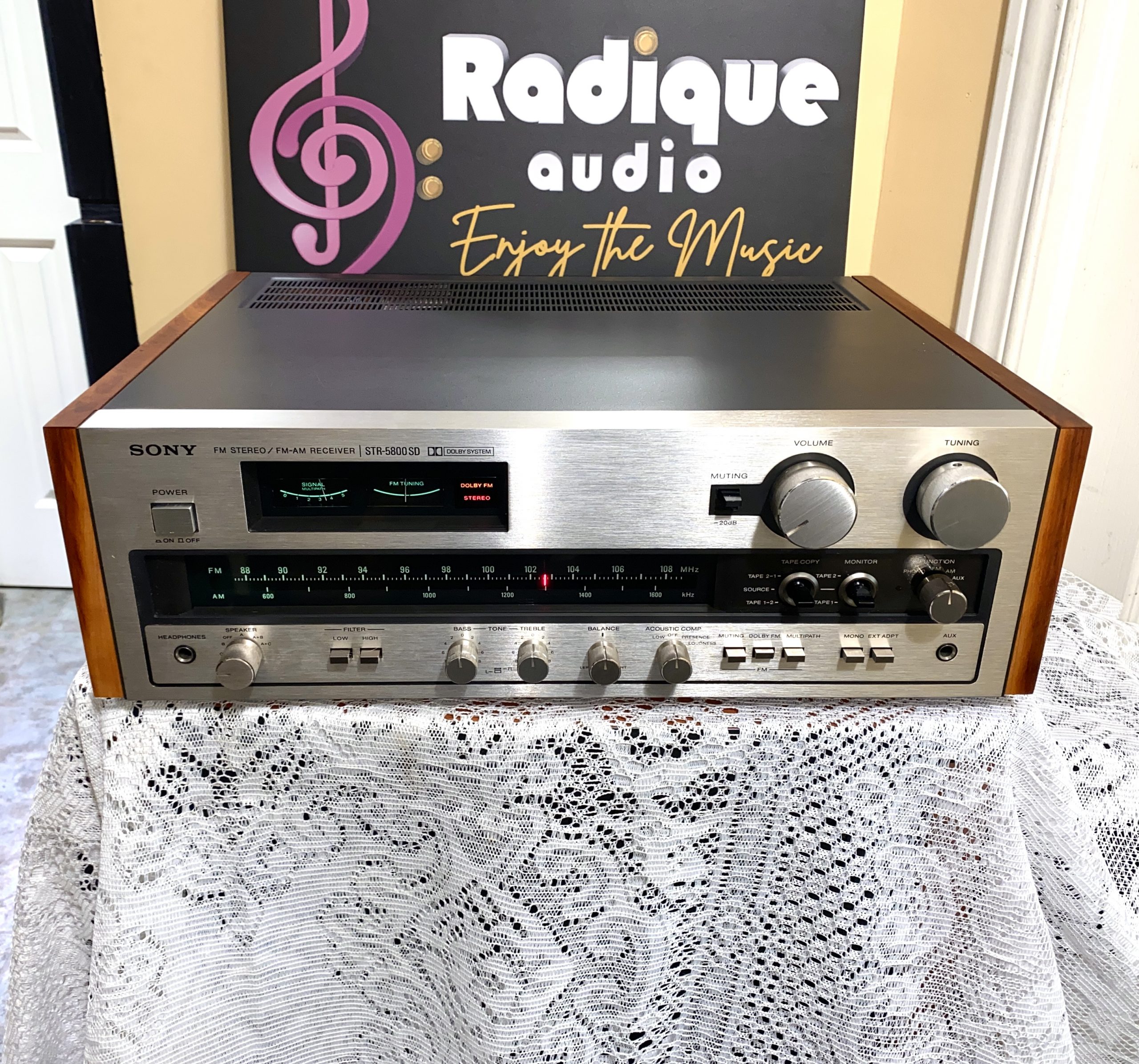

Vintage Sony 55 WPC Stereo Receiver with Real Cherry STR-5800SD
$795.00
1 in stock

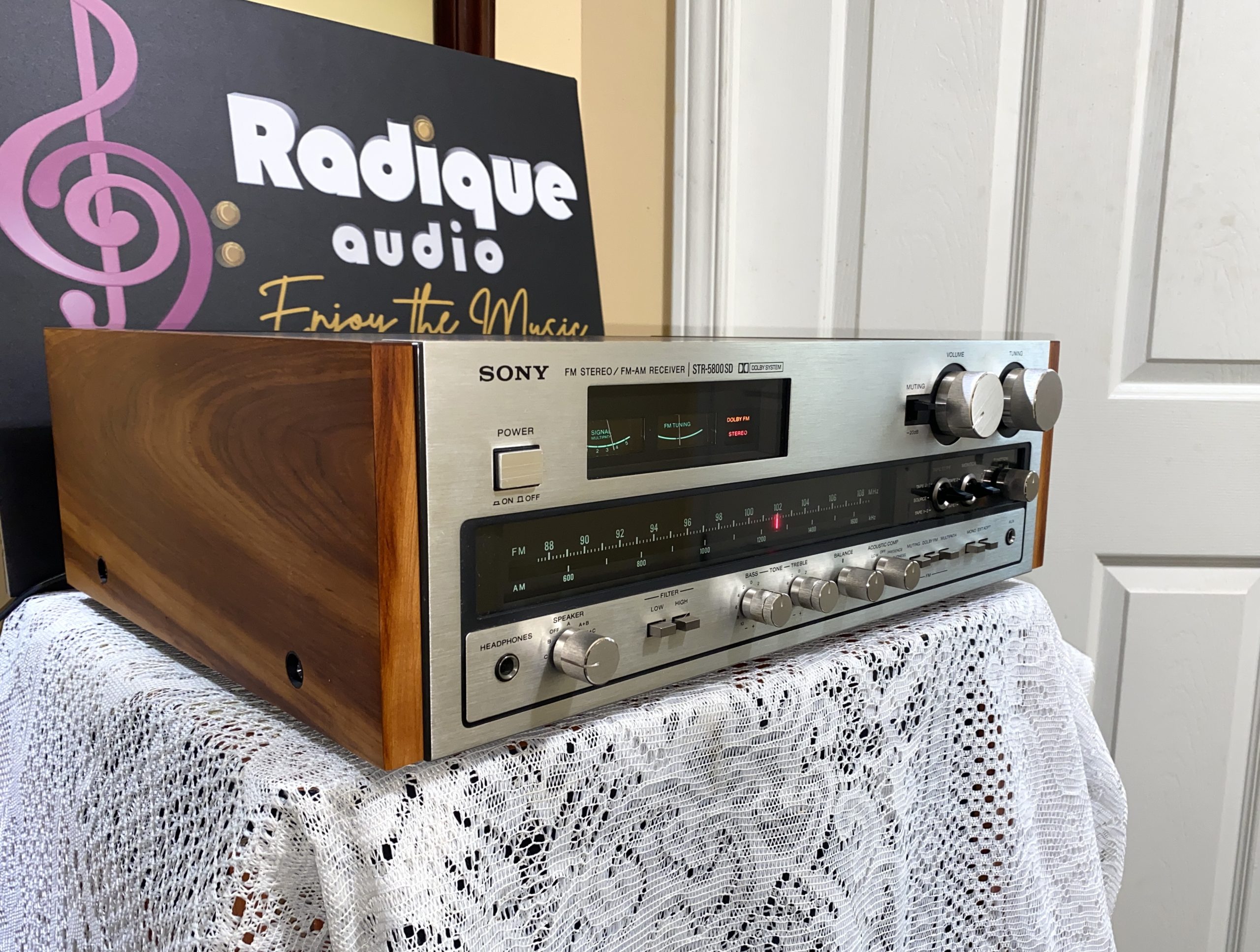

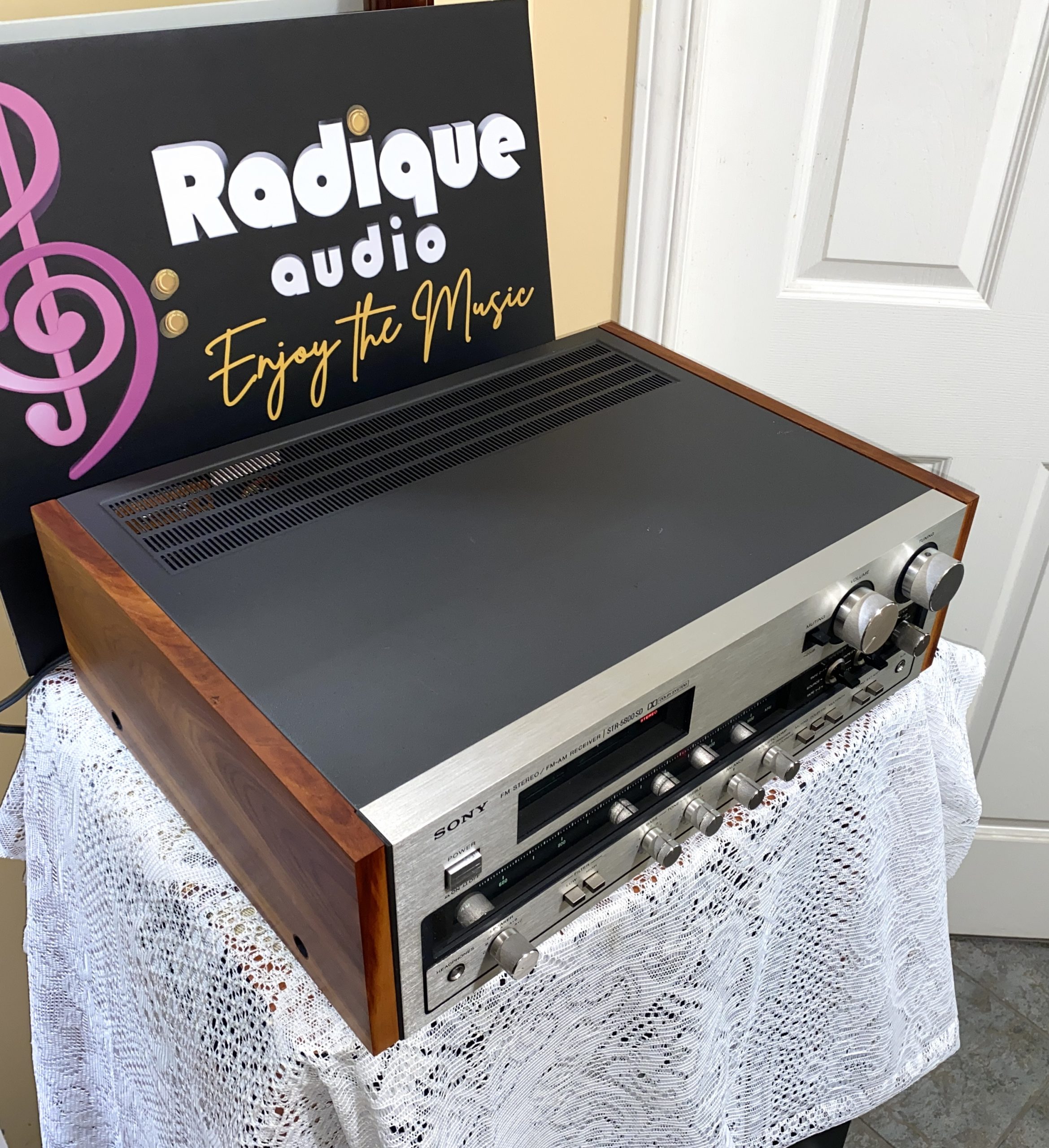

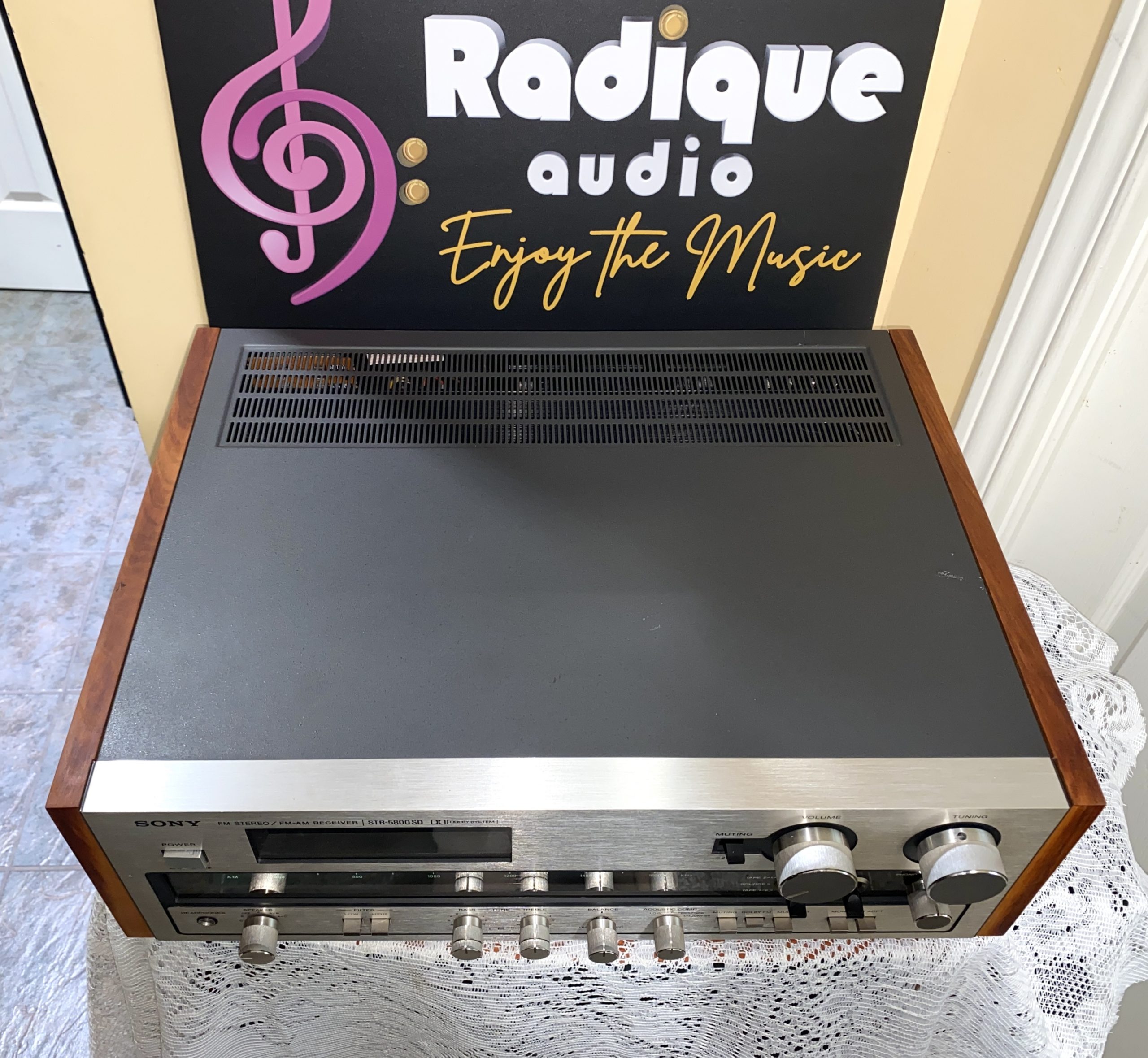

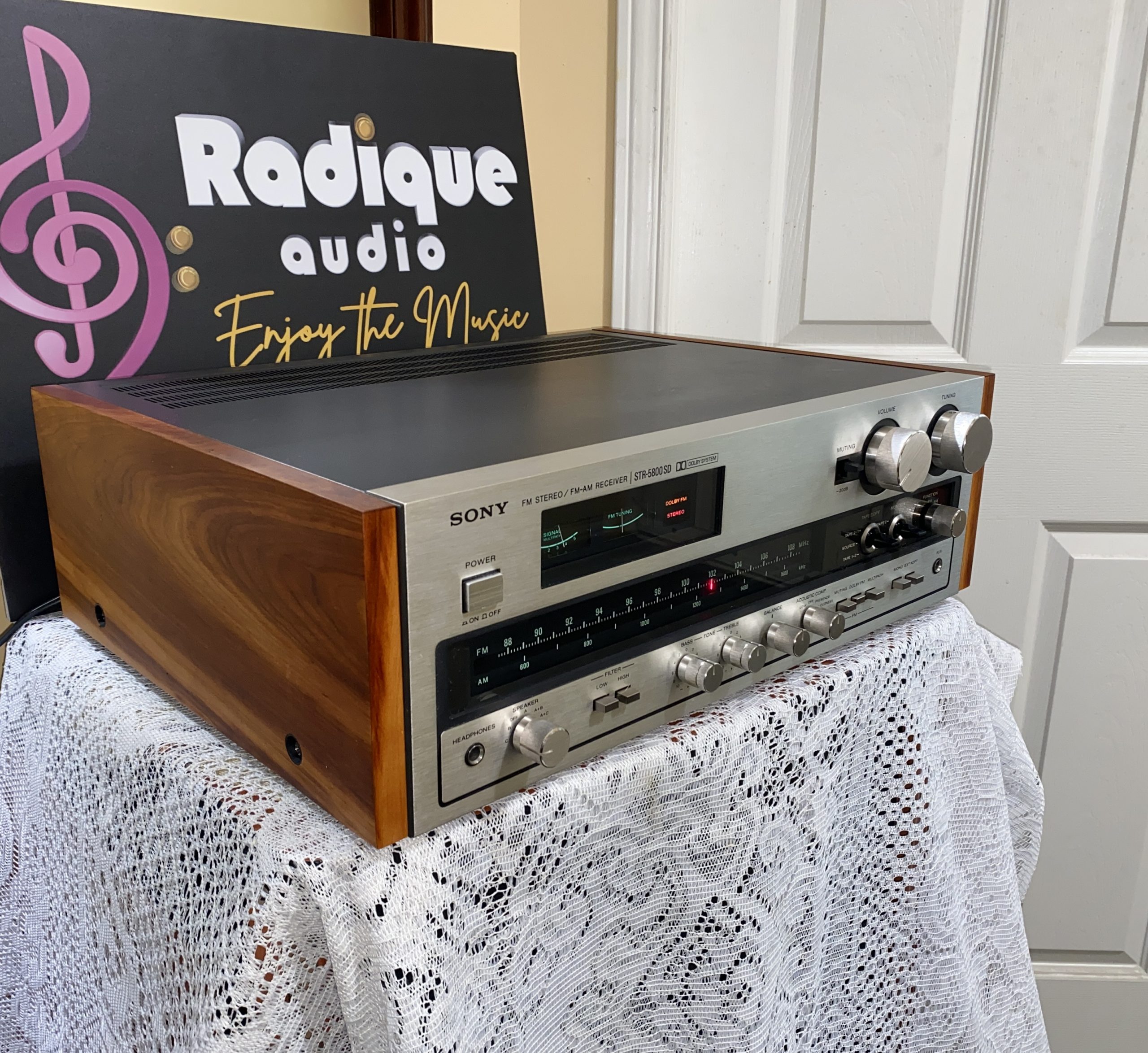

Gorgeous Vintage Sony STR-5800SD 55 WPC Stereo Receiver with Custom Cherry Side Panels (Japan)
Design and Sound
This exceptional Japanese-manufactured Sony STR-5800SD vintage receiver with gorgeous custom cherry wood side panels has undergone our very thorough Level Two service and testing which should ensure many more years of reliable performance ahead. Originally retailing for $500 in 1977, this was Sony’s third-from-the-top receiver model and showcased the company’s commitment to engineering excellence with features that were advanced for its era.
The STR-5800SD delivers 55 watts per channel of pristine audio through Sony’s sophisticated amplifier design, but the real magic lies in its exceptional phono preamplifier stage, which High Fidelity Magazine rated “with the best we’ve experienced” for its uncanny ability to extract every nuance from vinyl records with crystalline clarity and rock-solid bass response. The advanced FM tuner section features multipath detection capability, allowing precise antenna positioning for optimal reception, plus Dolby FM decoding for enhanced dynamic range on compatible broadcasts.
This receiver offers remarkable versatility with three sets of speaker outputs selectable in multiple combinations, bidirectional tape dubbing capability between two deck positions, front-panel auxiliary override for temporary equipment connections, and an external processor loop for seamless integration of equalizers or decoders. The acoustic compensator provides four listening modes including bass boost and presence enhancement, while the sophisticated muting system eliminates inter-station noise during tuning. Now enhanced with beautiful cherry wood side panels, this Sony combines vintage Japanese precision engineering with contemporary aesthetic refinement.
Specifications
Power Output: 55 watts per channel into 8Ω (stereo), 75 watts into 4Ω
Frequency Response: 10Hz to 30kHz
Total Harmonic Distortion: 0.2%
Signal-to-Noise Ratio: 72dB (MM phono), 90dB (line)
Damping Factor: 40
Input Sensitivity: 2.5mV (MM phono), 250mV (line)
Tuning Range: FM 88-108MHz, AM/MW
FM Sensitivity: Superior with multipath detection
Speaker Load Impedance: 4Ω to 16Ω
Tone Controls: Bass/treble with acoustic compensator modes
Features: Dolby FM, muting, signal strength/multipath meter, three speaker pairs

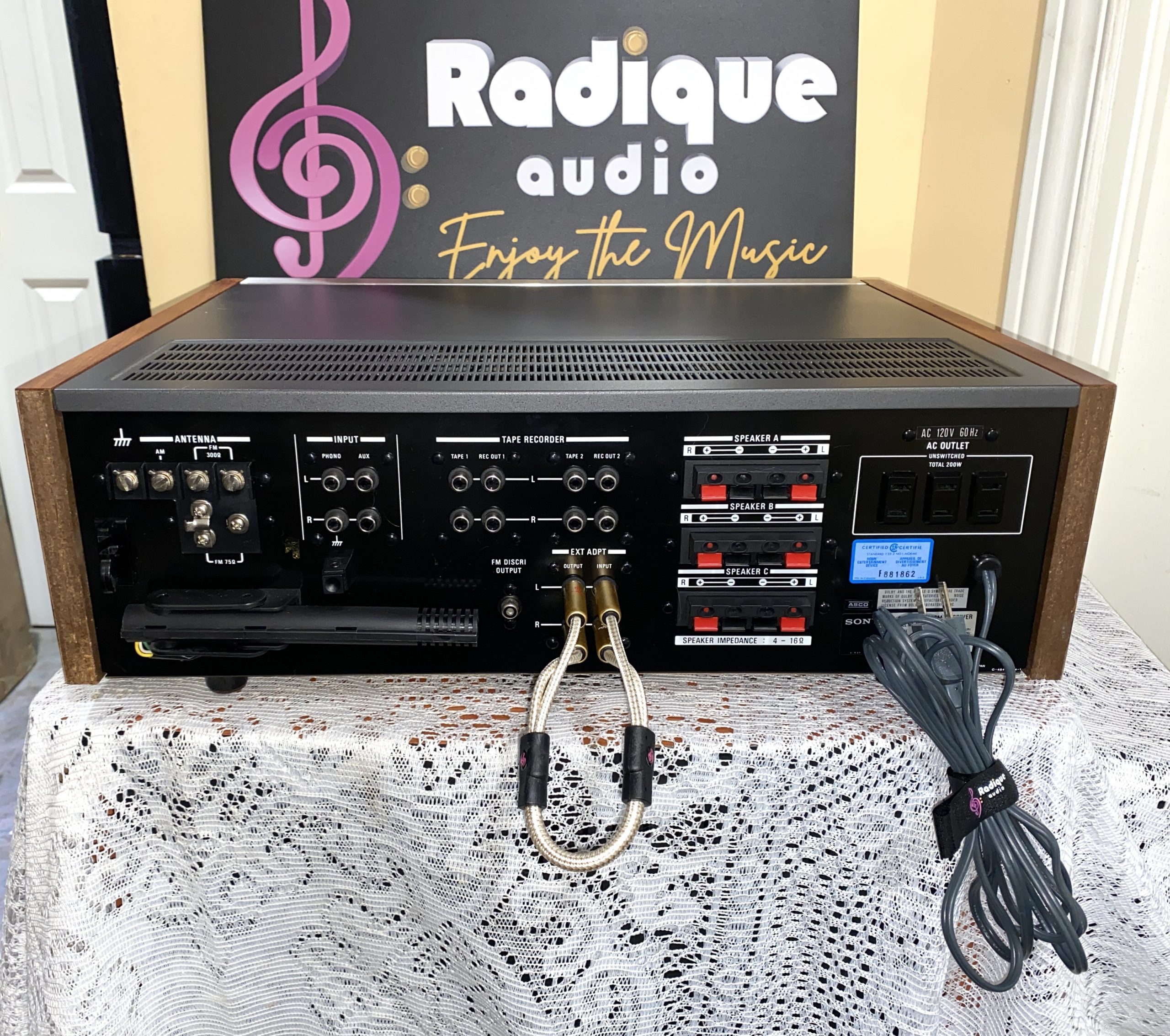

Inputs: MM phono, auxiliary, two tape monitors, external processor loop
Outputs: 250mV (line), 40mV (DIN), headphone jack
Dimensions: 19.25 x 6.5 x 14.38 inches (489 x 165 x 365 mm)
Weight: 34 lbs (15.4 kg)
This Japanese-crafted Sony STR-5800SD with stunning custom cherry side panels represents one of the finest examples of 1970s receiver engineering, combining exceptional sonic performance with the warmth and elegance of genuine wood craftsmanship.
Caring for Your Ottawa Valley Cherry Wood Panels

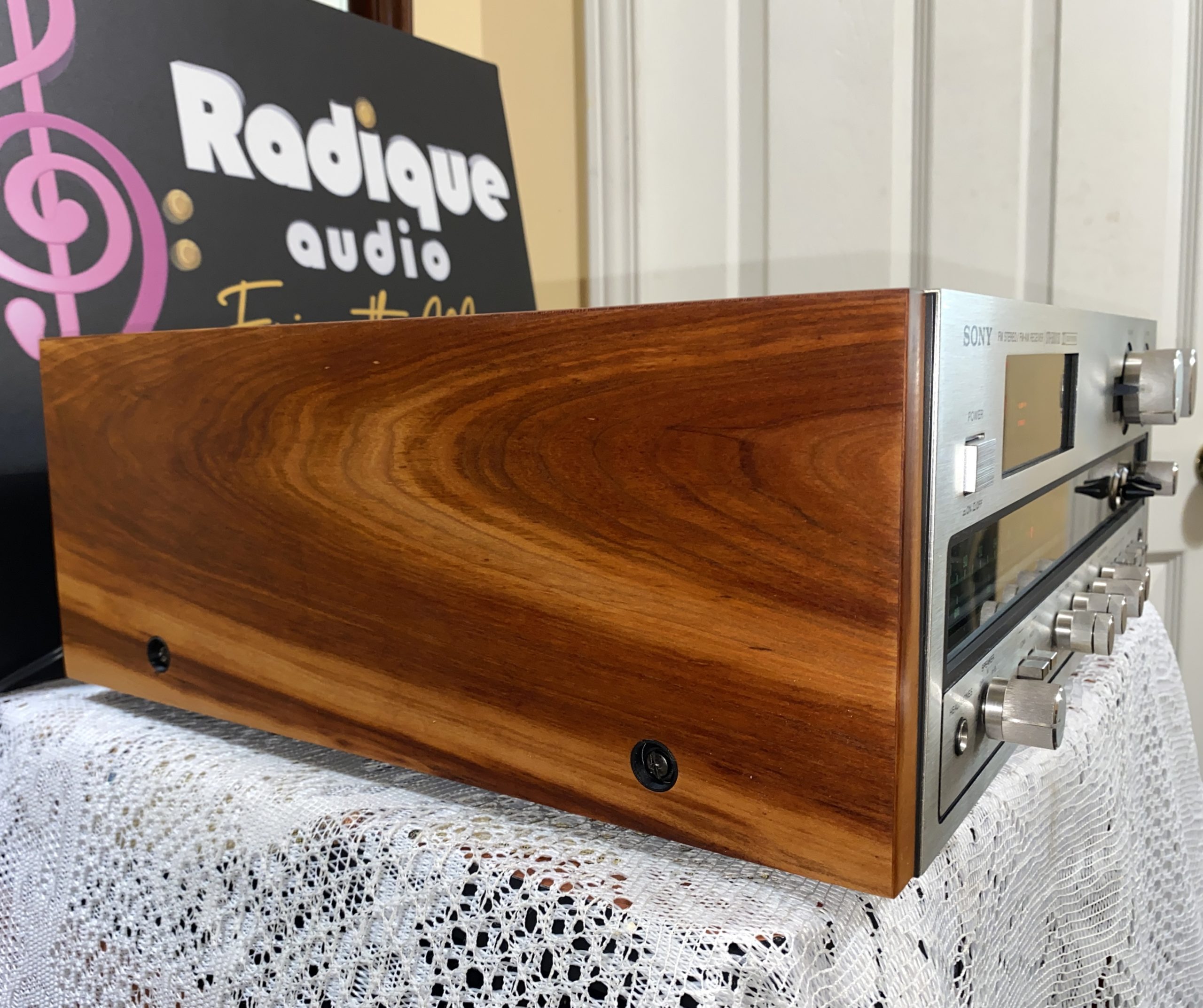

The custom cherry wood side panels on this piece are sanded to a silky 320-grit smoothness and hand-finished with boiled linseed oil and a final beeswax polish — no stains, no polyurethane, no synthetics. For tips on keeping them looking their best for decades, including safe cleaners, what to avoid, and how to manage sunlight exposure as the wood develops its natural patina, see our Cherry Wood Cabinet Care Guide.
Buy with confidence and benefit from Radique’s “Bumper to Bumper” warranty and Perpetual trade back policy.
⭐ Don’t Just Take Our Word For It
Radique Audio holds over 600 customer ratings averaging 4.97 stars across six public platforms — Facebook Marketplace, Kijiji, Canuck Audio Mart, Google and others. Every rating lives somewhere we don’t control, so you can read the originals yourself, including the less flattering ones. See what our customers say. 👉
| Weight | 38 lbs |
|---|---|
| Dimensions | 18.4 × 23.25 × 10.5 in |
