Impressive Yamaha 3-Way Sats (like Paradigm Cin 330’s) NS-AP9500
$145.00
Out of stock
This one has sold. Want first dibs on the next one?
We take these in regularly. Leave your name and email, and we’ll email you the moment one is listed, so you hear first. No cost, no obligation.
Email me when one is listed
Whatever you end up with, it needs cable. Build a set to length →
Other surround speakers we have in stock now
3 in stock · $145.00 · all ship
4-Driver, Surround Wall mounted Paradigm Speakers Cinema ADP V3$145.00Ships
Tannoy Mercury FR Custom Compact Speakers – Dark Oak, Pair$145.00Ships
Fender Passport PDP-1 Wall Mount speakers, w Mounts$145.00Ships
Whatever you end up with, it needs cable.
We hand-build speaker cable to your exact length and terminate it however you like: banana, spade, pin or bare wire. Tell us the run and the ends, and it ships ready to plug in.

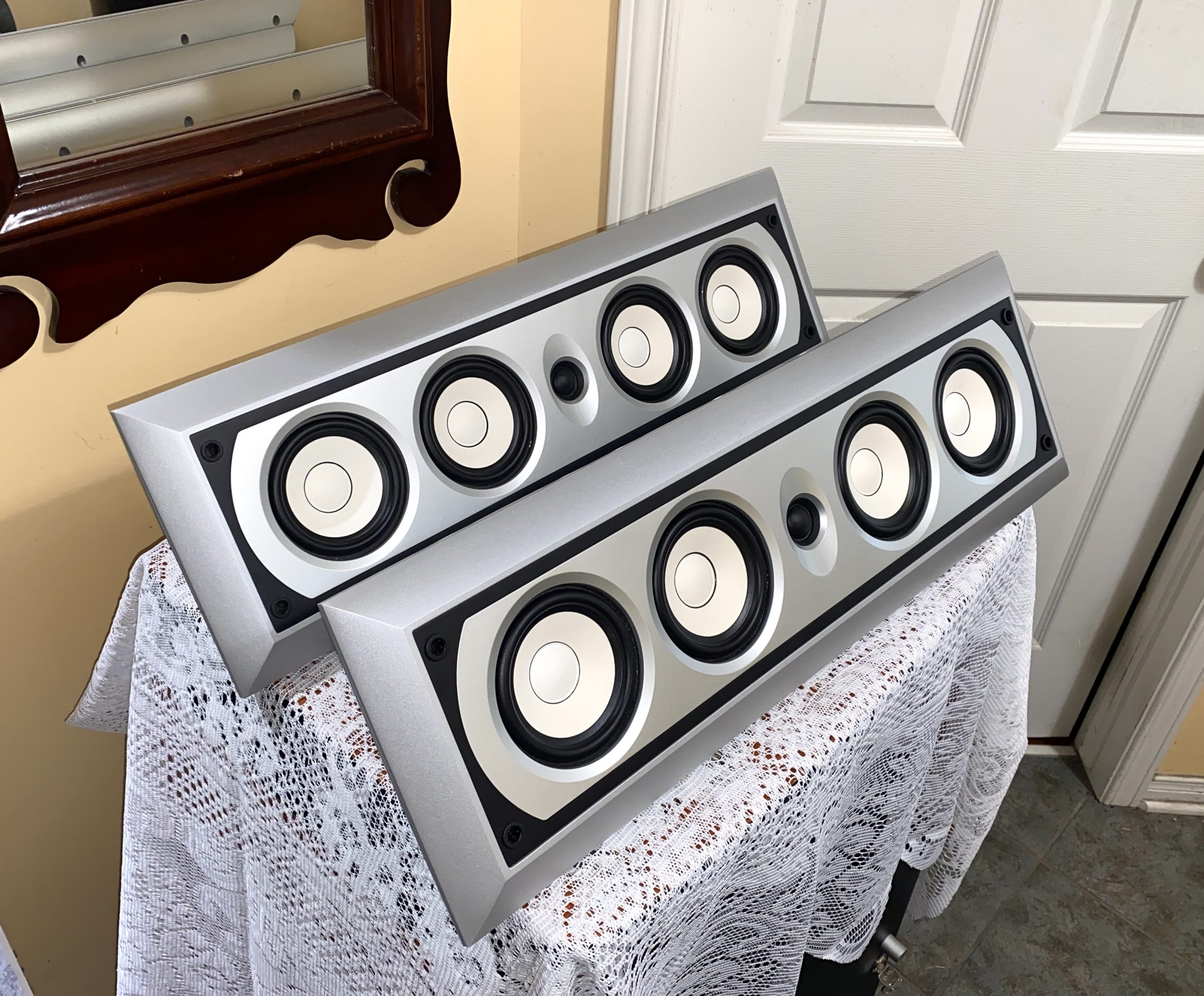

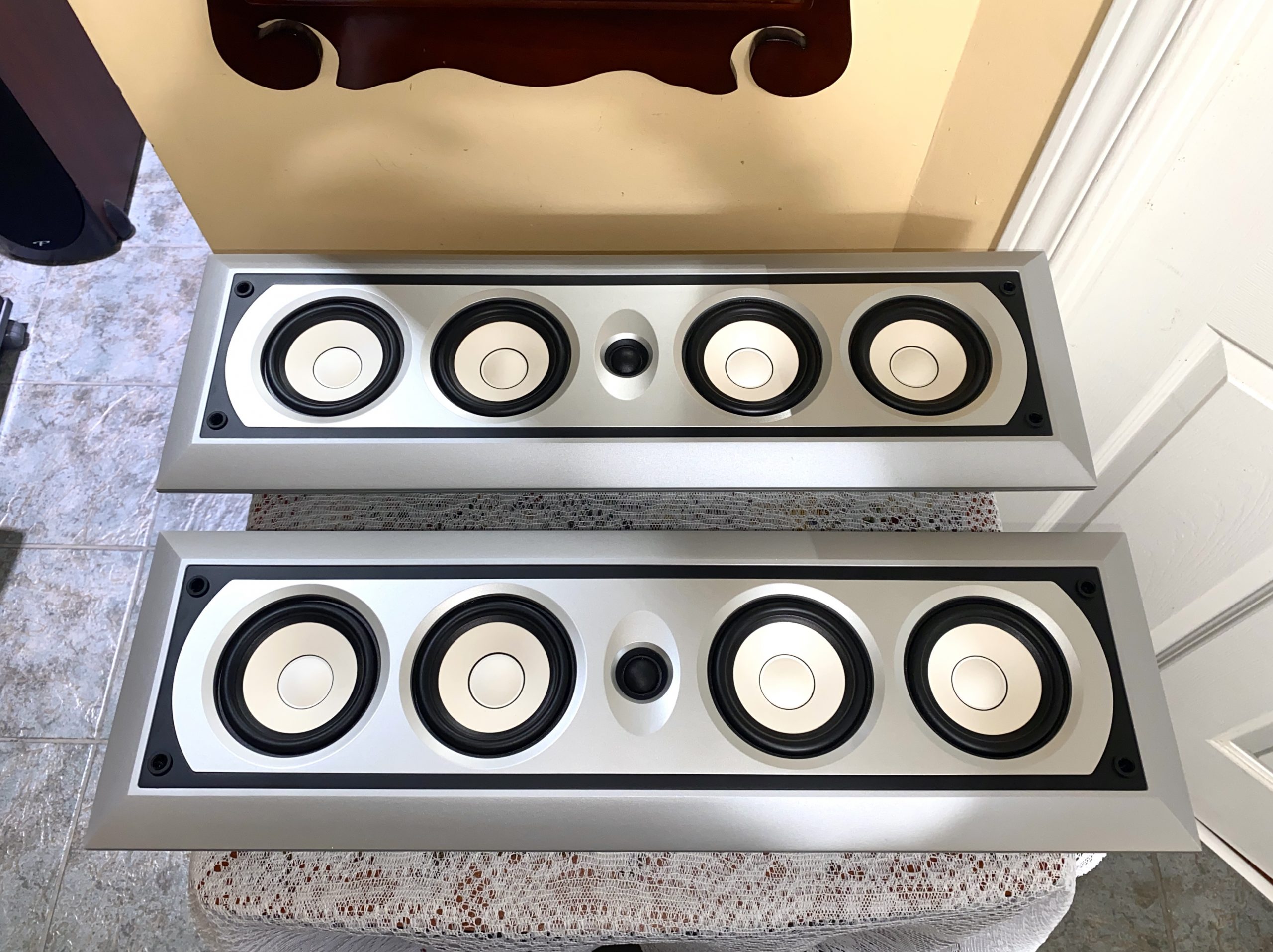

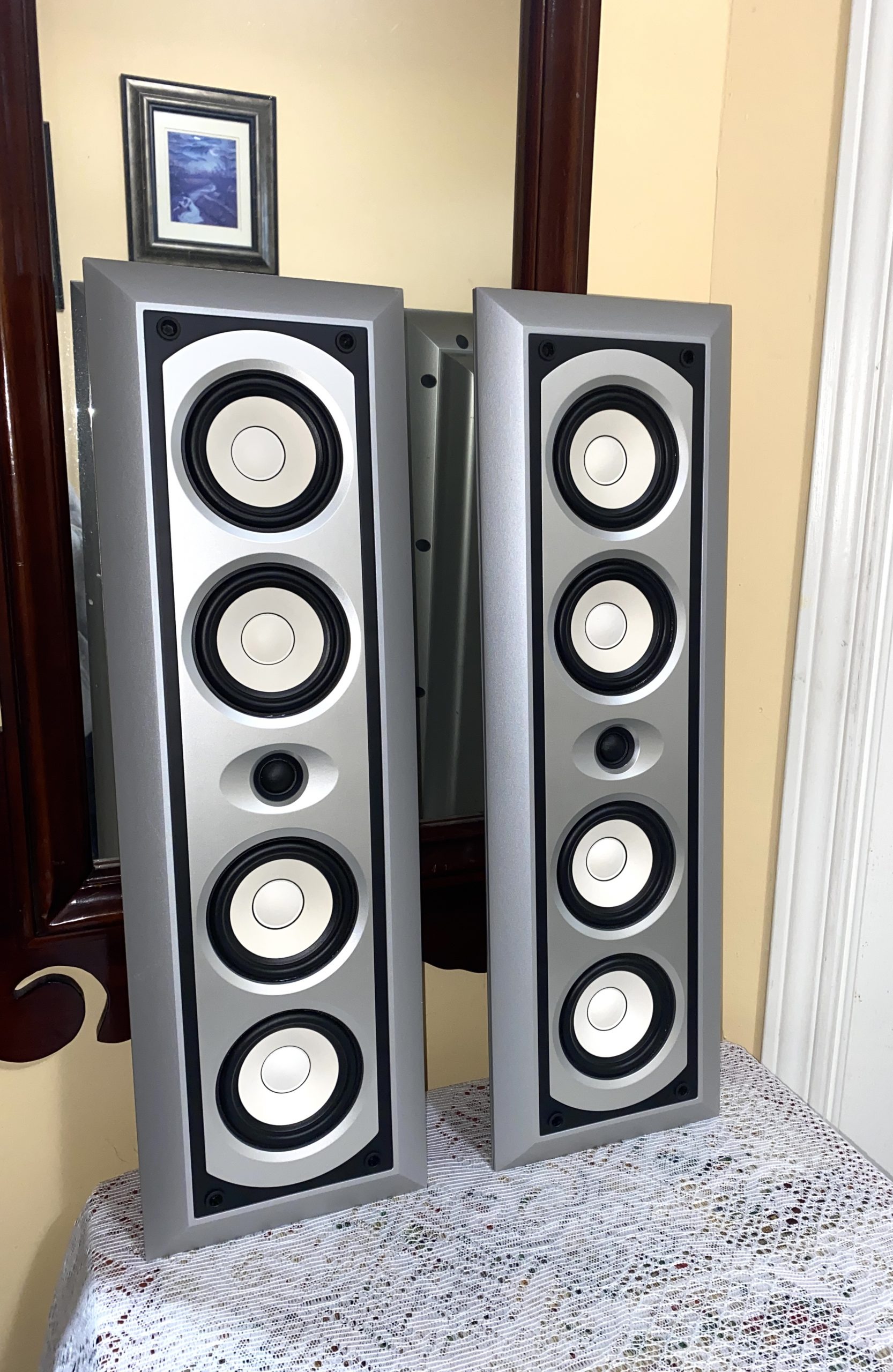

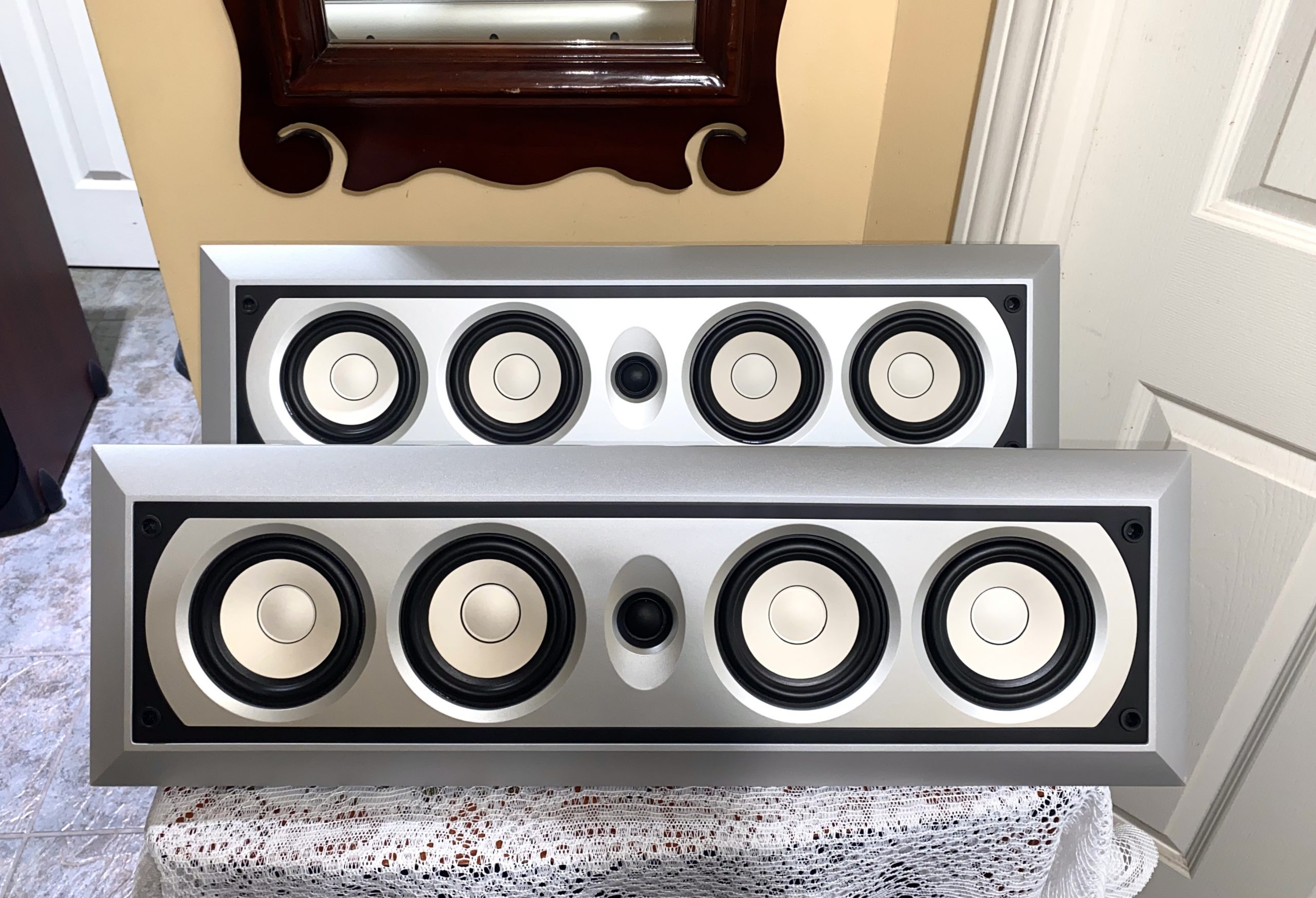

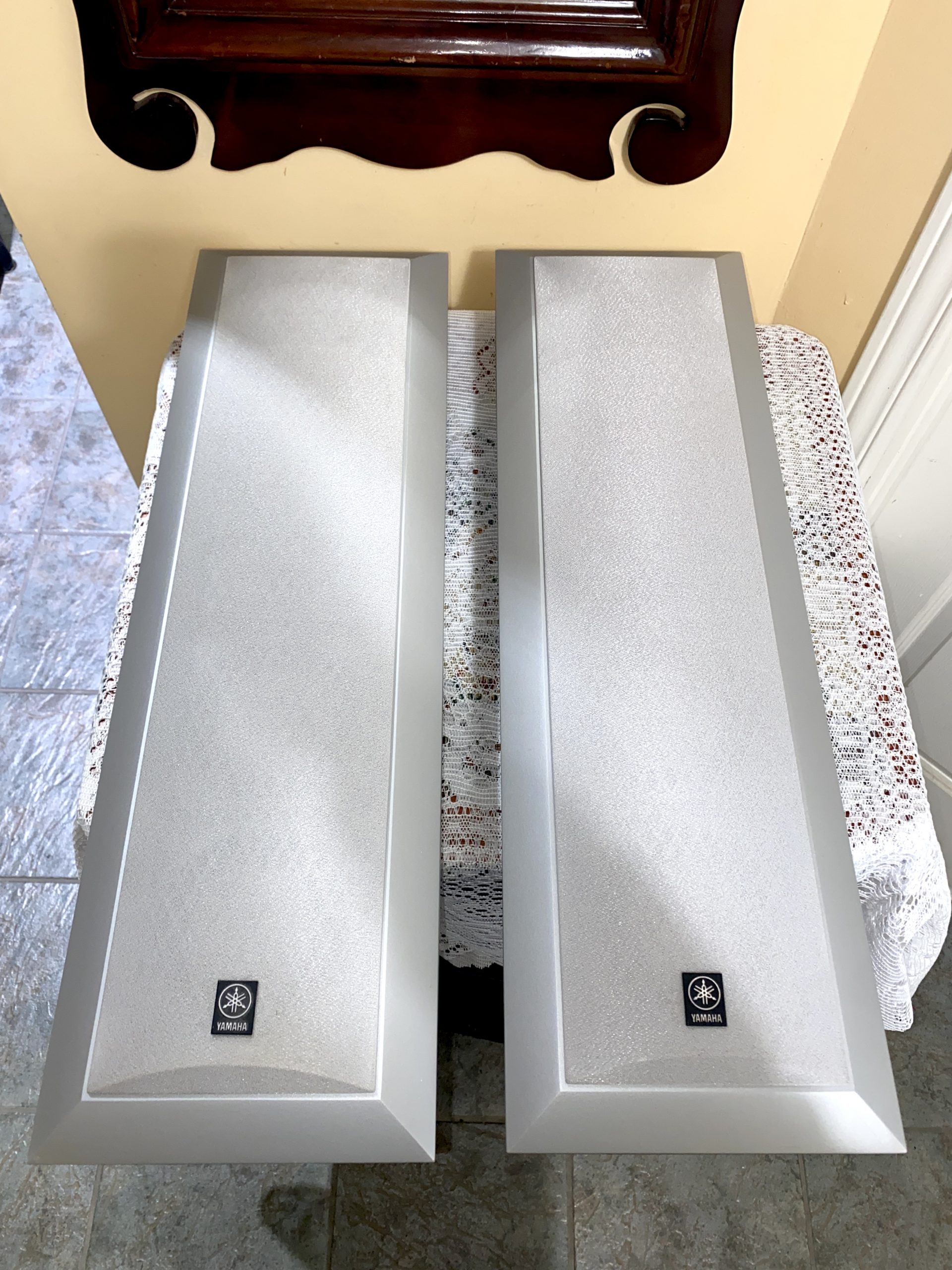

Build a set to length →Pair of Impressive Yamaha 3-Way Satellite Speakers (Very similar to Paradigm’s High-End Cinema 330’s)
These three-way satellites use acoustic-suspension designs for clear sound with taut, uncolored sound. All employ dual pairs of drivers with a coaxial, .5-inch tweeter and are capable of handling amplifier power up to 130 watts.

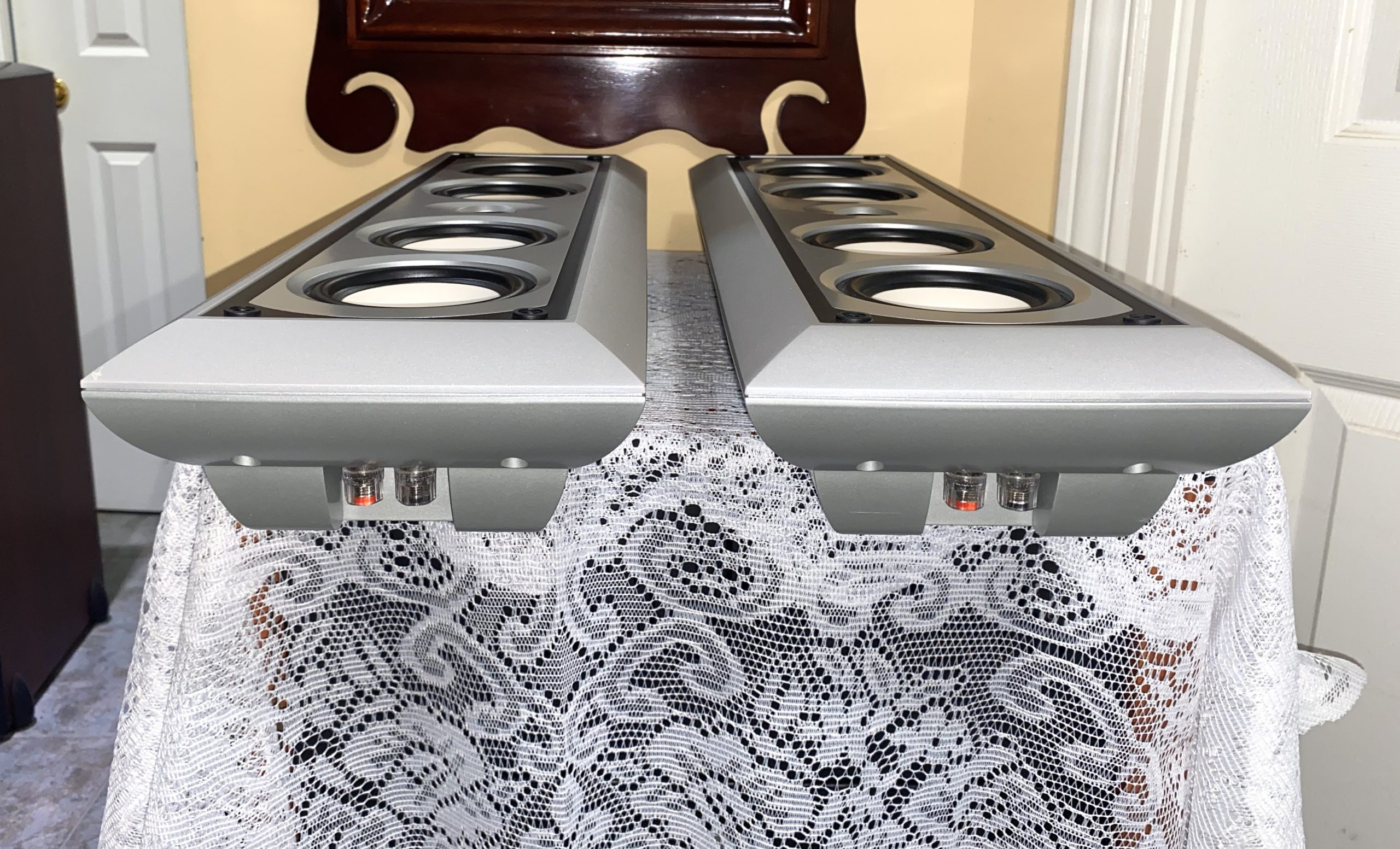

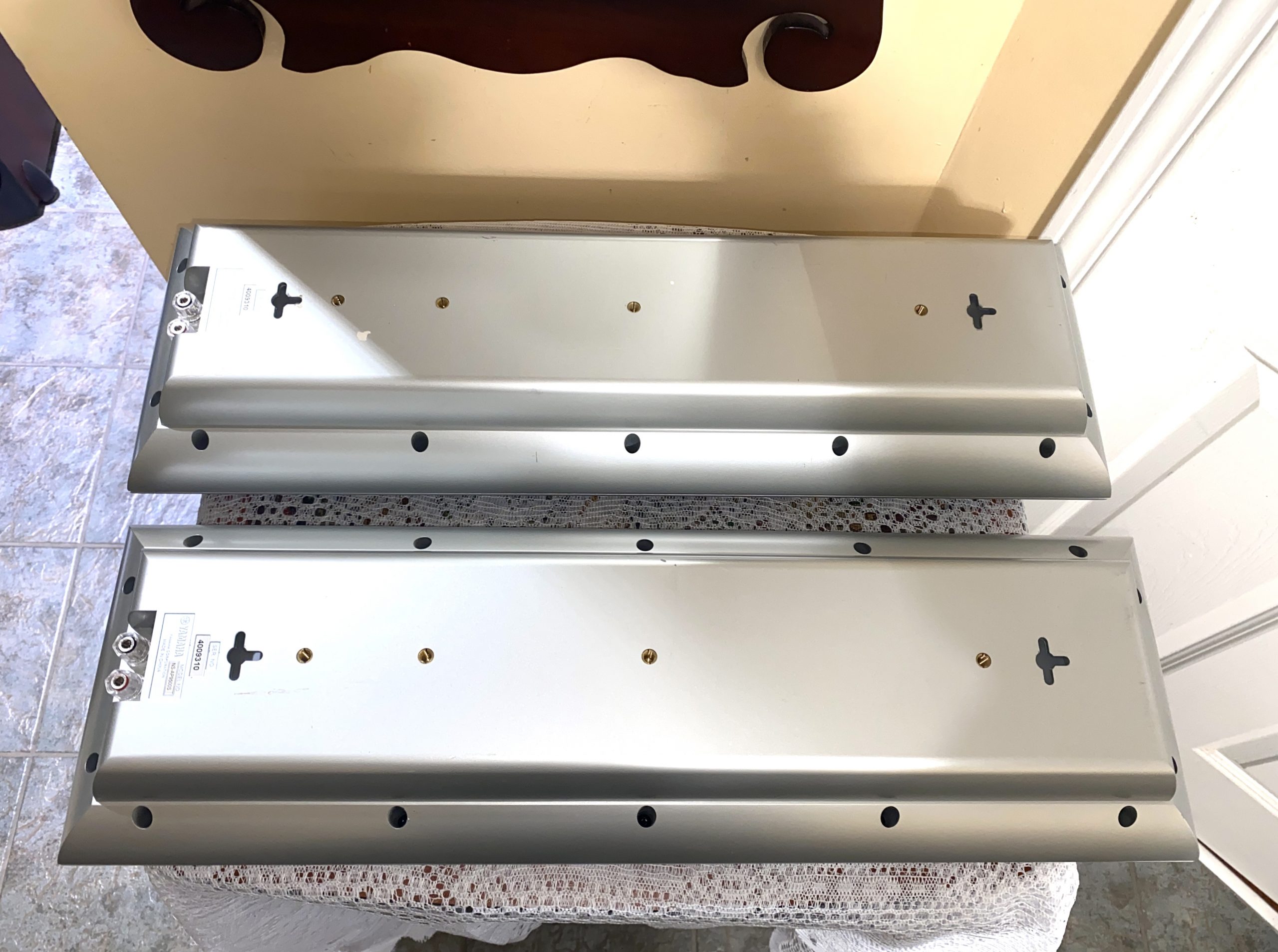

The complete system is finished in attractive matte silver for great looks as well as great sound. Magnetic shielding on all speakers permits placement near TVs and computer monitors with no risk of image distortion. The speakers’ amazing high-frequency response extends to 40,000 Hz. The NS-AP9500S speaker is equipped with 5-Way bindings suitable for banana plugs, and boasts dual 4-Way Keyhole Integrated wall mounts.
Specifications
– Speaker Type: Acoustic Suspension – Drivers: Quad 4″ High Compliance Pulp Cone with Rubber Surround + 3/4″ Soft Dome Tweeter – Frequency Response: 100Hz to 40kHz – Impedance: 6 Ohms – Power Handling: 35W RMS – Maximum Power Handling: 130W – Sensitivity: 83dB – Crossover Frequencies: 600Hz, 6kHz – Magnetically Shielded: Yes
Dimensions and Weight
– Width: 7-3/8″ (187.33 mm) – Height: 23-27/32″ (605.26 mm) – Depth: 3-15/16″ (100.01 mm) – Weight: 7.9 lbs (3.58 kg)
We normally list our Paradigm Cinema 330’s for $345/pair. A great deal for this similar form factor (great sounding) Yamaha version for just $145 a pair.
| Weight | 18 lbs |
|---|---|
| Dimensions | 14 × 11.3 × 28 in |
Yamaha began as an organ maker in Hamamatsu, Japan, in 1887. It made gramophones from the 1920s and began hi-fi with the 1954 HiFi Player. We carry Yamaha AV receivers, vintage stereo receivers, CD players, subwoofers and speakers. We've had more than 280 Yamaha listings so far, covering nearly 200 different models. Every used Yamaha here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Every AV receiver we list is tested input by input on our bench: each HDMI input and output, the analog, optical and coaxial inputs, the subwoofer outputs and the wireless features where it has them. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.
Yamaha models we've sold most often: the SW-3 subwoofer, the NX-E270 surrounds, and the RX-V1400, RX-V850 and RX-V800 AV receivers.
The Yamaha hi-fi story
Torakusu Yamaha built his first reed organ in Hamamatsu in 1887 and founded Nippon Gakki in 1897; the company was renamed Yamaha Corporation in 1987. Yamaha calls the 1954 HiFi Player its first audio product, and dates its first Natural Sound (NS) speakers to 1967.
1970s hi-fi. The CA-700 and CA-500 of 1972 were Yamaha's first integrated amplifiers, and the CA-1000 of 1973 could switch its output stage between Class A and Class A/B. The NS-1000 and NS-1000M speakers of 1974 used beryllium dome drivers, and the NS-10M of 1978, sold for home use, became a studio monitor.
CD and surround. The CD-1 of 1982 was Yamaha's first CD player. The DSP-1 of 1986 was a Digital Sound Field Processor, and in 1993 the RX-V870 became the first Yamaha receiver with CINEMA DSP. The RX-V992 of 1997 added built-in Dolby Digital decoding.
AVENTAGE. The AVENTAGE (RX-A) receiver line launched in 2010, above the RX-V range.
Which Yamaha is which?
CA integrated amplifiers (1972 to about 1979): the CA-500, CA-700, CA-1000 and CA-2000, followed by the A-series.
CR receivers (mid-1970s to about 1980): the CR-1000, then the CR-620 to CR-2020 generation of 1977 to 1979.
NS speakers: from the NS-690 and the beryllium NS-1000 to the NS-10M bookshelf speaker, made from 1978 to 2001.
CD players: from the CD-1 of 1982 to the CDX and GT-CD models.
RX-V AV receivers (from at least 1991): such as the RX-V800, RX-V850 and RX-V1400 we sell often. Built-in Dolby Digital arrived in 1997, YPAO room calibration in 2003 and HDMI in the mid-2000s.
RX-A AVENTAGE (from 2010): the step-up AV receivers. The RX-Z models were the flagships until 2007.
Buying used Yamaha: what to check
Formats. On an AV receiver, check what it decodes and connects to: Dolby Digital from 1997, room calibration from 2003, HDMI from the mid-2000s.
HDMI boards. On modern AV receivers, HDMI is usually the first thing to fail. We test every HDMI input and output before listing.
CR receivers. Owners suggest asking whether service bulletins were done on a CR-2020, and expect scratchy controls and burnt-out dial lamps on any unserviced unit.
NS speakers. Check that the tweeters on an NS-10M are original and both work, and inspect the beryllium domes on an NS-1000, since Yamaha stopped making beryllium diaphragms in 1997.
Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
