Magnavox CDB 500 Single-Disc CD Player, Philips TDA1543 DAC
$125.00
A 1991 Philips design sold under the Magnavox badge: the TDA1543 16-bit dual-channel DAC behind a 4x oversampling filter, and the CDM-4/19 swing-arm transport that anyone who works on these players hopes to find inside. Fixed 2V RCA output, detachable IEC cord. It plays CD-Rs, confirmed in our testing. No remote; everything works from the front panel. Good cosmetic condition.
Out of stock
This one has sold. Want first dibs on the next one?
We take these in regularly. Leave your name and email, and we’ll email you the moment one is listed, so you hear first. No cost, no obligation.
Email me when one is listed
How we get a component ready for sale. What our bench covers →
Other CD players we have in stock now
3 in stock · $125.00–$145.00 · all ship
Sony CDP-C260Z 5-Disc Carousel CD Changer w/ Optical Out$125.00Ships
JVC XL-F154 5-Disc CD Changer — Plays CD-Rs, COMPU LINK$125.00Ships
Onkyo DX-C206 6-Disc CD Changer – Level 1 Serviced, Remote$145.00ShipsHow we get a component ready for sale.
Before a used or vintage component is listed, it goes through our bench, and anything we service is tested again by a different tech. See exactly what our bench covers.
What our bench covers →Magnavox CDB 500 Single-Disc CD Player, Philips TDA1543 DAC

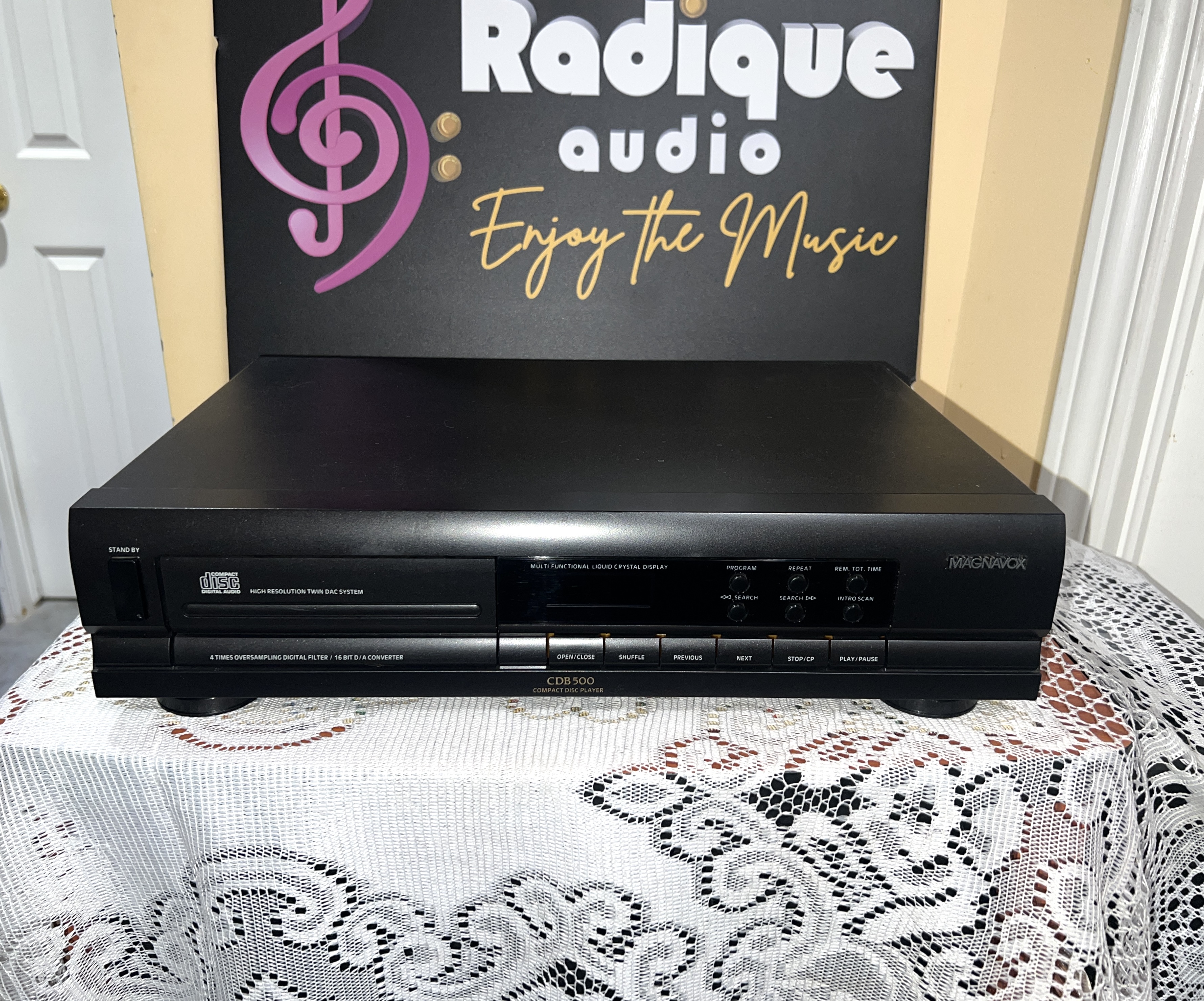

A clean and well-tested Magnavox CDB 500 single-disc CD player in good cosmetic condition — a 1991 sleeper hit among vintage CD enthusiasts, powered by the warm-sounding Philips TDA1543 DAC and the legendary Philips CDM-4/19 swing-arm transport mechanism.
The CDB 500 is one of the last and best of the Philips/Magnavox CD players from the company’s golden era, and is widely respected in the vintage CD community for the engineering pedigree hiding behind its modest budget-line appearance. Magnavox was North America’s brand presence for Philips audio products in this era, and the CDB 500 was built around the same Philips reference architecture used in their European-market players: a Philips TDA1543 16-bit dual-channel DAC paired with the renowned CDM-4/19 swing-arm transport — a combination that has earned a devoted following for its smooth, musical, and notably non-fatiguing presentation.
The audio path uses Philips’ 4x oversampling digital filter feeding the TDA1543, a single-chip 16-bit stereo DAC that handles both left and right channels internally — a configuration well-regarded in vintage hi-fi circles for delivering a relaxed, analog-like character that flatters less-than-perfect recordings rather than exposing them. The CDM-4/19 transport is a true Philips swing-arm mechanism — heavily over-built by today’s standards, mechanically simple, and known for outstanding longevity and smooth disc handling. This combination is part of why the CDB 500 has quietly become one of the more sought-after sub-USD-$200 vintage CD players among listeners who value musicality over raw measurement.

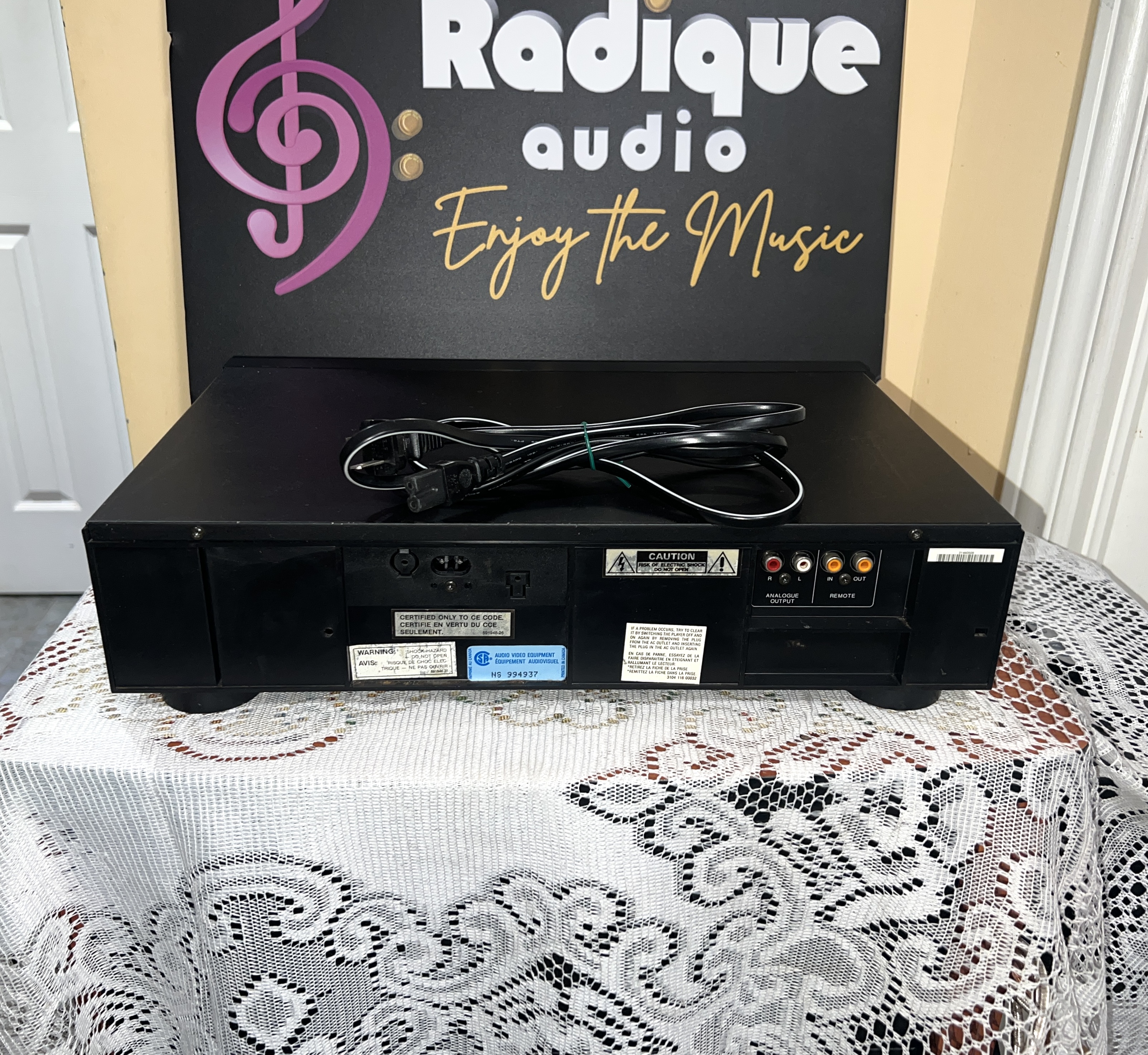

This particular unit has been tested and is in good working condition, presenting cleanly cosmetically. The transport reads and tracks discs reliably, and the unit successfully plays CD-R discs — confirmed by testing — making it ideal for owners with archives of recorded mix discs and personal compilations. The unit is sold without a remote control; all functions remain fully accessible via the front-panel controls. The rear panel provides analog stereo RCA outputs at the standard 2 V line level, ready to connect to any integrated amplifier, receiver, or preamplifier with a line-level input.
Specifications:
Disc format: CD (single disc)
DAC: Philips TDA1543, 16-bit dual-channel (stereo) D/A converter
Transport: Philips CDM-4/19 swing-arm mechanism
Digital filter: 4x oversampling
Frequency response: 2 Hz – 20 kHz
Line output: 2 V (fixed RCA stereo)
Display: Multi-functional liquid crystal
Programming: Standard Philips/Magnavox-era programming, shuffle, repeat
CD-R playback: Confirmed
Remote control: Not included
Power cord: Detachable IEC
Year of introduction: 1991
Dimensions (W x H x D): 17 x 4 x 12 inches (432 x 102 x 305 mm)
Weight: 5 lbs (2.3 kg)
A genuinely musical vintage Philips/Magnavox CD player with the storied TDA1543 DAC and CDM-4/19 swing-arm transport — an excellent choice for a second system, a vintage stereo rebuild, or anyone curious to hear why Philips-era CD players continue to attract a quiet but committed following.
Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence.
