SVS PB12-NSD 12″ Front-Ported Subwoofer — 800W Peak, True 20Hz

SVS PB12-NSD — The Ported Twelve That Built SVS’s Reputation

A large, genuinely deep-reaching ported twelve for home theatre and music, with the amplifier and cabinet volume to back it up.

Why This Model Matters

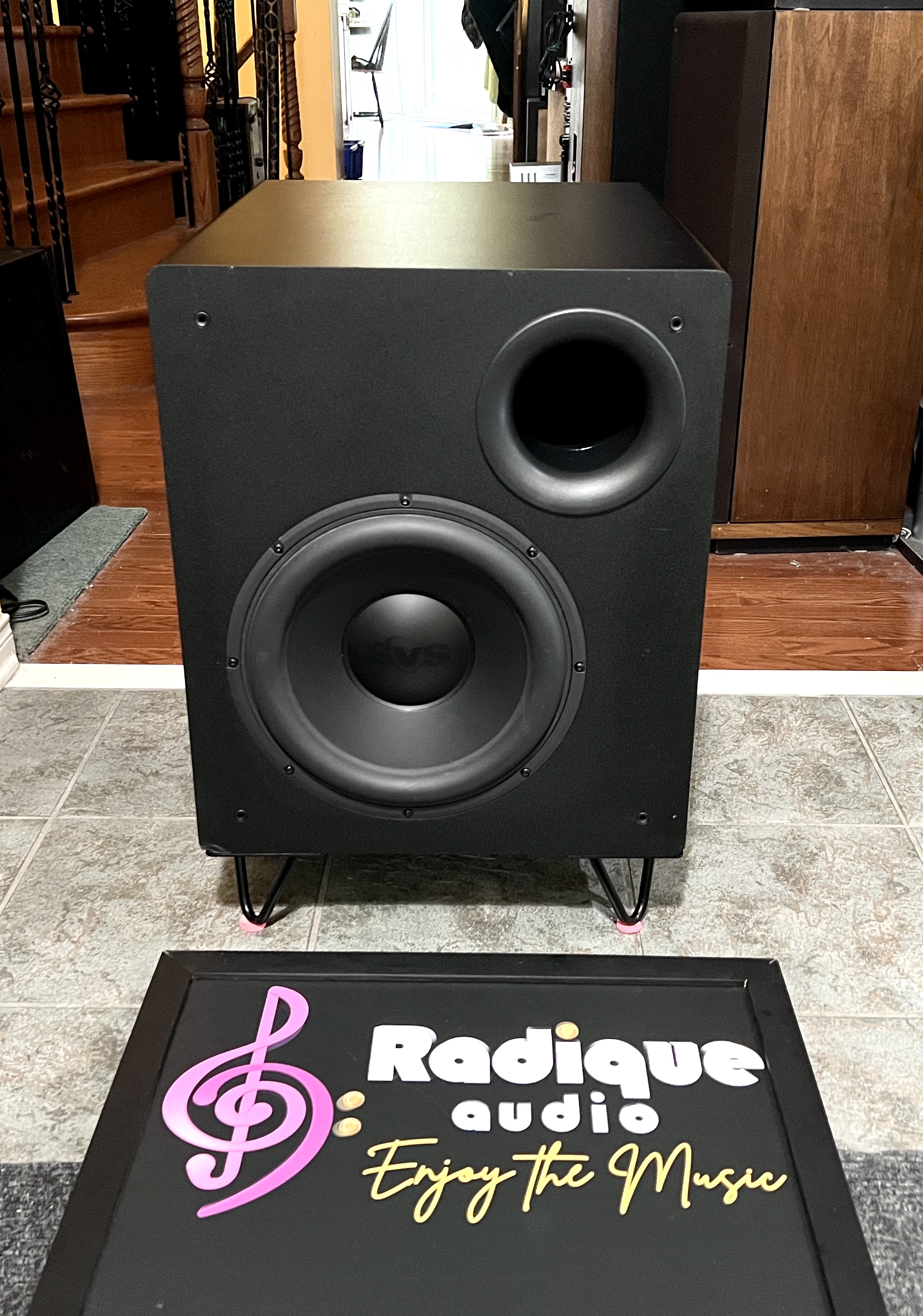

The PB12-NSD is the subwoofer that built SVS’s reputation: real low-frequency extension at a price that embarrassed everything near it. A 12-inch long-throw driver sits alongside a 4-inch flared port on the front baffle, in a 1-inch MDF window-braced cabinet tuned to roughly 20 Hz. That tuning is the whole point. A great many 12-inch subwoofers advertise deep bass and quietly run out of breath in the high twenties. This one does not, and it has the measurements to prove it.

The Sledge Amplifier

Power comes from SVS’s own Sledge STA-400D Class D plate amplifier — 400 watts continuous, 800 watts peak — running DSP limiting written specifically for this driver and this cabinet. In practice that means it protects itself gracefully rather than audibly coming apart when pushed. Independent measurement at Audioholics recorded an honest 100 dB or better at 20 Hz, above 105 dB from 25 Hz up, and total harmonic distortion under 10% even at the highest sweep level tested — composed mostly of the second and third harmonics, the least objectionable kind. Their testing placed it in the Bassoholic Large Room class: adequate headroom in rooms of 3,000 to 5,000 cubic feet. This is not a subwoofer that gets intimidated by a big space.

The Driver

The driver is considerably better than the original price suggested. An aluminum cone with composite dust cap rides on a powder-coated die-cast aluminum frame, with a rubber long-throw surround, a Nomex linear roll spider, and a 2-inch voice coil on a GSV former. The motor uses double-stacked ferrite magnets with dual shorting rings to control inductance, and a vented pole piece. A large internal window brace ties the top, bottom and both side panels together, and the enclosure is damping-lined throughout.

Performance

For films it delivers weight and depth without the loose overhang that gave ported subwoofers their old reputation. For music it stays tight and pitch-defined, tracking bass lines rather than smearing them. It works equally well as the foundation of a home theatre or filling in the bottom octave under a stereo pair.

Radique-Fitted Enhancements

We have fitted this example with extremely heavy-duty angle brackets underneath, lifting the cabinet an additional three inches off the floor, along with Radique Audio High Density Felt pads in our signature Magenta at the contact points. Together they decouple the cabinet from the floor, protect the surface beneath it, and stop the subwoofer creeping during heavy passages — worth having on a box this heavy, which will otherwise walk itself across a hardwood floor given enough time and enough movie.

Condition

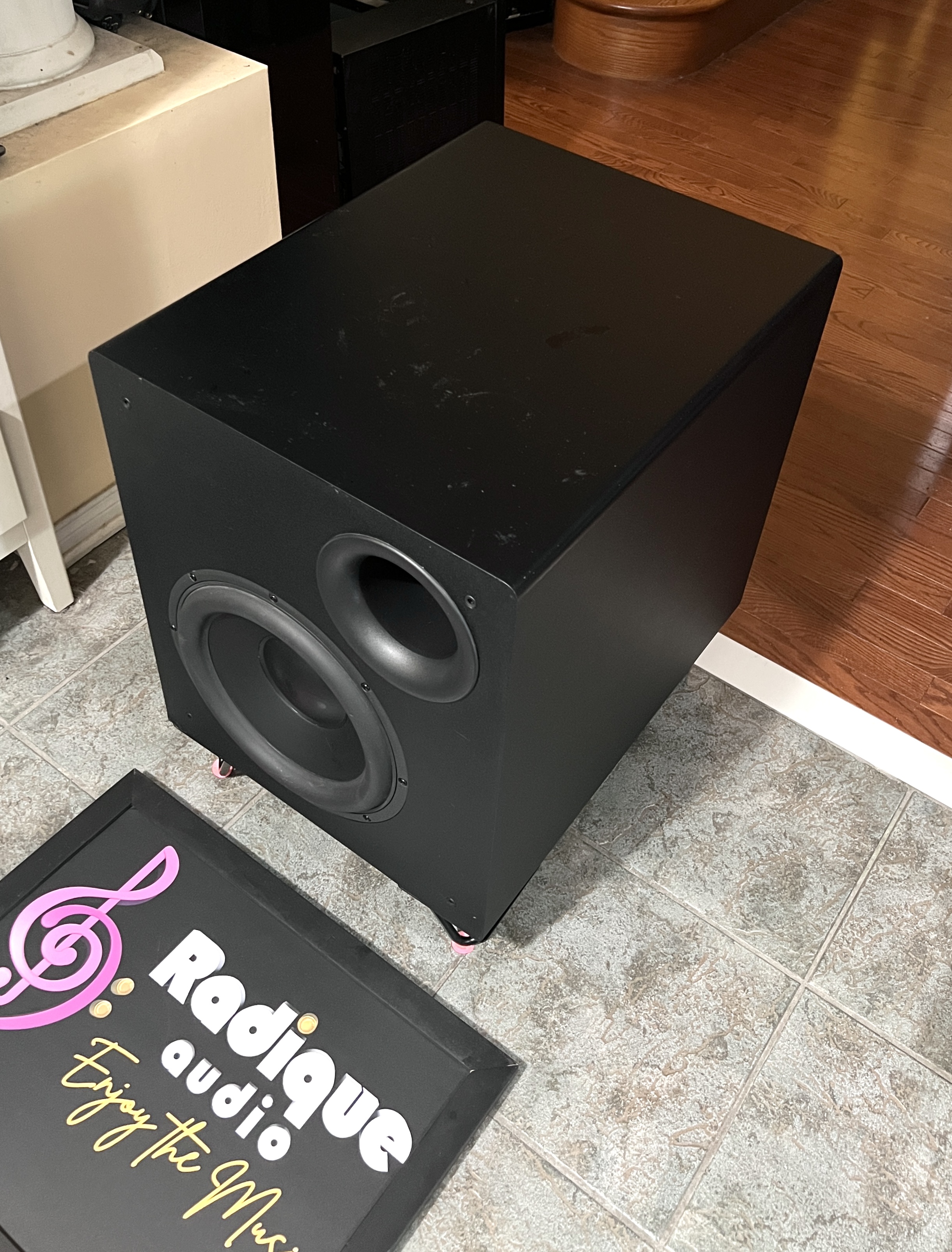

Cosmetically this example is graded Good. There is some light marking on the top surface, consistent with items having been set down on it over the years — the wear a subwoofer collects precisely because it sits at floor level and makes such a convenient shelf. The remaining panels present well. The original steel mesh grille is not included; SVS’s curved grille was an unusually substantial piece and is not easily sourced, though the aluminum cone and deeply flared port make for a purposeful front baffle uncovered.

Radique’s Take

A good many subwoofers come through the shop in a year. This is one of the two or three we would have kept.

What It Costs to Replace Today

Worth knowing what this costs to replace. The current entry-level ported twelve in the SVS range, the PB-1000 Pro, lists at $1,475.00 CAD (approx. US$1,045) — and is rated at 325 watts RMS in a 42.5 lb cabinet. The one in front of you makes 400 watts continuous in a cabinet of 66 lbs. The newer model gains DSP, a smartphone app and a few hertz of extension; it does not gain power, and it does not gain cabinet volume.

Sixty-six pounds of braced MDF and motor assembly is exactly why it stays planted while it works. It is also why moving it is a two-person job, and why the second person deserves to be told that in advance.

Condition and Service

Tested and confirmed performing to standard, then inspected and photographed in-house. For a buyer who wants genuine sub-20 Hz capability rather than the suggestion of it, this remains one of the strongest values in used home theatre.

SVS PB12-NSD Specifications

• Type: Front-ported (bass reflex) powered subwoofer — forward-firing driver, forward-firing port
• Driver: 12-inch long-throw SVS “NSD” — aluminum cone, composite dust cap, powder-coated die-cast aluminum frame, rubber long-throw surround, Nomex linear roll spider
• Motor: Double-stacked ferrite magnets, dual shorting rings, vented pole piece, 2-inch voice coil on GSV former
• Amplifier: SVS Sledge STA-400D, Class D — 400 watts RMS continuous, 800 watts peak
• Frequency Response: 18–150 Hz +/-3 dB
• Box Tuning: Approximately 20 Hz, via a 4-inch port flared at both inlet and outlet
• Cabinet: 1-inch MDF with internal window bracing, damping-lined, black textured vinyl finish

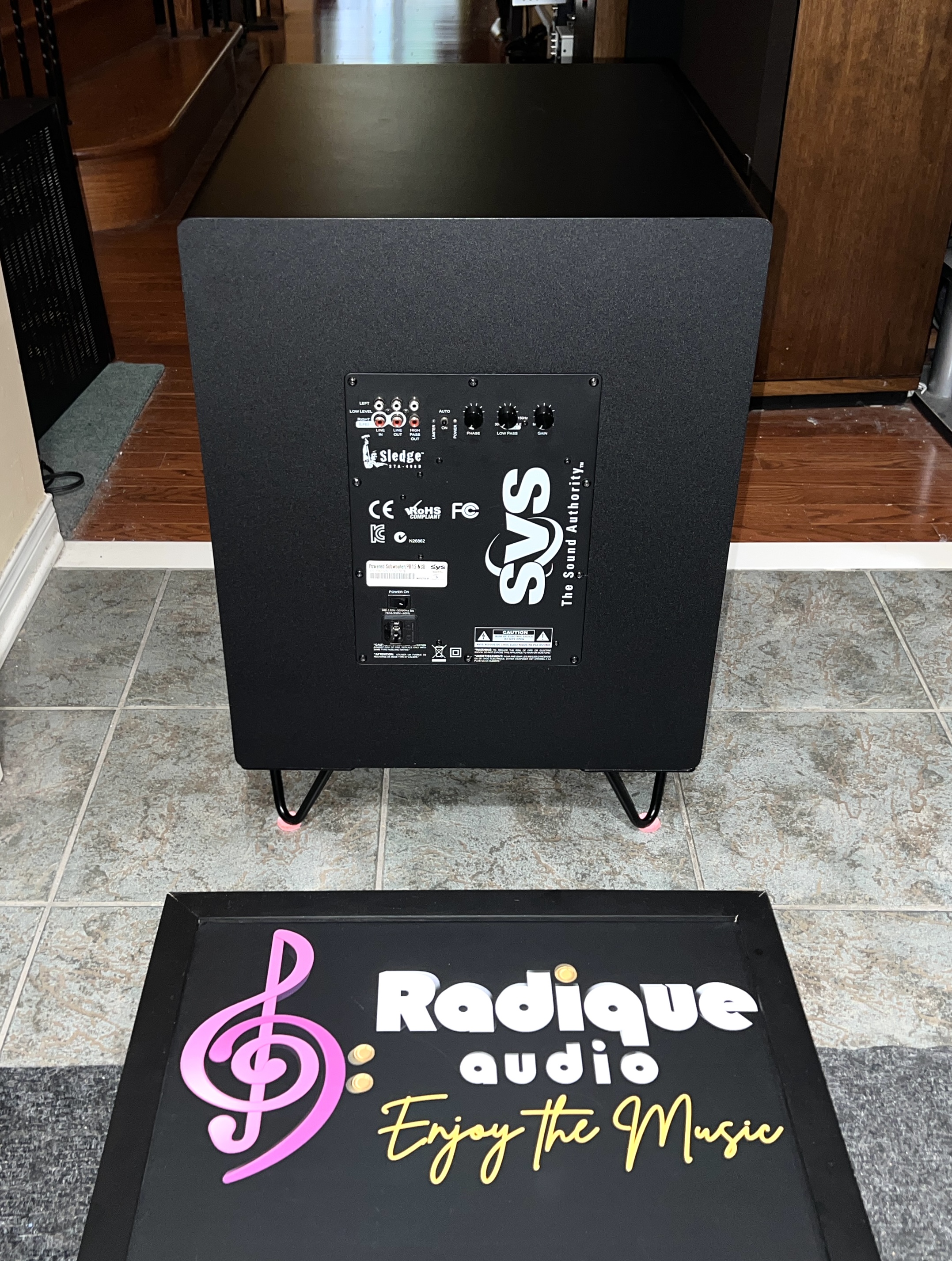

• Inputs: Stereo line-level RCA (L/R), unbalanced RCA LFE
• Outputs: Stereo line-level RCA (L/R), unbalanced RCA LFE, plus separate unfiltered and 80 Hz high-passed line-level outputs for daisy-chaining a second subwoofer
• Controls: Gain, continuously variable phase, fully adjustable low-pass filter with Disable setting for use with a receiver’s own bass management, Auto-On/On switch with low-draw standby, limiter LED
• Power: Detachable power cord with main power switch and fuse
• Radique Audio High Density Felt pads in our signature Magenta, fitted at the contact points
• Heavy-duty angle brackets fitted underneath, raising the cabinet three inches off the floor
• Dimensions: (Width x Height x Depth) 17.3 x 20.9 x 22 inches (439 x 531 x 559 mm) As fitted with the lift brackets, overall height is approximately 23.9 inches (607 mm).
• Weight: 66 lbs (30 kg)

⚠️ Important Information for International Buyers

This unit is configured for North American 110/120V power. Buyers outside North America will require a step-down transformer and appropriate plug adapter.
