Marantz 2220 Vintage Stereo Receiver – 20 WPC, Made in Japan

Marantz 2220 Vintage Stereo Receiver – Serviced, 20 WPC, Made in Japan, Walnut-Grain Metal Cabinet

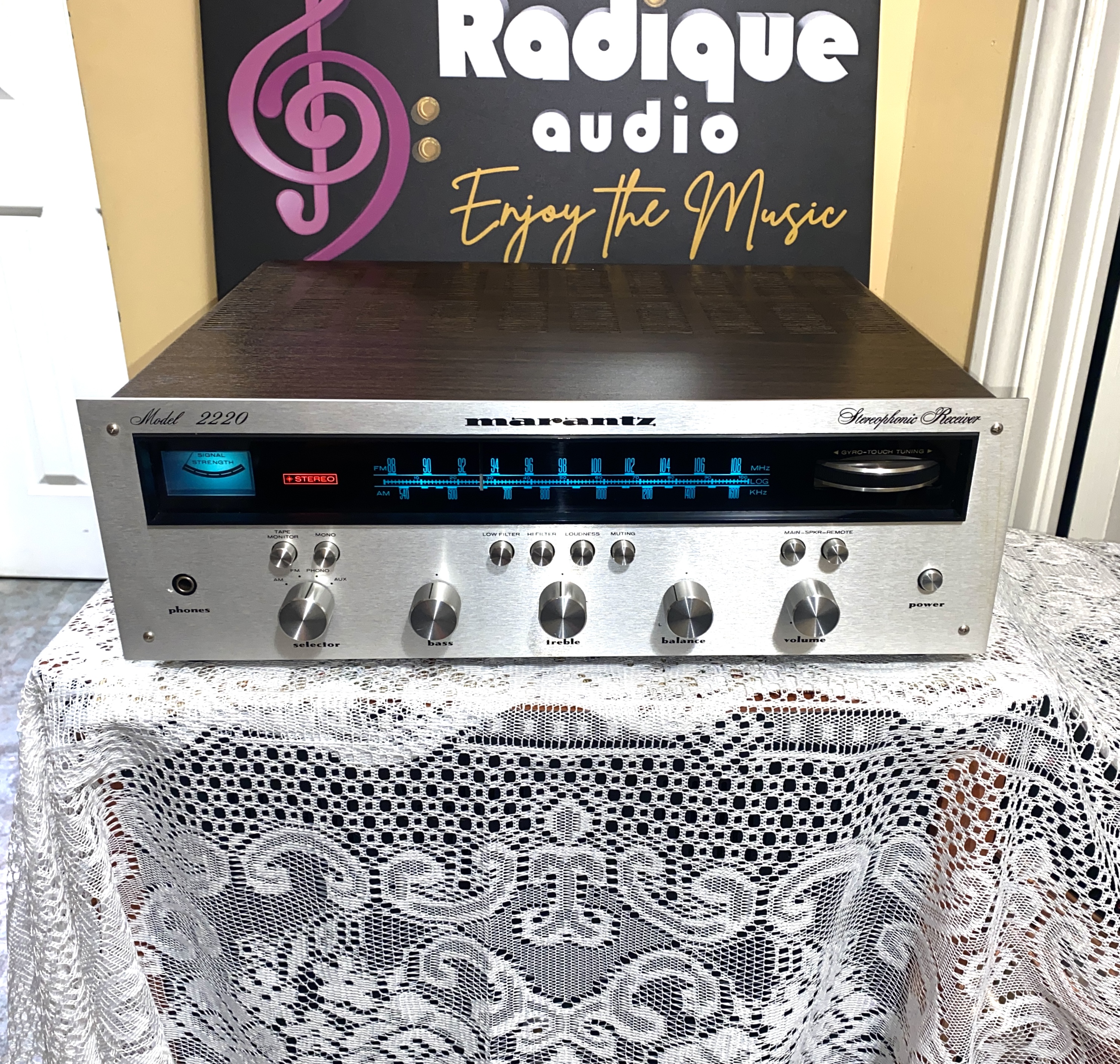

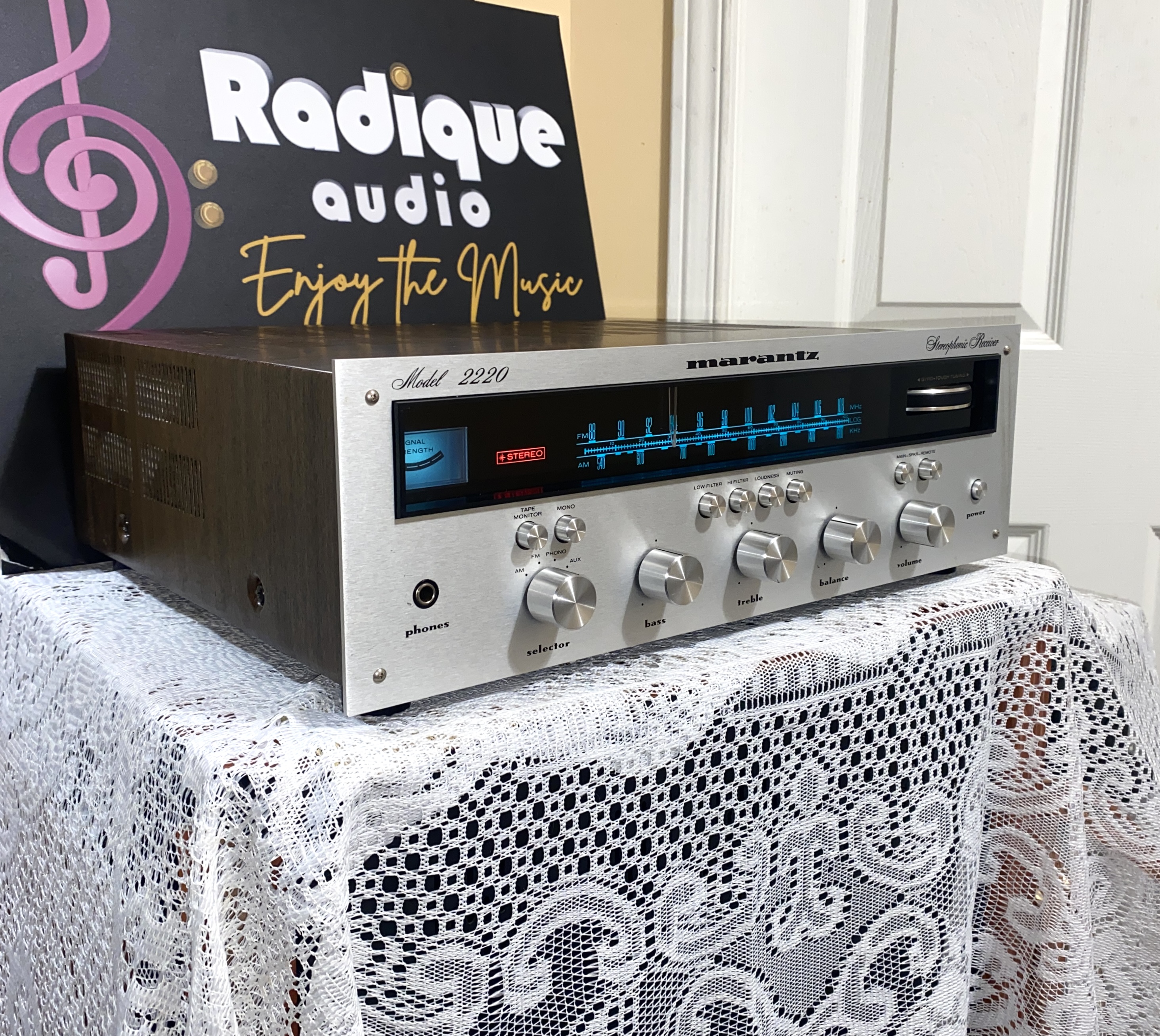

One of the sweetest entry points into the golden-era Marantz sound — the 2220 delivers a warm, musical presentation that punches well above its modest 20 watts per channel. Built in Japan from 1973–1974 and presented here in its standard Marantz walnut-grain metal cabinet, it brings the classic brushed silver faceplate, blue dial glow, and easy-listening Marantz voicing that made the 22xx series legendary.

Pair it with our RA-Twin II Bluetooth streamer and you get the best of both worlds — vintage Marantz character with effortless streaming from your phone, tablet, or laptop. The 2220’s well-regarded MM phono stage also makes it a natural fit for a compact vinyl setup.

Service & Condition 🔧

• Level One service completed
• Thoroughly tested across inputs, outputs, controls, tuner, and speaker sections
• Pots and switches cleaned and deoxidized for smooth, quiet operation
• Dial lamps replaced as required for proper illumination
• Power supply wiring and connectors inspected and cleaned
• Bias and DC offset checked and adjusted
• Good cosmetic condition with honest vintage patina appropriate to age

Features & Controls 🎛️

• 20 watts per channel into 8 ohms, with strong real-world drive
• Gyro-Touch flywheel AM/FM tuning
• Signal-strength meter for precise FM tuning
• Independent bass and treble controls
• Loudness contour plus high and low filters
• Mono/stereo and muting controls for flexible tuner use
• Two pairs of speaker outputs

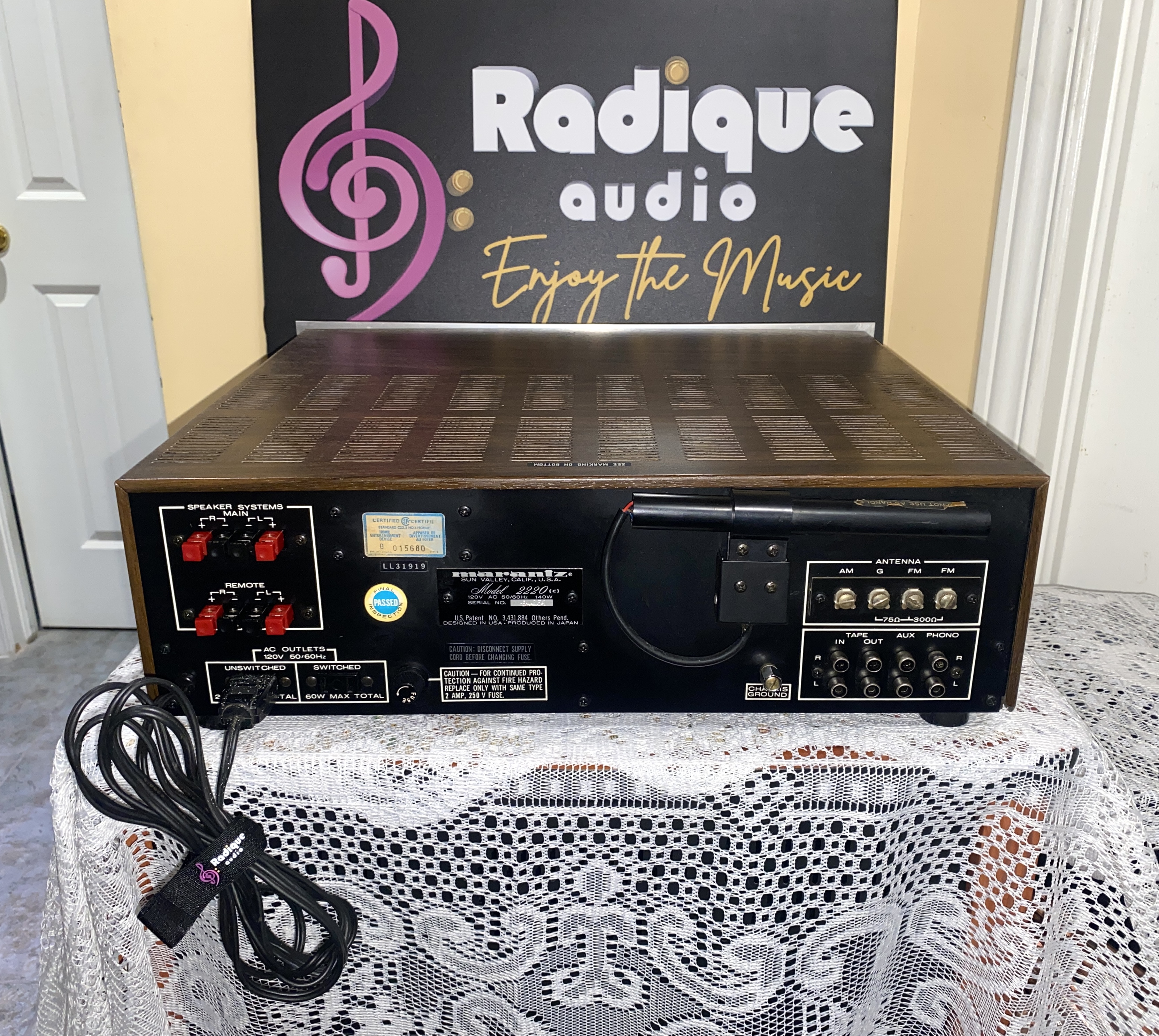

• MM phono input, auxiliary input, and tape monitor loop
• Front-panel headphone output

Specifications 📐

• Type: Stereo AM/FM receiver, solid-state
• Power output: 20 W/ch into 8 ohms (stereo)
• Dynamic power: 40 W into 4 ohms
• Frequency response: 10 Hz – 50 kHz
• Total harmonic distortion: 0.9%
• Damping factor: 45
• Input sensitivity: 1.8 mV (MM phono), 180 mV (line)
• Signal-to-noise ratio: 77 dB (line)
• Channel separation: 35 dB (line)
• Speaker load impedance: 4 – 16 ohms
• Year of manufacture: 1973 – 1974
• Country of origin: Japan

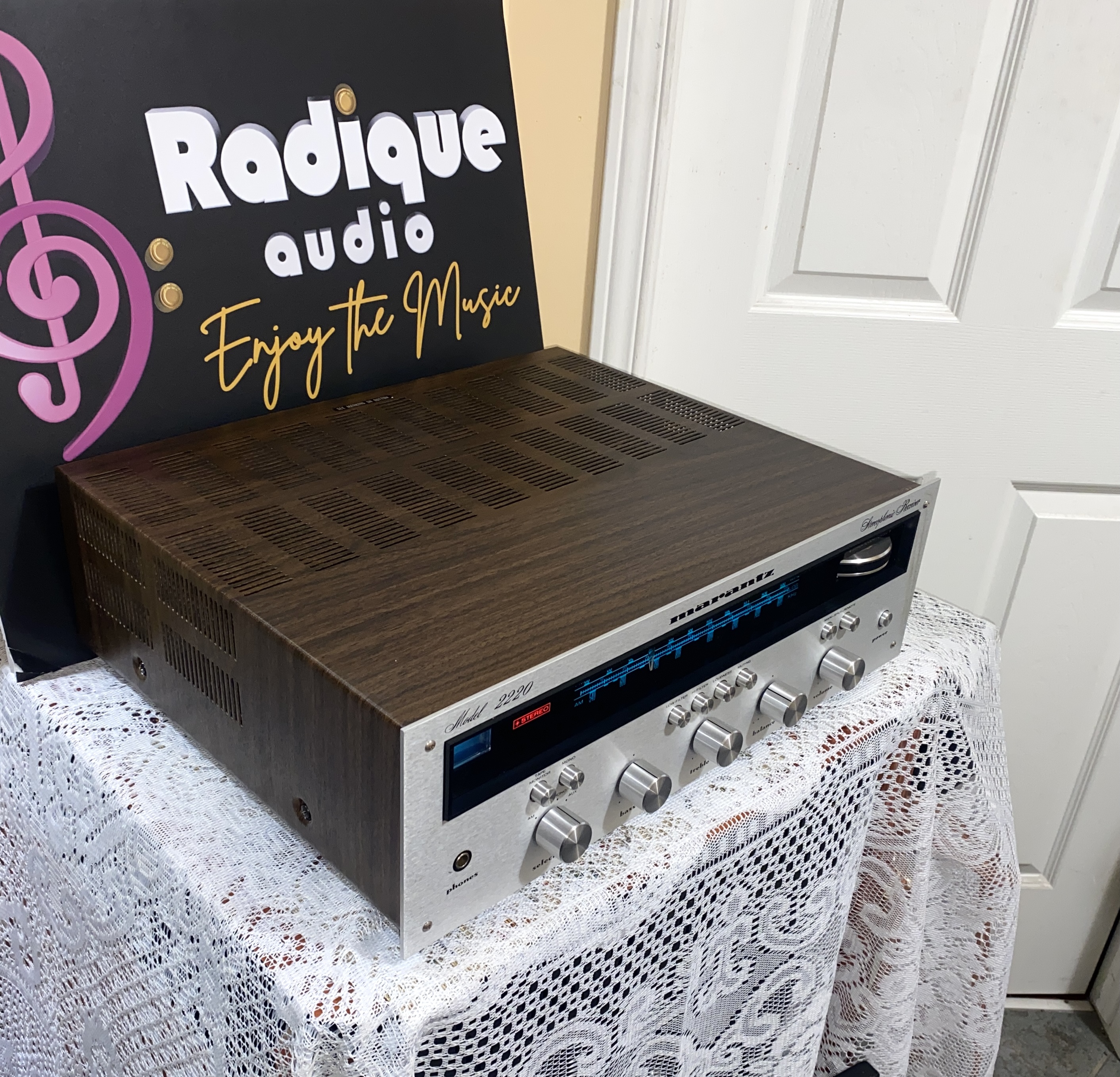

• Finish: Silver faceplate with standard Marantz walnut-grain metal cabinet
• Dimensions: 441 × 137 × 350 mm (17.36 × 5.39 × 13.78 in)
• Weight: 12 kg (26.4 lbs)

Why Choose Radique 🛡️

Every vintage receiver we sell is hand-tested, serviced where needed, and packed in 275 lb-test double-wall packaging built for the journey. We restore vintage gear because it deserves a second life — and because a properly serviced 1970s receiver still has more soul than most modern black-box nonsense. See how we pack these beauties in our unboxing video.

⚡ Voltage Information

This Marantz 2220 is configured for North American 110/120 V / 60 Hz mains. Buyers outside North America will need a suitable step-down transformer.

Radique Advantages 🇨🇦

• Backed by the Radique Warranty
• Eligible for our Perpetual Trade-Back Program
• Local pickup or curbside delivery in the Ottawa area
• In-house support from a team that actually knows vintage hi-fi
• Optional upgrade path to our Custom Cherry Cabinet version or standalone WC-22 Style Cherrywood Cabinet
