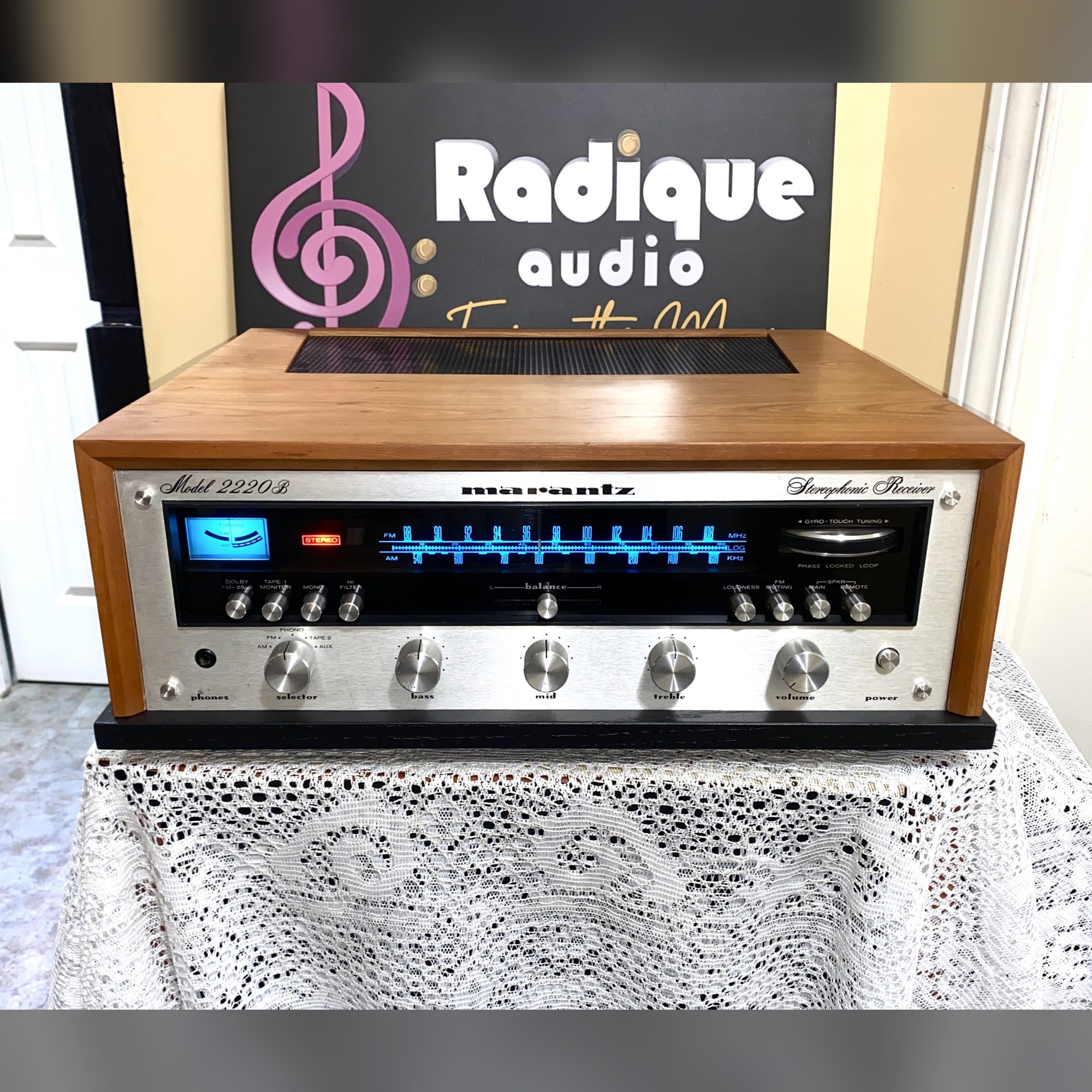

Marantz 2220B Stereo Receiver | 20 WPC | Custom Cherry Cabinet

Marantz 2220B Vintage Stereo Receiver – Serviced, 20 WPC, Custom Ottawa Valley Cherry Wood Cabinetry

One of the most cherished entry receivers in Marantz’s 22xx lineup — Made in Japan, 1975-1977, freshly serviced and housed in our handcrafted Ottawa Valley cherrywood cabinet. Vintage hi-fi engineering and modern furniture-grade woodworking come together as a statement piece — warm-toned, furniture-grade presence that integrates beautifully with vintage wood furniture for a cohesive listening room.

Pair it with our RA-Twin II Bluetooth streamer and you’ve got a 50-year-old receiver streaming Tidal lossless from your phone — vintage character and warm cherrywood meet modern convenience without compromising the period aesthetic.

SERVICE & CONDITION 🔧

• Thoroughly serviced and fully tested
• Cleaned inside and out; pots and switches cleaned for silent operation
• Dial lamps verified; bias and DC offset checked
• Performing exactly as it should; sounds beautiful
• Presentation-grade example, elevated to heirloom-furniture status by the custom cherry cabinet

THE CUSTOM CHERRY CABINET 🪵

• Handcrafted in our Ottawa workshop from genuine Ottawa Valley cherry veneer over premium MDF core
• Book-matched grain, sanded to a silky 320-grit smoothness
• Hand-finished with traditional boiled linseed oil + final beeswax polish — no stains, no polyurethane, no synthetics
• Front edges hand-bevelled; rear edges fully finished
• Ventilated metal grill insert on top for proper airflow
• Cherrywood deepens and darkens beautifully with age

FEATURES & CONTROLS 🎛️

• Direct-coupled output stage (the coveted “B” upgrade)
• Centre balance slider control
• Separate Bass, Mid, Treble tone controls
• Gyro-Touch flywheel FM/AM tuning
• Signal-strength + centre-of-channel tuning meters
• FM muting, loudness, high/low filters
• Dual tape monitor loops
• Two pairs of speaker outputs
• High-quality MM phono stage
• 6.35 mm front-panel headphone jack

SPECIFICATIONS 📐

• Type: Stereo AM/FM receiver, solid-state
• Power output: 20 W/ch RMS into 8 ohms (0.5% THD)
• Frequency response: 10 Hz – 50 kHz (amp); 50 Hz – 15 kHz ±1 dB (FM)
• Input sensitivity: 1.8 mV (phono), 180 mV (line)
• S/N ratio: 77 dB (line)
• Channel separation: 30 dB (line); 40 dB (FM stereo at 1 kHz)
• Speaker impedance: 4 – 16 ohms
• Year of manufacture: 1975 – 1977
• Country of origin: Japan
• Finish: Silver faceplate in custom Ottawa Valley cherry cabinet
• Dimensions (with cabinet and feet): 19.25″ × 16.25″ × 7.5″ (48.90 × 41.28 × 19.05 cm)
• Weight (with cabinet): 33.8 lbs (15.33 kg)

WHY CHOOSE RADIQUE 🛡️

Every vintage receiver we sell is hand-tested, serviced where needed, and shipped in 275 lb-test double-wall packaging built for the journey — Canada-wide or international. The cabinets are our own work, made the right way, with cherry we source ourselves from the Ottawa Valley. Watch how we pack vintage gear in our unboxing & packaging video.

⚡ Voltage Information

Configured for North American 110/120 V / 60 Hz mains. International buyers outside North America will need a step-down transformer — call or email before purchasing and we’ll recommend a properly-sized unit for your region.

RADIQUE ADVANTAGES 🇨🇦

• Backed by the Radique Warranty
• Eligible for our Perpetual Trade-Back Program — your investment stays liquid, forever
• Local pickup or curbside delivery in the Ottawa area
• Handcrafted Ottawa Valley cherrywood cabinet, made in our Kanata workshop
• In-house service department for ongoing support

📺 Subscribe to the Radique YouTube Channel for cabinet builds, 22xx series videos, and listening impressions.

📞 613-416-9995  |  📧 [email protected]
