Mirage Nano sysPB-1 8″ Powered Subwoofer – Platinum

Mirage Nano sysPB-1 8″ Powered Subwoofer – Platinum

2 available, please see below for details.

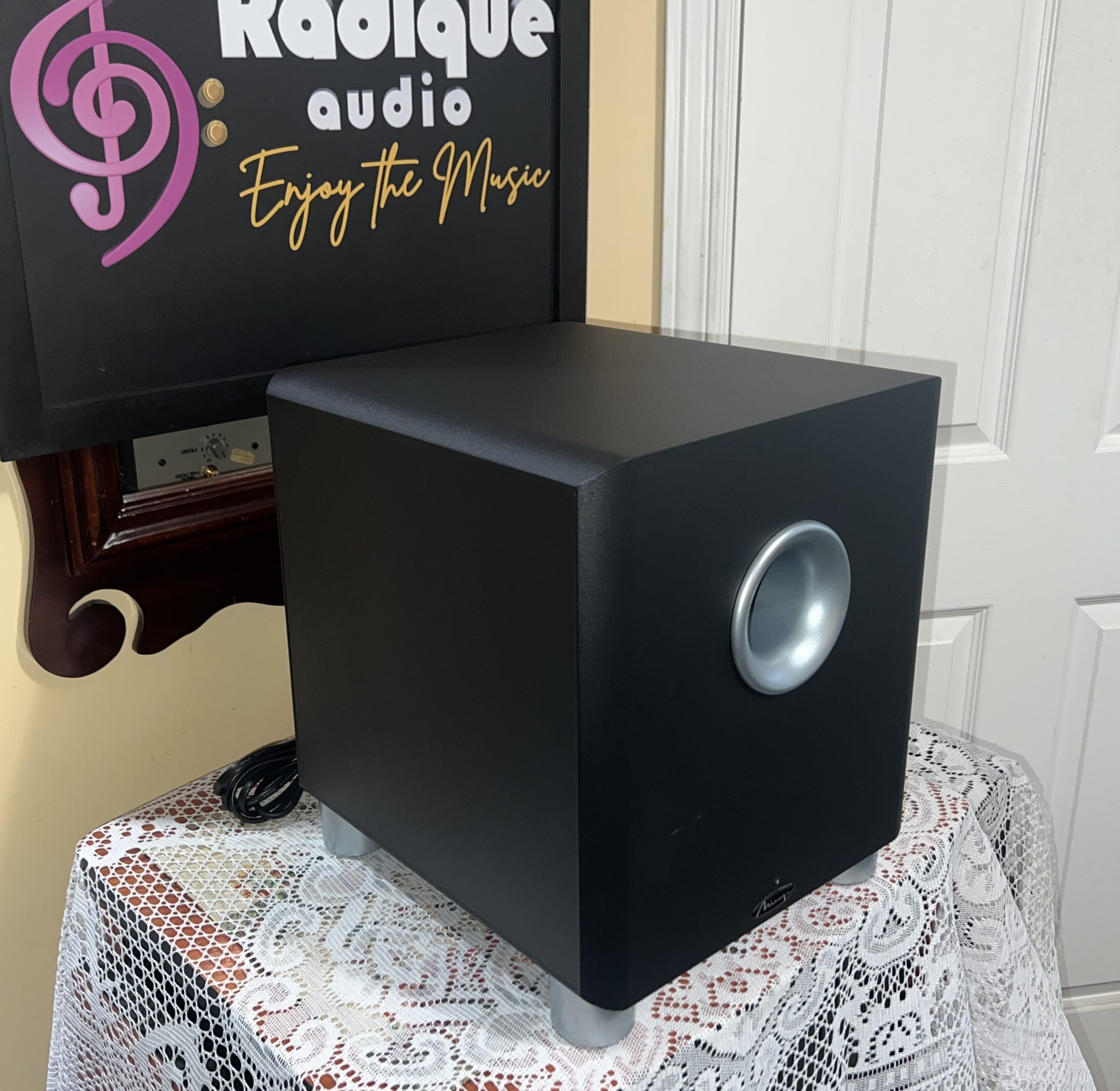

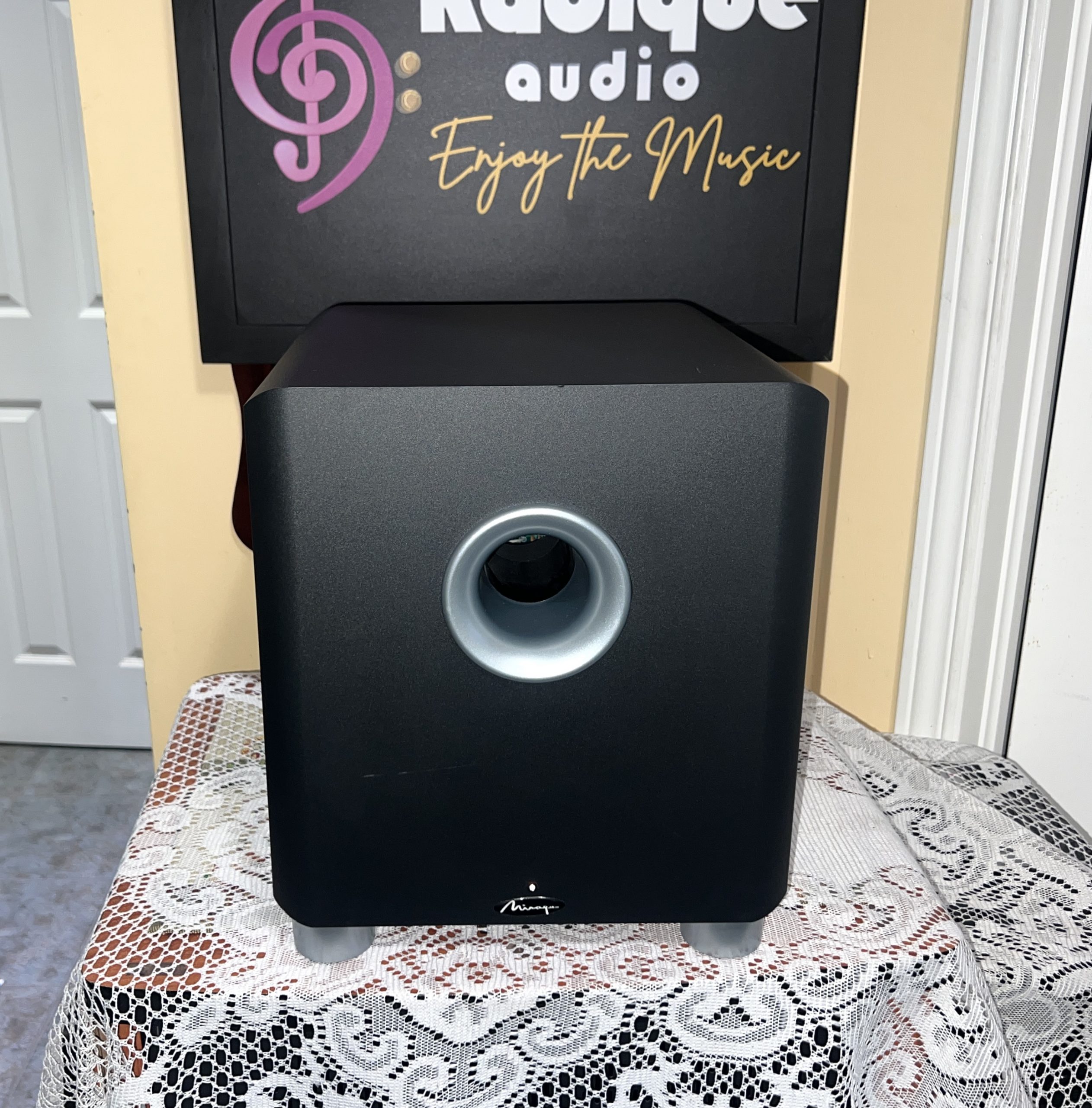

This compact Mirage Nano sysPB-1 powered subwoofer tucks an 8-inch down-firing woofer into a sleek, rounded enclosure designed to add warm, supportive bass to small and mid-size rooms without dominating the space.

Originally designed as the bass module for Mirage’s acclaimed Nanosat 5.1 speaker system, the sysPB-1 pairs beautifully with Nanosat satellites but also works well with other compact speakers where subtle, room-friendly low-end support is the goal rather than chest-thumping output. The 8-inch down-firing woofer uses Mirage’s Ribbed Elliptical Surround technology to reduce distortion and extend low-frequency reach beyond what the cabinet size might suggest. Both low-level (line/LFE) and high-level (speaker-level) inputs are provided, giving flexible connection options whether using a dedicated subwoofer output from a receiver or running speaker wire from an amplifier without a sub out. The crossover is factory-preset at 120 Hz, optimized for use with the Nanosat satellites, which simplifies setup — just connect, place, and play. An auto power on/off switch allows the sub to wake when signal is detected and sleep when idle, keeping energy use low. Both available units are in very good cosmetic condition, with only light signs of use and the platinum/dark grey finish presenting neatly in typical living spaces.

Key features and specifications:

8-inch down-firing woofer with Ribbed Elliptical Surround technology

Internal amplifier: 75 watts RMS / 300 watts dynamic peak

Frequency response: 30 Hz – 120 Hz (±3 dB)

Crossover: factory-preset at 120 Hz, optimized for Mirage Nanosat satellites

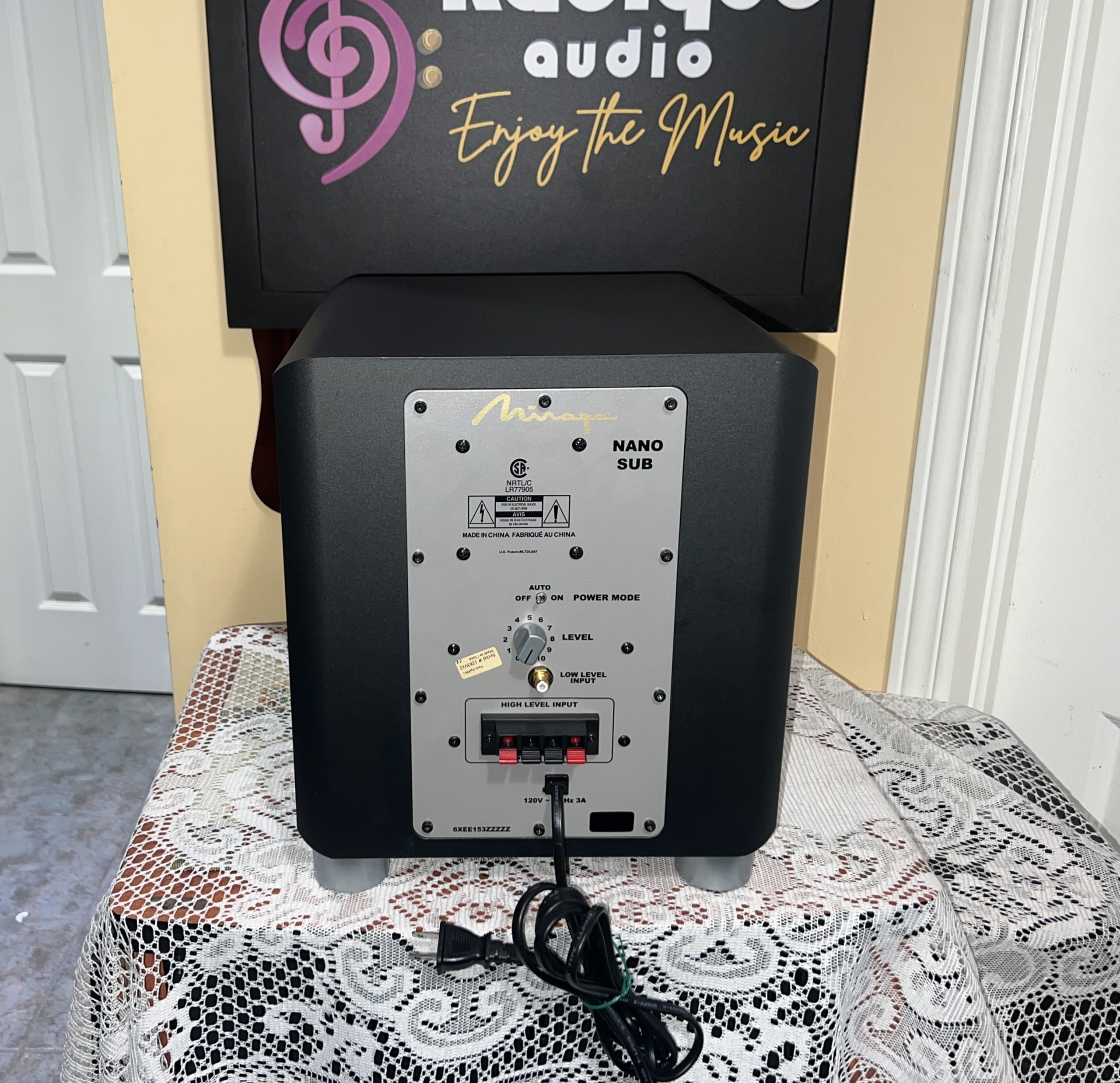

Inputs: low-level (line/LFE) input, stereo high-level (speaker-level) inputs

Power switch: Off / Auto / On

Front-ported bass-reflex enclosure with rounded corners

Finish: Platinum (dark grey cabinet with silver amp panel)

Dimensions and weight:

Dimensions: (Width x Height x Depth) 13.5 x 13.5 x 11.7 inches (343 x 343 x 297 mm)

Weight: 20.1 lbs (9.1 kg)

This Mirage Nano sysPB-1 is an ideal bass companion for Nanosat satellites or any compact speaker setup in a bedroom, office, or small living room where tasteful, supportive low-end matters more than sheer volume. Its pre-optimized crossover and auto-power feature make for effortless plug-and-play integration.

Backed by Radique Audio’s 90-day limited subwoofer warranty and our Perpetual Trade-Back Program, you can purchase with confidence.

Available options and pricing:

Unit A: $195 CAD — performance rated 9/10 relative to original new condition, offering tight, well-controlled bass for its size and suitable for both music-focused systems and home theatre use.

Unit B: $145 CAD — performance rated 7/10 relative to original new condition after amplifier-board repair, fully competent for home theatre and light music applications where absolute audiophile precision is not required.
