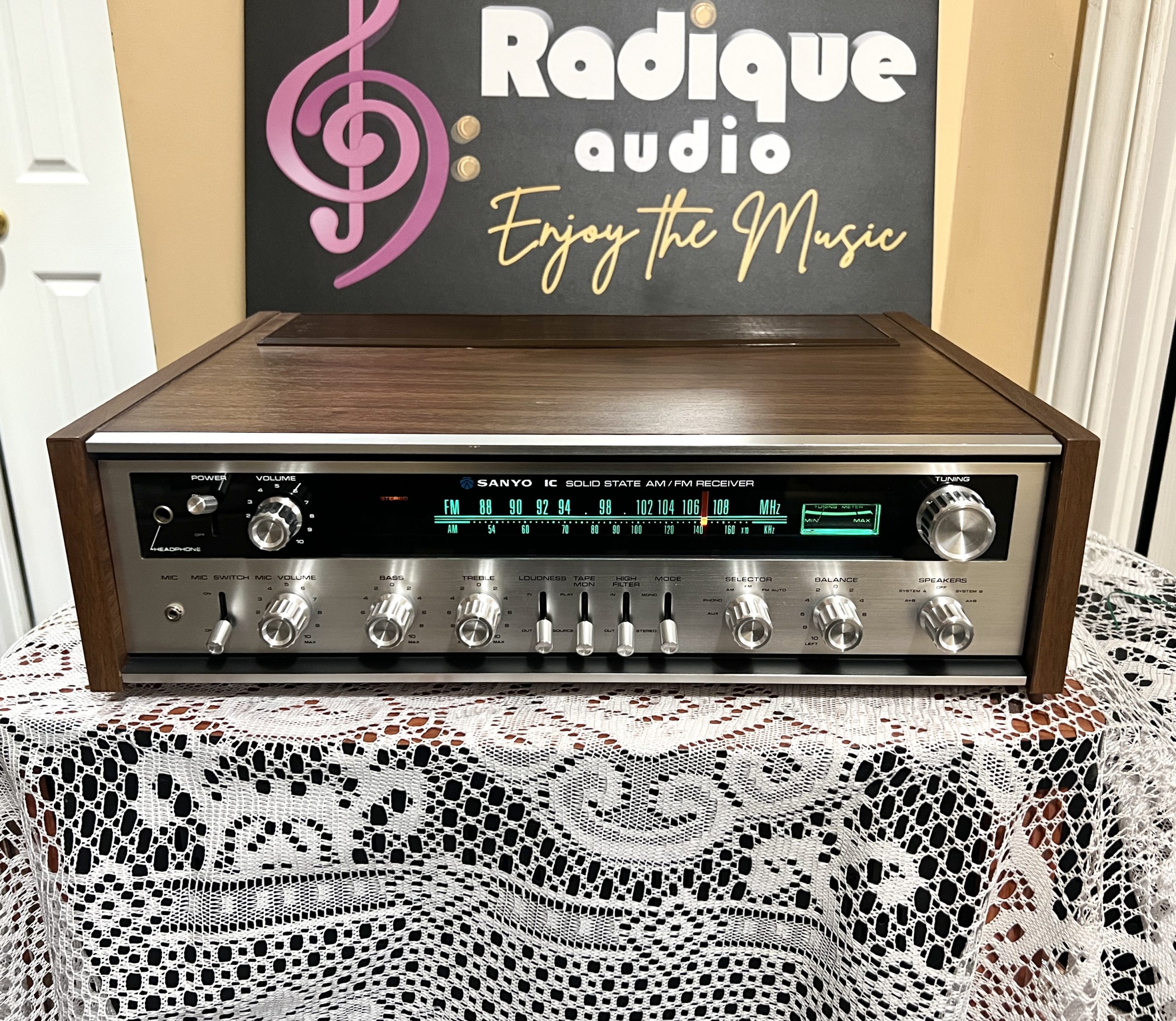

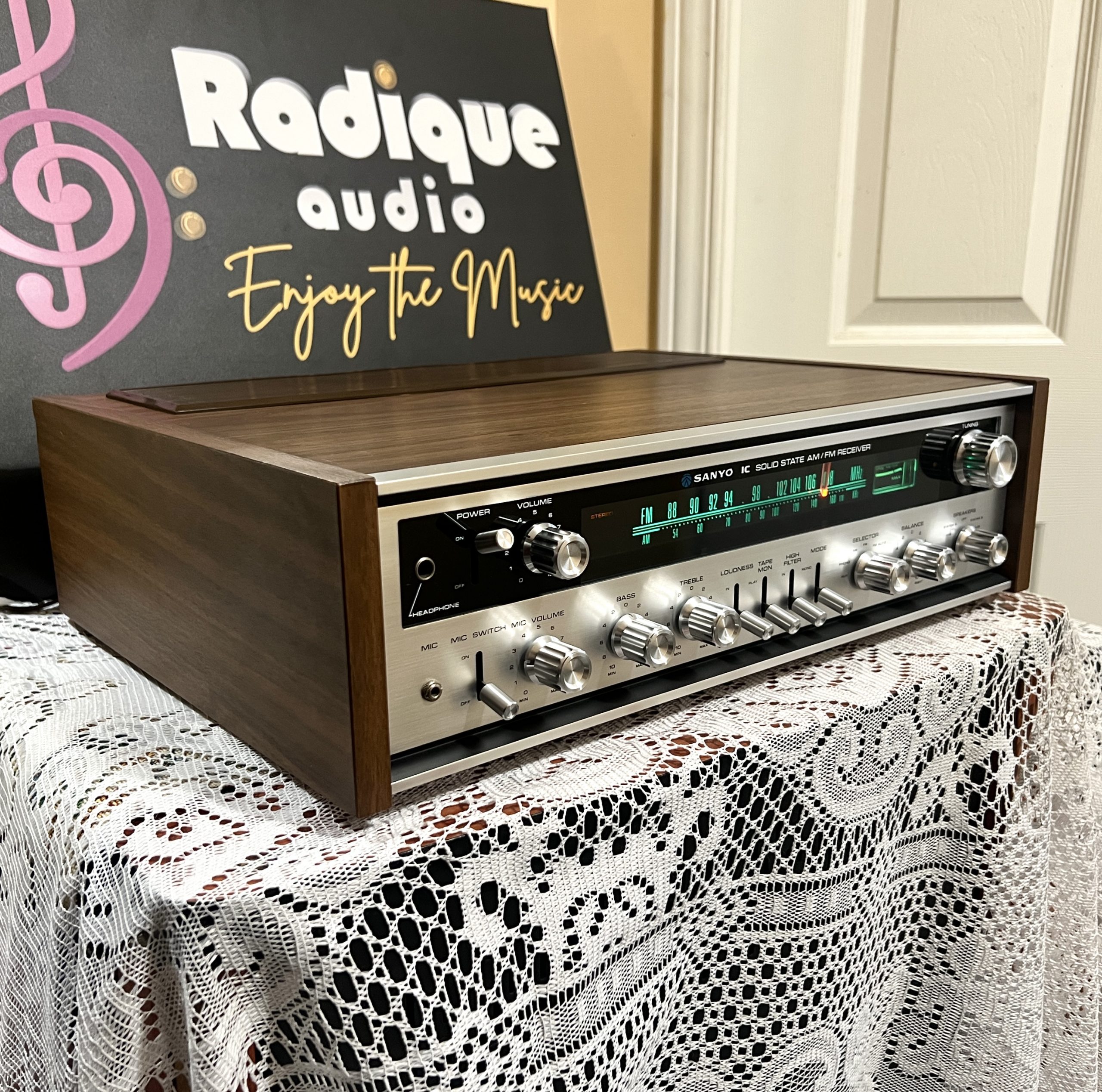

Sanyo DCX-2300K 15WPC Receiver – Real Wood Cabinet

15 watts per channel of clean, musical amplification suitable for efficient speakers and intimate listening spaces.

This DCX-2300K has undergone Level 2 service including partial recap—all major circuit boards have been recapped except for the tuner board and microphone circuit, ensuring reliable long-term performance. Our technician’s work restored critical power supply and audio path capacitors to original specification. Cosmetically, this receiver presents in very good condition with authentic real wood cabinet (not vinyl veneer), clean silver faceplate, functional displays, and minimal wear consistent with careful ownership over fifty years.

The 15 watts per channel output may appear modest by modern standards, but this receiver was designed for the efficient speakers common in 1974, and it delivers surprisingly robust, clean power capable of driving speakers with 87dB sensitivity or higher with ease. The direct-coupled amplifier topology with solid-state circuitry produces a warm, engaging sound signature characteristic of Sanyo’s mid-1970s design philosophy. Total harmonic distortion remains below 0.8%, and the signal-to-noise ratio is 80dB—clean background performance for vinyl replay and radio tuning.

The frequency response extends from 15Hz to an impressive 80kHz, capturing ultra-sonic content well beyond audible range—a design choice that reflects Sanyo’s commitment to capturing the full information on vinyl records and broadcasts. This wide bandwidth helps explain the receiver’s musical, open character that many vintage audio enthusiasts prize.

The phono stage accommodates moving magnet cartridges and includes dedicated bass and treble controls offering ±6dB adjustment at 100Hz and 10kHz respectively, enabling fine-tuning to room acoustics and speaker characteristics. A loudness compensation switch assists low-volume listening. The auxiliary input accommodates tape players, turntable preamplifiers, or other line-level sources.

The FM/AM tuner section provides reliable reception with analog tuning dial and mechanical pointer—satisfying to use and free from digital drift concerns. The front-panel input selector, volume control, and tone controls are all substantial, click-responsive, and built to last decades of regular use.

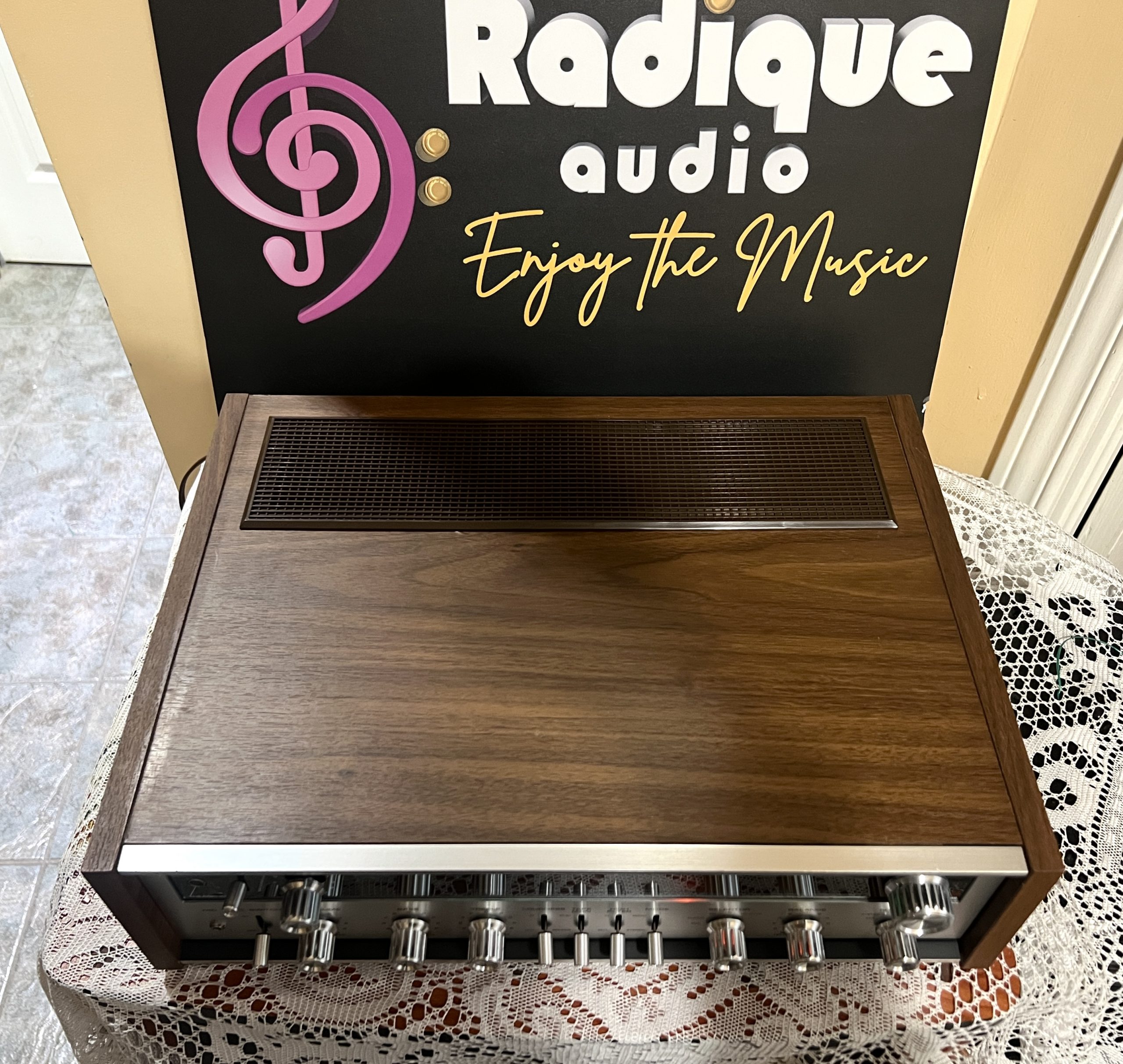

At 7.2 kg (15.8 lbs), the DCX-2300K’s compact metal chassis reflects efficient 1970s design, making it ideal for shelving beside turntables, in tight entertainment centers, or as a secondary system component. The genuine wood cabinet—not the plastic or vinyl veneer common on budget models of that era—indicates Sanyo’s confidence in this receiver’s longevity and appeal.

Key Features & Specifications:

15 watts per channel into 8Ω with warm, engaging sound signature

Level 2 service with partial recap (all boards except tuner and mic recapped)

Genuine real wood cabinet (not vinyl) in very good condition

Made in Japan by Sanyo Electric Co., Moriguchi, Osaka

Phono MM input with dedicated RIAA equalization

Bass and treble controls: ±6dB at 100Hz and 10kHz

Loudness compensation switch for low-volume listening

Auxiliary input for tape, preamp, or line-level sources

FM/AM tuner with analog dial and mechanical pointer

Frequency response: 15Hz–80kHz

Total harmonic distortion: 0.8%

Signal-to-noise ratio: 80dB

Direct-coupled solid-state amplifier topology

Thoroughly tested; all functions verified working

Very good cosmetic condition

Dimensions: (Width x Height x Depth) 440 x 177 x 354 mm (17.3 x 6.9 x 13.9 inches)

Weight: 7.2 kg (15.8 lbs)

For vintage audio enthusiasts seeking a serviced, compact receiver with genuine wood cabinetry and the warm, musical character that defines 1970s Japanese engineering, the Sanyo DCX-2300K remains an excellent choice for turntable systems or secondary listening rooms.

Backed by Radique Audio’s 90-day warranty and our perpetual trade-back policy, you can purchase with confidence.

Asking $345 CAD.
