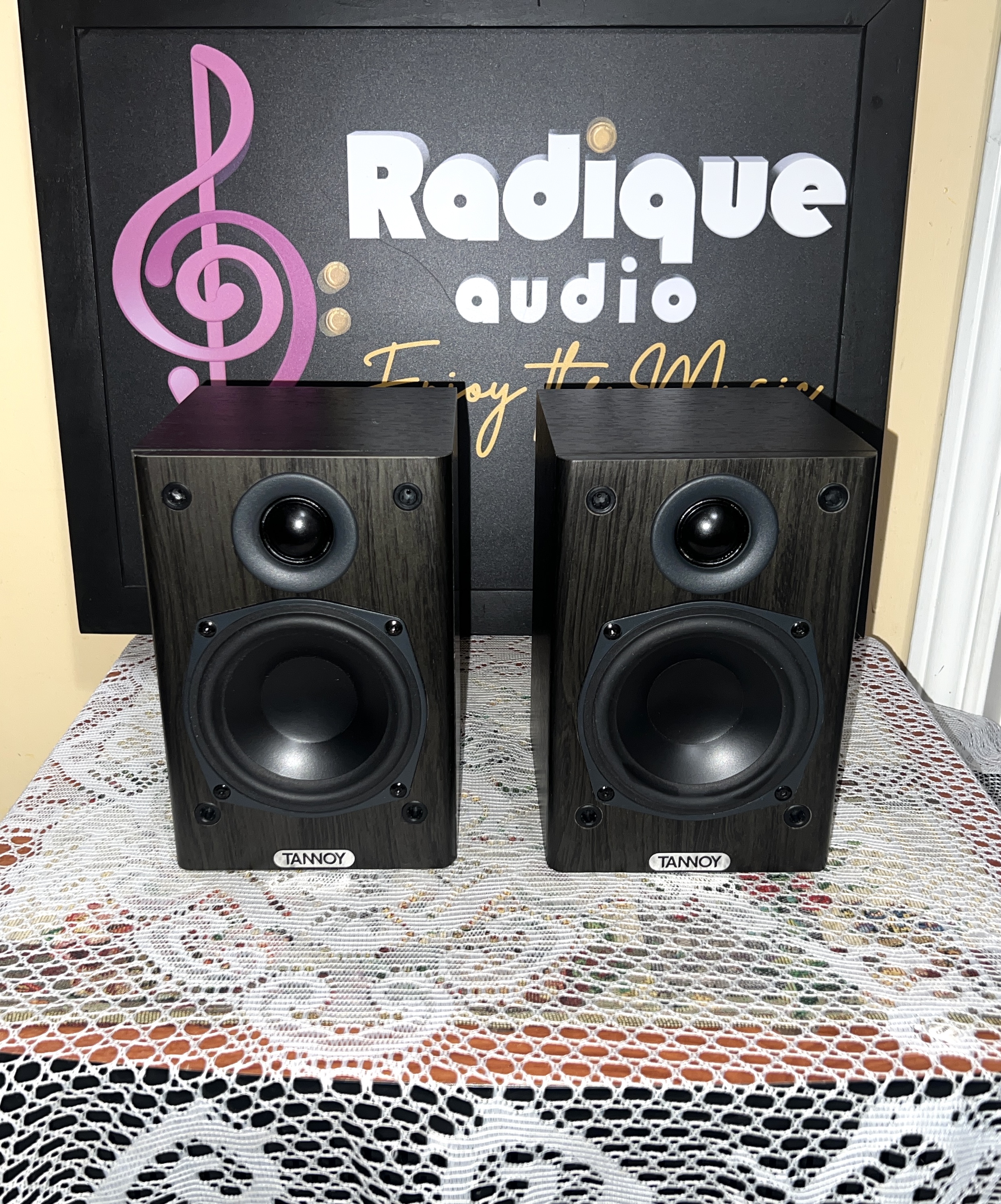

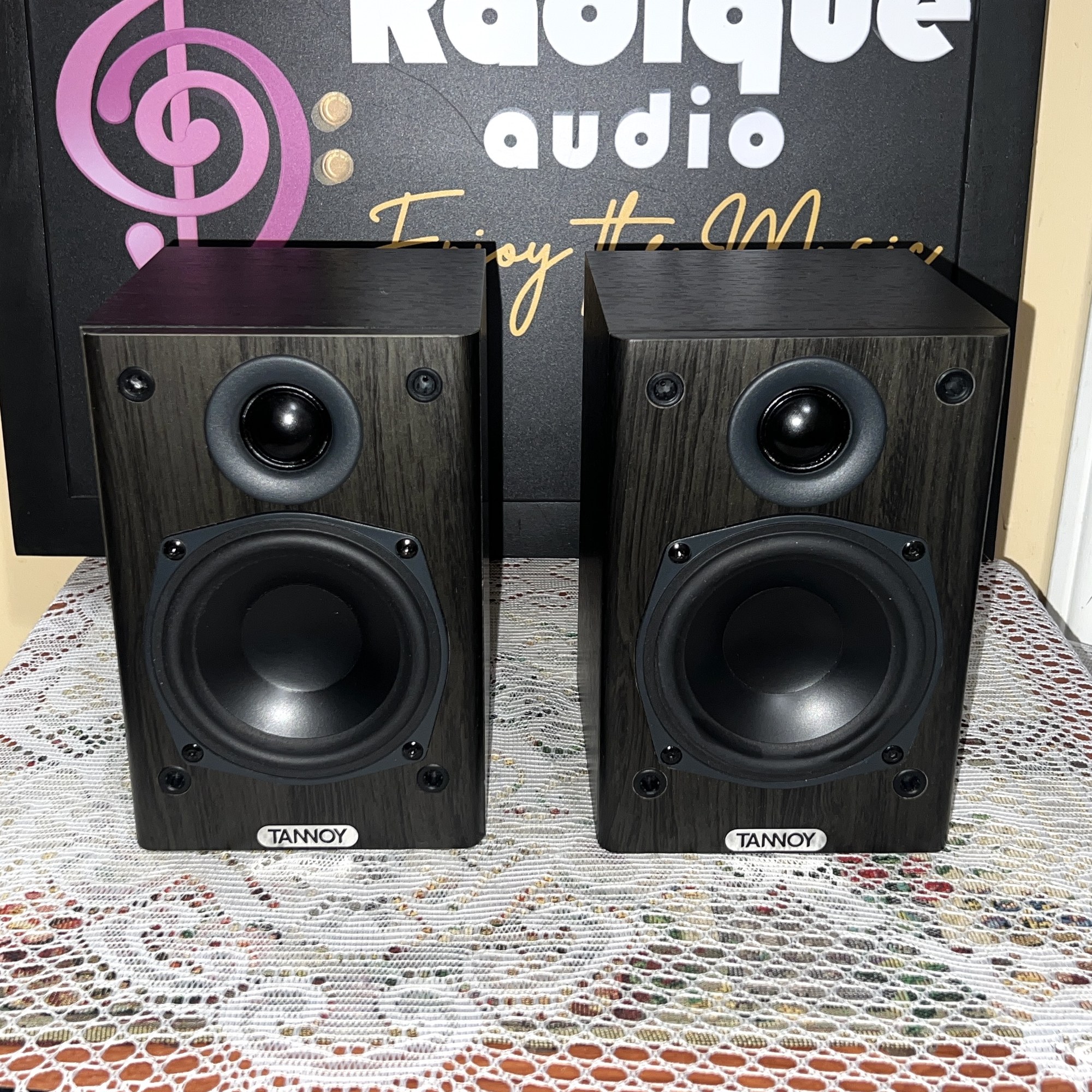

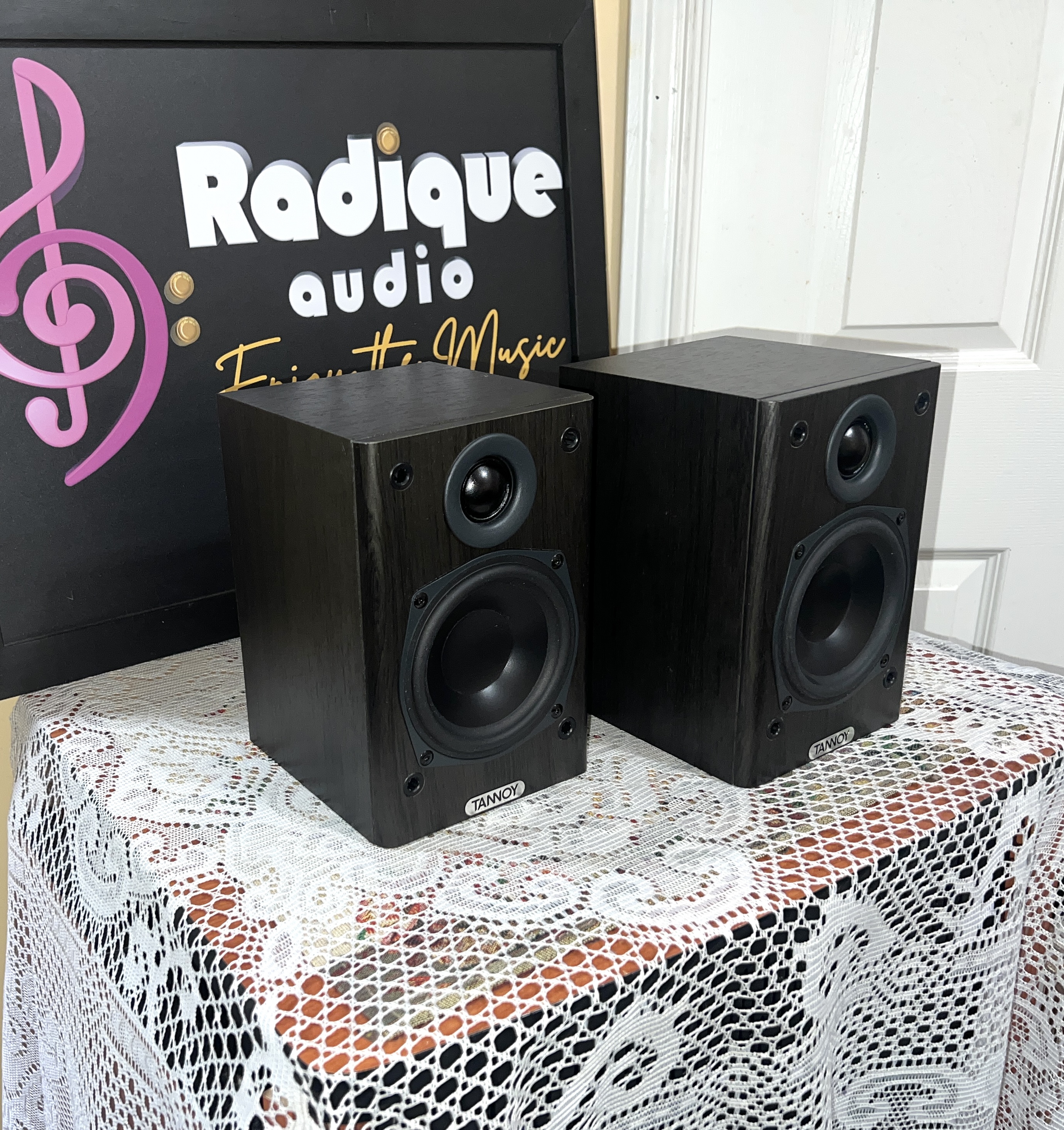

Tannoy Mercury FR Custom Compact Speakers – Dark Oak, Pair
$145.00
A pair of compact two-way Tannoy speakers from the limited Custom edition of Tannoy's Mercury F-series, in very good condition, with a wall bracket built into the back of each cabinet.
✔️ Very good condition — free of significant marks; both grilles included
✔️ The limited Custom edition of Tannoy’s Mercury F-series, in Dark Oak
✔️ Built-in wall bracket — hang them, or stand them on a shelf
✔️ Covered by Radique Warranty
✔️ Includes Perpetual Trade-Back Program eligibility
✔️ Expertly packed for safe shipping
1 in stock
A pair of compact two-way Tannoy speakers from the limited Custom edition of Tannoy’s Mercury F-series, in very good condition, with a wall bracket built into the back of each cabinet.
What they are
The Mercury FR was the smallest model in Tannoy’s Mercury F-series. Tannoy designed it as a rear or surround speaker, and it works just as well as a front stereo pair wherever space is tight: a desk, a kitchen, a bedroom or a small study. The Custom edition was Tannoy’s step-up version of the range, and the badge on the back of each cabinet reads “Limited Edition Audiophile Upgrade”.
Each speaker pairs a 1″ woven polyester dome tweeter, layer-damped and driven by a shielded neodymium magnet, with a 4″ multi-fibre coated paper cone. A fourth-order Linkwitz-Riley crossover hands over between them at 2.9 kHz. The 2.6-litre cabinet is rear-ported, cross-braced inside, and built on a 15 mm MDF front baffle for rigidity.
For the Custom edition, Tannoy describes an upgraded crossover, including a polypropylene capacitor in the tweeter feed, and internal wiring replaced with Van den Hul silver-plated cable.
A bracket pre-fitted to the back of each cabinet lets them hang flat against a wall, in portrait or landscape. At 86 dB and 8 ohms, rated for amplifiers from 10 to 60 watts, they are an easy match for a modest receiver. Bass is rated to 59 Hz, so for full-range music in a larger room they are happiest alongside a subwoofer; as surrounds, or as a compact pair for close listening, they need nothing else.

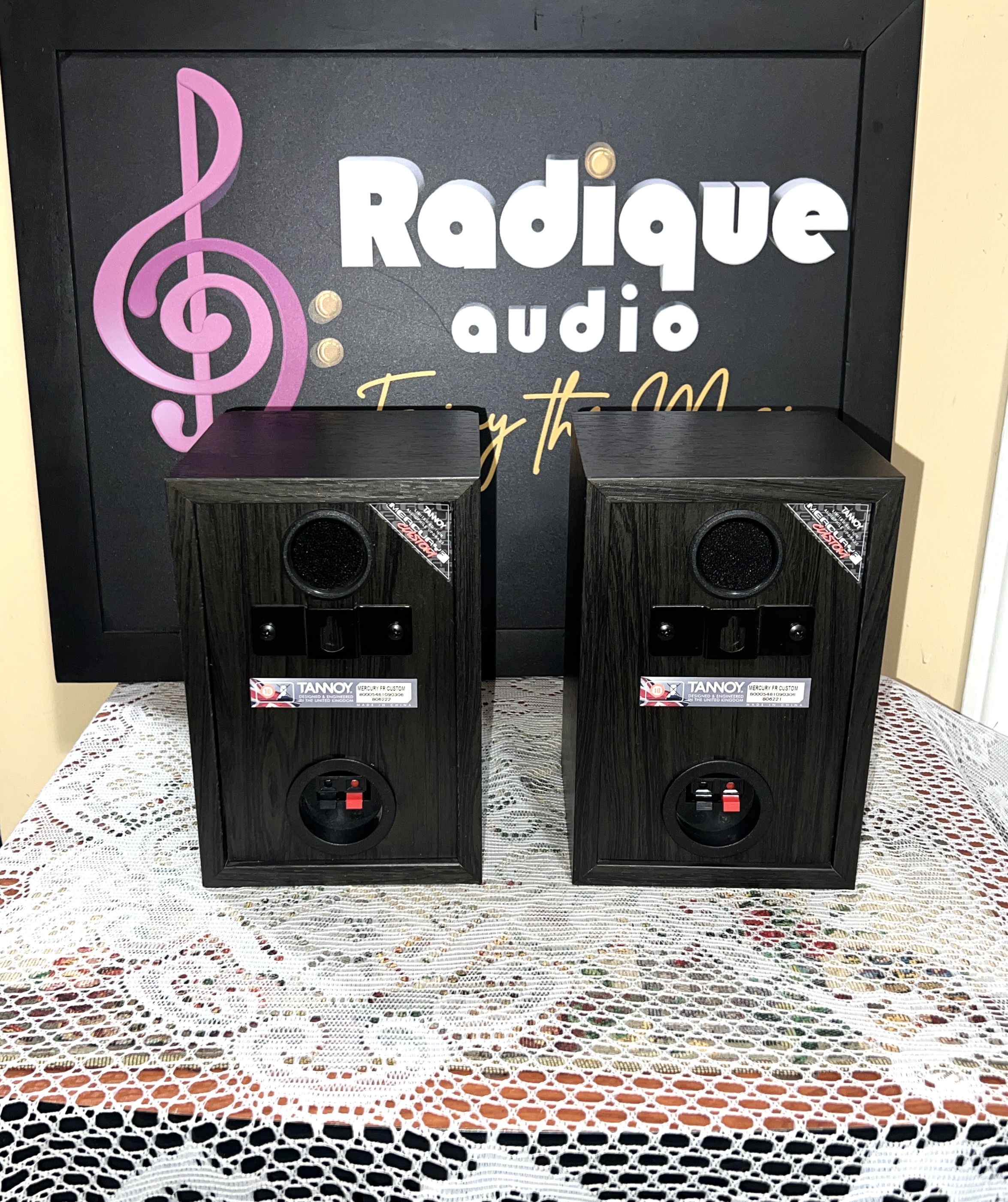

Around the back, red and black spring-clip terminals in a recessed cup take bare wire or pin connectors. Our own Radique Audio pin connectors are the natural match for a neat, secure fit, and our Custom Speaker Cable Builder will make you a pair to the exact length, terminated and ready to connect.
Designed and engineered in the UK.
Condition

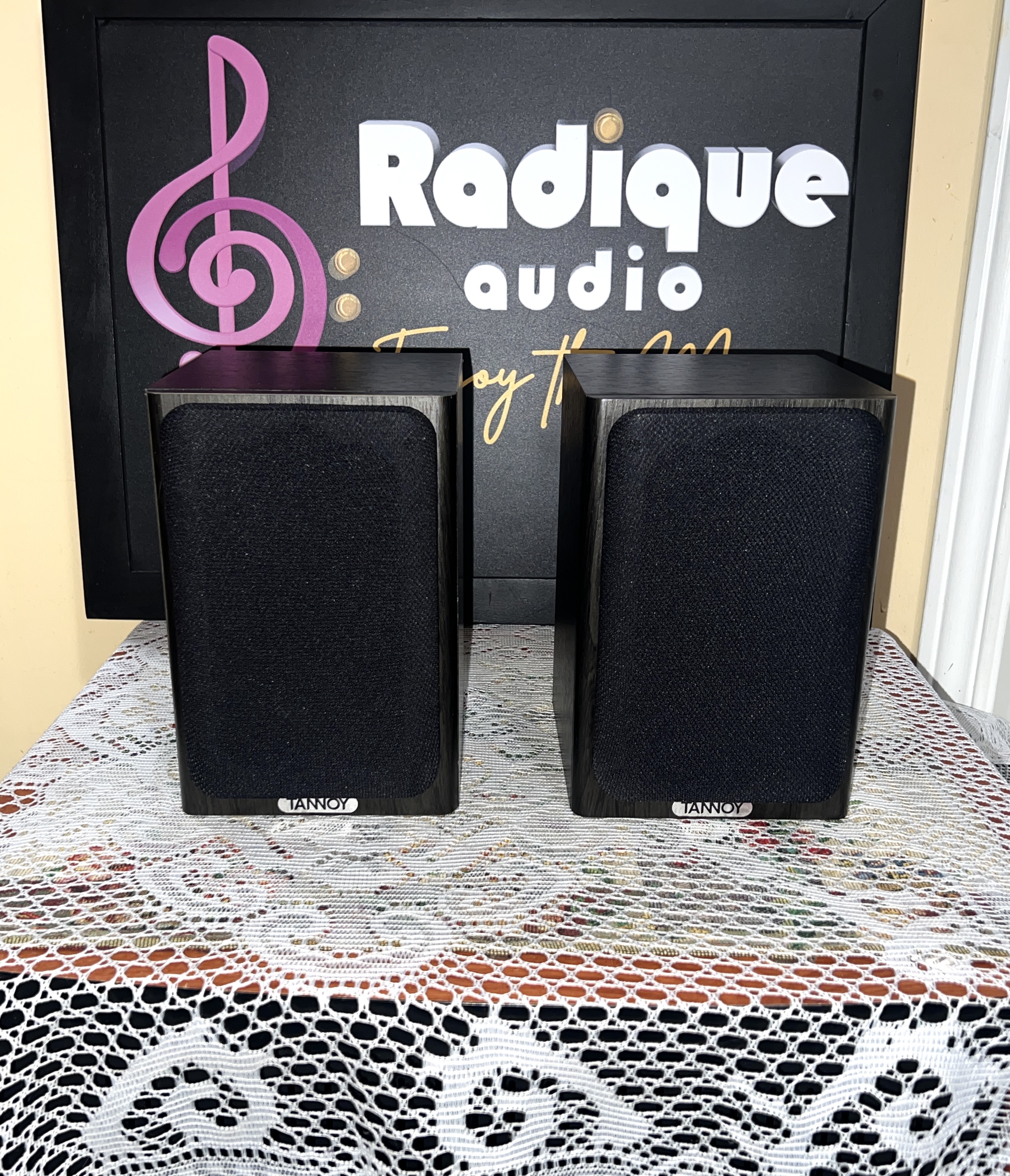

Very good, and free of significant marks. The Dark Oak cabinets, drivers and Tannoy badges all present well, as the photographs show. Both black cloth grilles are included.
A small, well-made Tannoy pair that hangs on a wall or sits on a shelf, from the step-up Custom edition of the range.
Available for pickup in Kanata, or shipped across Canada and internationally — we have sent equipment to fifteen countries in the past year, each piece packed in-house in 275 lb test double-wall boxes. Live shipping rates for your address are calculated at checkout. Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. Available for audition by appointment in Kanata.
Tannoy Mercury FR Custom Specifications
- Type: 2-way compact bookshelf or surround speaker, rear-ported
- Tweeter: 1″ (25 mm) woven polyester dome, layer-damped, shielded neodymium magnet
- Woofer: 4″ (100 mm) multi-fibre coated paper cone
- Crossover: 2.9 kHz, fourth-order Linkwitz-Riley
- Frequency response: 59 Hz – 20 kHz
- Sensitivity: 86 dB (2.83 V, 1 m)
- Impedance: 8 ohms
- Recommended amplifier power: 10 – 60 watts
- Power handling: 40 watts continuous, 80 watts peak
- Cabinet: 2.6 litres, internally cross-braced, 15 mm MDF front baffle
- Mounting: pre-fitted wall bracket, portrait or landscape
- Connections: red and black spring-clip terminals (bare wire or pin connectors, including our Radique Audio pin connectors)
- Finish: Dark Oak, black cloth grilles
- Designed and engineered in the UK
- Dimensions: (Height x Width x Depth) 8.27 x 5.51 x 6.3 inches (210 x 140 x 160 mm)
- Weight: 4.9 lbs (2.2 kg) each
🔌 Speaker Cable and the Right Connector
The speaker terminals here are spring clips rather than binding posts, so banana plugs and spades will not fit — our own gold-plated pin connectors are the right answer, and they make connecting and disconnecting far easier than stripping bare wire every time. We also hand-build speaker cable here in any length you need, terminated to suit, on our Custom Speaker Cable Builder. 👉
✅ Buy With Confidence — The Radique Promise
Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program. When you’re ready to move on, we’ll take it back. That’s the Radique difference.
📦 Watch how we protect your gear — our unboxing video.
📺 Curious about our business? Check out our YouTube channel for behind-the-scenes videos and more!
📞 Questions? Use the Ask a Question button above, or call us at 613-416-9995.
