Radique Audio Bi-Wire Speaker Bridges – Banana/Spade, Set of 4
$90.00
US orders: import duties and fees are added at checkout and prepaid by us, so there is nothing to pay at delivery.
Better bridges for bi-wire speakers: a set of four, banana at one end and spade at the other, to replace the stock jumper plates.
- 12 in (304 mm), high-purity copper in a black and red braided sleeve
- Gold-plated banana plugs and 3 mm spades; fits posts up to 8 mm
- Red and black anodized housings for polarity
- Assembled by hand; custom lengths on request
- 1-year warranty
1 in stock (can be backordered)
Better bridges for bi-wire speakers
Lost the jumper plates, or tired of the thin stock ones? Our bridges link the high and low binding posts properly: banana at one end, spade at the other, copper in between.
The short answer
Radique Audio bi-wire bridges (also called speaker jumpers) replace the metal jumper plates on speakers with two sets of binding posts. A set of four does a stereo pair. Each is 12 in (304 mm) long, with a gold-plated banana plug at one end and a gold-plated 3 mm spade at the other, high-purity copper inside a black and red braided sleeve, and red and black anodized housings for polarity. Assembled by hand in our shop; custom lengths on request.
Which connector does your gear need?
All four share the same red and black colour coding, so polarity reads at a glance whichever ends you choose. Not sure what your gear takes? Look at the terminals on the back, or send us the make and model.
| Connector | Made for | Wire | Sold as |
|---|---|---|---|
| Banana plugs | Standard 5-way binding posts (most amps and speakers) | 12–18 AWG | 1, 2, 4, 5, 7 or 14 pairs |
| Spade connectors | Larger binding posts, up to 8 mm | 12–18 AWG | 1, 2, 4 or 10 pairs |
| Pin connectors | Spring clips and guillotine terminals | 12–18 AWG | 1, 2, 4 or 10 pairs |
| Bi-wire bridges (this one) | Replacing jumper plates on bi-wire speakers | Pre-made, 12 in | A set of 4 |
What they do
Replace the jumper plates

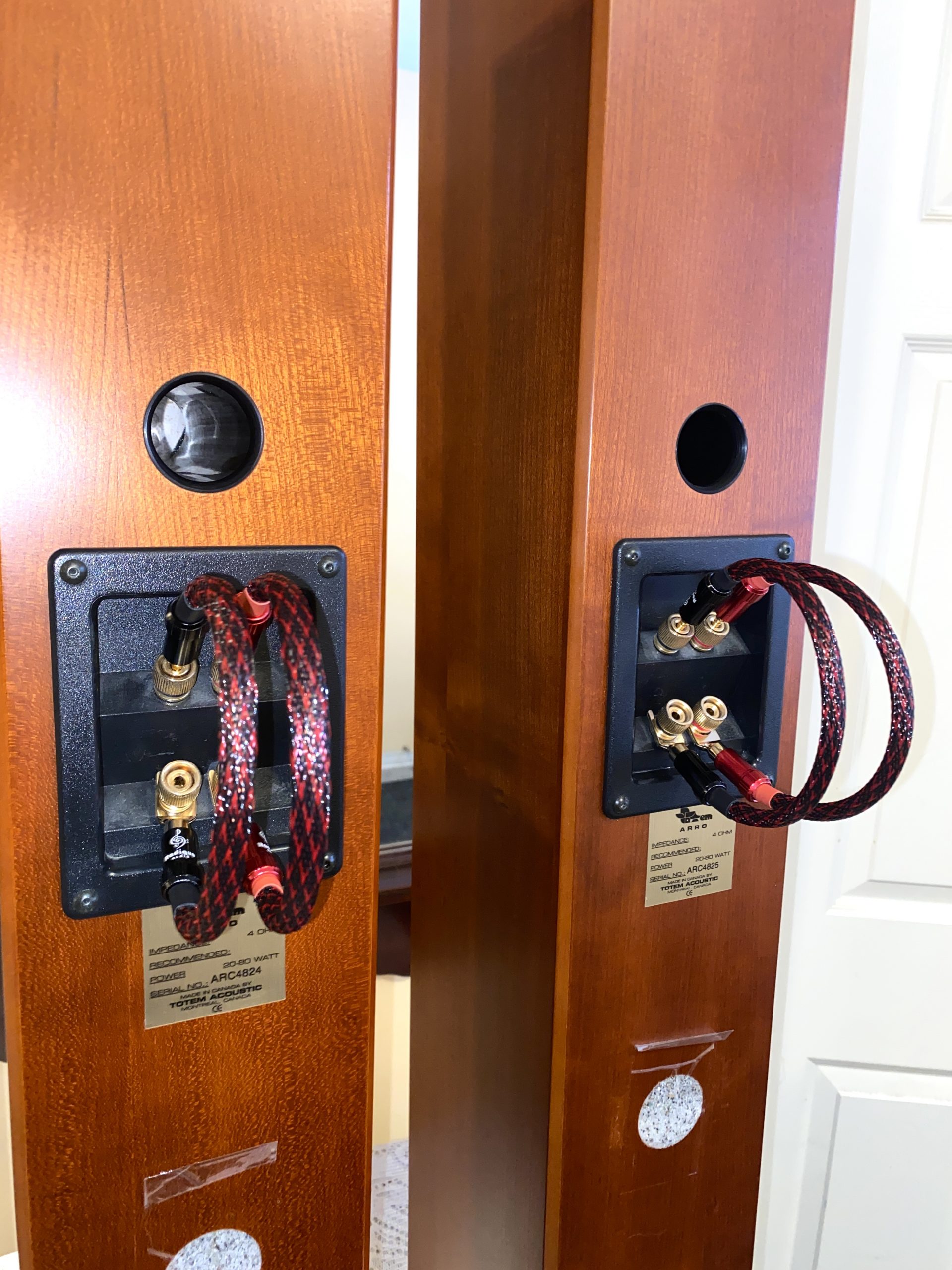

Bi-wire speakers ship with metal plates linking the tweeter and woofer posts. When you run one cable, bridges do that job, and many people find the stock plates are the weak link.
Banana one end, spade the other
Mix and match to suit your posts and your cable: the banana plugs in, the spade clamps under.
Copper in a braided sleeve
High-purity copper conductors inside a rugged black and red braided sleeve that looks the part.
Polarity at a glance
Red and black anodized aluminum housings, easy to read behind a crowded rack.
Just plug in
No tools needed: remove the plates, fit the bridges, connect your cable.
Any length
Need them longer or shorter? We build to suit: ask for a quote.
Specifications
| Radique Audio bi-wire bridges | |
|---|---|
| Sold as | A set of 4 matched bridges (one stereo pair of speakers) |
| Length | 12 in (304 mm) |
| Ends | Gold-plated banana plug · gold-plated 3 mm spade |
| Fits posts | Up to 8 mm |
| Conductor | High-purity copper |
| Sleeve | Braided, black with red |
| Housings | Anodized aluminum, colour-coded red and black |
| Weight | 39 g (1.4 oz) per bridge |
| Assembly | By hand, in our shop |
| Warranty | 1 year (Radique Audio) |
Why buy it from us
Audiophile quality, fair price
Radique Audio is our own line: parts we spec, test and use every day in our shop, priced the way we’d want to pay.
A 1-year warranty
Every Radique Audio product carries a 1-year warranty: if it fails under normal use within the year, we replace it at no charge.
Pick up, or have it shipped
Collect it free in Kanata by appointment, or have it shipped across Canada and internationally: enter your city and postal code on the cart page for live rates. With one of our pre-owned speakers or components, it rides along at no extra shipping cost.
Real help from people who use it
Not sure what fits? Send us the make and model of your gear and we’ll tell you, including when you don’t need anything at all.
On video
Radique Audio bridge connectors
A closer look at the bi-wire bridges and how they replace the jumper plates.
How we pack your order
Cables and connectors ship in our high-quality Radique Audio bubble packs. If your order also includes speakers or other larger gear, everything is boxed up together in our 275 lb-test double-wall packaging, as in this video.
Questions we get about this one
Do your speakers need bridges?
If they have two pairs of binding posts and you’re running one speaker cable to each, yes: something has to link the pairs. If you bi-wire (two cables per speaker), take the bridges out.
How many come in a set?
Four: two per speaker, one for the red posts and one for the black, enough for a stereo pair.
Can you make them a different length?
Yes. Tell us the length and ends you need and we’ll quote a set built to suit.
Should you bi-wire instead?
It’s an option if your speakers support it. Our Cable Builder makes bi-wire cables in House Quad, Kimber 4PR and Kimber 4TC.
What warranty does it have?
A 1-year warranty, like every Radique Audio product: if it fails under normal use within the year, we replace it at no charge. See our warranty FAQ.
What does shipping cost? Is pickup possible?
Pickup in Kanata is free, by appointment. To have it shipped, add it to your cart and enter your city and postal code on the cart page: you’ll see live carrier rates before you commit. We ship across Canada and internationally. Buying it with one of our pre-owned speakers or components? Then it rides along in the same order at no extra shipping cost.
Do you ship to the United States?
Yes. On Radique Audio products we add the US import duties and fees at checkout and prepay them for you, so there’s nothing to pay at delivery.
Rather we built the whole cable?
Our Custom Speaker Cable Builder makes speaker cable to order, in any length, with these connectors on either end.
| Weight | .44 lbs |
|---|---|
| Dimensions | 10 × 8 × 1 in |
