Marantz Model 1070 Integrated Amp – 35 WPC, For Parts/Repair

Marantz Model 1070 Stereo Integrated Amplifier – 35 WPC, Silver Face, Solid Walnut Case, Sold As-Is for Parts or Repair

A complete 1970s Marantz integrated amplifier in good cosmetic condition, offered as-is for parts or repair. It is untested and sold as non-working, with no warranty implied.

What It Is When Working

Where the 1070 Sat in the Range

The 1070 is the integrated amplifier that sat alongside the 1060 in Marantz’s slim-line separates range, rated at 35 watts per channel into 8 ohms across the full 20Hz to 20kHz band at 0.3% distortion. It carries the Marantz phono stage at 1.8 millivolt sensitivity, a three-band tone section with a mid control rather than the usual bass and treble alone, high and low filters, a mode control, and inputs for phono, tuner, auxiliary and two tape decks. The preamplifier and power amplifier sections can be separated and used independently, and a speaker matrix circuit allows a four-speaker arrangement from the two channels. Output transistor protection is handled by Marantz’s PEP circuit.

The Walnut Case

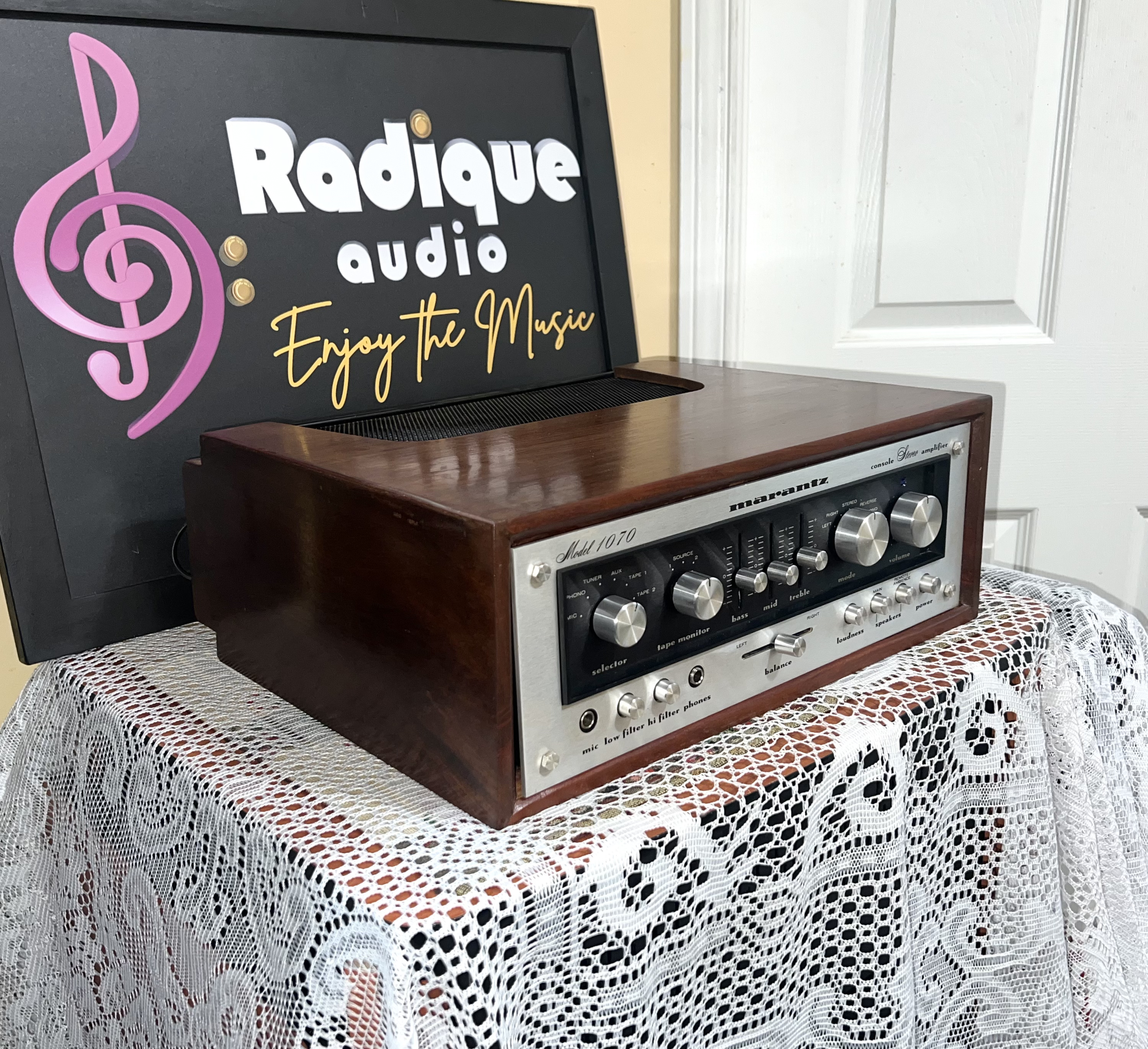

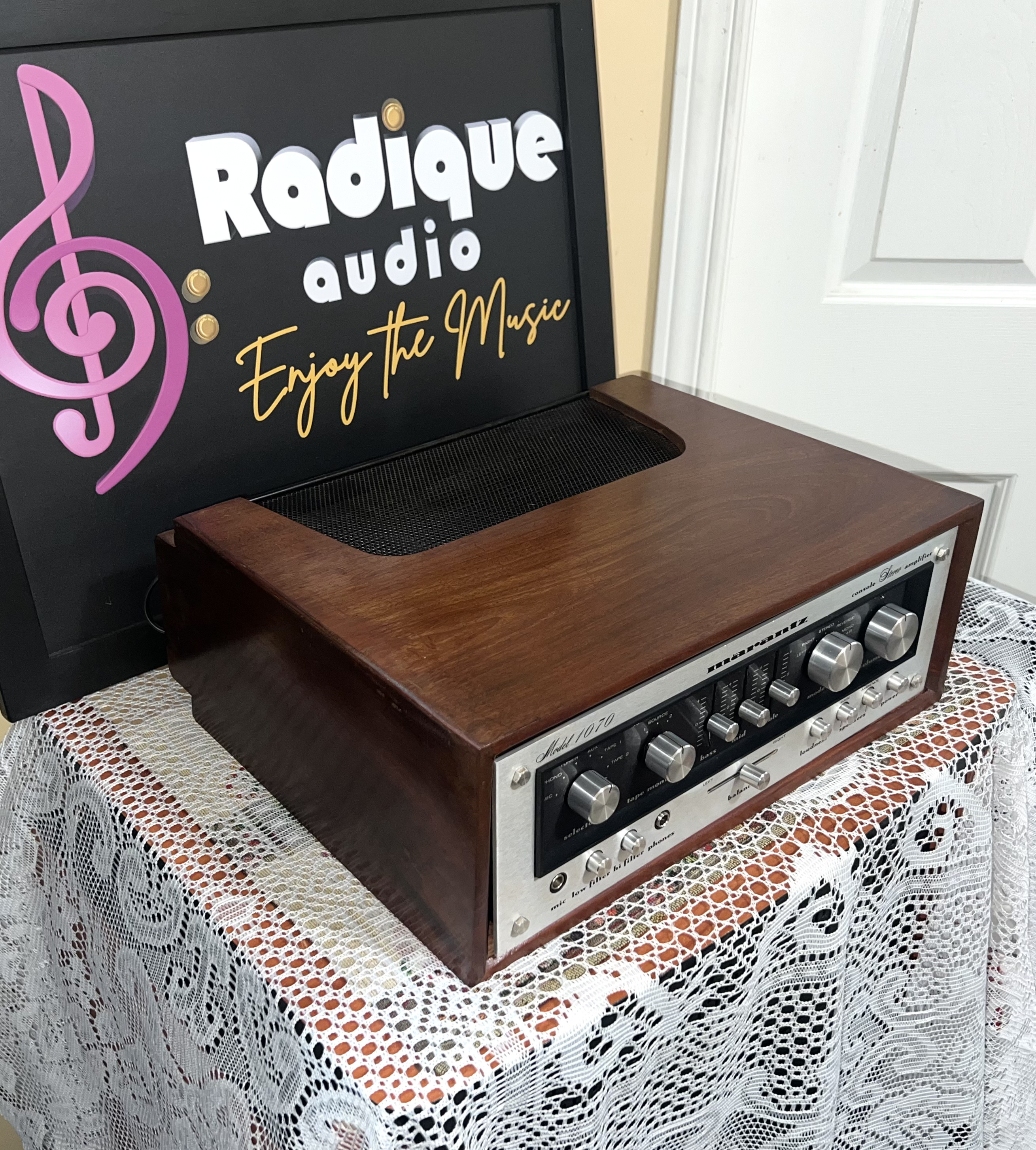

The case is worth being precise about. Marantz did sell a walnut cabinet for this amplifier as a separately priced factory accessory, but this is not that cabinet. Nor is it one of the cabinets we build here. It is hand-built in solid walnut by a previous owner, and it reads as hand-built — the fit is looser than a factory cabinet or one of ours, and the joinery came out of a home workshop rather than a cabinet shop. On a unit bought for its parts that matters less than it would on a working piece, and the photographs will show you exactly what it is.

Why It Is Worth Having

What Carries the Value

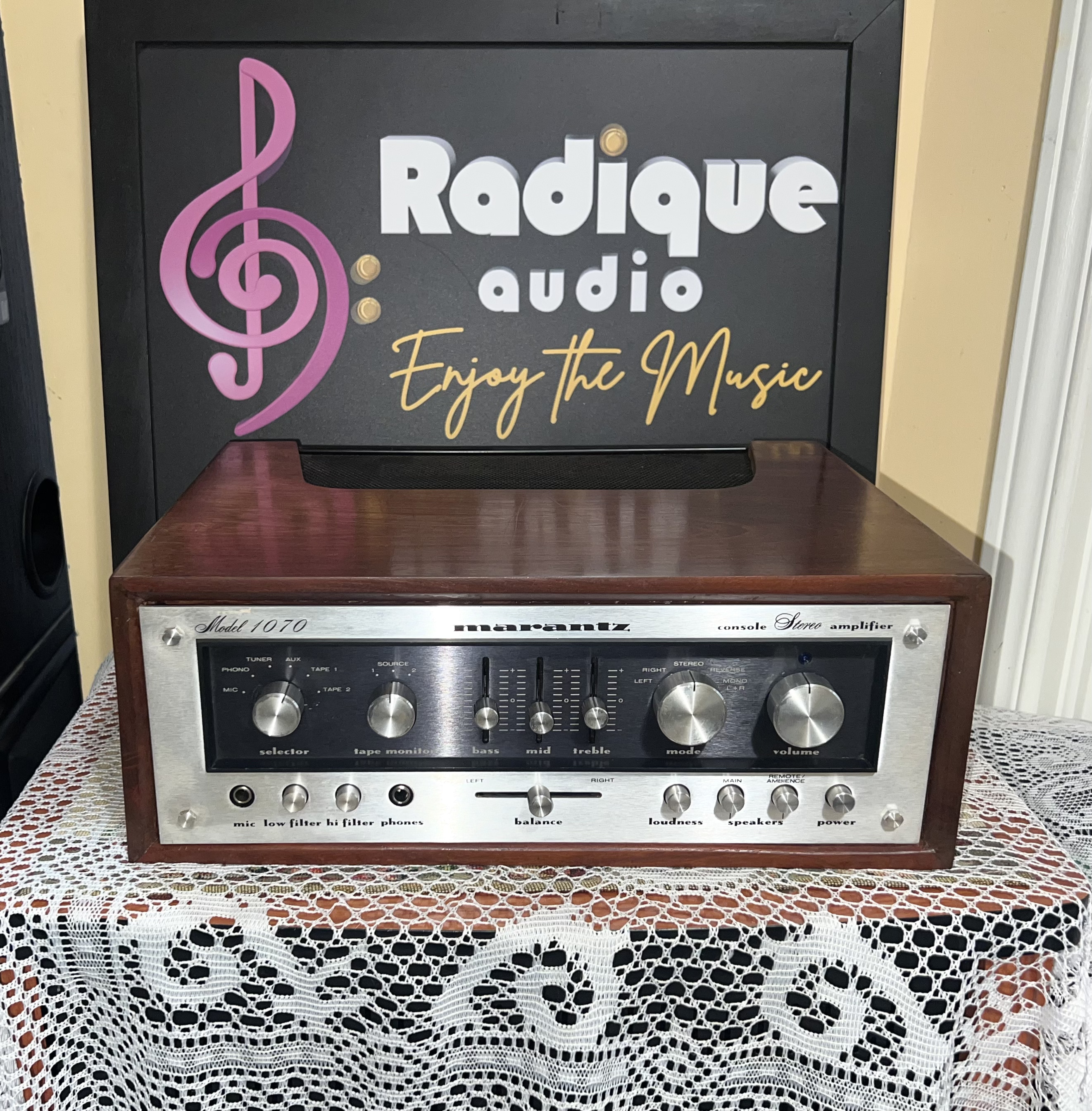

The parts that carry the value on a vintage Marantz are the ones that cannot be bought new: the brushed silver faceplate, the knobs and switch caps, the power transformer and the chassis. This one is complete and cosmetically good, which is the whole point of a donor — a restorer wants a clean faceplate and an unmarked set of knobs far more than a working amplifier. Sold on that basis rather than as a working piece.

Who This Is For

Best suited for: a technically capable buyer, a repair shop, or an existing Marantz owner needing a parts donor.

Marantz 1070 Specifications (as designed, for reference)

Marantz Model 1070 Stereo Integrated Amplifier Specifications

• Power output: 35 watts per channel into 8 ohms
• Frequency response: 20Hz to 20kHz
• Total harmonic distortion: 0.3%
• Damping factor: 20
• Input sensitivity: 1.8 millivolts (MM phono), 180 millivolts (line)
• Filters: High 10kHz, Low 50Hz

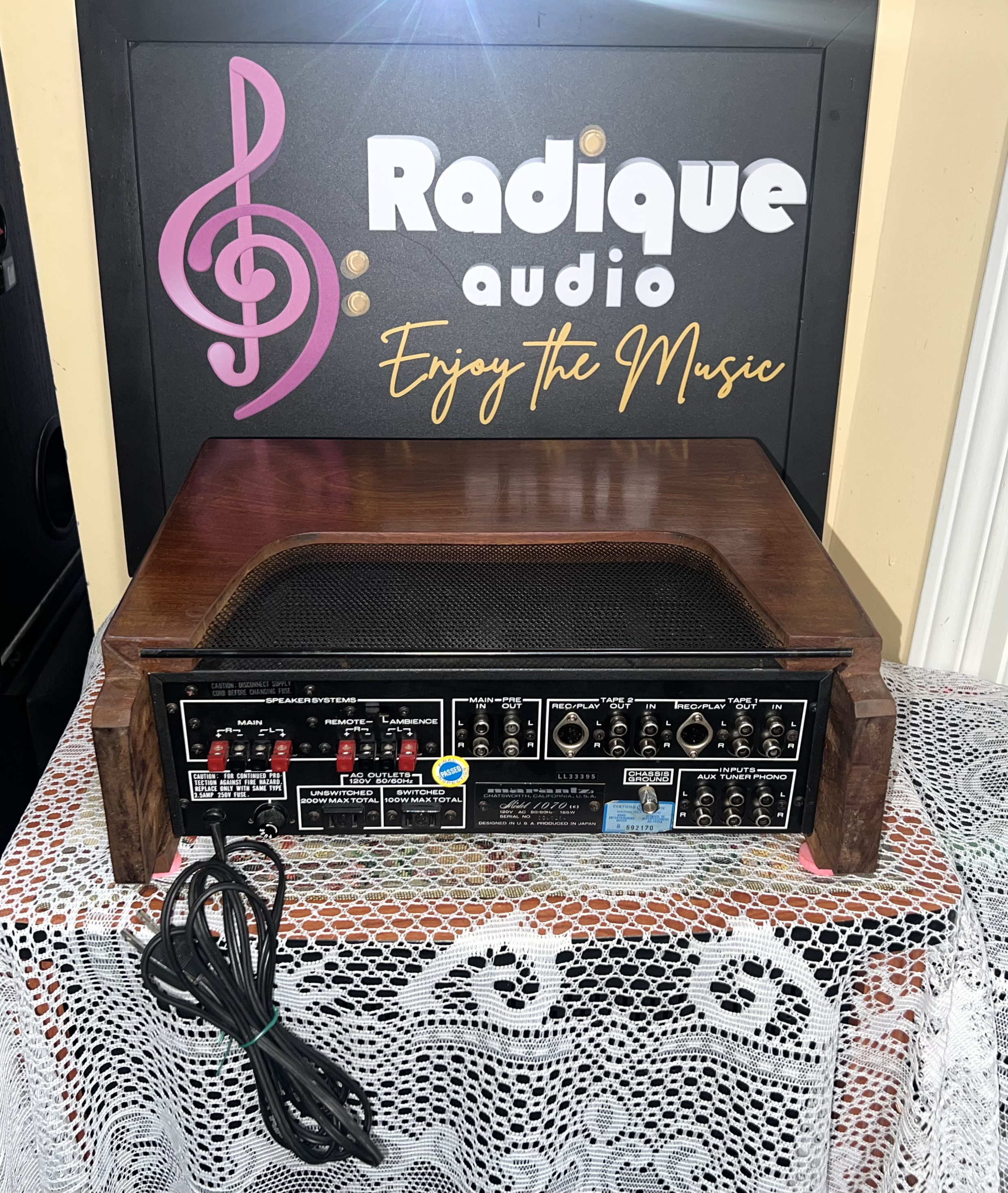

• Inputs: Phono (MM), Tuner, Auxiliary, Tape (x2)
• Features: Three-band tone control with mid, mode control, speaker matrix for four-speaker operation, separable preamplifier and power amplifier sections, PEP output transistor protection
• Condition: Good cosmetically; untested and non-working — sold as-is for parts or repair, no warranty
• Dimensions: (Width x Height x Depth) approximately 16.25 x 6.75 x 12 inches (413 x 171 x 305 mm), including the walnut case
• Weight: approximately 23 lbs (10.4 kg), including the walnut case

⚠️ Important Information for International Buyers

This unit is configured for North American 110/120V power. Buyers outside North America will require a step-down transformer and appropriate plug adapter.

Sold As-Is — Please Read

This unit is offered as-is for parts or repair. It is not covered by our Bumper-to-Bumper Warranty and is not eligible for the Perpetual Trade-Back Program. All sales final.

📞 Questions? Use the Ask a Question button above, or call us at 613-416-9995.
