Yamaha YST-SW105 Active Servo Subwoofer — Compact 100W

Name: Yamaha YST-SW105 Active Servo Subwoofer — Compact 100W
Brand: Yamaha
SKU: 14958
Price: 145.00 CAD
Availability: InStock

$145.00

An 8-inch front-firing paper cone on Yamaha’s Advanced Active Servo amplifier — 100 watts into 5 ohms, down to 30 Hz, from a cabinet small enough to tuck beside a bookshelf pair. Continuously variable high-cut from 50 to 150 Hz, a Music/Movie voicing switch, RCA and speaker-level inputs plus full-range pass-through outputs. Very good condition.

1 in stock

Compare

Add to wishlist

Description

Don’t let the modest footprint fool you — the Yamaha YST-SW105 is a genuinely capable compact powered subwoofer that consistently surprises with the quality and depth of bass it delivers from a cabinet small enough to tuck discreetly beside almost any speaker system.

The YST-SW105 is built around Yamaha’s Advanced Active Servo Technology — a proprietary feedback system that couples the amplifier and driver in a continuous correction loop, reducing distortion and extending low-frequency linearity well beyond what a conventional subwoofer of this size could achieve passively. The 20cm (8″) front-firing paper cone woofer and front-firing bass reflex port are tuned to work with the servo amplifier as a complete system, producing clean, musical bass down to 30 Hz that integrates naturally with compact satellite and bookshelf speakers. A B.A.S.S. (Bass Action Selector System) switch lets you optimize the sub’s voicing between Music and Movie modes, and the continuously variable high-cut filter (50–150 Hz at 24 dB/octave) makes dialling in the crossover point with your main speakers straightforward.

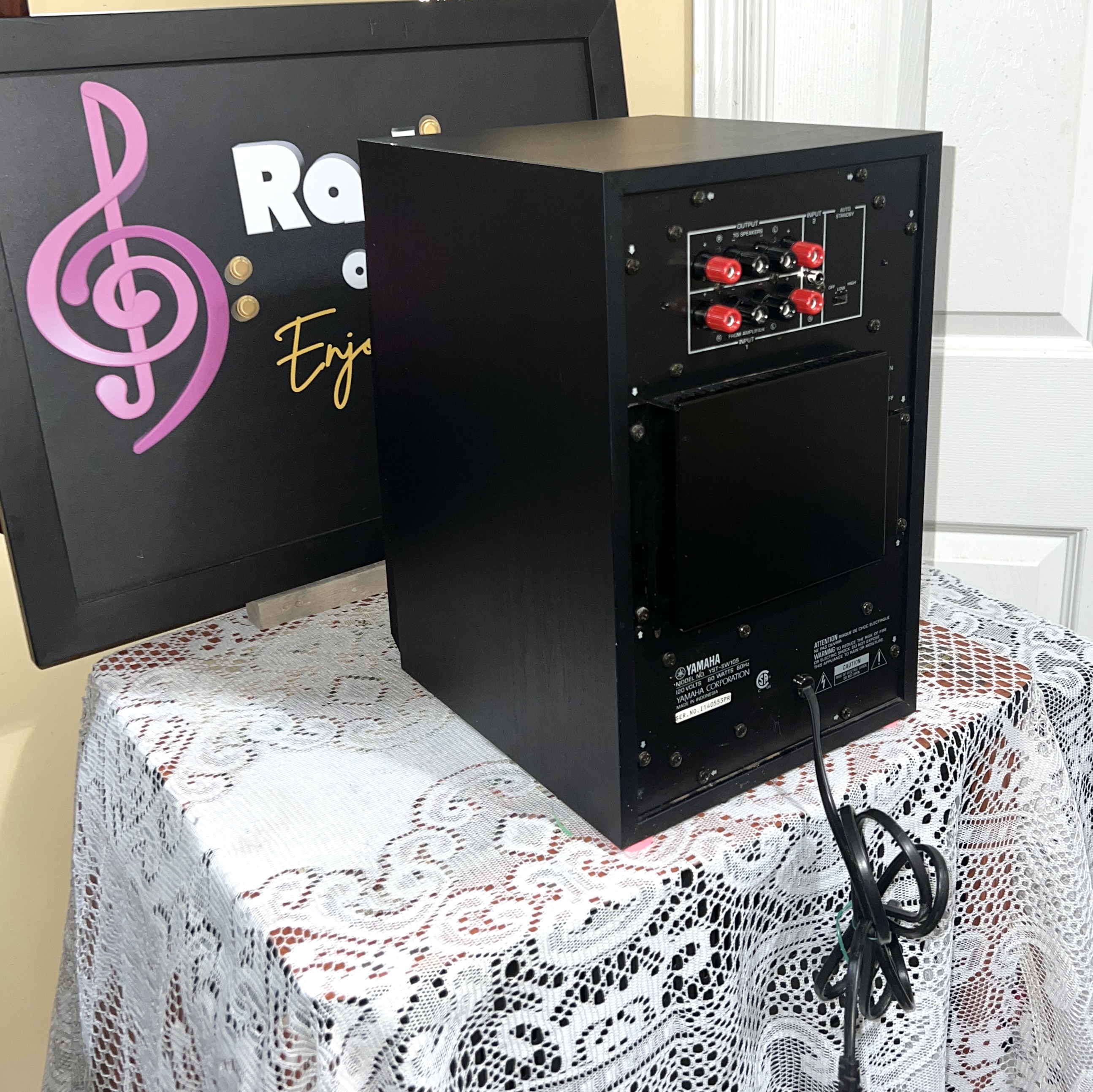

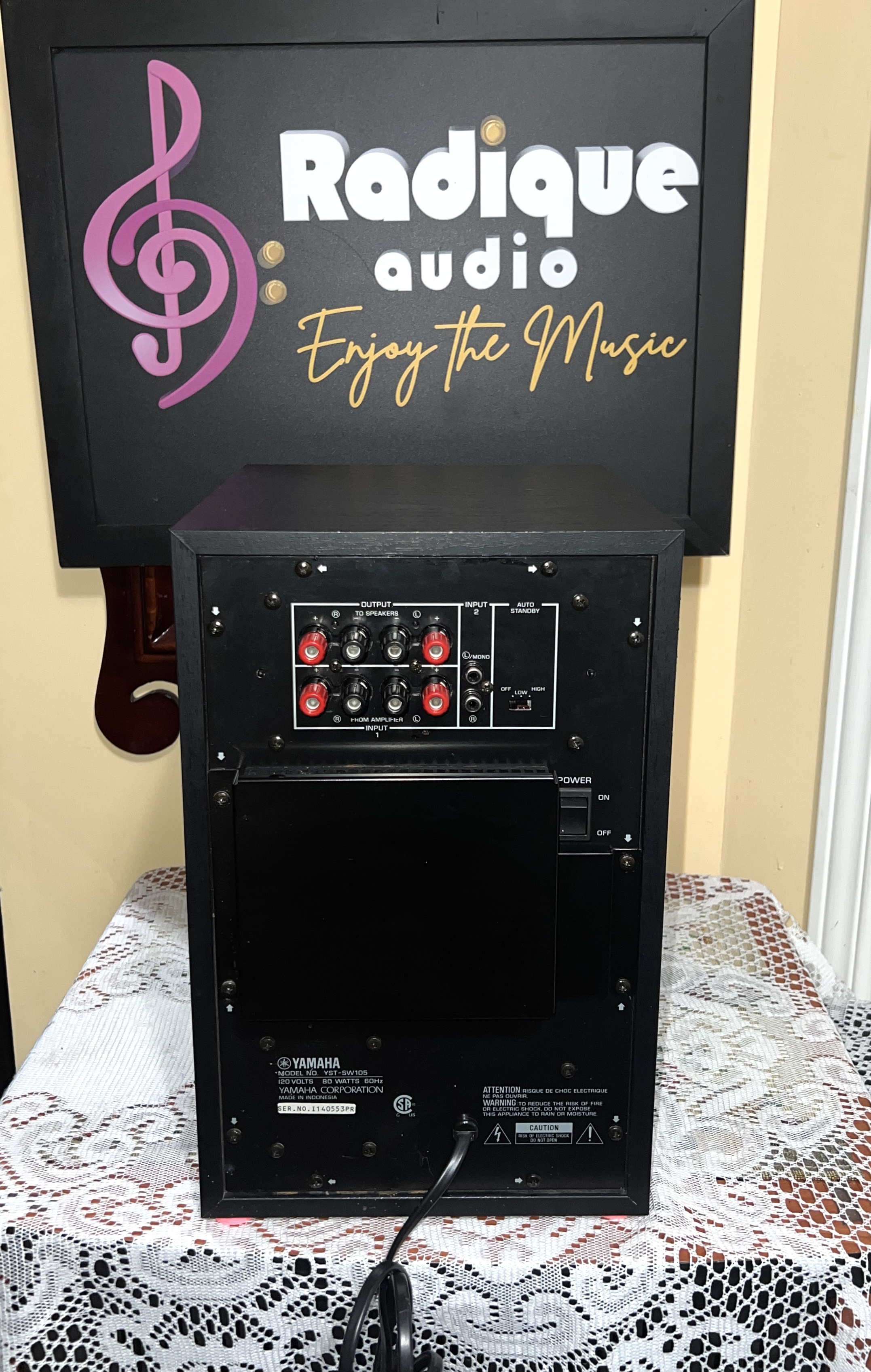

Connection flexibility is excellent for a sub of this class: both preamp-level RCA inputs and speaker-level inputs (banana plug compatible) are provided on the rear, along with full-range speaker-level output pass-through terminals — meaning the YST-SW105 can be integrated into any system regardless of whether a dedicated subwoofer output is available on the amplifier or receiver. Automatic standby (with adjustable Low/High sensitivity) powers the sub down when no signal is present and wakes it instantly when you start listening.

This unit is in very good condition and has been thoroughly inspected and tested to confirm full functionality.

Type: Advanced Yamaha Active Servo Technology bass reflex powered subwoofer
Driver: 20cm (8″) front-firing paper cone woofer
Amplifier output: 100W (5Ω)
Frequency response: 30 Hz – 200 Hz
High-cut filter: 50–150 Hz, 24 dB/octave (continuously variable)
B.A.S.S. switch: Music / Movie modes
Inputs: Preamp-level RCA (L/R); speaker-level (banana plug compatible)
Outputs: Speaker-level pass-through (full range, banana plug compatible)
Auto standby: Yes — Off / Low / High sensitivity settings
Magnetic shielding: Yes
Power consumption: 80W (0.8W standby)

Dimensions: (Width x Height x Depth) 9.3 x 14.4 x 12.3 inches (235 x 365 x 312 mm)
Weight: 20.9 lbs (9.5 kg)

An excellent-sounding compact powered subwoofer — Yamaha’s Active Servo Technology delivers surprisingly deep, well-controlled bass from a cabinet that fits almost anywhere.

Backed by Radique Audio’s Bumper-to-Bumper Warranty and our Perpetual Trade-Back Program, you can purchase with confidence.

$145.00

Additional information

Weight	23 lbs
Dimensions	16.3 × 13.3 × 18.4 in

About brand

Yamaha at Radique

We service Yamaha, too. Bring us your own Yamaha receivers, amplifiers, CD players, cassette decks, speakers and subwoofers for repair, servicing or restoration, with a 90-day warranty on the work. See our Audio Service page

Yamaha began as an organ maker in Hamamatsu, Japan, in 1887. It made gramophones from the 1920s and began hi-fi with the 1954 HiFi Player. We carry Yamaha AV receivers, vintage stereo receivers, CD players, subwoofers and speakers. We've had more than 280 Yamaha listings so far, covering nearly 200 different models. Every used Yamaha here is inspected, tested and serviced as required, then photographed in-house and covered by our Bumper-to-Bumper Warranty and Perpetual Trade-Back Program. Every AV receiver we list is tested input by input on our bench: each HDMI input and output, the analog, optical and coaxial inputs, the subwoofer outputs and the wireless features where it has them. Don't see the model you want? Tell us on First Dibs and we'll email you when one arrives.

Yamaha models we've sold most often: the SW-3 subwoofer, the NX-E270 surrounds, and the RX-V1400, RX-V850 and RX-V800 AV receivers.

The Yamaha hi-fi story

Torakusu Yamaha built his first reed organ in Hamamatsu in 1887 and founded Nippon Gakki in 1897; the company was renamed Yamaha Corporation in 1987. Yamaha calls the 1954 HiFi Player its first audio product, and dates its first Natural Sound (NS) speakers to 1967.

1970s hi-fi. The CA-700 and CA-500 of 1972 were Yamaha's first integrated amplifiers, and the CA-1000 of 1973 could switch its output stage between Class A and Class A/B. The NS-1000 and NS-1000M speakers of 1974 used beryllium dome drivers, and the NS-10M of 1978, sold for home use, became a studio monitor.

CD and surround. The CD-1 of 1982 was Yamaha's first CD player. The DSP-1 of 1986 was a Digital Sound Field Processor, and in 1993 the RX-V870 became the first Yamaha receiver with CINEMA DSP. The RX-V992 of 1997 added built-in Dolby Digital decoding.

AVENTAGE. The AVENTAGE (RX-A) receiver line launched in 2010, above the RX-V range.

Which Yamaha is which?

CA integrated amplifiers (1972 to about 1979): the CA-500, CA-700, CA-1000 and CA-2000, followed by the A-series.

CR receivers (mid-1970s to about 1980): the CR-1000, then the CR-620 to CR-2020 generation of 1977 to 1979.

NS speakers: from the NS-690 and the beryllium NS-1000 to the NS-10M bookshelf speaker, made from 1978 to 2001.

CD players: from the CD-1 of 1982 to the CDX and GT-CD models.

RX-V AV receivers (from at least 1991): such as the RX-V800, RX-V850 and RX-V1400 we sell often. Built-in Dolby Digital arrived in 1997, YPAO room calibration in 2003 and HDMI in the mid-2000s.

RX-A AVENTAGE (from 2010): the step-up AV receivers. The RX-Z models were the flagships until 2007.

Buying used Yamaha: what to check

Formats. On an AV receiver, check what it decodes and connects to: Dolby Digital from 1997, room calibration from 2003, HDMI from the mid-2000s.

HDMI boards. On modern AV receivers, HDMI is usually the first thing to fail. We test every HDMI input and output before listing.

CR receivers. Owners suggest asking whether service bulletins were done on a CR-2020, and expect scratchy controls and burnt-out dial lamps on any unserviced unit.

NS speakers. Check that the tweeters on an NS-10M are original and both work, and inspect the beryllium domes on an NS-1000, since Yamaha stopped making beryllium diaphragms in 1997.

Everything we list is inspected, tested and serviced as required here, and comes with our warranty.
